Toyota Lexus UX300#/250H

2022-07 → present · chassis KMA10,MZAH1# · catalogue 537420 · United States

Supported model Data version 2024-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Antenna

9 part groups · 2 illustrations

Illustrations

Figure 869488B

869488B 2022-07 → 2023-12

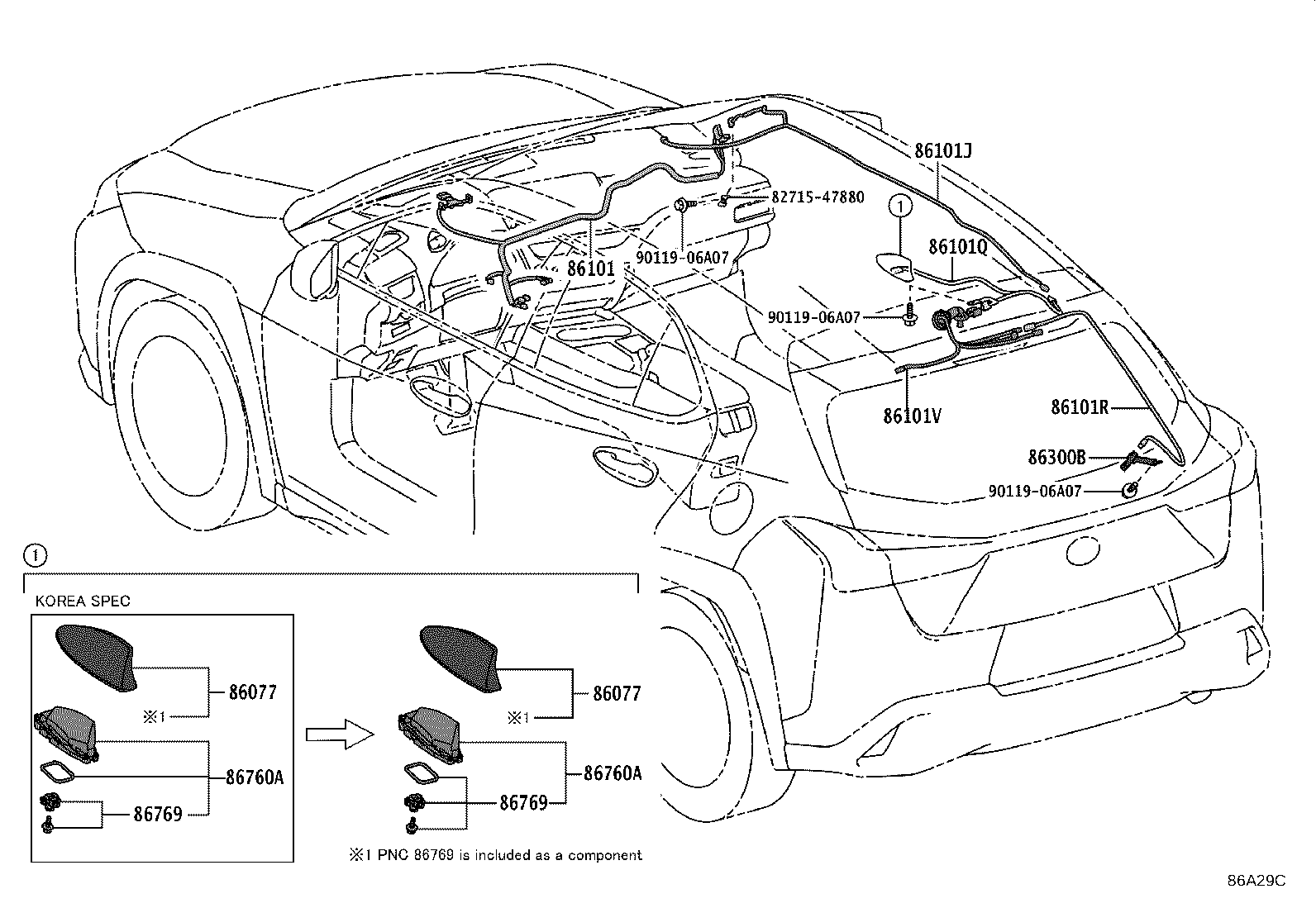

Figure 86A29C

86A29C 2024-01 → —

Part groups

PNC	Description
86077	Cover Kit, Antenna
86101	Cord Sub-assy, Antenna
86101J	Cord Sub-assy, Antenna, NO.2
86101Q	Cord Sub-assy, Antenna, NO.4
86101R	Cord Sub-assy, Antenna, NO.5
86101V	Cord Sub-assy, Antenna, NO.6
86300B	Antenna Assy, Amplifier, NO.1
86760A	Antenna Assy, Telephone
86769	Housing, Roof Antenna

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
