Toyota Lexus UX300#/250H
2022-07 → present · chassis KMA10,MZAH1# · catalogue 537420 · United States
Supported model
Data version 2024-01
Heating & Air Conditioning - Control & Air Duct
22 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|

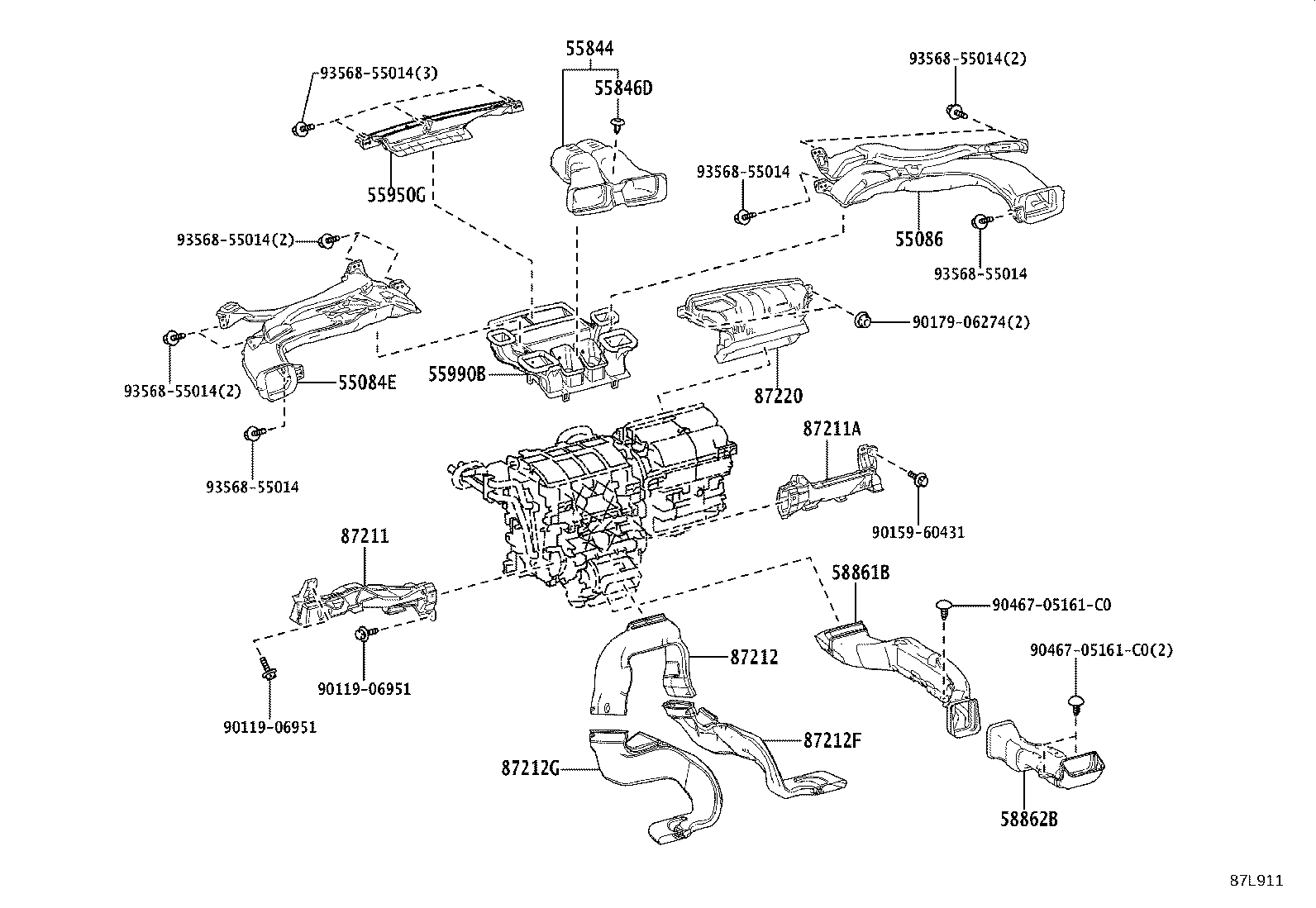

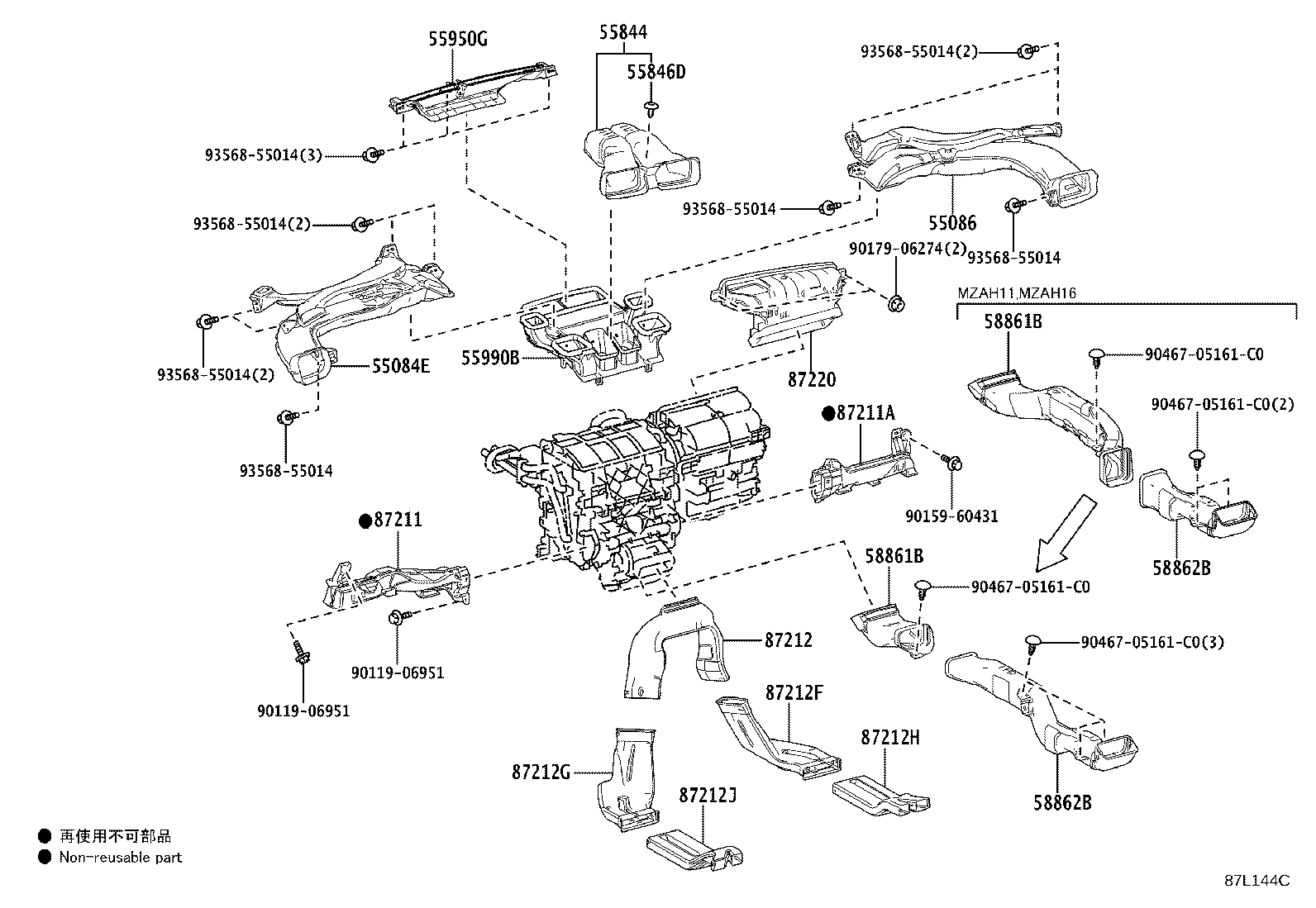

| 55084E | Duct Sub-assy, Heater TO Register, NO.1 |
| 55086 | Duct Sub-assy, Heater TO Register, NO.3 |
| 55844 | Duct, Heater TO Register, NO.2 |
| 55846D | Clip, Heater TO Register Duct |
| 55904A | Housing Sub-assy, Heater Control |
| 55950G | Nozzle Assy, Defroster |
| 55990B | Nozzle Assy, Defroster, Lower |
| 58861B | Duct, Console Box, NO.1 |
| 58862B | Duct, Console Box, NO.2 |
| 87211 | Duct, Air, NO.1 |
| 87211A | Duct, Air, NO.2 |
| 87212 | Duct, Air, Rear NO.1 |
| 87212F | Duct, Air, Rear NO.2 |
| 87212G | Duct, Air, Rear NO.3 |
| 87212H | Duct, Air, Rear NO.4 |
| 87212J | Duct, Air, Rear NO.5 |
| 87220 | Duct Assy, Air |

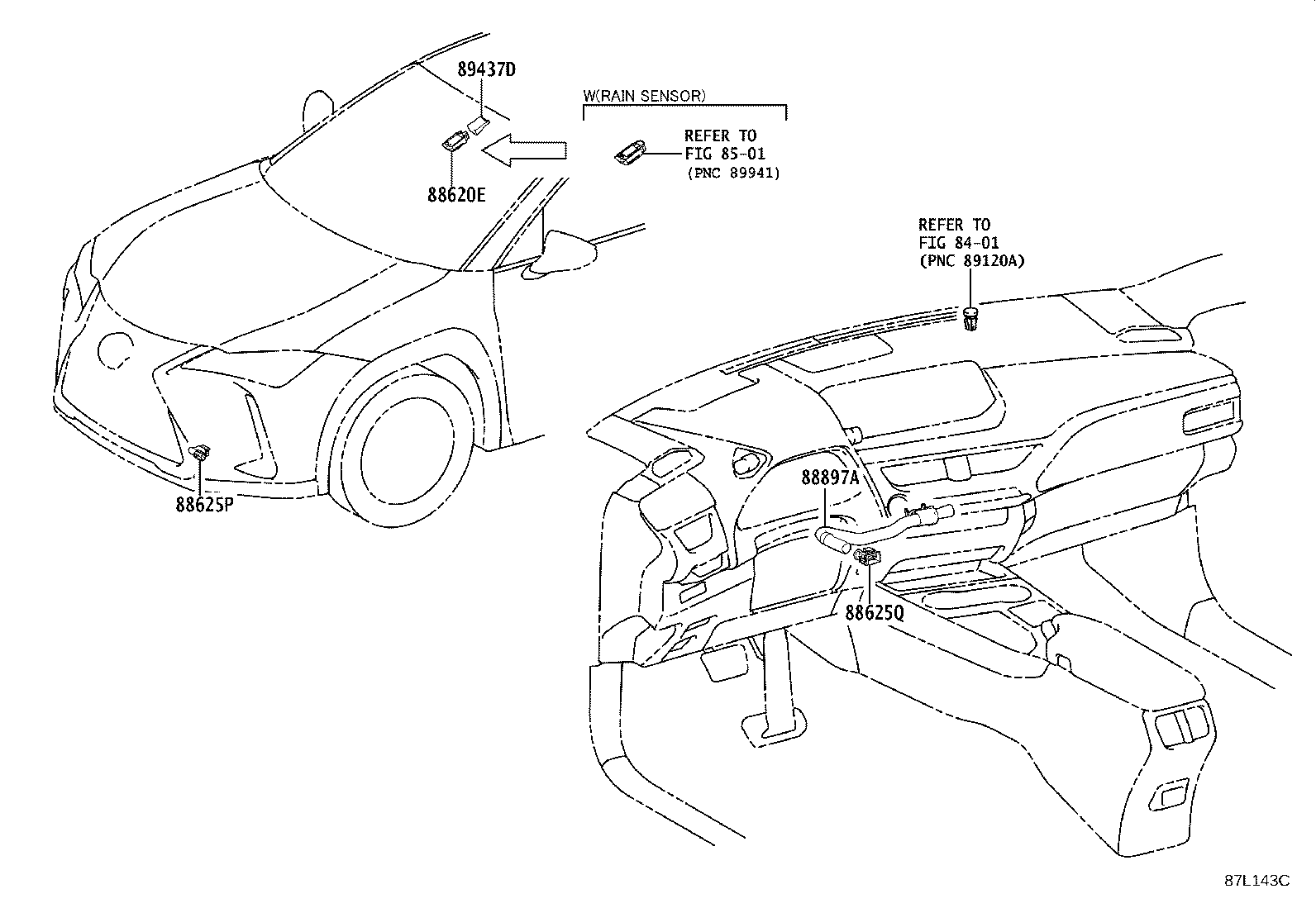

| 88620E | Thermistor Assy, Air Conditioner (HUMIDITY SENSOR) |
| 88625P | Thermistor, Cooler (AMBIENT TEMP. SENSOR) |
| 88625Q | Thermistor, Cooler (ROOM TEMP. SENSOR) |
| 88897A | Pipe, Aspirator |
| 89437D | Cover, Sensor |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
