Toyota Lexus UX300E
2021-11 → 2022-11 · chassis KMA10 · catalogue 538410 · United States
Supported model
Data version 2023-11
Switch & Relay & Computer
108 part groups · 9 illustrations
Part groups
| PNC | Description |
|---|---|
| 28371D | Relay, Ignition, NO.3 |
| 28371E | Relay, Ignition, NO.4 |
| 28371F | Relay, Ignition, NO.5 |
| 28371H | Relay, Ignition, NO.6 |
| 28800R | Relay, Battery Fan |
| 28850C | Sensor Assy, Battery State |
| 28859A | Holder, Battery Current Sensor |
| 35300G | Relay, Oil Pump |
| 82210N | Instrument Panel Fusible Link |
| 82210Q | Front Compartment Fusible Link |
| 82600D | Instrument Panel Fuse |
| 82600K | Front Compartment Fuse |
| 82610A | Block Assy, Fuse |
| 82616 | Puller, Fuse |
| 82620A | Block Assy, Fusible Link |
| 82641 | Relay, Integration NO.1 |

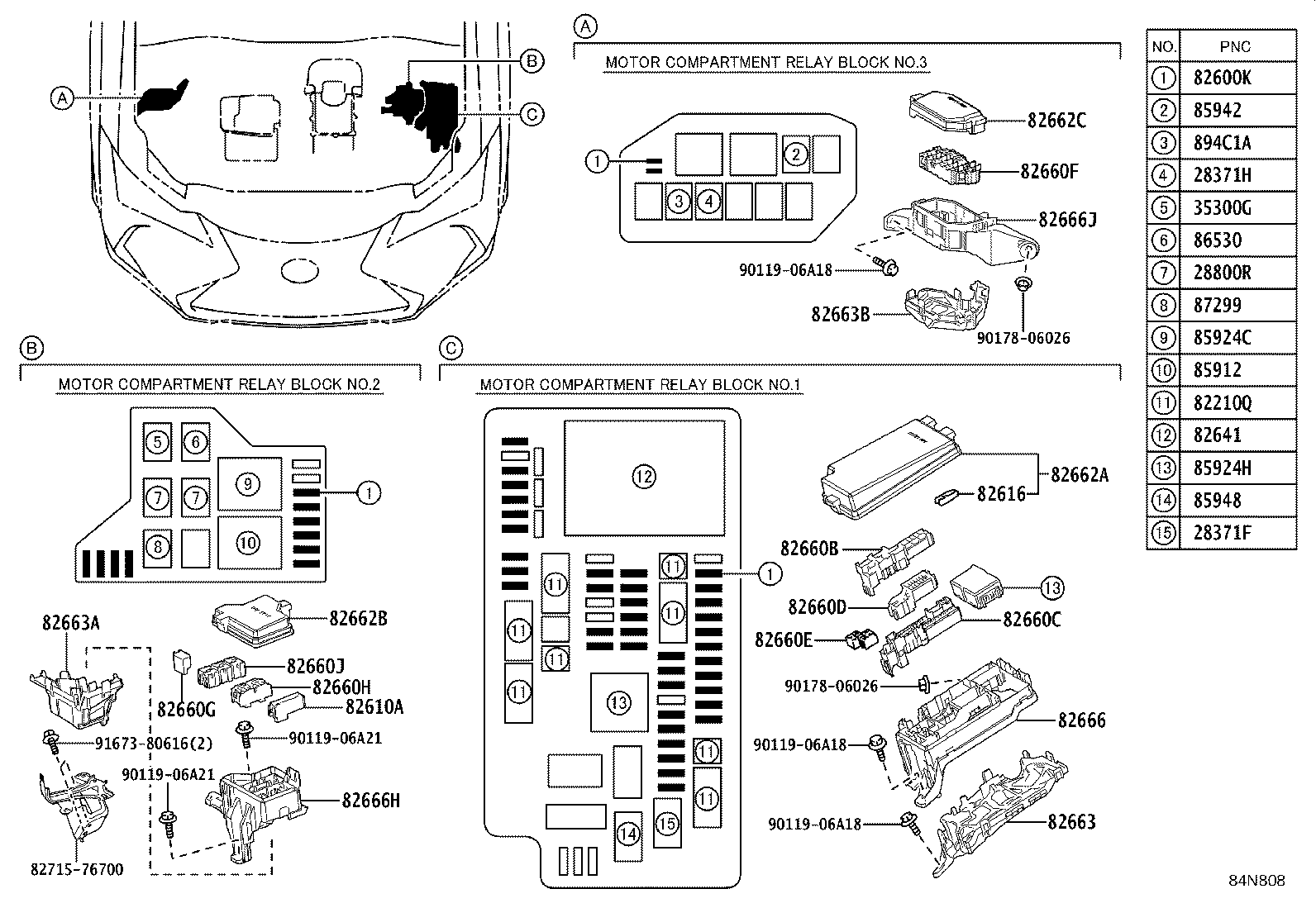

| 82660B | Block Assy, Relay |
| 82660C | Block Assy, Relay |
| 82660D | Block Assy, Relay |
| 82660E | Block Assy, Relay |
| 82660F | Block Assy, Relay |
| 82660G | Block Assy, Relay |
| 82660H | Block Assy, Relay |
| 82660J | Block Assy, Relay |
| 82662A | Cover, Relay Block, Upper, NO.1 |
| 82662B | Cover, Relay Block, Upper, NO.2 |
| 82662C | Cover, Relay Block, Upper, NO.3 |
| 82663 | Cover, Relay Block, Lower |
| 82663A | Cover, Relay Block, Lower, NO.2 |
| 82663B | Cover, Relay Block, Lower, NO.3 |
| 82663C | Cover, Relay Block Lower, NO.4 |
| 82666 | Holder, Connector |
| 82666H | Holder, Connector, NO.2 |
| 82666J | Holder, Connector, NO.3 |
| 82666K | Holder, Connector, NO.4 |
| 82672B | Cover, Junction Block |
| 82673A | Bracket, Junction Block, NO.1 |
| 82673B | Bracket, Junction Block, NO.2 |
| 82715 | Bracket,Wiring Harness Clamp |

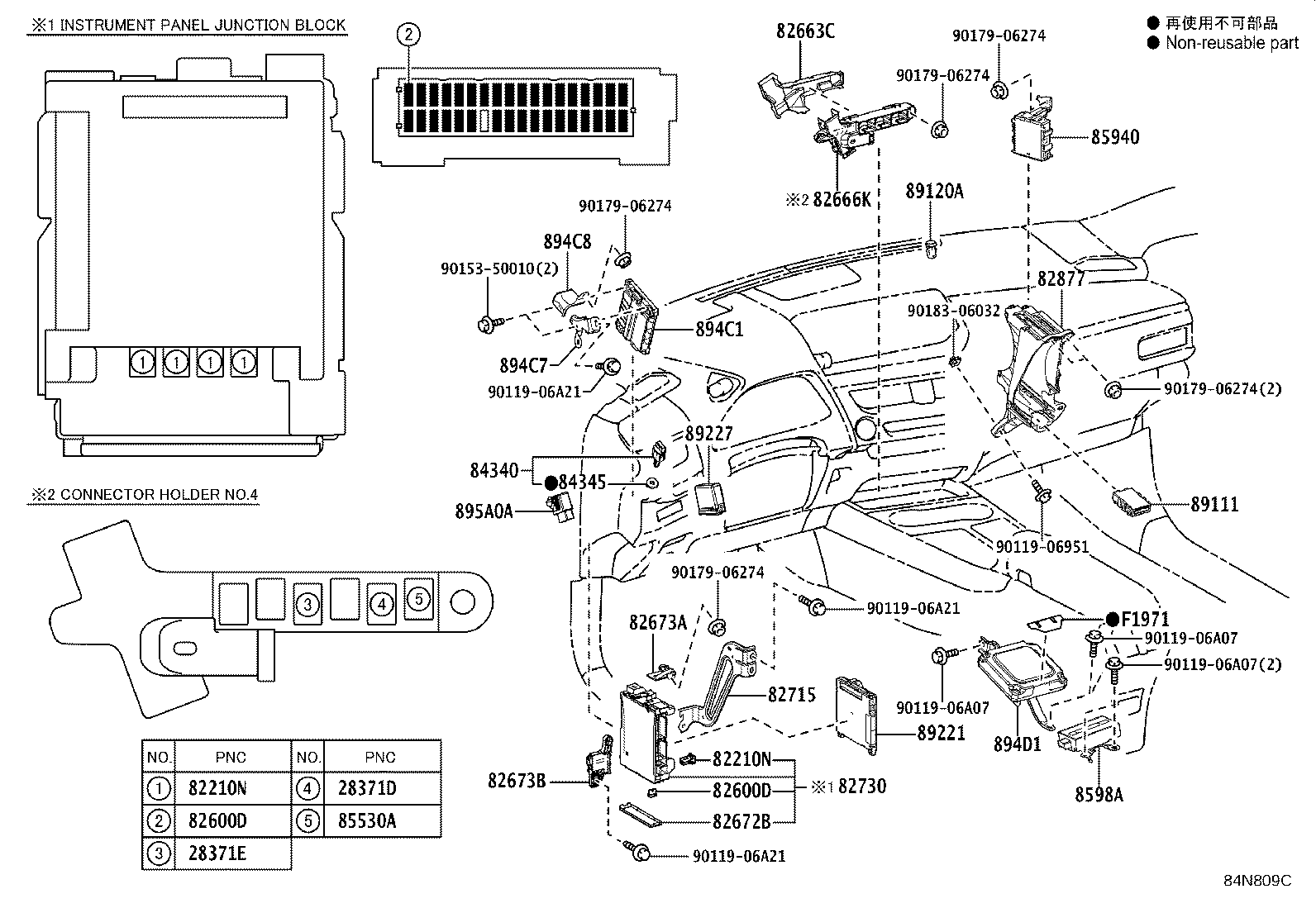

| 82730 | Block Assy, Instrument Panel Junction |
| 82877 | Box, Computer Integration, RH |
| 83910G | Clock Assy |

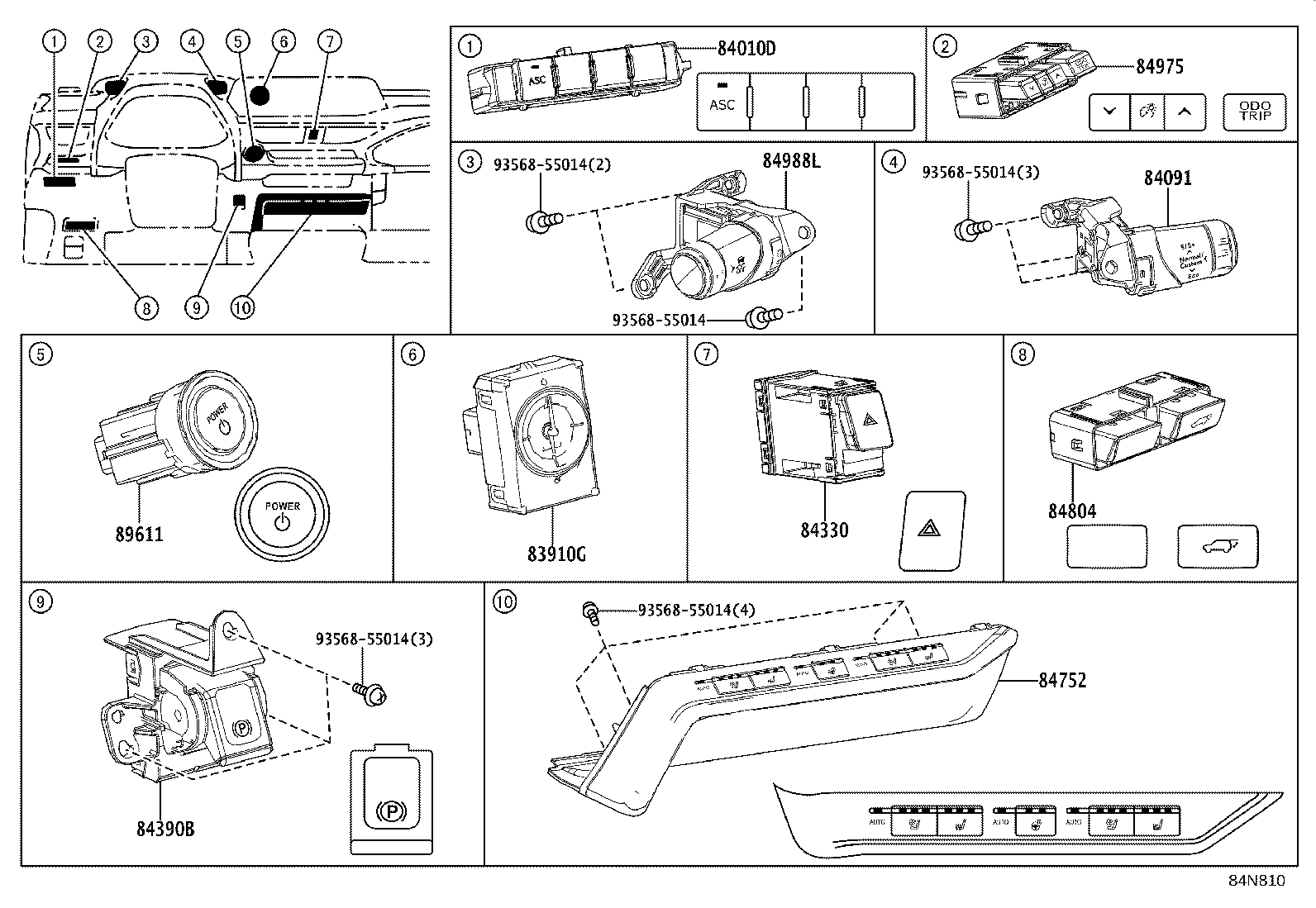

| 84010D | Control & Panel Assy, Integration |
| 84040 | Master Switch Assy,Multiplex Network |
| 84091 | Switch Set, Satellite |
| 84233 | Switch Assy, Courtesy Lamp (FOR FRONT DOOR) |
| 84234 | Switch Assy, Courtesy Lamp (FOR REAR DOOR) |

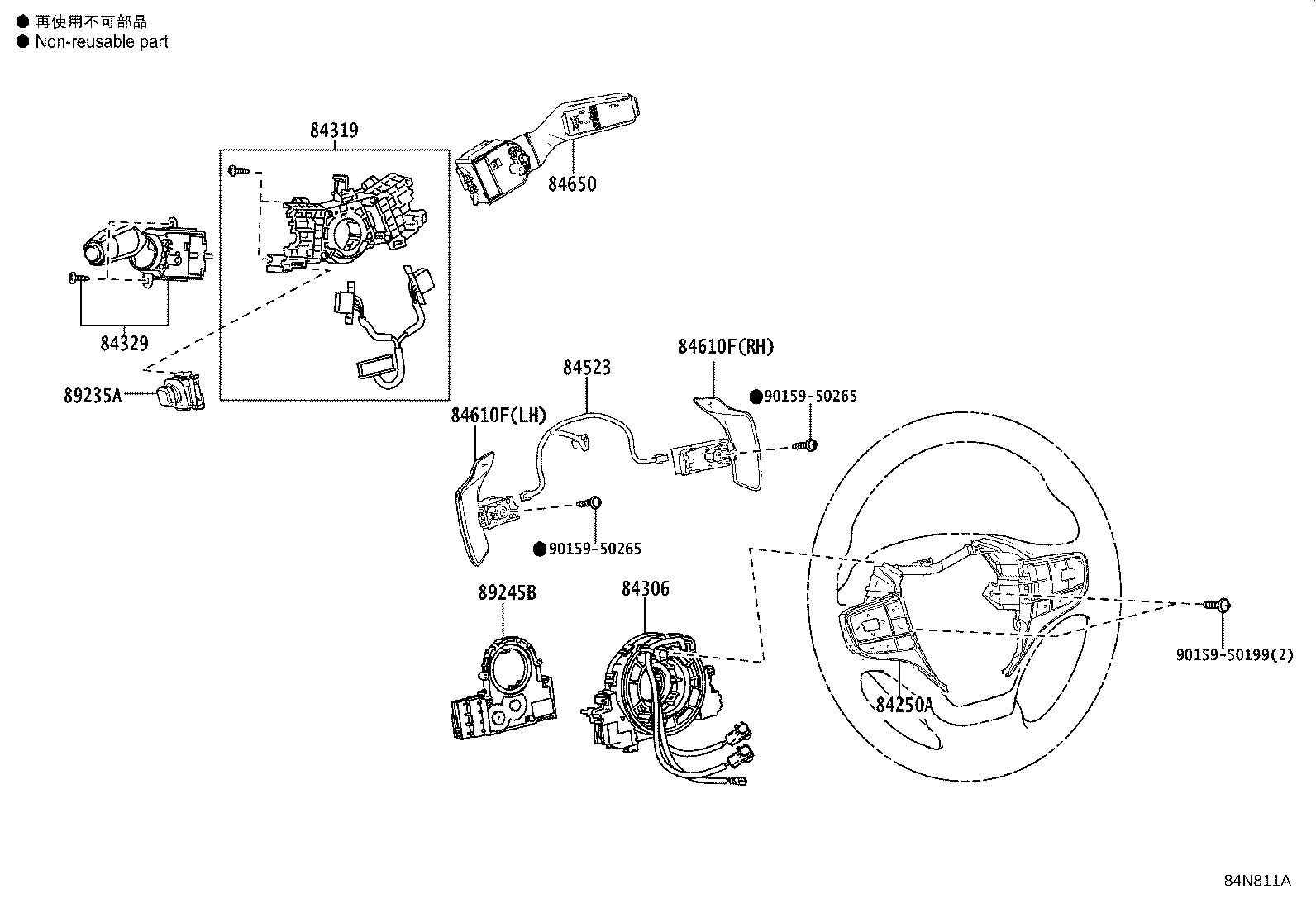

| 84250A | Switch Assy, Steering Pad |
| 84306 | Cable Sub-assy, Spiral |
| 84319 | Housing, Steering Wheel Switch |
| 84329 | Switch, Turn Signal |
| 84330 | Switch Assy, Hazard Warning Signal |
| 84340 | Switch Assy, Stop Lamp |
| 84345 | Adjuster, Stop Lamp Switch Mounting |
| 84390B | Switch Assy, Electric Parking Brake |

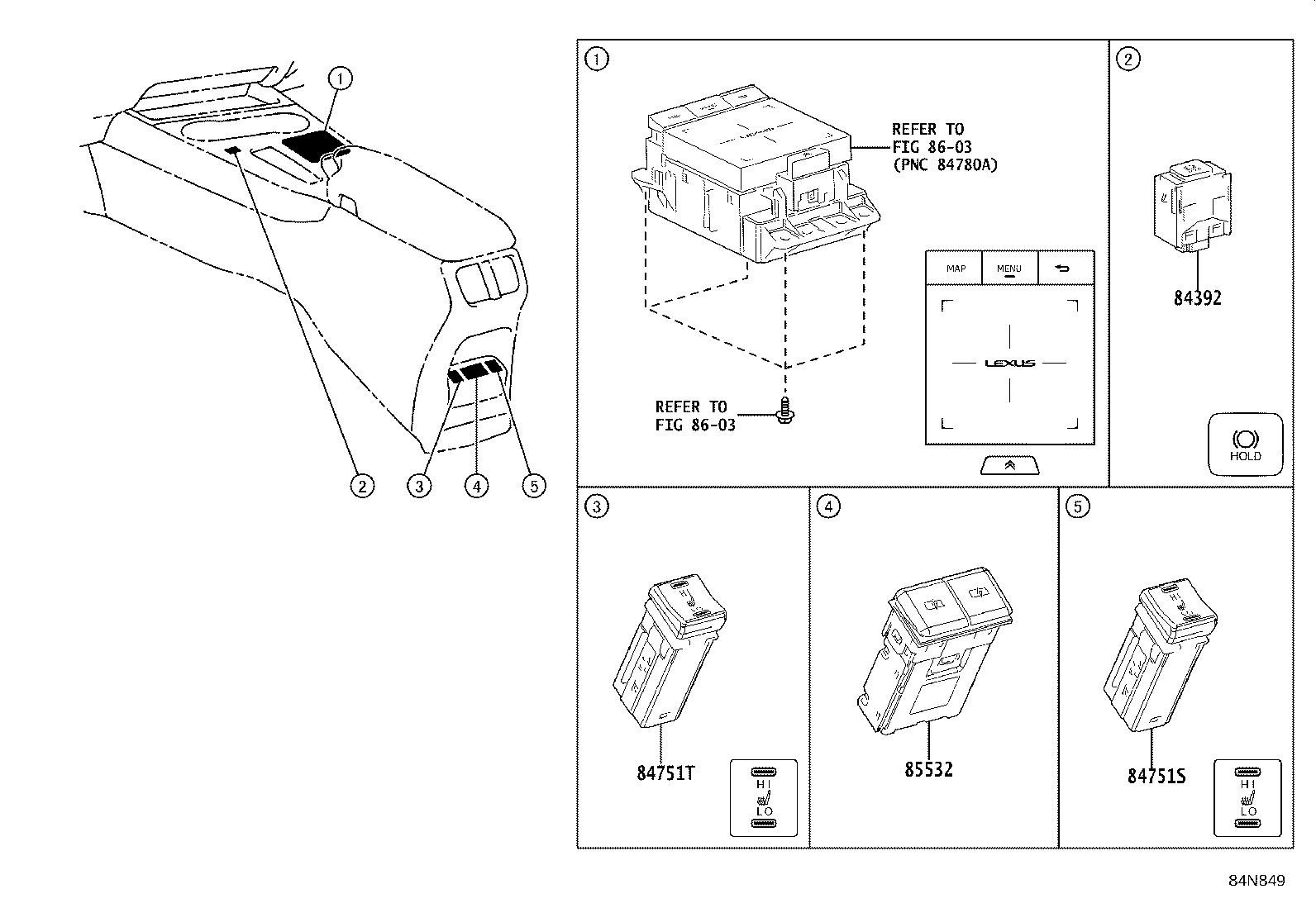

| 84392 | Switch, Brake Hold |
| 84523 | Wire, Switch NO.1 |
| 84610F | Switch Assy, Transmission Shift |
| 84650 | Switch Assy, Windshield Wiper |
| 84751S | Switch, Seat Heater(REAR RH) |
| 84751T | Switch, Seat Heater(REAR LH) |
| 84752 | Switch, Refreshing Seat |
| 84804 | Switch Sub-assy, Back Door Opener |
| 84810 | Switch Assy, Power Window Regulator |
| 84810D | Switch Assy, Power Window Regulator, Rear |
| 84840G | Switch Assy, Back Door Opener |
| 84870A | Switch Assy, Outer Mirror |

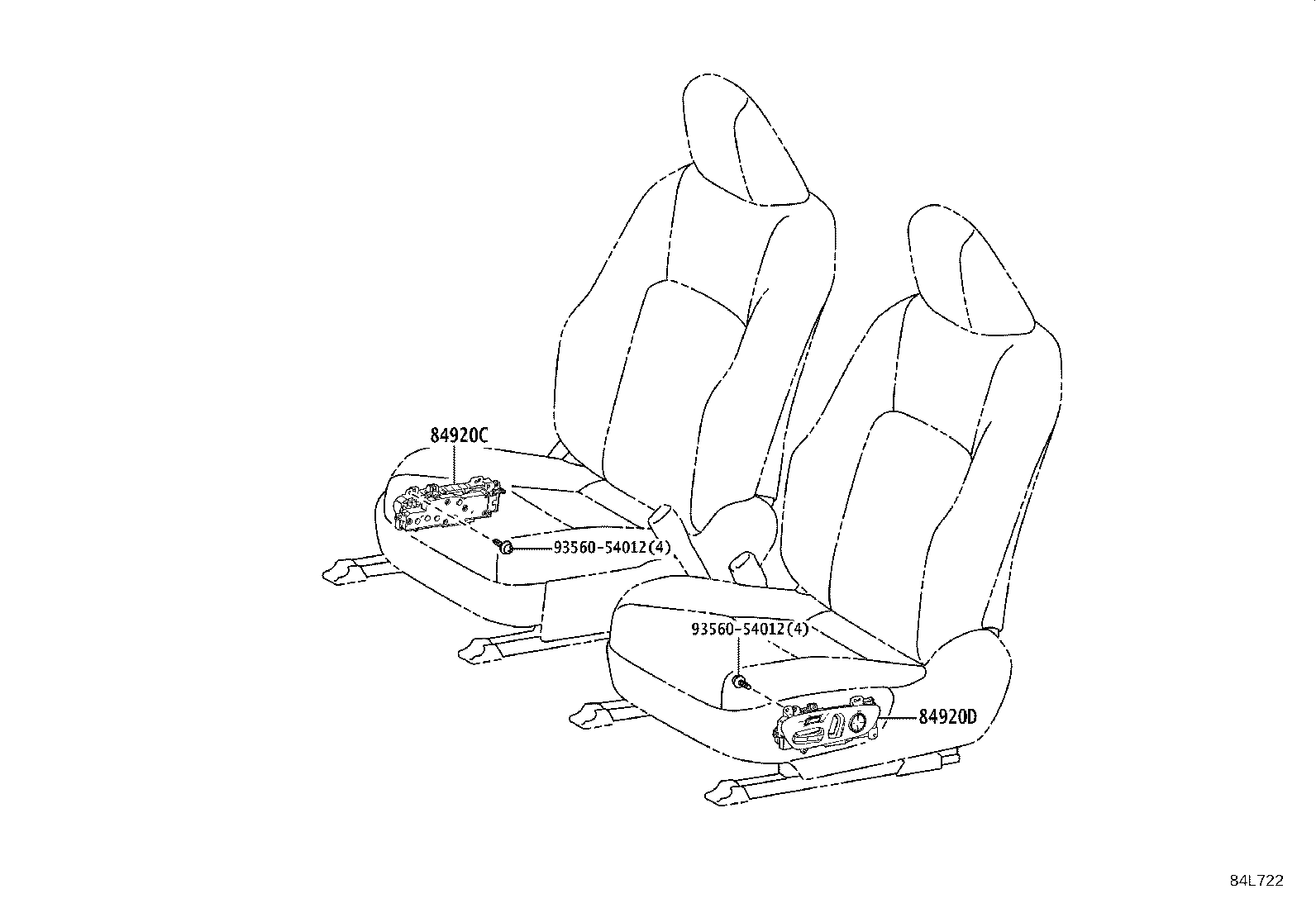

| 84920C | Switch Assy, Power Seat Front, RH |
| 84920D | Switch Assy, Power Seat Front, LH |
| 84930 | Switch Assy, Door Control |
| 84931B | Switch, Door Control |
| 84931C | Switch, Back Door Control |
| 84975 | Switch, Trip |
| 84988L | Switch, Vsc Off |
| 85530A | Relay, Power Outlet Socket |
| 85532 | Socket, Usb Charger |
| 85912 | Relay, Defogger |
| 85924C | Relay, Igct |
| 85924H | Relay, Igct-scene |
| 85940 | Relay Assy, Windshield Wiper |
| 85942 | Relay, Headlamp Cleaner Control |
| 85948 | Relay, Windshield Wiper |
| 8598A | Battery, Door Control |
| 86530 | Relay Assy, Horn |
| 87299 | Relay, Heater |
| 88162 | Sensor, Blind Spot Monitor, RH |
| 88172 | Sensor, Blind Spot Monitor, LH |
| 89111 | Computer, Network Gateway |
| 89120A | Sensor, Automatic Light Control |
| 891B1 | Bracket, Kick Door Control |
| 891B2 | Sensor, Kick Door Control |
| 89221 | Computer, Multiplex Network Body |
| 89222A | Computer, Multiplex Network Door |
| 89227 | Computer, Multiplex Tilt & Telescopic |
| 89235A | Switch, Tilt & Telescopic |
| 89245B | Sensor, Steering |

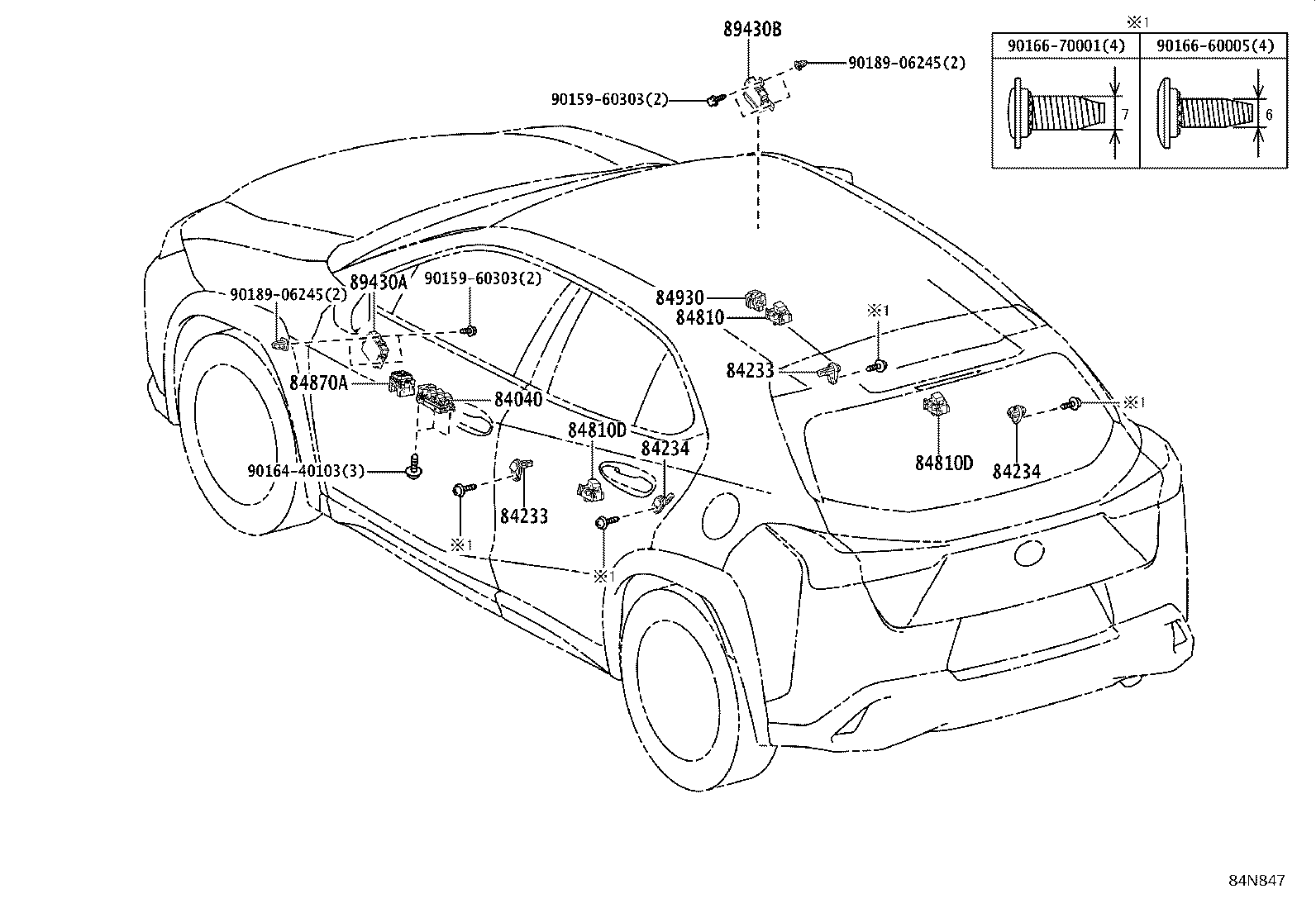

| 89430A | Computer Assy, Outer Mirror Control, LH |
| 89430B | Computer Assy, Outer Mirror Control, RH |
| 894C1 | Computer, Shift Control |
| 894C1A | Relay, Parking Control Motor, NO.1 |
| 894C7 | Bracket, Shift Control Computer, NO.1 |
| 894C8 | Bracket, Shift Control Computer, NO.2 |
| 894D1 | Supply, Shift Control |
| 895A0A | Computer Assy, Stop Lamp Control |
| 89611 | Switch, Push Start |

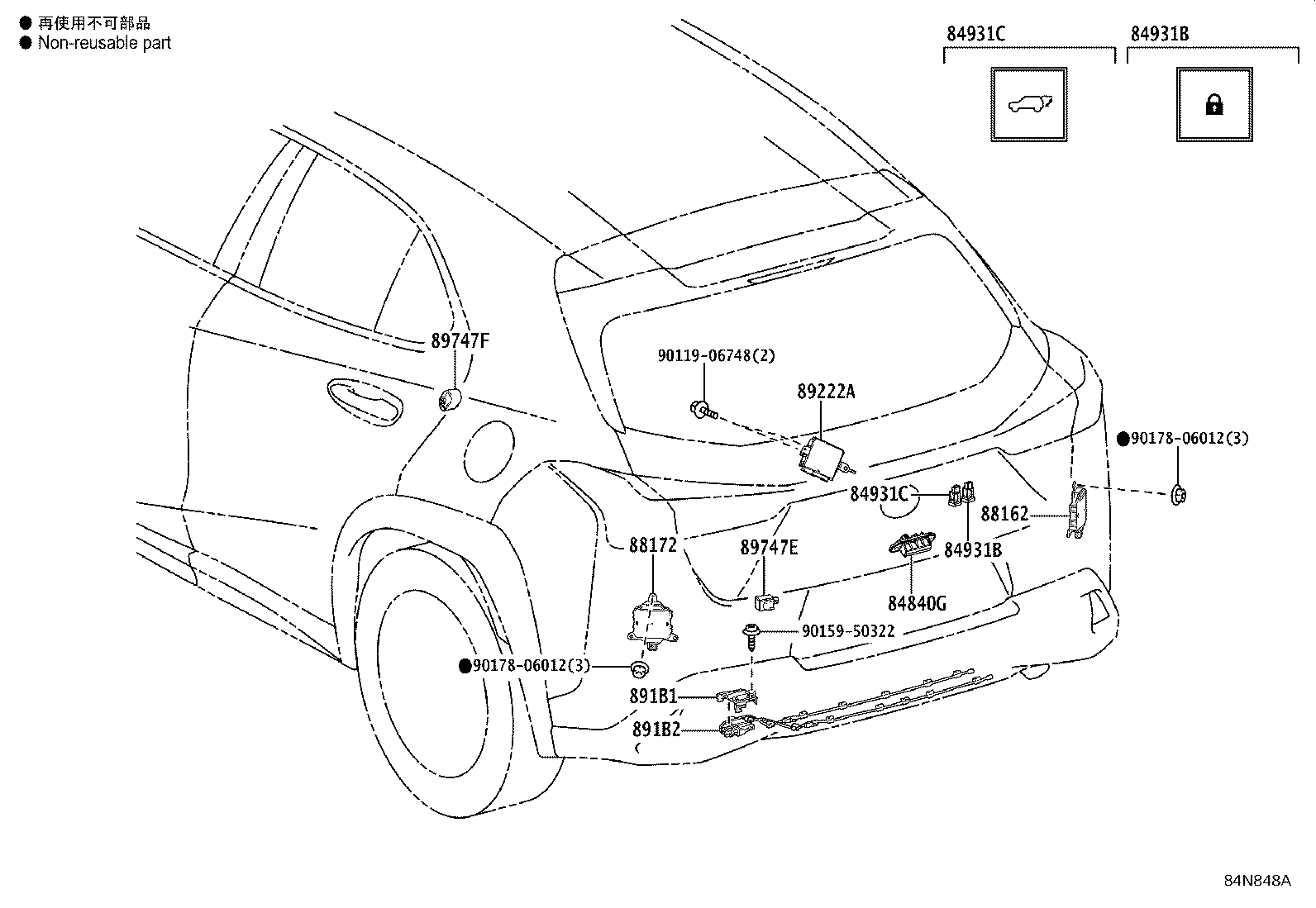

| 89747E | Buzzer, Power Back Door Warning |
| 89747F | Buzzer, Blind Spot Monitor |
| F1971 | Cover, Ecu Water Proof |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
