Toyota Corolla Cross

2021-09 → present · chassis MXGA1#,MXGH15 · catalogue 552410 · United States

Supported model Data version 2024-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

10 part groups · 3 illustrations

Illustrations

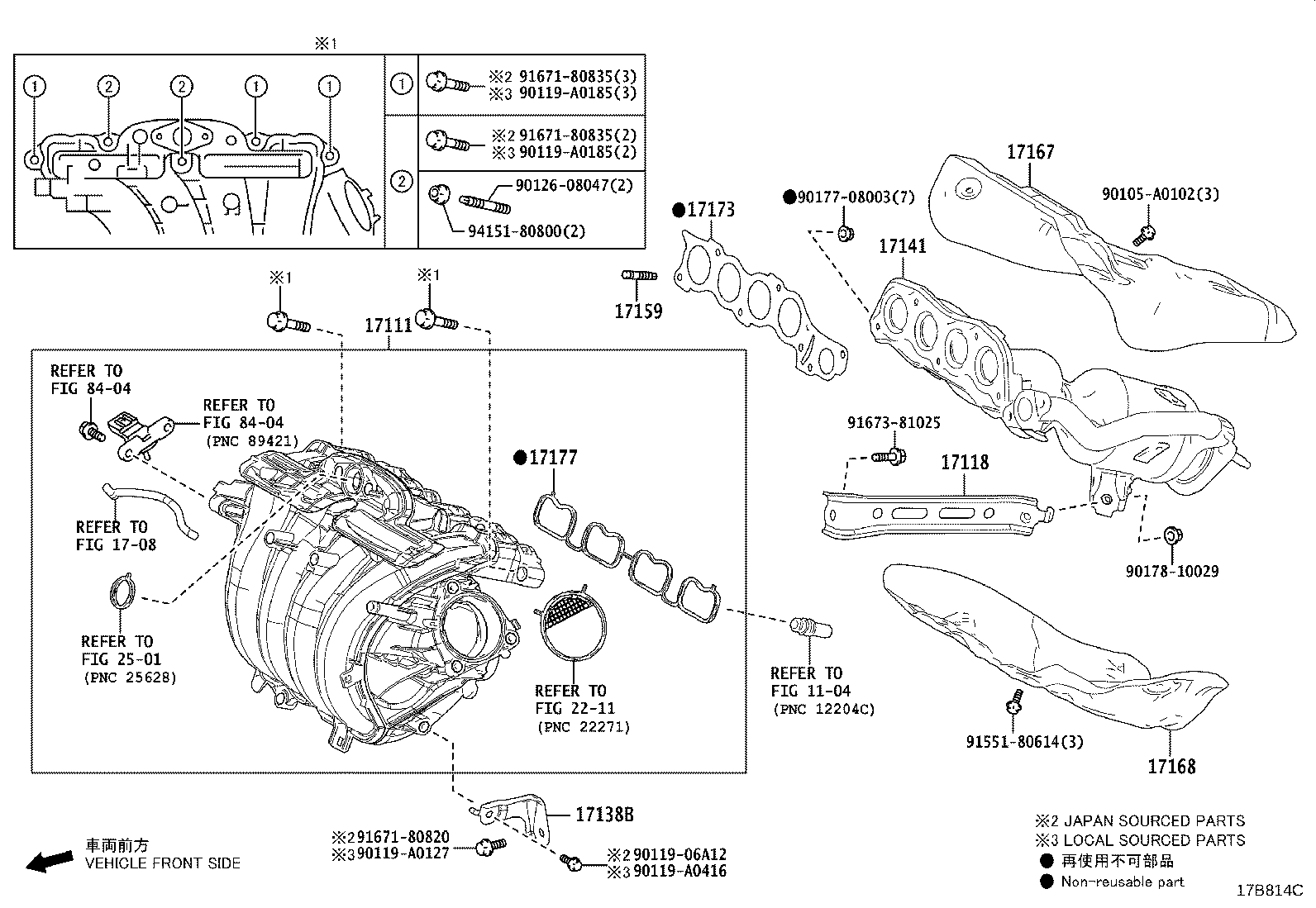

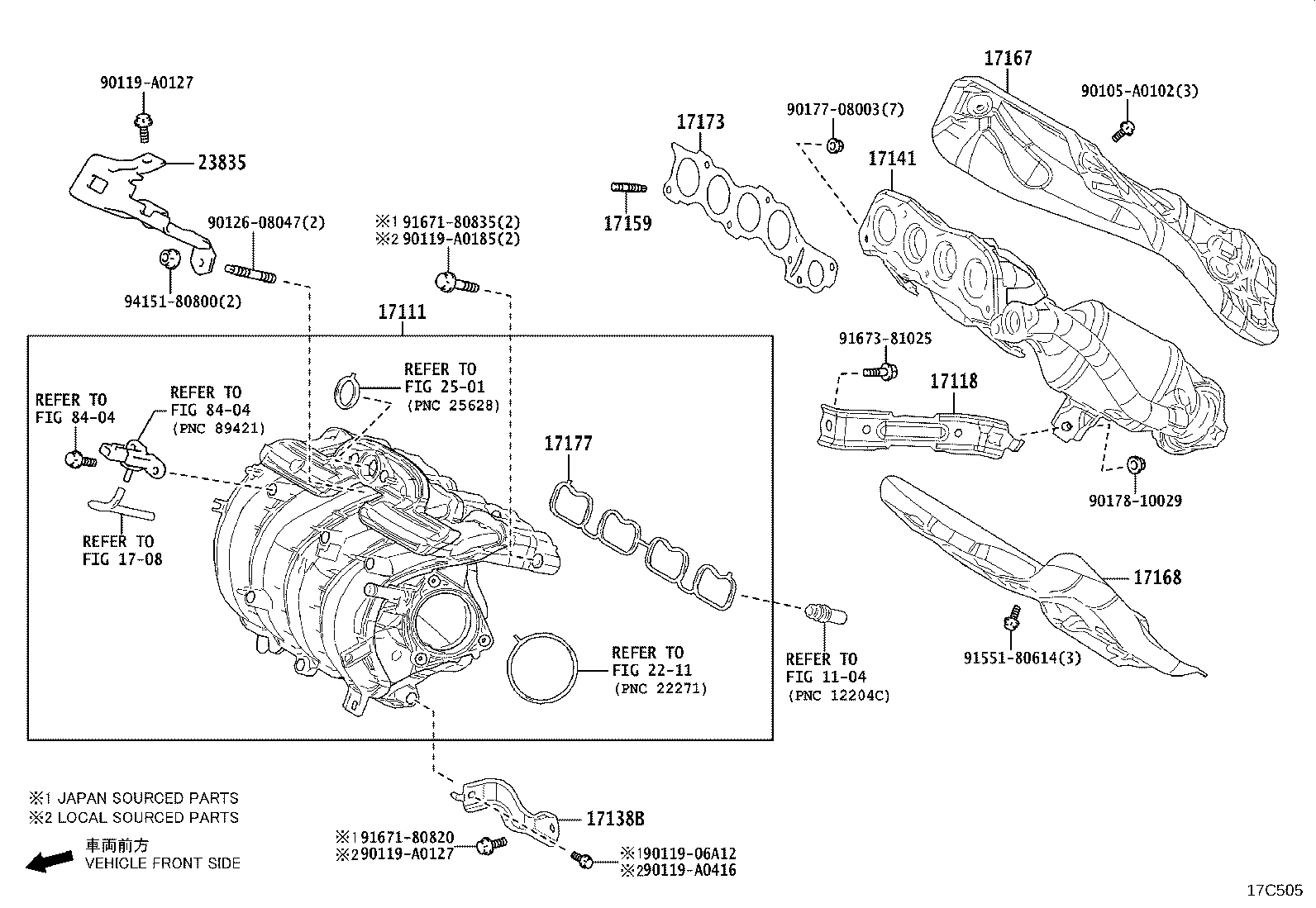

Figure 17B813C 17B813C 2021-09 → — Figure 17B814C 17B814C 2021-09 → — Figure 17C505 17C505 2023-05 → —

Part groups

PNCDescription
17111 Manifold, Intake
17118 Stay, Manifold
17138B Stay, Intake Manifold
17141 Manifold, Exhaust
17159 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17167 Insulator, Exhaust Manifold Heat, NO.1
17168 Insulator, Exhaust Manifold Heat, NO.2
17173 Gasket, Exhaust Manifold TO Head
17177 Gasket, Intake Manifold TO Head, NO.1
23835 Guard, Fuel Delivery, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
