Toyota Corolla Cross

2021-09 → present · chassis MXGA1#,MXGH15 · catalogue 552410 · United States

Supported model Data version 2024-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

9 part groups · 4 illustrations

Illustrations

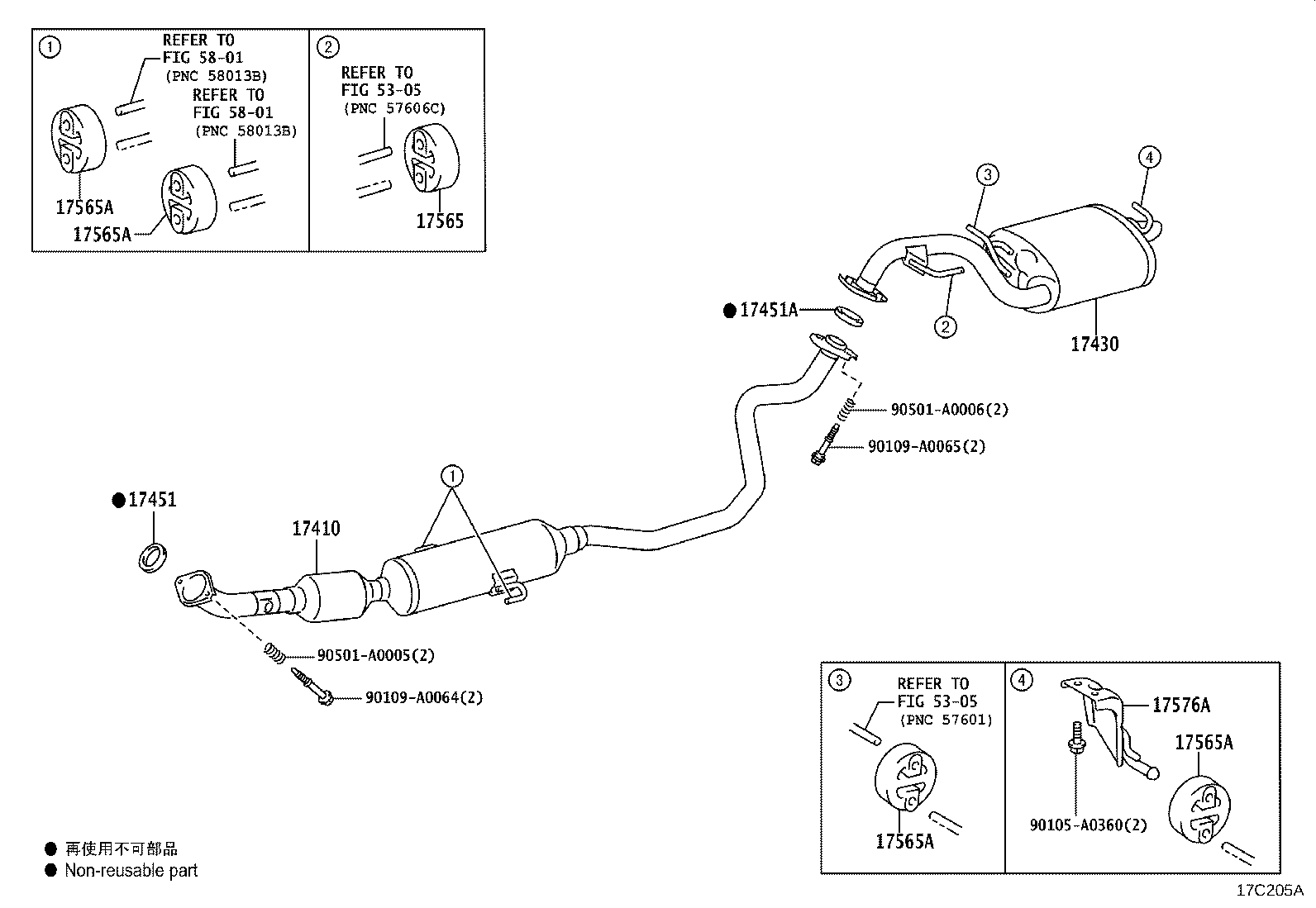

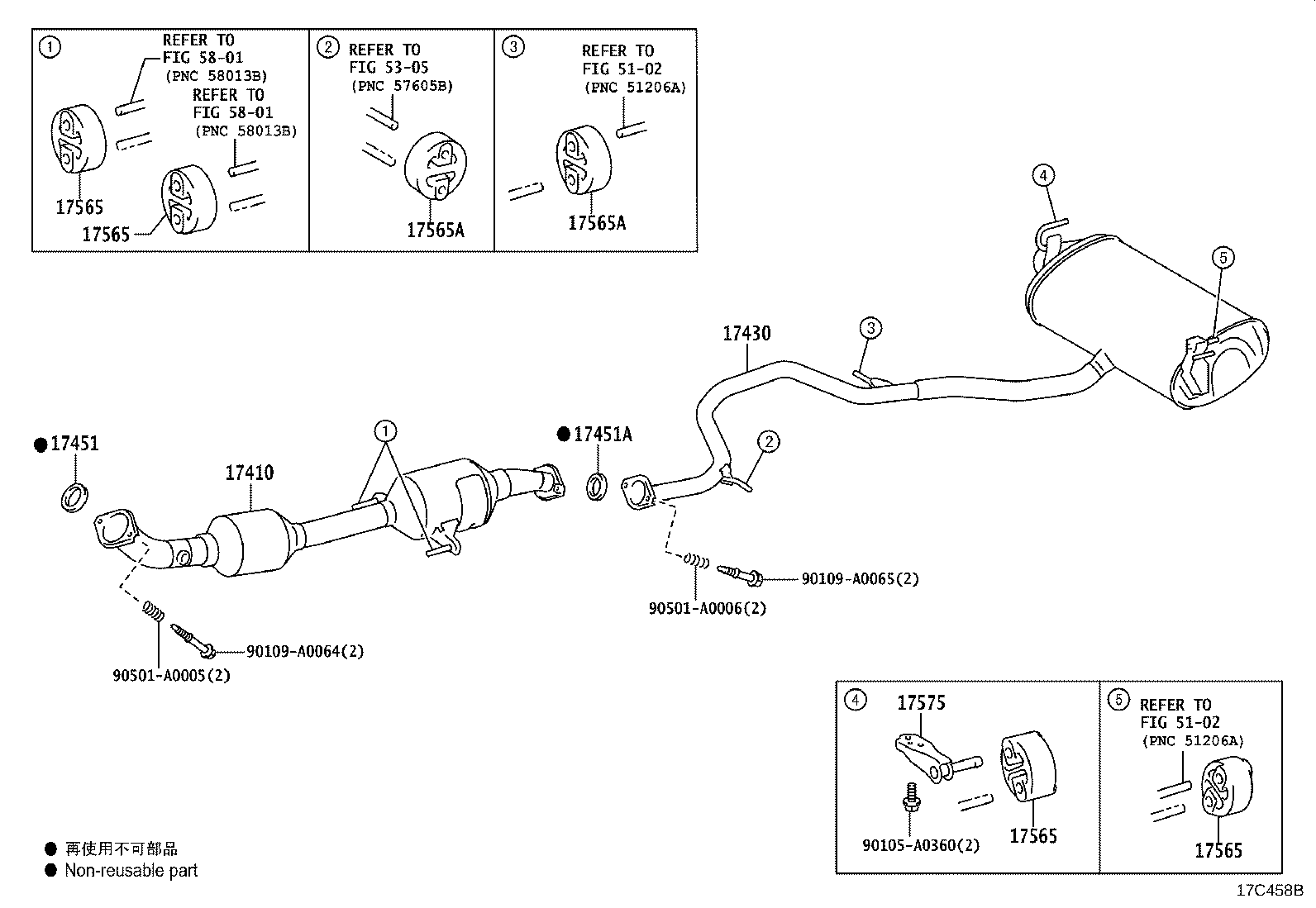

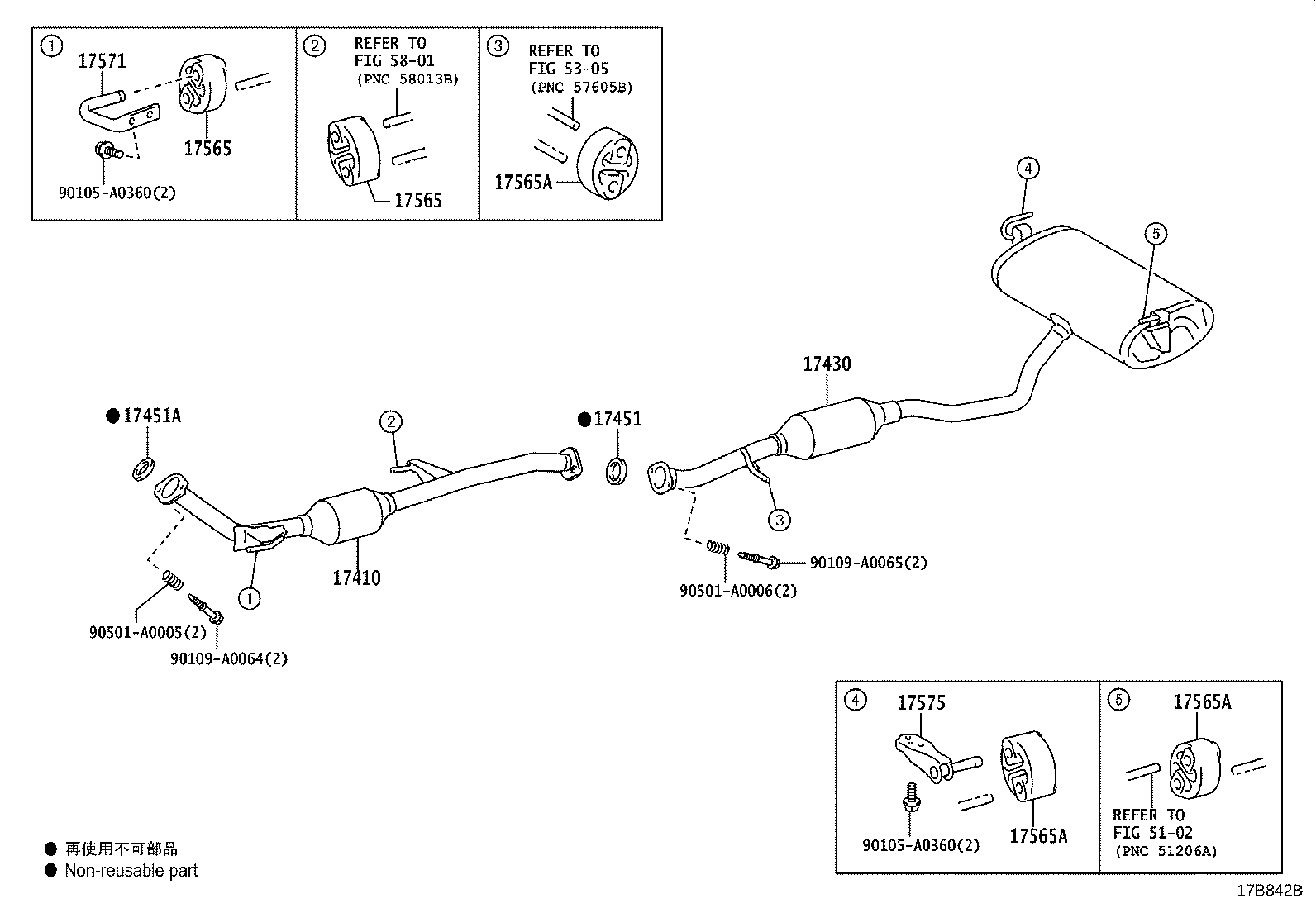

Figure 17B841B 17B841B 2021-09 → 2022-04 Figure 17C205A 17C205A 2022-04 → — Figure 17B842B 17B842B 2021-09 → — Figure 17C458B 17C458B 2022-11 → —

Part groups

PNCDescription
17410 Pipe Assy, Exhaust, Front
17430 Pipe Assy, Exhaust, Tail
17451 Gasket, Exhaust Pipe
17451A Gasket, Exhaust Pipe, NO.2
17565 Support, Exhaust Pipe, NO.5
17565A Support, Exhaust Pipe, NO.4
17571 Bracket, Exhaust Pipe Support, NO.1
17575 Bracket, Exhaust Pipe Support, NO.5
17576A Bracket, Exhaust Pipe Support, NO.6
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
