Toyota Corolla Cross

2021-09 → present · chassis MXGA1#,MXGH15 · catalogue 552410 · United States

Supported model Data version 2024-11

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Alternator

5 part groups · 2 illustrations

Illustrations

Figure 196066B

196066B 2021-09 → 2023-05

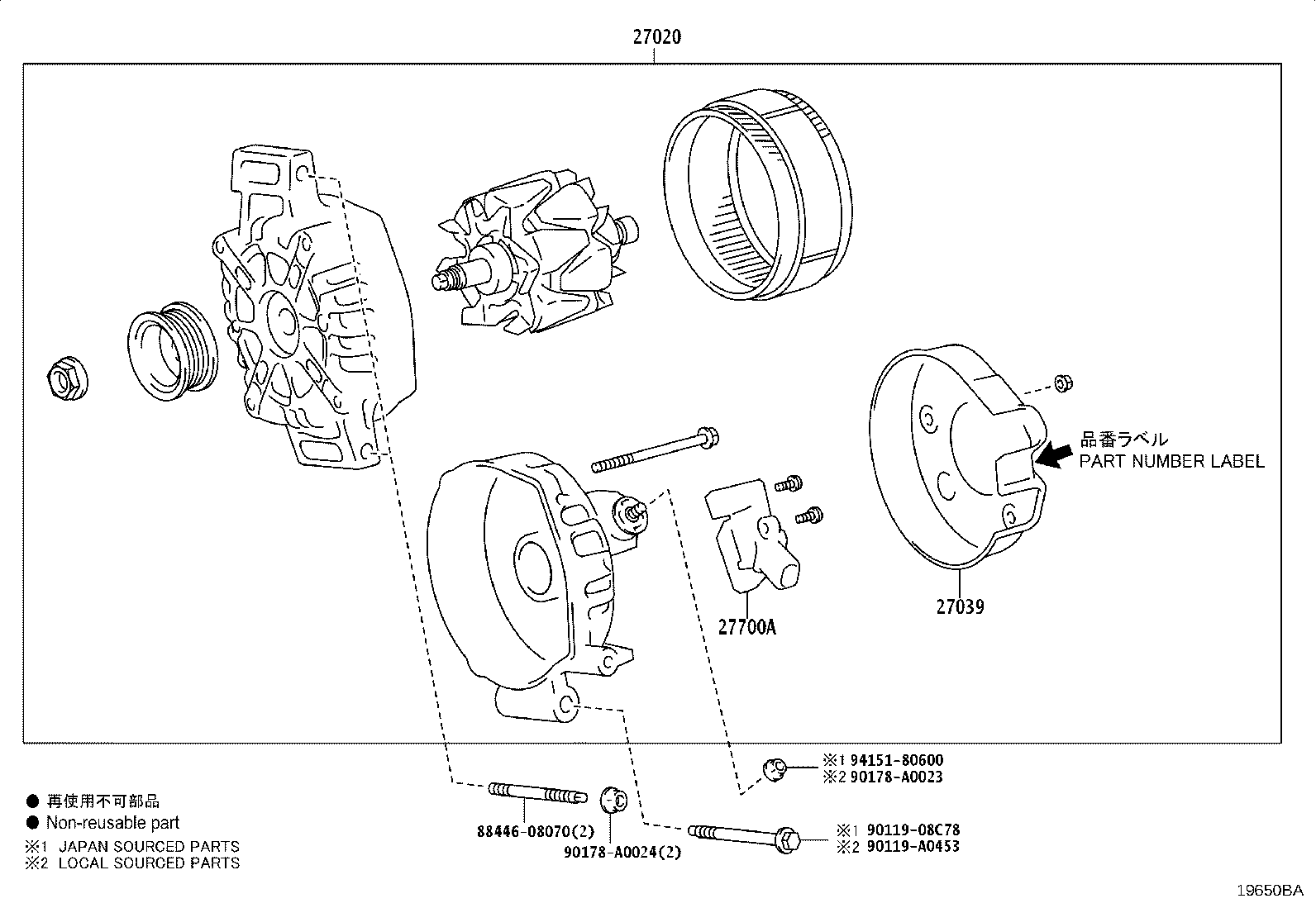

Figure 19650BA

19650BA 2023-05 → —

Part groups

PNC	Description
27020	Alternator Assy
27039	Cover, Alternator Rear End
27415	Pulley, Alternator W/Clutch
27416	Cap, Alternator Pulley
27700A	Regulator Assy, Generator

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
