Toyota Corolla Cross
2021-09 → present · chassis MXGA1#,MXGH15 · catalogue 552410 · United States
Supported model
Data version 2024-11

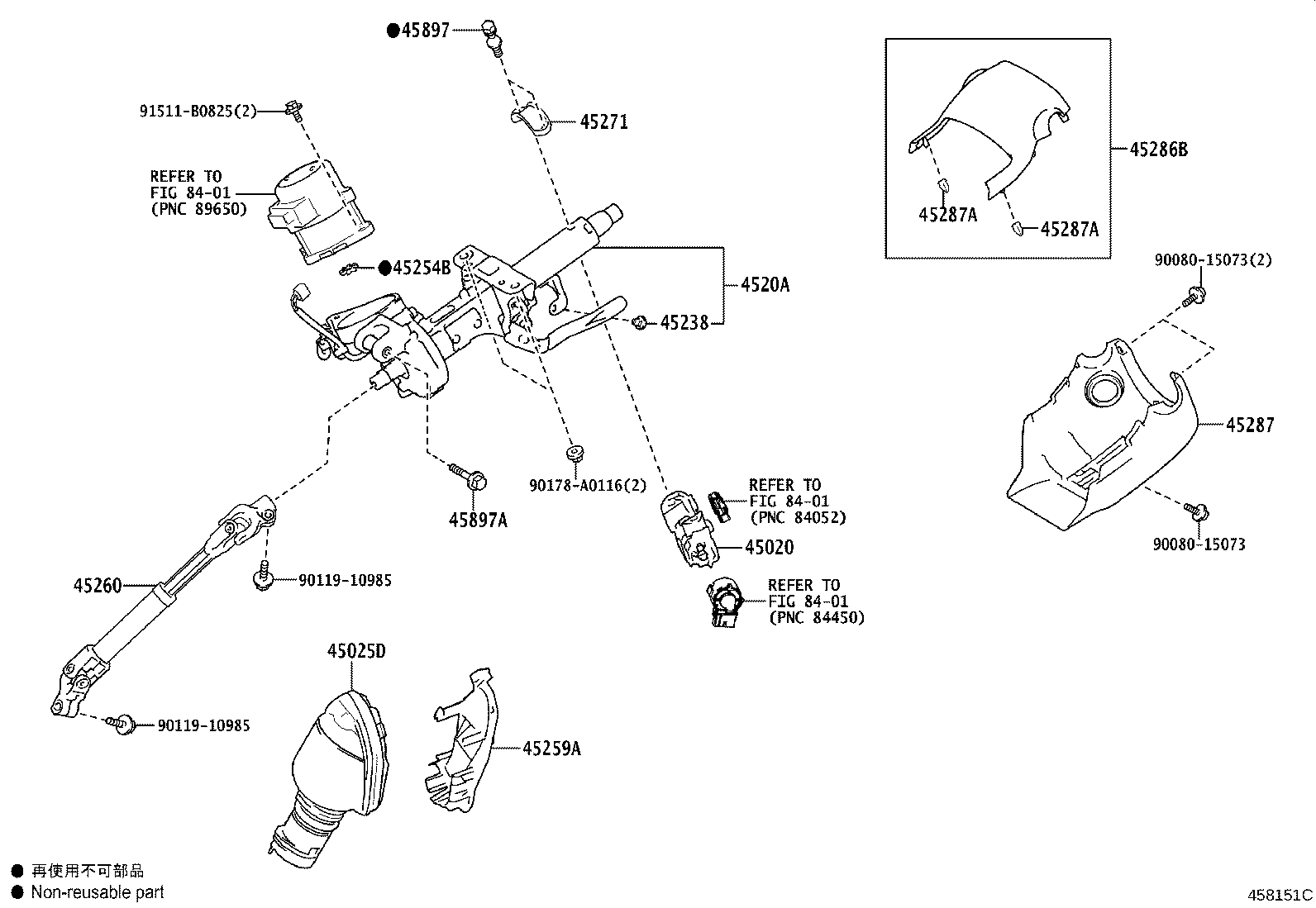

Steering Column & Shaft
13 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 45020 | Bracket Assy, Steering Column Upper W/Switch |
| 45025D | Cover Sub-assy, Steering Column Hole, NO.1 |
| 4520A | Column Sub-assy, Electric Power Steering |
| 45238 | Clamp, Bolt(FOR STEERING FLEXIBLE COUPLING) |
| 45254B | Damper, Electric Power Steering Motor Shaft |
| 45259A | Sheet, Column Hole Cover Silencer |
| 45260 | Shaft Assy, Steering Intermediate, NO.2 |
| 45271 | Clamp, Steering Column, Upper |
| 45286B | Cover, Steering Column, Upr |
| 45287 | Cover, Steering Column, Lwr |
| 45287A | Clip(FOR STEERING COLUMN COVER) |
| 45897 | Bolt, Steering Lock Set |
| 45897A | Bolt, Tilt Steering Pawl Set |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
