Toyota Corolla Cross
2021-09 → present · chassis MXGA1#,MXGH15 · catalogue 552410 · United States
Supported model
Data version 2024-11

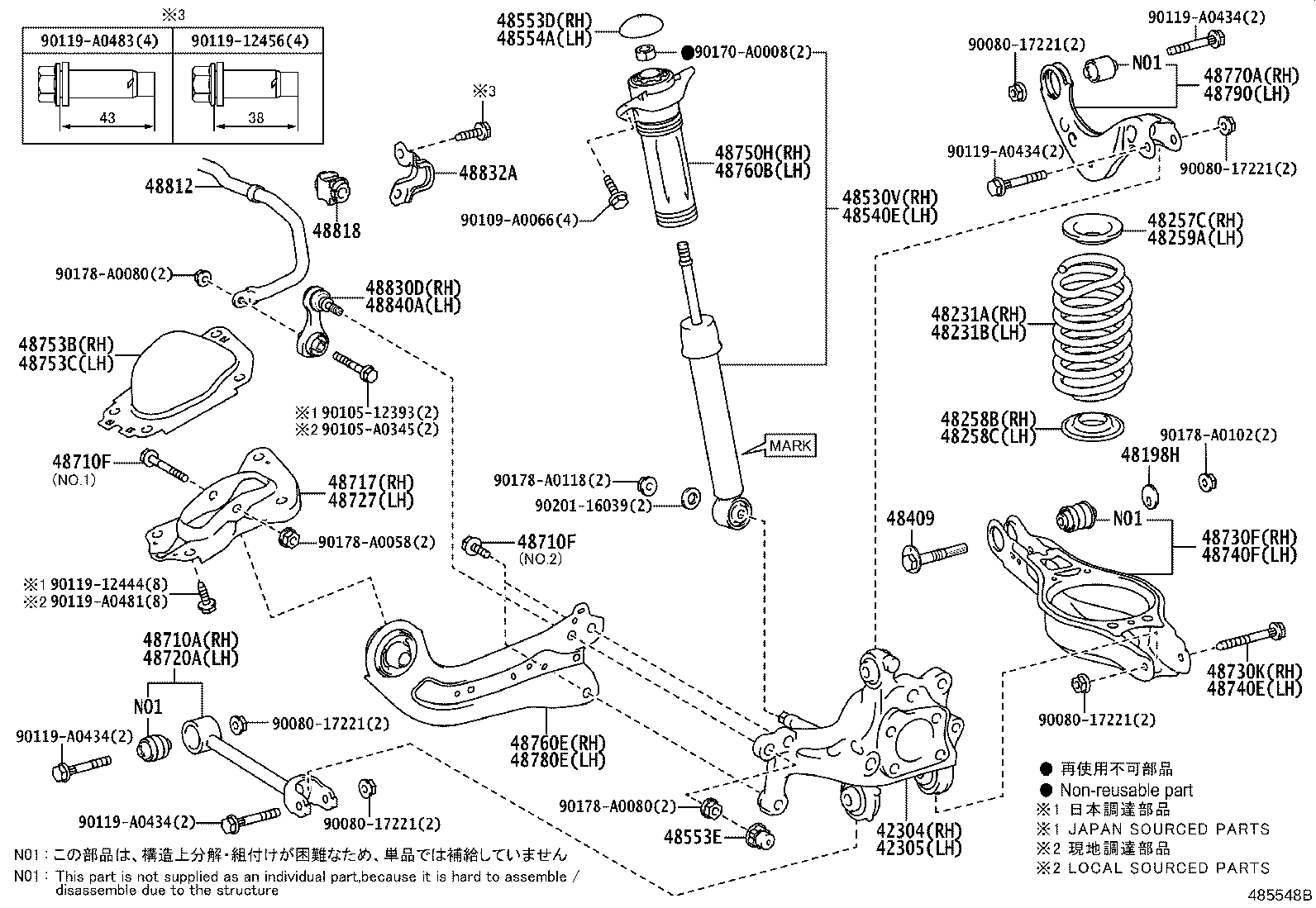

Rear Spring & Shock Absorber
45 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 42011 | Seat Sub-assy, Rear Spring |
| 42110F | Beam Assy, Rear Axle |
| 42304 | Carrier Sub-assy, Rear Axle, RH |
| 42305 | Carrier Sub-assy, Rear Axle, LH |
| 46439B | Insulator, Parking Brake Cable Heat |
| 48198H | Cam, Camber Adjust, NO.2 |
| 48231A | Spring, Coil, Rear RH |
| 48231B | Spring, Coil, Rear LH |
| 48257C | Insulator, Rear Coil Spring, Upper RH |
| 48258B | Insulator, Rear Coil Spring, Lower RH |
| 48258C | Insulator, Rear Coil Spring, Lower LH |
| 48259A | Insulator, Rear Coil Spring, Upper LH |
| 48341A | Bumper, Rear Spring, NO.1 RH |
| 48341B | Bumper, Rear Spring, NO.1 LH |
| 48409 | Cam Sub-assy, Rear Suspension Toe Adjust |
| 48530B | Washer, Rear Shock Absorber Cushion, NO.1 |
| 48530V | Absorber Set, Shock, Rear RH |
| 48540E | Absorber Set, Shock, Rear LH |
| 48553D | Cap, Rear Shock Absorber, RH |
| 48553E | Cap |
| 48554A | Cap, Rear Shock Absorber, LH |
| 48710A | Arm Assy, Rear Suspension, NO.1 RH |
| 48710F | Bolt(FOR REAR TRAILING ARM) |
| 48717 | Bracket, Rear Suspension Arm, RH |
| 48720A | Arm Assy, Rear Suspension, NO.1 LH |
| 48727 | Bracket, Rear Suspension Arm, LH |
| 48730F | Arm Assy, Rear Suspension, NO.2 RH |
| 48730K | Bolt(FOR REAR SUSPENSION ARM NO.2 RH) |
| 48740E | Bolt(FOR REAR SUSPENSION ARM NO.2 LH) |
| 48740F | Arm Assy, Rear Suspension, NO.2 LH |
| 48750H | Support Assy, Rear Suspension, RH |
| 48752A | Stopper, Rear Suspension Support |
| 48753B | Cover, Rear Suspension Supoport, NO.1 RH |
| 48753C | Cover, Rear Suspension Supoport, NO.1 LH |
| 48755 | Support, Rear Suspension |
| 48760B | Support Assy Rear Suspension, LH |
| 48760E | Arm Assy, Trailing, Rear RH |
| 48770A | Arm Assy, Upper Control, Rear RH |
| 48780E | Arm Assy, Trailing, Rear LH |
| 48790 | Arm Assy, Upper Control, Rear LH |
| 48812 | Bar, Stabilizer, Rear |
| 48818 | Bush, Stabilizer, Rear |
| 48830D | Link Assy, Rear Stabilizer, RH |
| 48832A | Bracket, Rear Stabilizer Bar, NO.1 |
| 48840A | Link Assy, Rear Stabilizer, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
