Toyota Corolla Cross

2021-09 → present · chassis MXGA1#,MXGH15 · catalogue 552410 · United States

Supported model Data version 2024-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

14 part groups · 3 illustrations

Illustrations

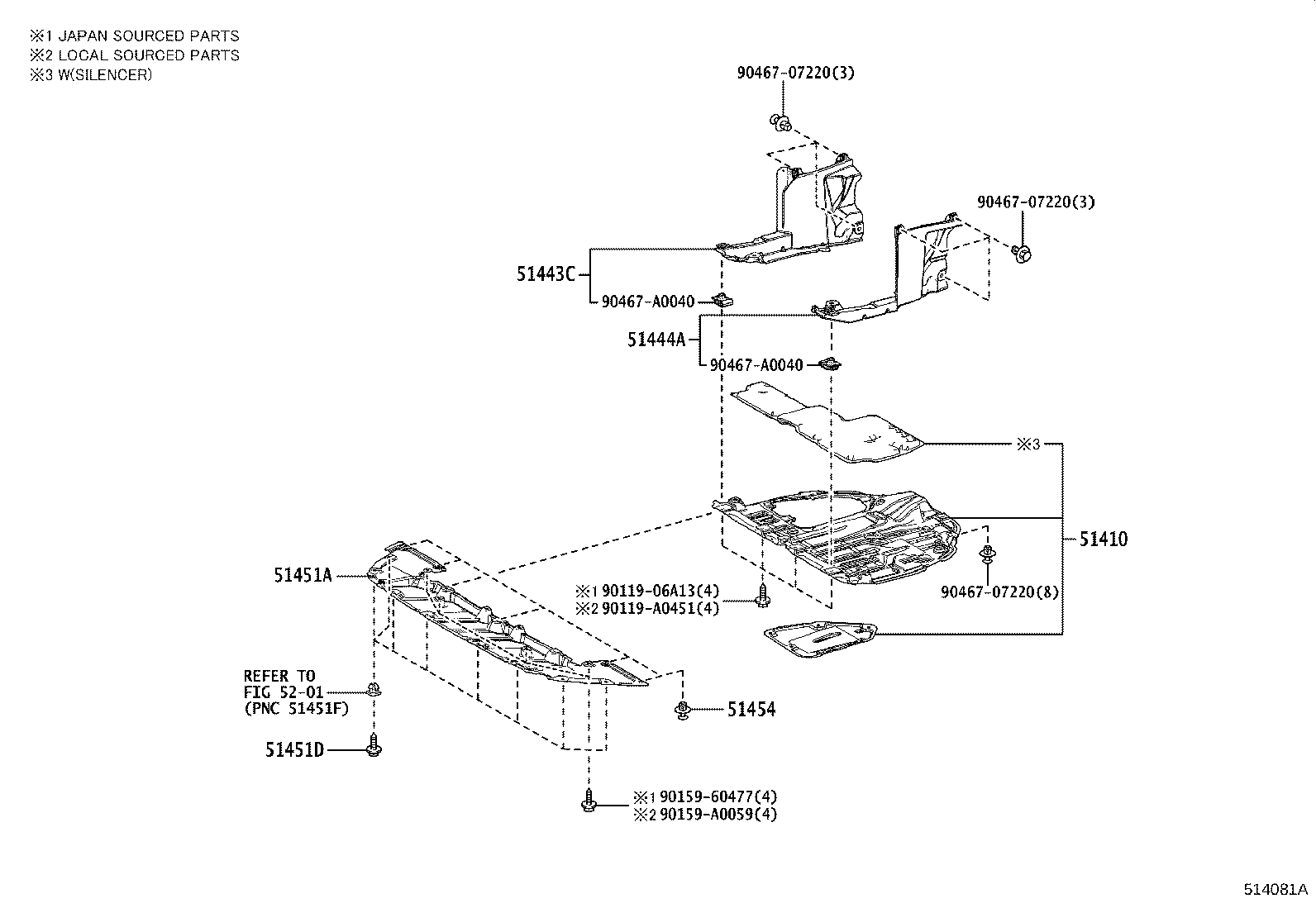

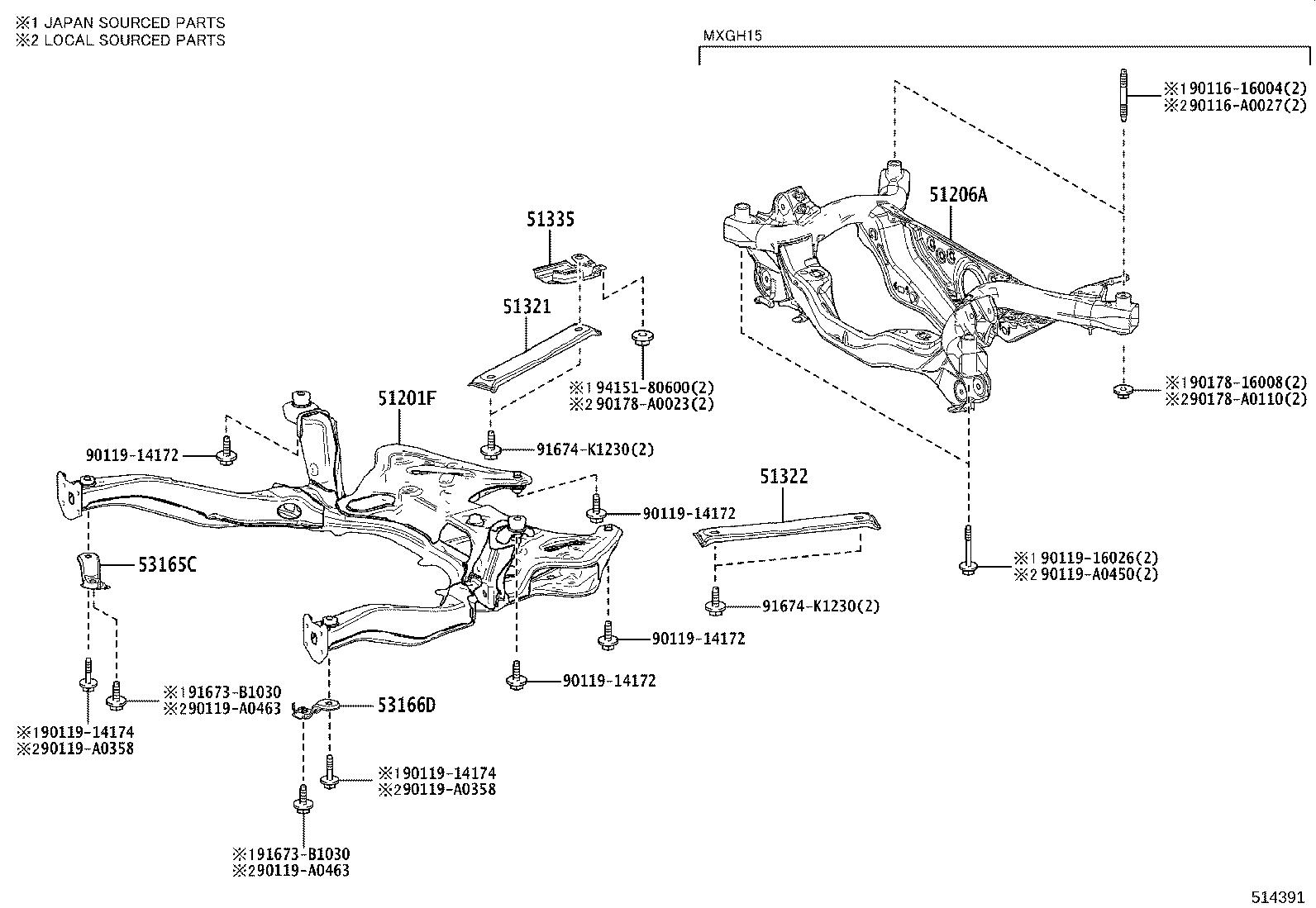

Figure 514080A 514080A 2021-09 → — Figure 514391 514391 2022-11 → — Figure 514081A 514081A 2021-09 → —

Part groups

PNCDescription
51201F Crossmember Sub-assy, Front Suspension
51206A Member Sub-assy, Rear Suspension
51284 Cover, Rear Suspension Member Hole
51321 Gusset, Crossmember, NO.2 RH
51322 Gusset, Crossmember, NO.2 LH
51335 Bracket, Front Frame Tube Clamp, RH
51410 Cover Assy, Engine Under, NO.1
51443C Cover, Engine Under, Rear RH
51444A Cover, Engine Under, Rear LH
51451A Cover, Engine Under, Center
51451D Screw, NO.1
51454 Clip
53165C Support, Radiator, Center RH
53166D Support, Radiator, Center LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
