Toyota Corolla Cross
2021-09 → present · chassis MXGA1#,MXGH15 · catalogue 552410 · United States
Supported model
Data version 2024-11

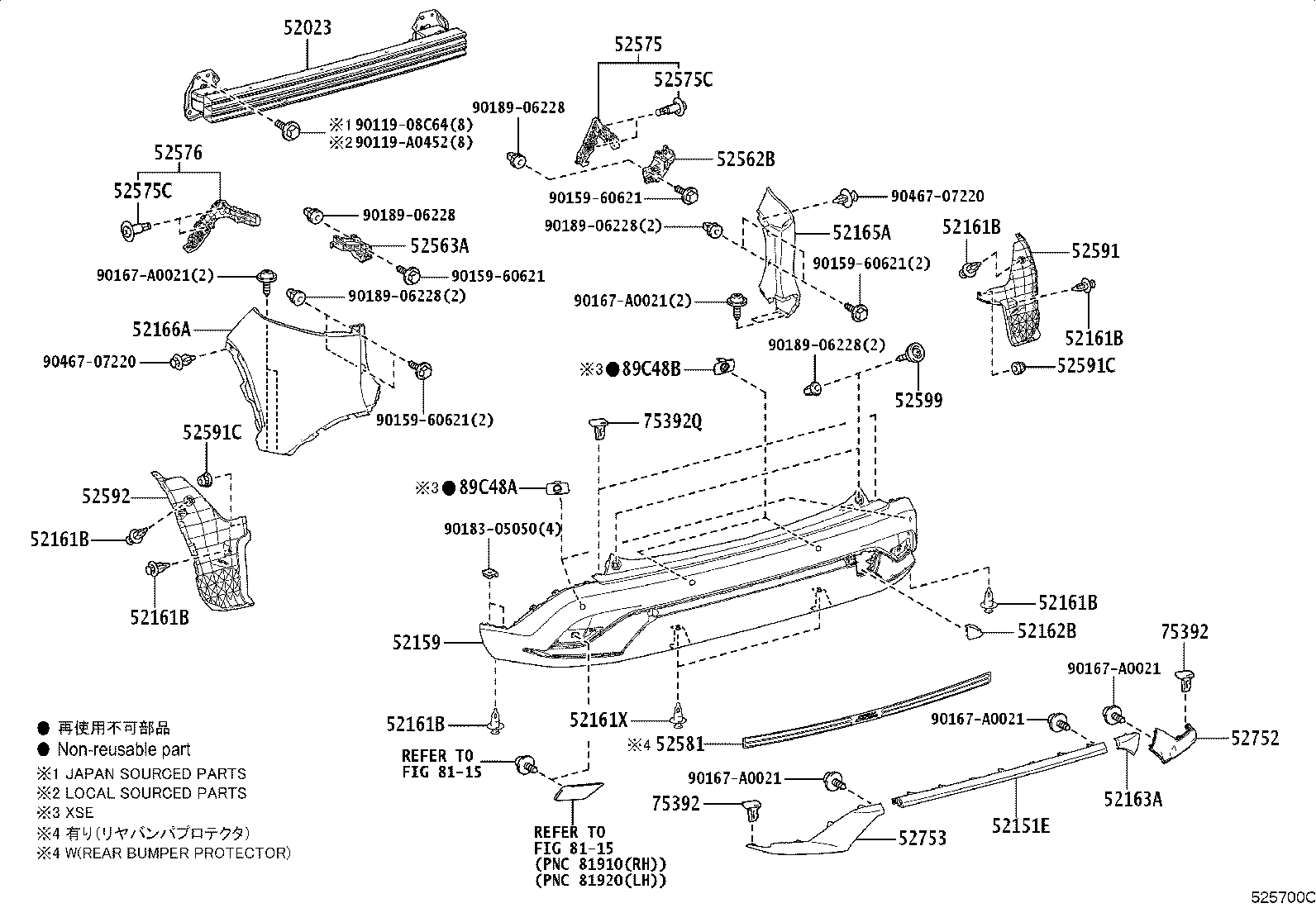

Rear Bumper & Bumper Stay
25 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 52023 | Reinforcement Sub-assy, Rear Bumper |
| 52151E | Bar, Rear Bumper |
| 52159 | Cover, Rear Bumper |
| 52161B | Piece, Rear Bumper |
| 52161X | Piece, Rear Bumper |
| 52162B | Plate, Rear Bumper, NO.1 |
| 52163A | Plate, Rear Bumper, RH |
| 52165A | Cover, Rear Bumper, Upr RH |
| 52166A | Cover, Rear Bumper, Upr LH |
| 52562B | Retainer, Rear Bumper, Upper RH |
| 52563A | Retainer, Rear Bumper, Upper LH |
| 52575 | Retainer, Rear Bumper Side, RH |
| 52575C | Clip, Rear Bumper Side Retainer |
| 52576 | Retainer, Rear Bumper Side, LH |
| 52581 | Protector, Rear Bumper, RH |
| 52591 | Seal, Rear Bumper Side, RH |
| 52591C | Clip, Rear Bumper Side Seal |
| 52592 | Seal, Rear Bumper Side, LH |
| 52599 | Stopper, Rear Bumper, Upper |
| 52752 | Moulding, Rear Bumper Side, RH |
| 52753 | Moulding, Rear Bumper Side, LH |
| 75392 | Retainer, Outside Moulding |
| 75392Q | Retainer, Outside Moulding, NO.2 |
| 89C48A | Retainer, Ultrasonic Sensor, Rear Corner |
| 89C48B | Retainer, Ultrasonic Sensor, Rear Center |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
