Toyota Corolla Cross

2021-09 → present · chassis MXGA1#,MXGH15 · catalogue 552410 · United States

Supported model Data version 2024-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood & Front Fender

24 part groups · 2 illustrations

Illustrations

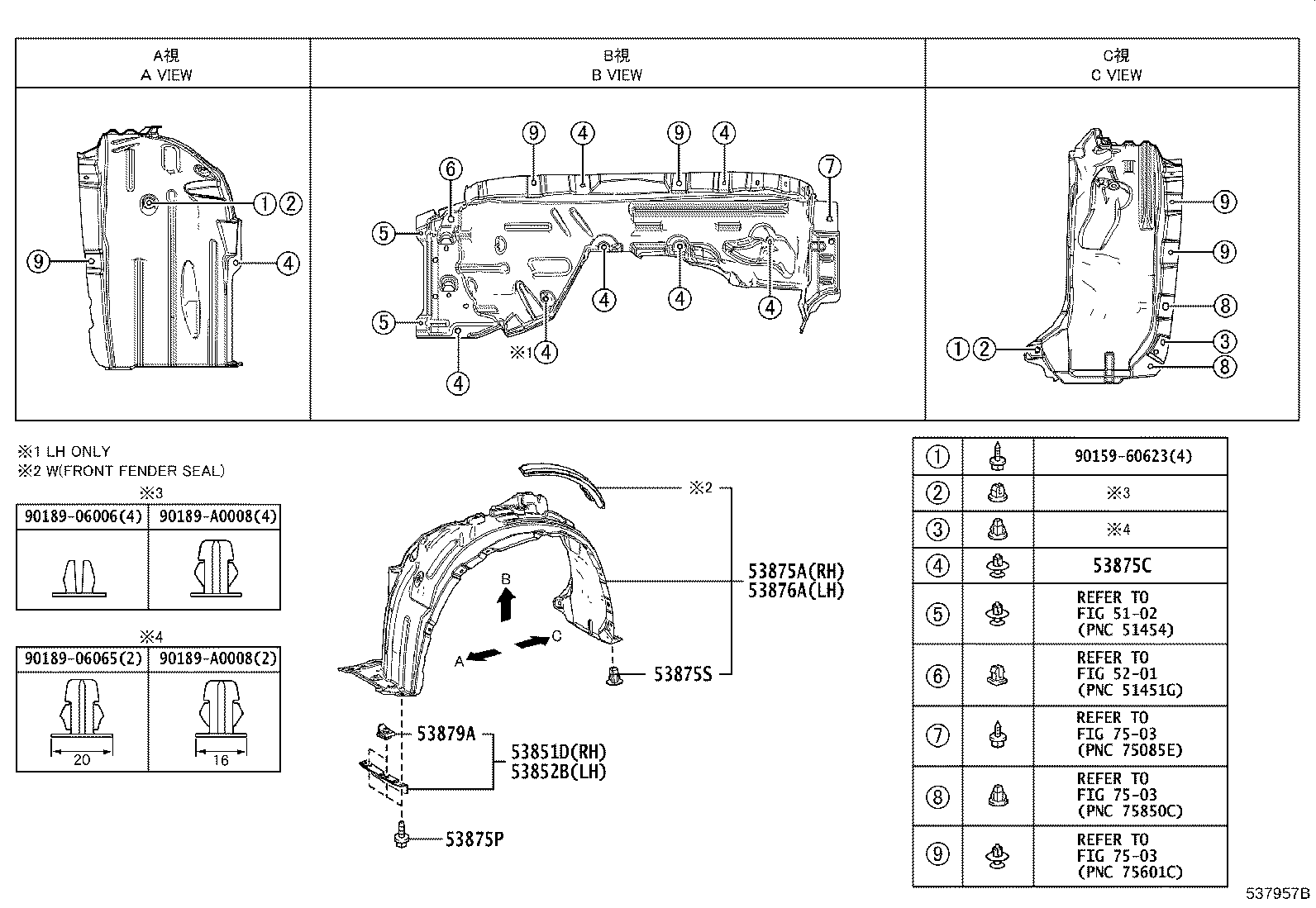

Figure 537956C 537956C 2021-09 → — Figure 537957B 537957B 2021-09 → —

Part groups

PNCDescription
53153B Guide, Front Side Air
53154E Guide, Front Side Air, NO.2
53301 Hood Sub-assy
53336A Bracket, Hood Stay
53341B Insulator, Hood
53341C Clip(FOR HOOD INSULATOR)
53801 Fender Sub-assy, Front RH
53802 Fender Sub-assy, Front LH
53827L Protector, Front Fender Side Panel, RH
53828K Protector, Front Fender Side Panel, LH
53851D Pad, Front Wheel Opening Extension, RH
53852B Pad, Front Wheel Opening Extension, LH
53857 Retainer, Front Wheel Opening Extension, RH
53857B Retainer, Front Wheel Opening Extension, RH
53858 Retainer, Front Wheel Opening Extension, LH
53858B Retainer, Front Wheel Opening Extension, LH
53875A Liner, Front Fender, RH
53875C Clip, Front Fender Liner
53875P Screw, NO.1
53875S Grommet, NO.1
53876A Liner, Front Fender, LH
53879A Retainer, Front Fender Liner
53882F Seal, Front Fender
53936C Cushion
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
