Toyota Corolla Cross

2021-09 → present · chassis MXGA1#,MXGH15 · catalogue 552410 · United States

Supported model Data version 2024-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Side Member

14 part groups · 3 illustrations

Illustrations

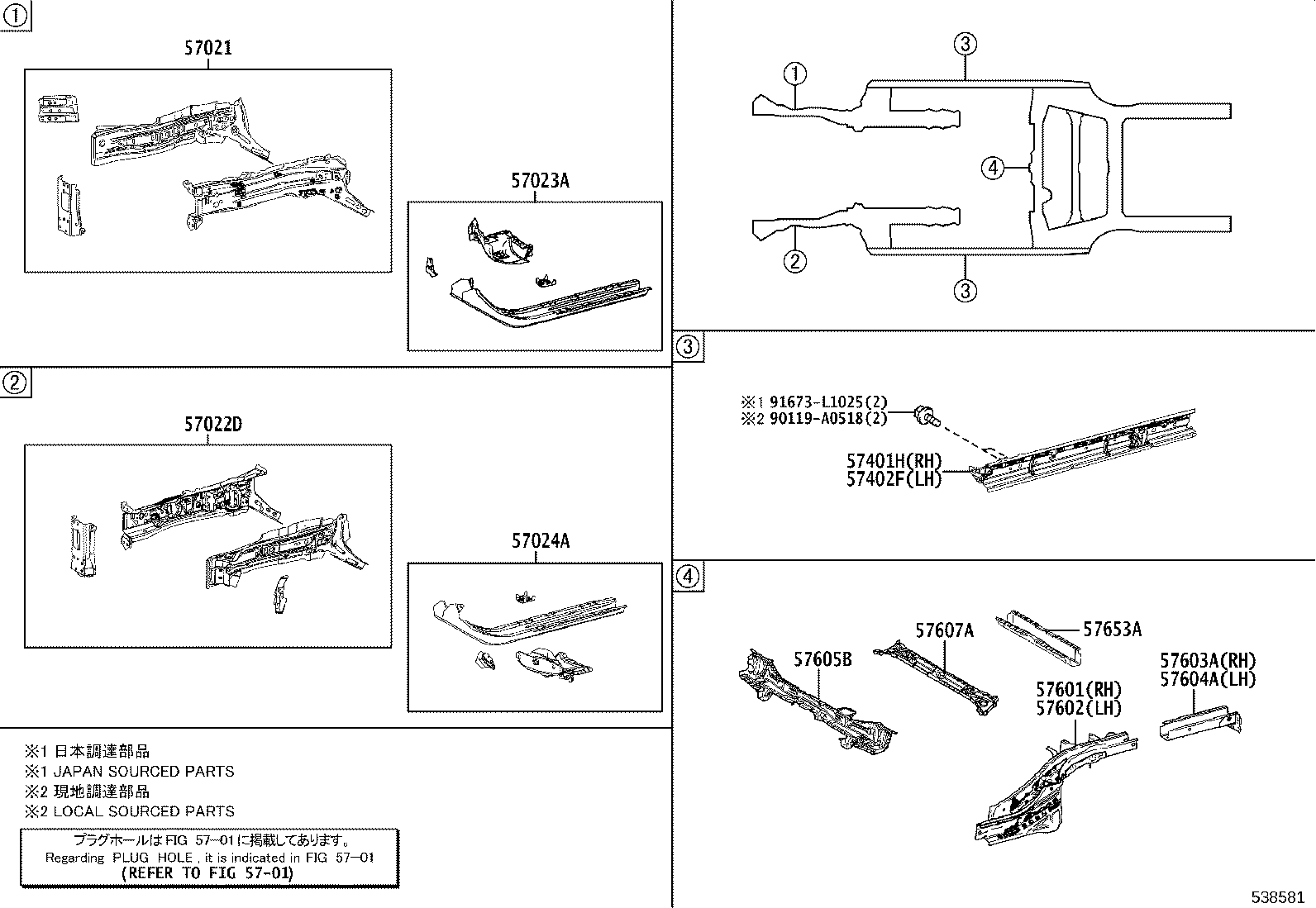

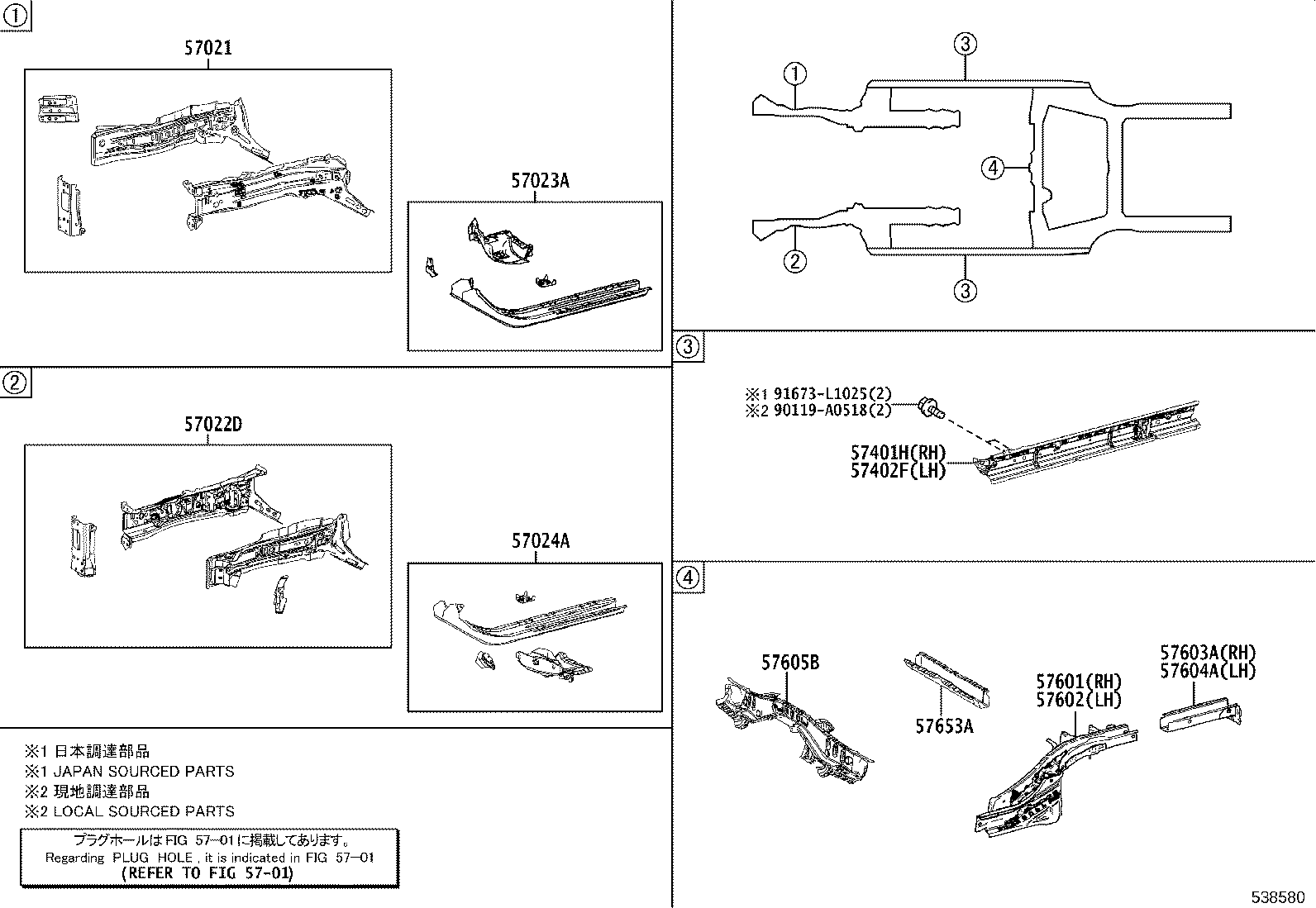

Figure 537904A 537904A 2021-09 → — Figure 538580 538580 2021-09 → — Figure 538581 538581 2022-11 → —

Part groups

PNCDescription
57021 Bracket Sub-assy, Body Mounting, NO.1 RH
57022D Bracket Sub-assy, Body Mounting, LH
57023A Member Sub-assy, Rear Side, RH
57024A Member Sub-assy, Rear Side, LH
57401H Member Sub-assy, Floor Side, Inner RH
57402F Member Sub-assy, Floor Side, Inner LH
57601 Member Sub-assy, Rear Floor Side, RH
57602 Member Sub-assy, Rear Floor Side, LH
57603A Member Sub-assy, Rear Floor Side, Rear RH
57604A Member Sub-assy, Rear Floor Side, Rear LH
57605B Member Sub-assy, Rear Floor Cross, NO.1
57606C Member Sub-assy, Rear Floor Cross, NO.2
57607A Member Sub-assy, Rear Floor Cross, NO.3
57653A Member, Rear Floor Cross, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
