Toyota Corolla Cross

2021-09 → present · chassis MXGA1#,MXGH15 · catalogue 552410 · United States

Supported model Data version 2024-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Insulator

4 part groups · 3 illustrations

Illustrations

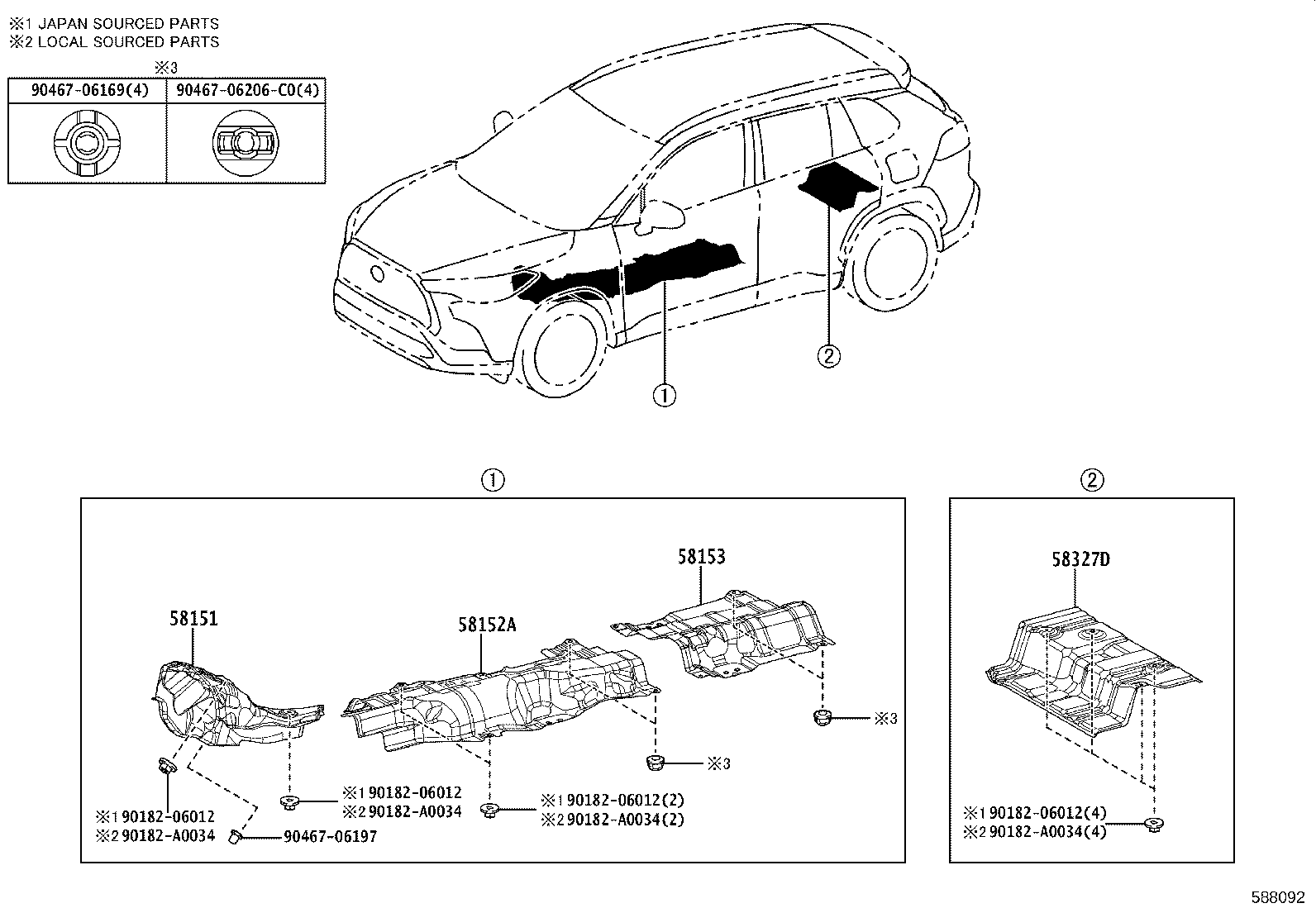

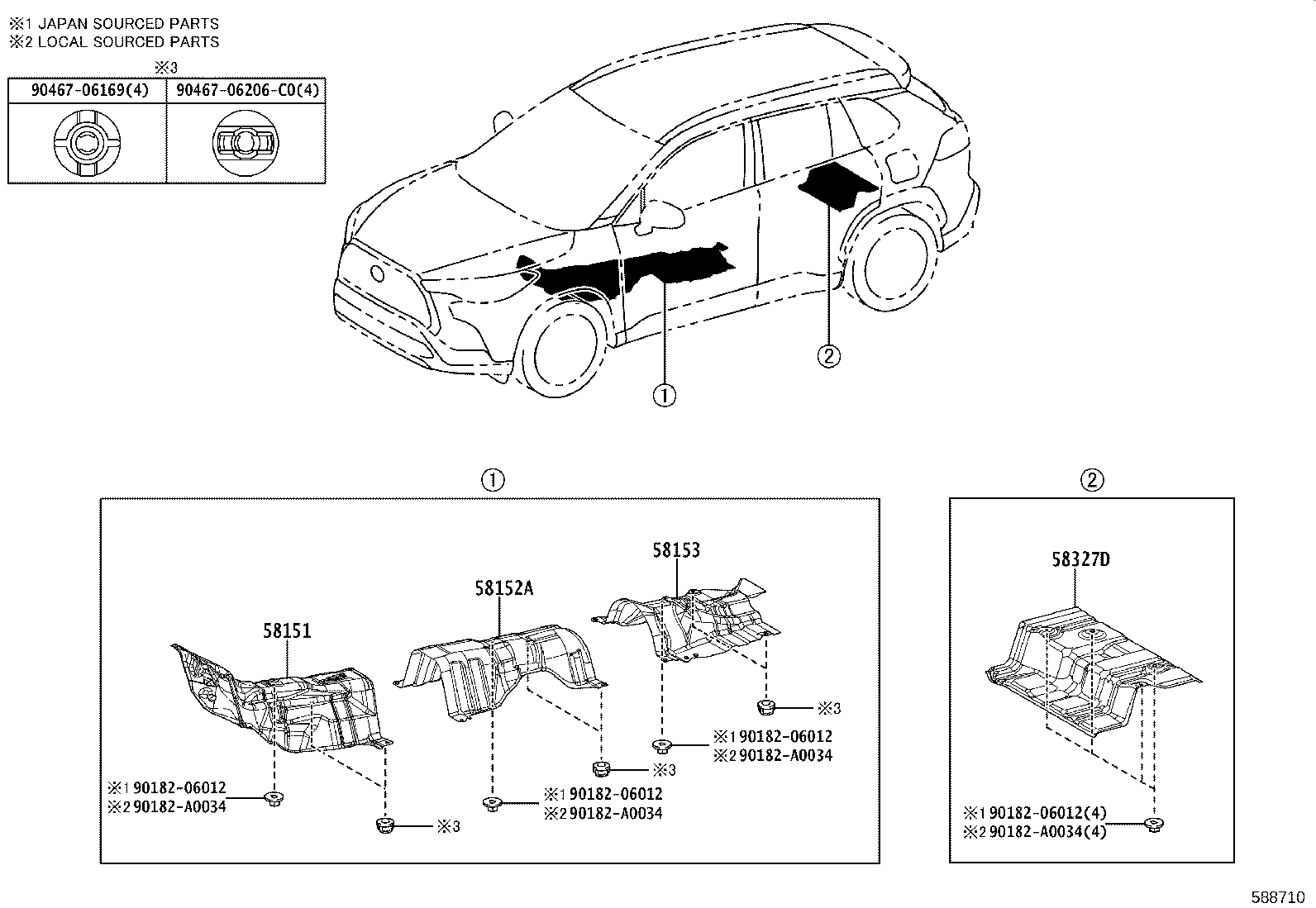

Figure 588091 588091 2021-09 → — Figure 588092 588092 2021-09 → — Figure 588710 588710 2022-11 → —

Part groups

PNCDescription
58151 Insulator, Front Floor Heat, NO.1
58152A Insulator, Front Floor Heat, NO.1 Lower
58153 Insulator, Front Floor Heat, NO.2
58327D Insulator, Main Muffler Heat, Upper
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
