Toyota Corolla Cross
2021-09 → present · chassis MXGA1#,MXGH15 · catalogue 552410 · United States
Supported model
Data version 2024-11

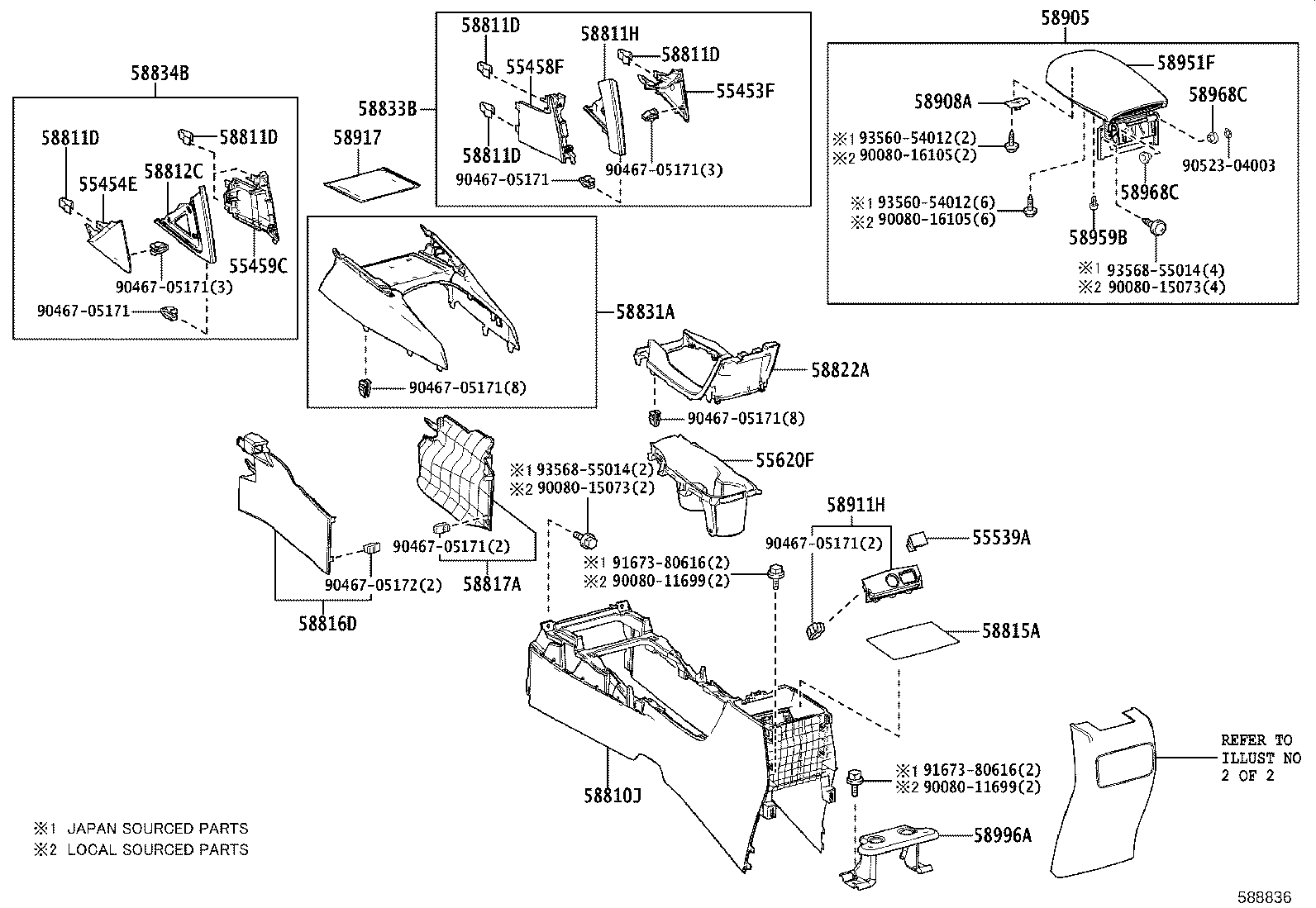

Console Box & Bracket
31 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 55453F | Pad, Instrument, Lower RH |
| 55454E | Pad, Instrument, Lower LH |
| 55458F | Cover, Instrument, Lower RH |
| 55459C | Cover, Instrument, Lower LH |
| 55539A | Cover, Spare Switch Hole |
| 55620F | Holder Assy, Console Box Cup |
| 55626A | Retainer, Instrument Panel Under Tray Wall |
| 58810J | Box Assy, Console |
| 58811D | Clip(FOR CONSOLE BOX) |
| 58811H | Box, Console, RH |
| 58812C | Box, Console, LH |
| 58815A | Carpet, Console Box |
| 58816D | Insert, Console Box, Front NO.1 |
| 58817A | Insert, Console Box, Front NO.2 |
| 58822A | Panel, Console, Upper Rear |
| 58827A | Garnish, Console Box Pocket |
| 58831A | Garnish, Console Upper Panel, Front |
| 58833B | Garnish, Console Upper Panel, NO.1 |
| 58834B | Garnish, Console Upper Panel, NO.2 |

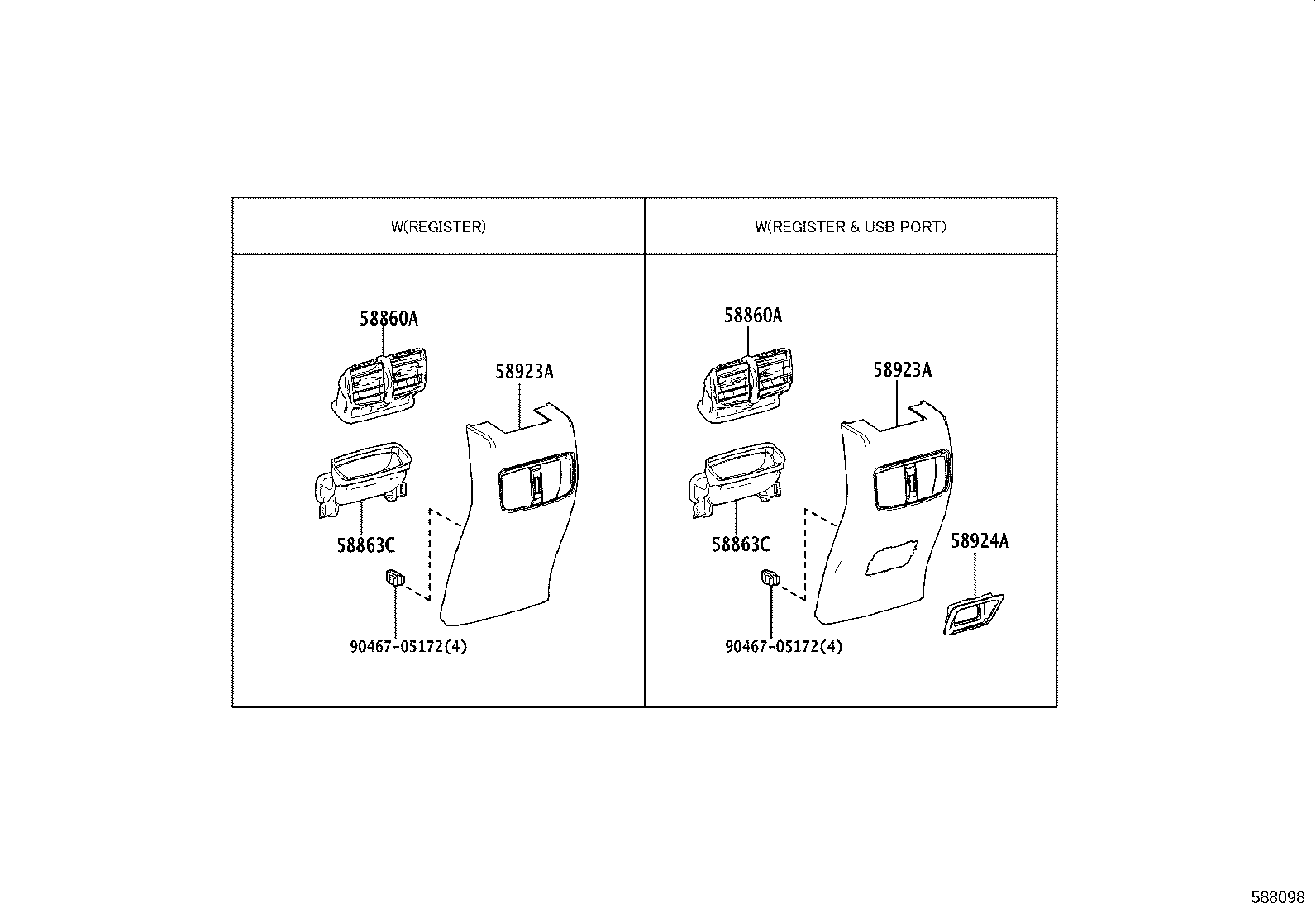

| 58860A | Register Assy, Console Box |
| 58863C | Duct, Console Box, NO.3 |
| 58905 | Door Sub-assy, Console Compartment |
| 58908A | Lock Sub-assy, Console Compartment Door |
| 58911H | Box, Console, Rear |
| 58917 | Mat, Box Bottom, NO.2 |
| 58923A | Panel, Console Rear End |
| 58924A | Panel, Console Rear End, NO.2 |
| 58951F | Door, Console Compartment |
| 58959B | Cushion, Console Compartment Door |
| 58968C | Shim, Console Compartment Door Stopper |
| 58996A | Bracket, Console Box Mounting, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
