Toyota Corolla Cross
2021-09 → present · chassis MXGA1#,MXGH15 · catalogue 552410 · United States
Supported model
Data version 2024-11
Roof Panel & Back Window Glass
58 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 63102A | Panel Sub-assy, Windshield Header |
| 63103A | Reinforcement Sub-assy, Roof Panel |
| 63105D | Frame Sub-assy, Back Window, Upper |

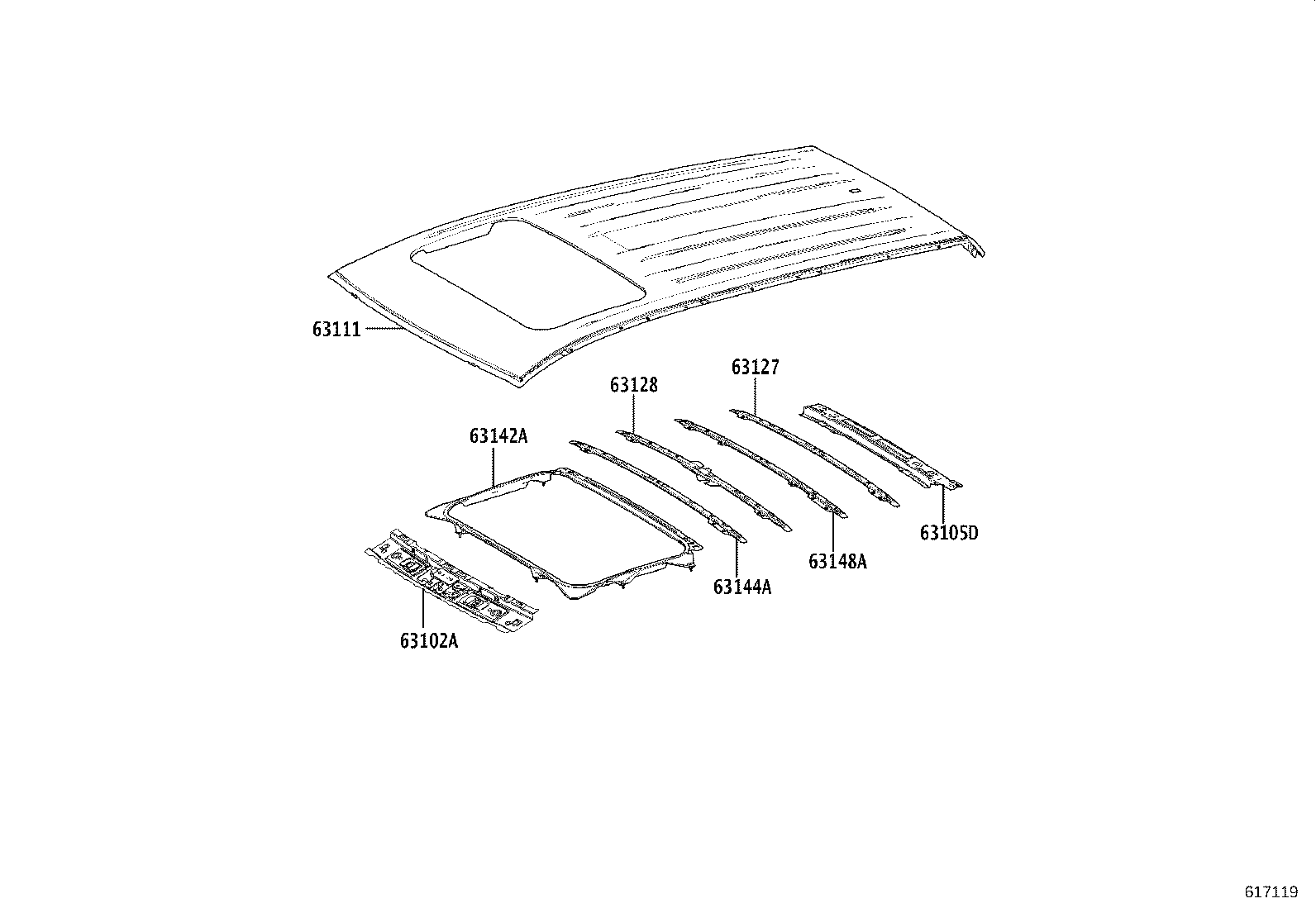

| 63111 | Panel, Roof |
| 63126B | Reinforcement, Roof Panel, Rear NO.2 |
| 63127 | Reinforcement, Roof Panel, NO.5 |
| 63128 | Reinforcement, Roof Panel, NO.6 |
| 63142A | Reinforcement, Roof Panel, NO.2 |
| 63144A | Reinforcement, Roof Panel, NO.4 |
| 63148A | Reinforcement, Roof Panel, NO.7 |

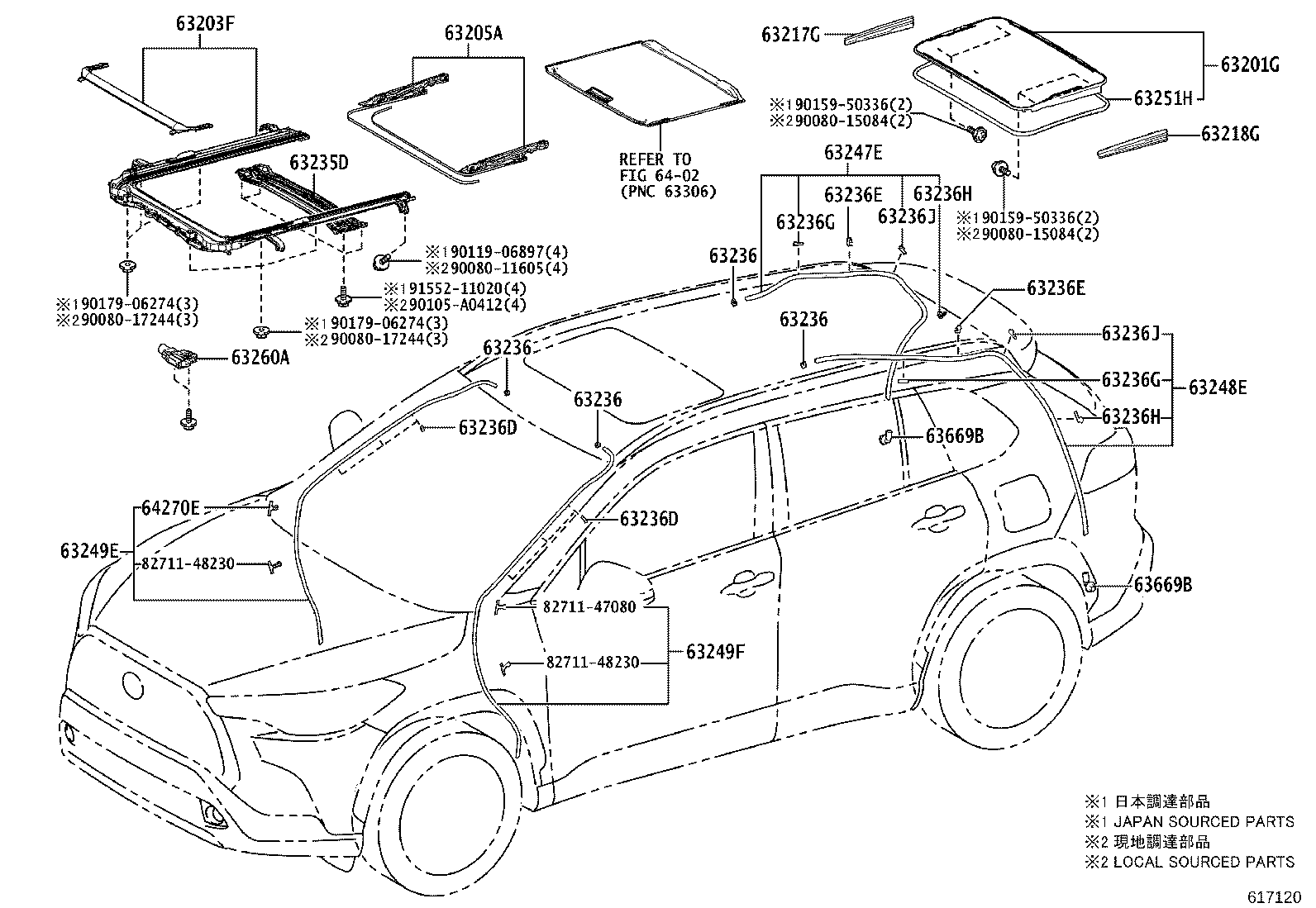

| 63201G | Glass Sub-assy, Sliding Roof |
| 63203F | Housing Sub-assy, Sliding Roof |
| 63205A | Cable Sub-assy, Sliding Roof Drive |
| 63217G | Garnish, Sliding Roof Side, RH |
| 63218G | Garnish, Sliding Roof Side, LH |
| 63235D | Frame, Sliding Roof Housing, Center |
| 63236 | Clamp, Sliding Roof OR Removable Roof Drain Hose |
| 63236D | Clamp, Sliding Roof Drain Hose |
| 63236E | Clamp, Sliding Roof Drain Hose |
| 63236G | Clamp, Sliding Roof Drain Hose |
| 63236H | Clamp, Sliding Roof Drain Hose |
| 63236J | Clamp, Sliding Roof Drain Hose |
| 63247E | Hose, Sliding Roof Drain, Rear RH |
| 63248E | Hose, Sliding Roof Drain, Rear LH |
| 63249E | Hose, Sliding Roof Drain |
| 63249F | Hose, Sliding Roof Drain |
| 63251H | Weatherstrip, Sliding Roof |
| 63260A | Gear Sub-assy, Sliding Roof Drive |
| 63447 | Bar, Roof Carrier, Front |
| 63448 | Bar, Roof Carrier, Rear |
| 63451C | Retainer, Roof Rack, Front RH |
| 63452C | Retainer, Roof Rack, Rear RH |
| 63453F | Retainer, Roof Rack, Front LH |
| 63454F | Retainer, Roof Rack, Rear LH |

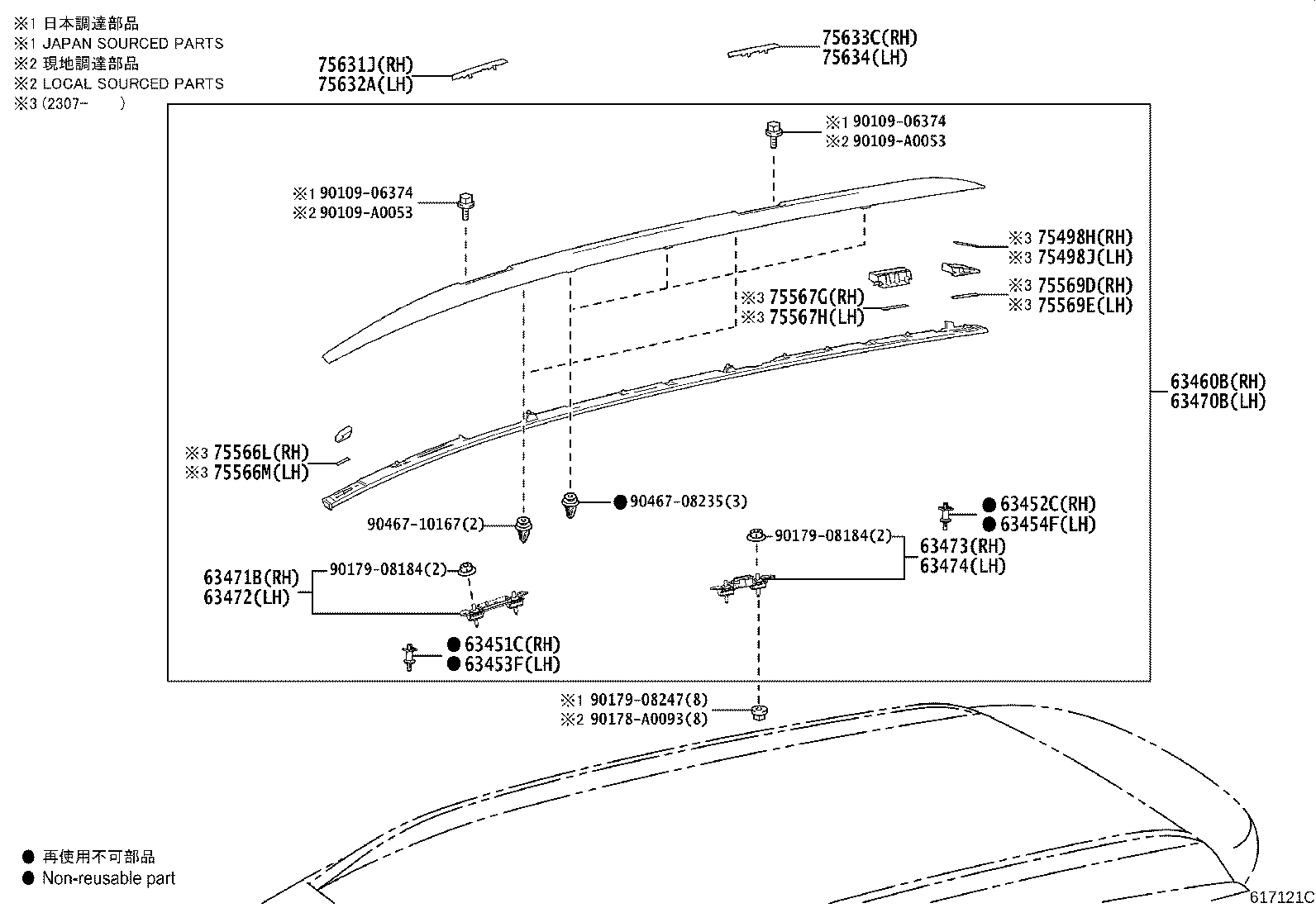

| 63460B | Rack Assy, Roof, RH |
| 63470B | Rack Assy, Roof, LH |
| 63471B | Leg, Roof Rack, Front RH |
| 63472 | Leg, Roof Rack, Front LH |
| 63473 | Leg, Roof Rack, Rear RH |
| 63474 | Leg, Roof Rack, Rear LH |
| 63491 | Cover, Roof Rack Leg, Front RH |
| 63492 | Cover, Roof Rack Leg, Front LH |
| 63493 | Cover, Roof Rack Leg, Rear RH |
| 63494 | Cover, Roof Rack Leg, Rear LH |
| 63669B | Grommet, Sliding Roof Drain |
| 64270E | Clip |
| 75498H | Seal, Outside Moulding, NO.2 RH |
| 75498J | Seal, Outside Moulding, NO.2 LH |
| 75566L | Seal, Roof Drip Side Finish Moulding, Front RH |
| 75566M | Seal, Roof Drip Side Finish Moulding, Front LH |
| 75567G | Seal, Roof Drip Side Finish Moulding, Rear RH |
| 75567H | Seal, Roof Drip Side Finish Moulding, Rear LH |
| 75569D | Seal, Roof Drip Side Finish Moulding, NO.3 RH |
| 75569E | Seal, Roof Drip Side Finish Moulding, NO.3 LH |
| 75631J | Lid, Roof Side Garnish, NO.1 RH |
| 75632A | Lid, Roof Side Garnish, NO.1 LH |
| 75633C | Lid, Roof Side Garnish, NO.2 RH |
| 75634 | Lid, Roof Side Garnish, NO.2 LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
