Toyota Corolla Cross

2021-09 → present · chassis MXGA1#,MXGH15 · catalogue 552410 · United States

Supported model Data version 2024-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

12 part groups · 2 illustrations

Illustrations

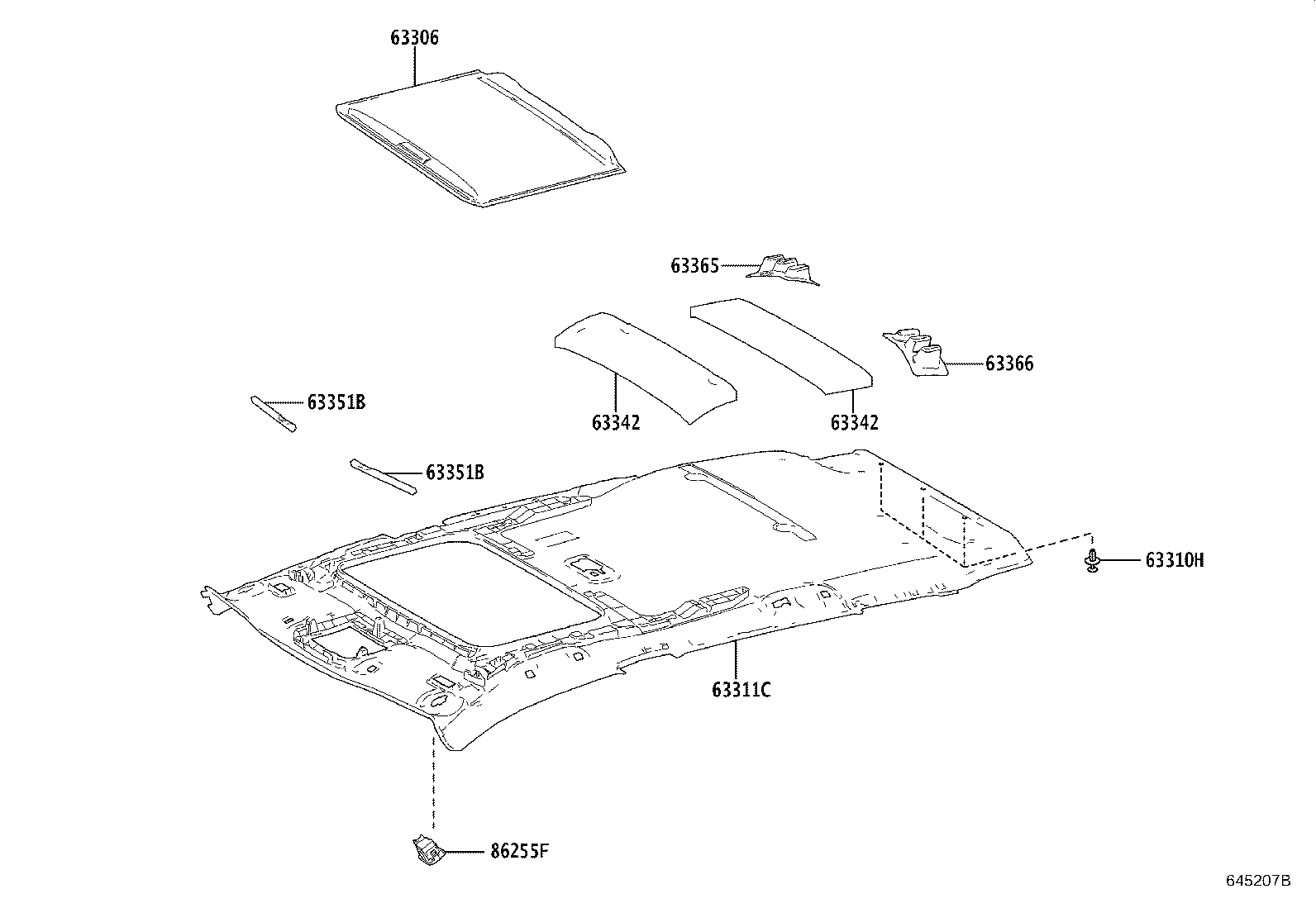

Figure 645206B 645206B 2021-08 → — Figure 645207B 645207B 2021-08 → —

Part groups

PNCDescription
63306 Trim Sub-assy, Sunshade
63310H Clip(FOR ROOF HEADLINING)
63311C Headlining, Roof
63342 Pad, Roof Silencer, NO.2
63347B Pad, Roof Side Rail Silencer, RH
63348B Pad, Roof Side Rail Silencer, LH
63351B Pad, Roof Headlining
63355C Pad, Roof Headlining, RH
63356B Pad, Roof Headlining, LH
63365 Support, Roof Headlining, NO.5
63366 Support, Roof Headlining, NO.6
86255F Case, Microphone
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
