Toyota Corolla Cross
2021-09 → present · chassis MXGA1#,MXGH15 · catalogue 552410 · United States
Supported model
Data version 2024-11
Caution Plate (EXTERIOR & INTERIOR)
13 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 11298B | Label, Emission Control Information |
| 15369A | Label, Engine Oil Information |
| 288A2 | Label, Battery Location |

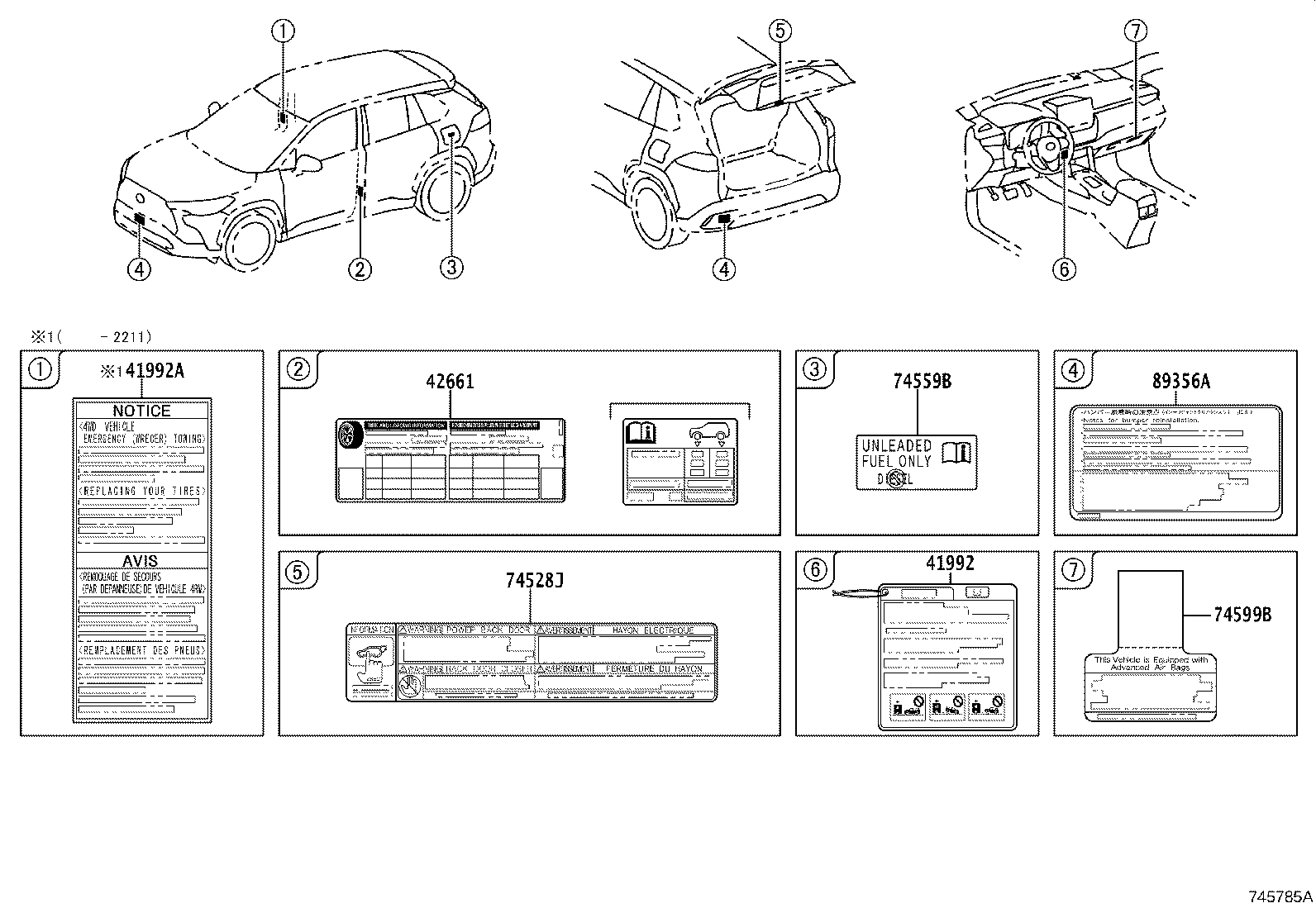

| 41992 | Label, Differential Notice |
| 41992A | Label, Differential Notice, NO.2 |

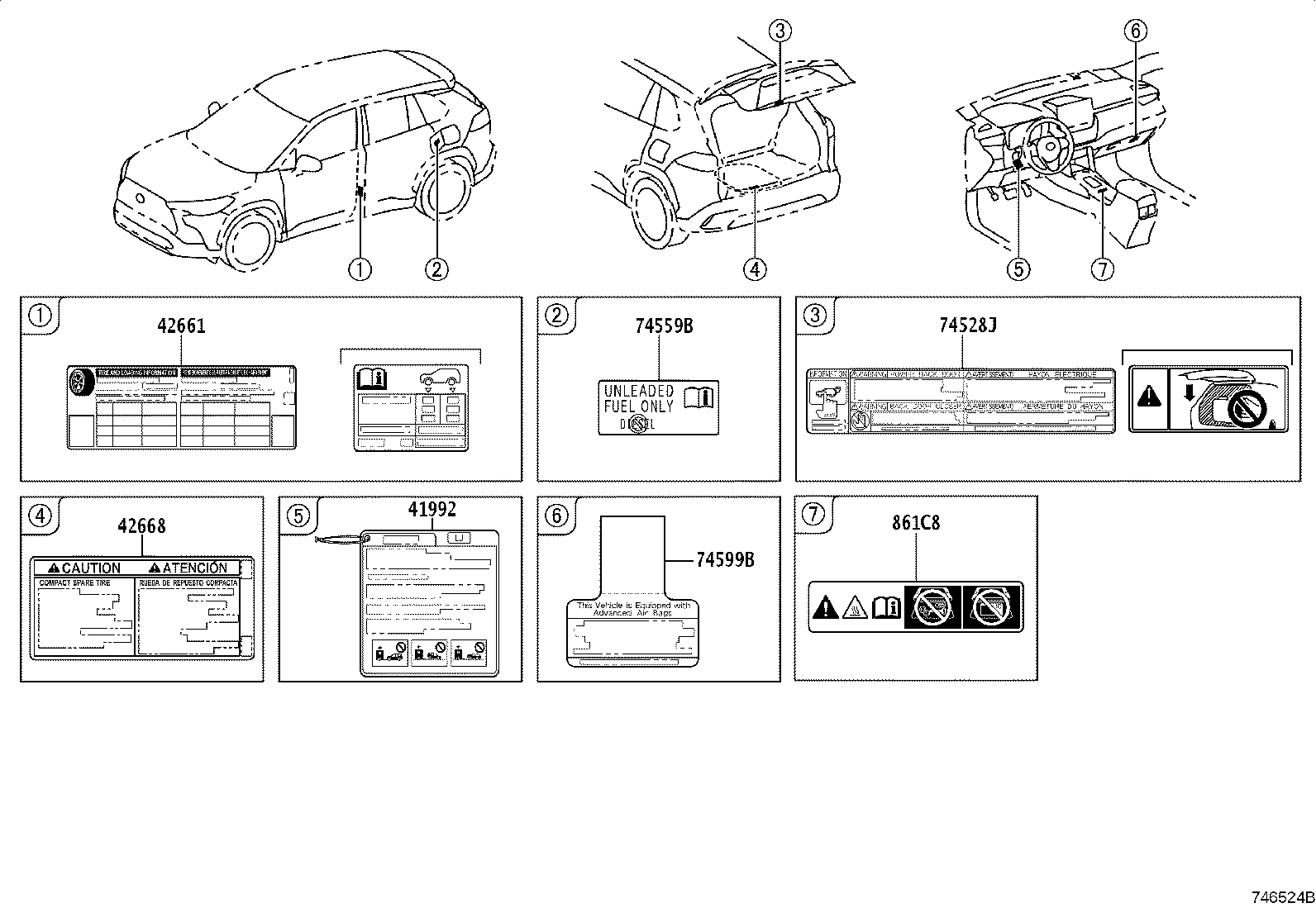

| 42661 | Label, Tire Pressure Information |
| 42668 | Label, Compact Spare Tire Caution |
| 74528J | Label, Power Back Door Caution |
| 74559B | Label, Fuel Information |
| 74599B | Label, Driver & Passenger Airbag Information |
| 861C8 | Label, Mobile Wireless Charger Caution |
| 88723H | Label, Cooler Service Caution |
| 89356A | Label, Clearance Warning Information |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
