Toyota Corolla Cross
2021-09 → present · chassis MXGA1#,MXGH15 · catalogue 552410 · United States
Supported model
Data version 2024-11

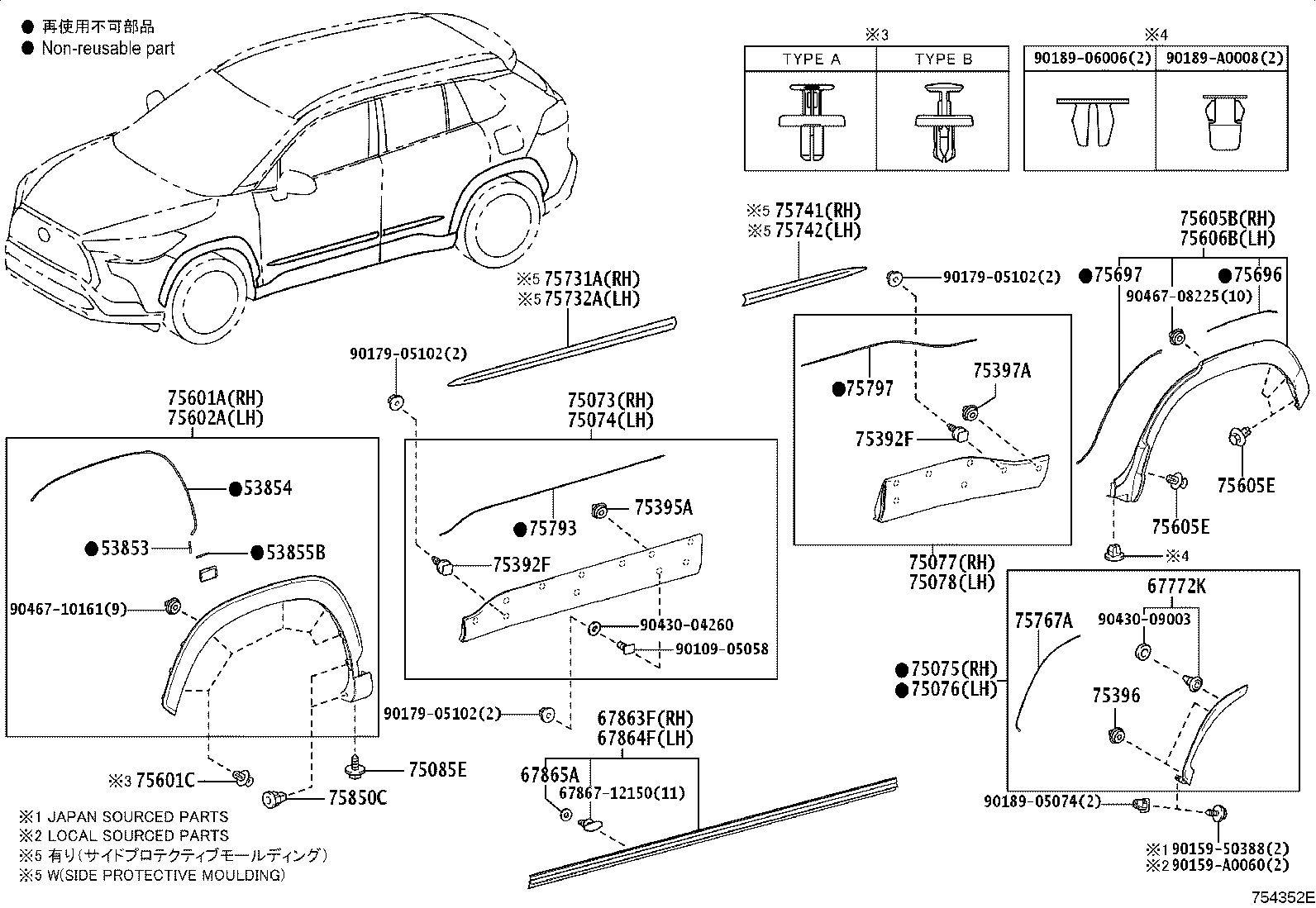

Side Moulding
61 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 53853 | Pad, Front Wheel Opening Extension, NO.3 |
| 53854 | Pad, Front Wheel Opening Extension, NO.4 |
| 53855B | Pad, Front Wheel Opening Extension, NO.5 |
| 60117 | Cover Sub-assy, Front Pillar, Upr RH |
| 60118 | Cover Sub-assy, Front Pillar, Upr LH |
| 61991B | Protector, Front Pillar Cover, RH |
| 61992 | Protector, Front Pillar Cover, LH |
| 62231A | Pad, Quarter Pillar, RH |
| 62232A | Pad, Quarter Pillar, LH |
| 62505E | Cover Sub-assy, Quarter Pillar, RH |
| 62506C | Cover Sub-assy, Quarter Pillar, LH |
| 67772K | Cap, Door Trim Retainer |
| 67863F | Weatherstrip, Front Door, NO.2 RH |
| 67864F | Weatherstrip, Front Door, NO.2 LH |
| 67865A | Weatherstrip, Separation Door |
| 75073 | Moulding Sub-assy, Front Door, Outside Lower RH |
| 75074 | Moulding Sub-assy, Front Door, Outside Lower LH |
| 75075 | Moulding Sub-assy, Rear Door, Outside RH |
| 75076 | Moulding Sub-assy, Rear Door, Outside LH |
| 75077 | Moulding Sub-assy, Rear Door Outside Lower RH |
| 75078 | Moulding Sub-assy, Rear Door Outside Lower LH |
| 75085E | Screw, NO.1 |
| 75392F | Retainer, Outside Moulding |
| 75395A | Clip, Outside Moulding, NO.1 |
| 75396 | Clip, Outside Moulding, NO.2 |
| 75397A | Clip, Outside Moulding, NO.3 |
| 75555D | Moulding, Roof Drip Side Finish, Center RH |
| 75556C | Moulding, Roof Drip Side Finish, Center LH |
| 75561A | Clip, Roof Drip Side Finish Moulding |
| 75601A | Moulding Sub-assy, Front Fender, RH |
| 75601C | Clip, Front Fender Moulding |
| 75602A | Moulding Sub-assy, Front Fender, LH |
| 75605B | Moulding Sub-assy, Quarter Outside, RH |
| 75605E | Clip, Quarter Outside Moulding |
| 75606B | Moulding Sub-assy, Quarter Outside, LH |
| 75696 | Pad, Body Outside Moulding, NO.1 |
| 75697 | Pad, Body Outside Moulding, NO.2 |
| 75710 | Moulding Assy, Front Door Belt, RH |
| 75720 | Moulding Assy, Front Door Belt, LH |
| 75730 | Moulding Assy, Rear Door Belt, RH |
| 75731A | Moulding, Front Door, Outside RH |
| 75732A | Moulding, Front Door, Outside LH |
| 75740 | Moulding Assy, Rear Door Belt, LH |
| 75741 | Moulding, Rear Door, Outside RH |
| 75742 | Moulding, Rear Door, Outside LH |
| 75753 | Moulding, Front Door Window Frame, Upper RH |
| 75754A | Moulding, Front Door Window Frame, Upper LH |
| 75755A | Moulding, Front Door Window Frame, RH(CENTER PILLAR SIDE) |
| 75756D | Moulding, Front Door Window Frame, LH(CENTER PILLAR SIDE) |
| 75761B | Moulding, Rear Door Window Frame, RH(CENTER PILLAR SIDE) |
| 75762B | Moulding, Rear Door Window Frame, LH(CENTER PILLAR SIDE) |
| 75763A | Moulding, Rear Door Window Frame, Upper RH |
| 75764A | Moulding, Rear Door Window Frame, Upper LH |
| 75765B | Moulding, Rear Door Window Frame, RH(REAR PILLAR SIDE) |
| 75766B | Moulding, Rear Door Window Frame, LH(REAR PILLAR SIDE) |
| 75767A | Pad, Rear Door Moulding, NO.1 |
| 75792 | Clip, Door Window Frame Moulding |
| 75793 | Pad, Front Door Outside Moulding, Upper |
| 75797 | Pad, Rear Door Outside Moulding, Upper |
| 75850C | Grommet, NO.1 |
| 75895A | Tape, Moulding, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
