Toyota Corolla Cross
2021-09 → present · chassis MXGA1#,MXGH15 · catalogue 552410 · United States
Supported model
Data version 2024-11

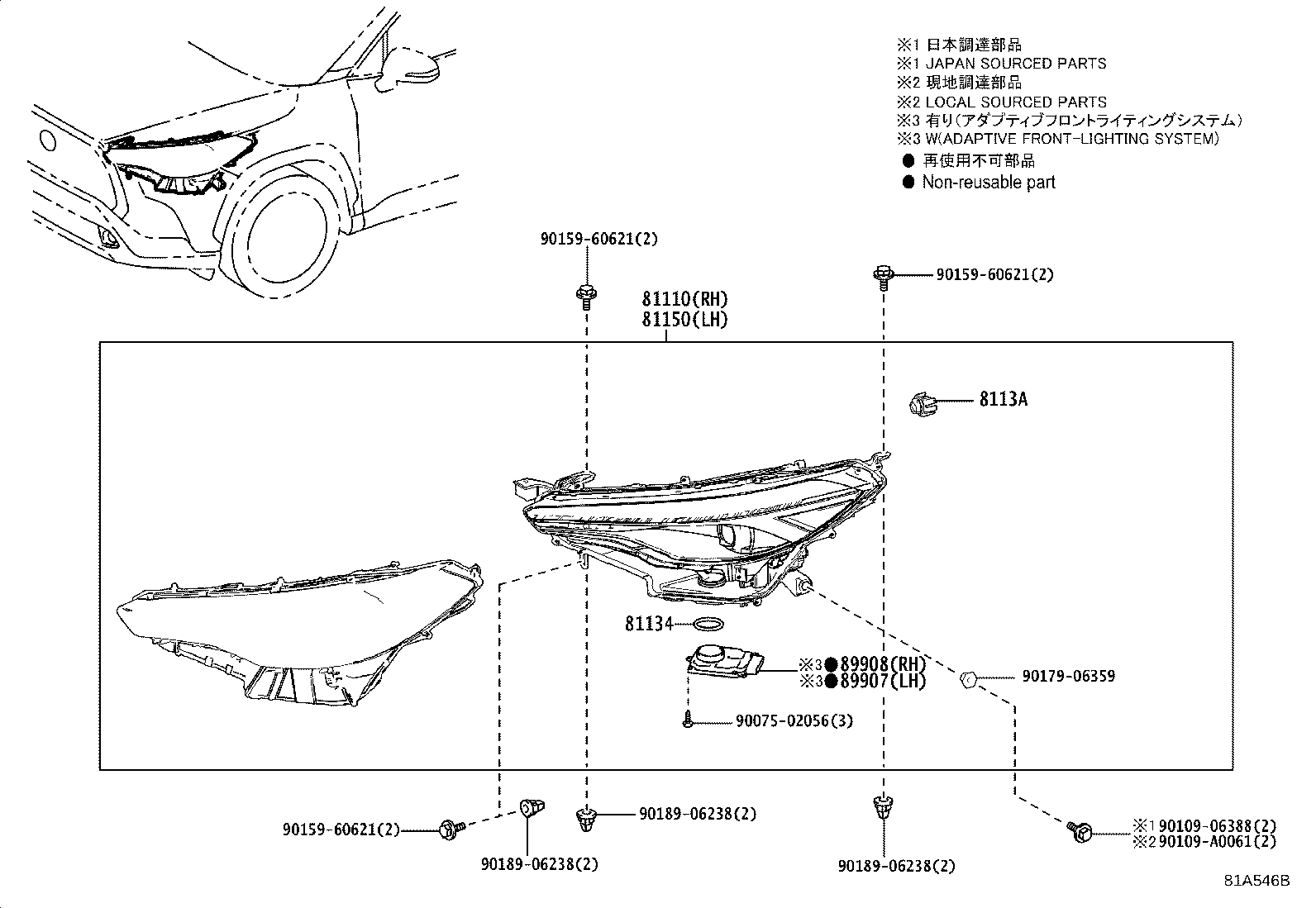

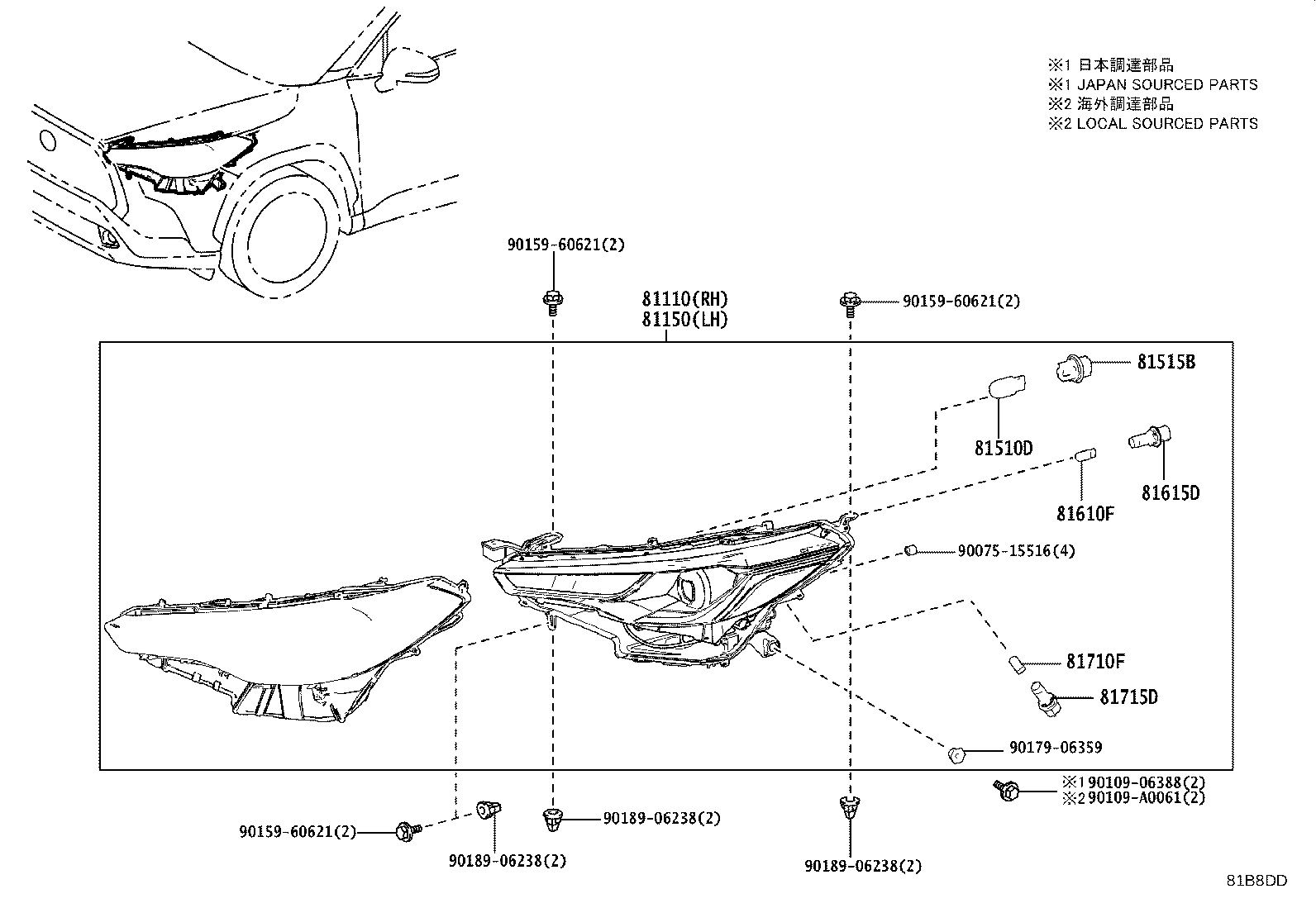

Headlamp
12 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 81110 | Headlamp Assy, RH |
| 81134 | Gasket, Headlamp |
| 8113A | Led, Headlamp Front Turn Signal |
| 81150 | Headlamp Assy, LH |
| 81510D | Bulb (FOR FRONT TURN SIGNAL LAMP) |
| 81515B | Socket, Front Turn Signal Lamp |
| 81610F | Bulb(FOR CLEARANCE LAMP) |
| 81615D | Socket, Clearance Lamp |
| 81710F | Bulb, Front Side Maker Lamp |
| 81715D | Socket Plug, Front Marker Lamp |
| 89907 | Computer Sub-assy, Headlamp, LH |
| 89908 | Computer Sub-assy, Headlamp, RH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
