Toyota Corolla Cross

2021-09 → present · chassis MXGA1#,MXGH15 · catalogue 552410 · United States

Supported model Data version 2024-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Combination Lamp

13 part groups · 2 illustrations

Illustrations

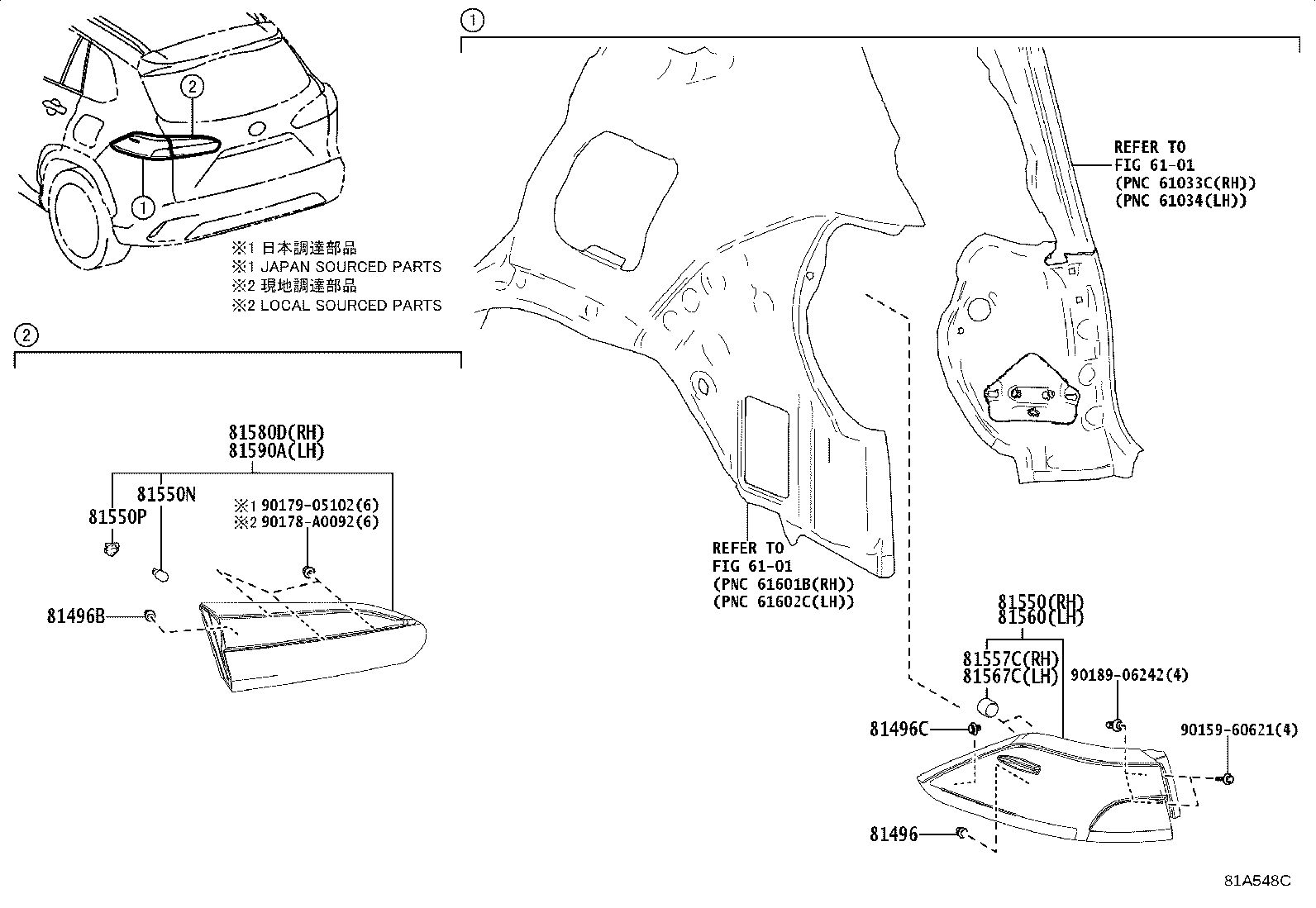

Figure 81A547C 81A547C 2021-09 → — Figure 81A548C 81A548C 2021-09 → —

Part groups

PNCDescription
81496 Guide, Rear Combination Lamp
81496B Guide, Rear Lamp
81496C Guide, Rear Combination Lamp, NO.2
81550 Lamp Assy, Rear Combination, RH
81550N Bulb, Back UP Lamp
81550P Socket, Back UP Lamp
81550S Bulb, Rear Side Marker Lamp
81550V Socket, Rear Side Marker Lamp
81557C Cover, Rear Combination Lamp, RH
81560 Lamp Assy, Rear Combination, LH
81567C Cover, Rear Combination Lamp, LH
81580D Lamp Assy, Rear, RH
81590A Lamp Assy, Rear, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
