Toyota Corolla Cross
2021-09 → present · chassis MXGA1#,MXGH15 · catalogue 552410 · United States
Supported model
Data version 2024-11
Wiring & Clamp
123 part groups · 18 illustrations
Illustrations
Part groups
| PNC | Description |
|---|---|

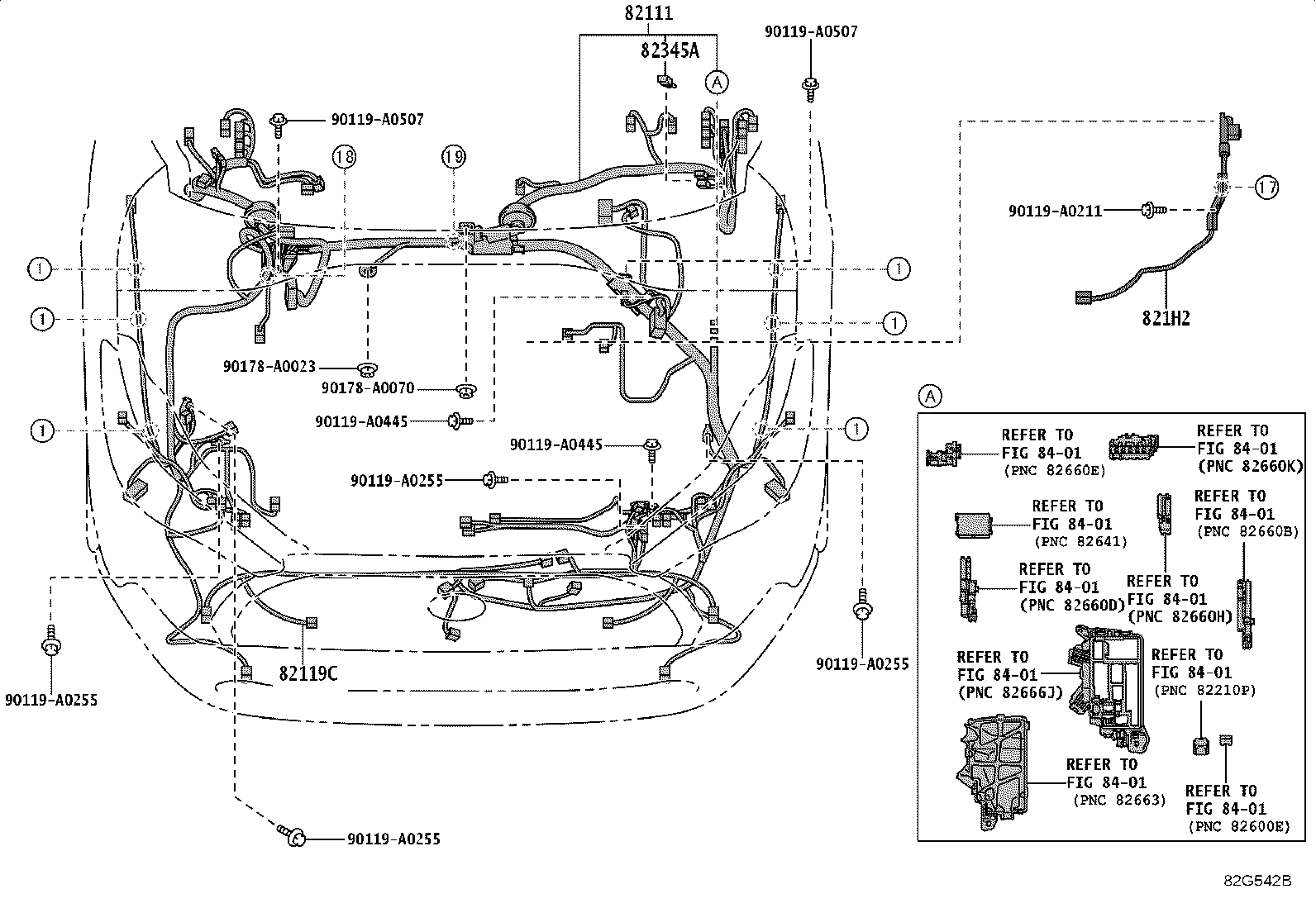

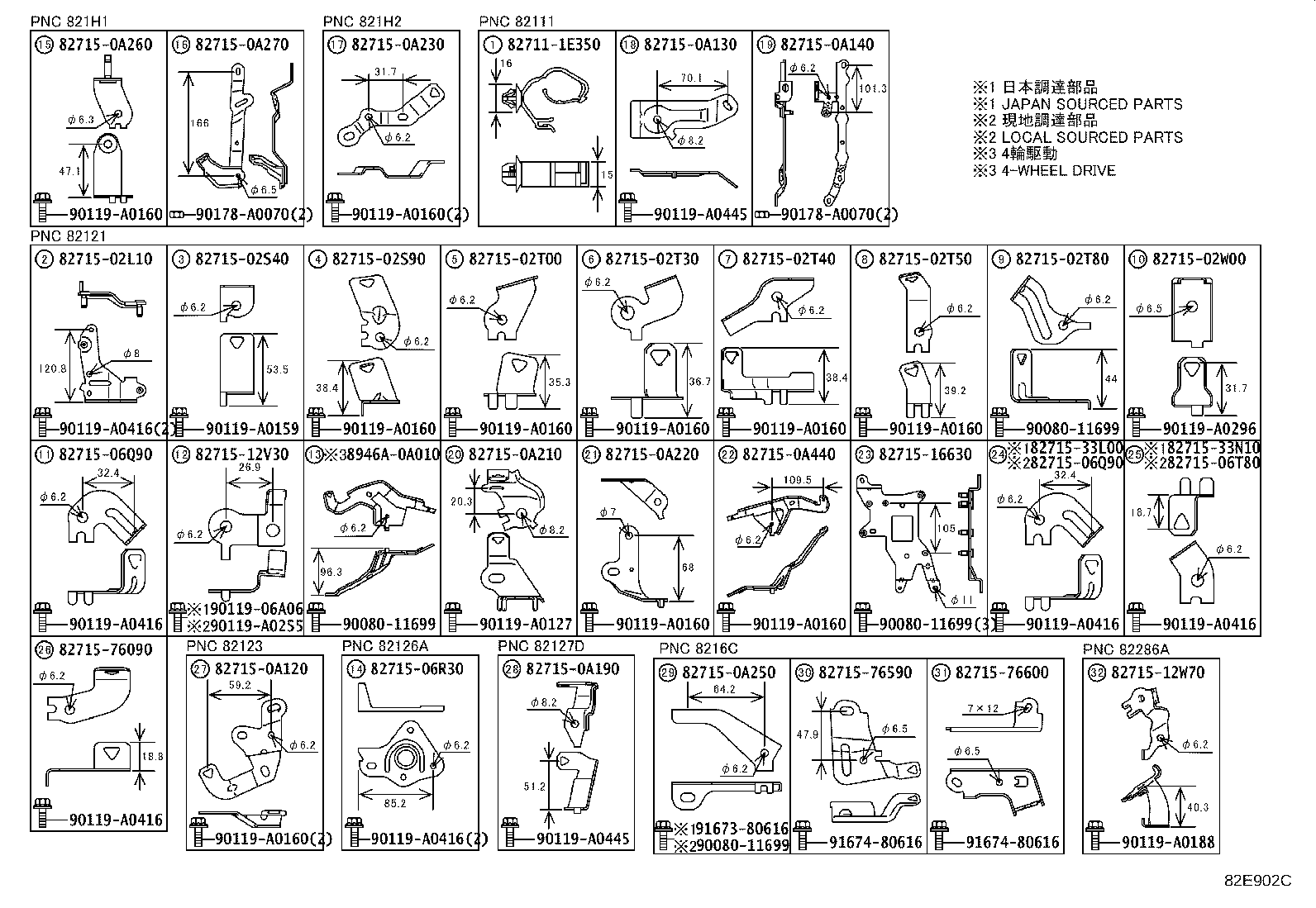

| 82111 | Wire, Engine Room Main |
| 82119C | Wire, Engine Room, NO.5 |

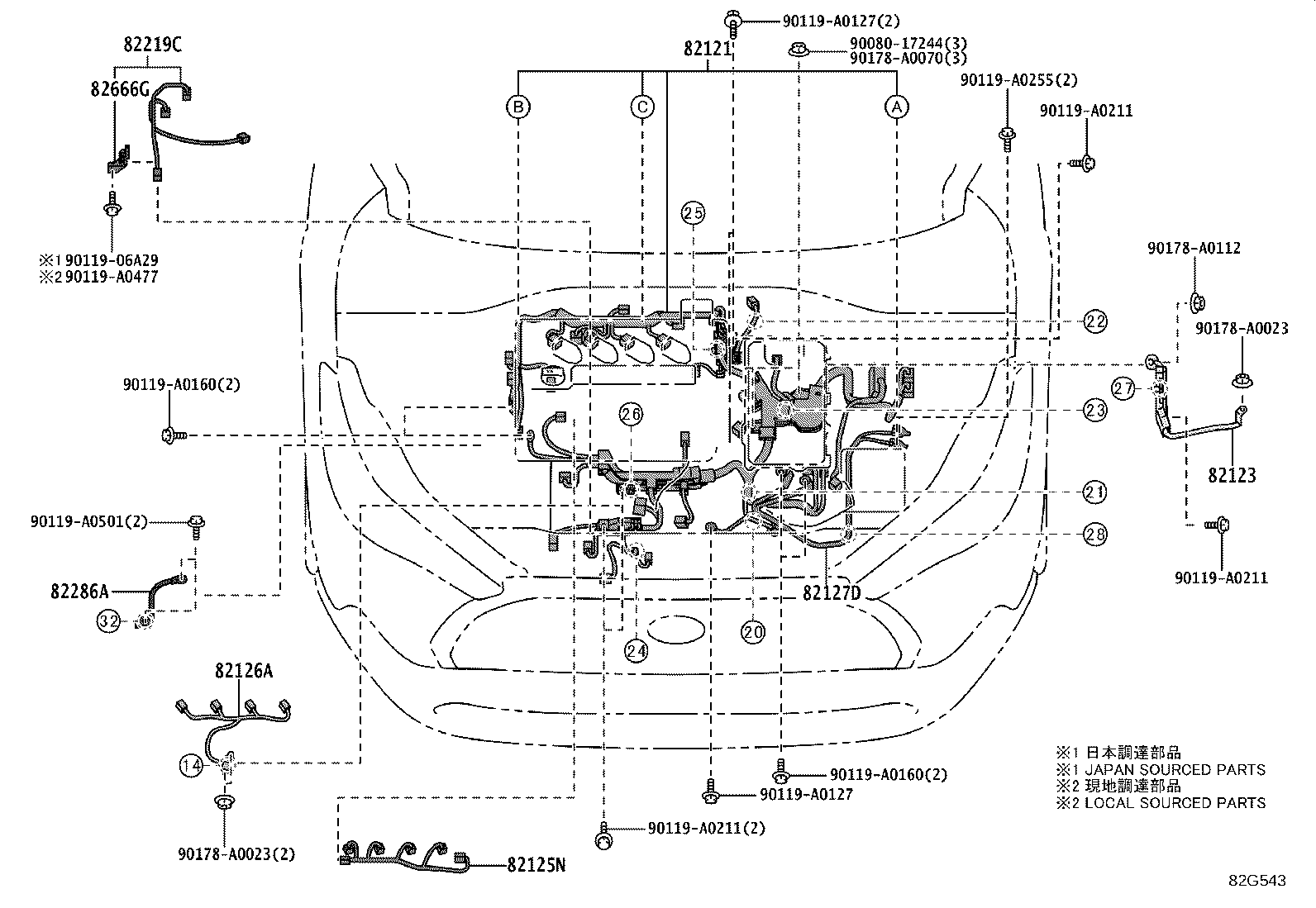

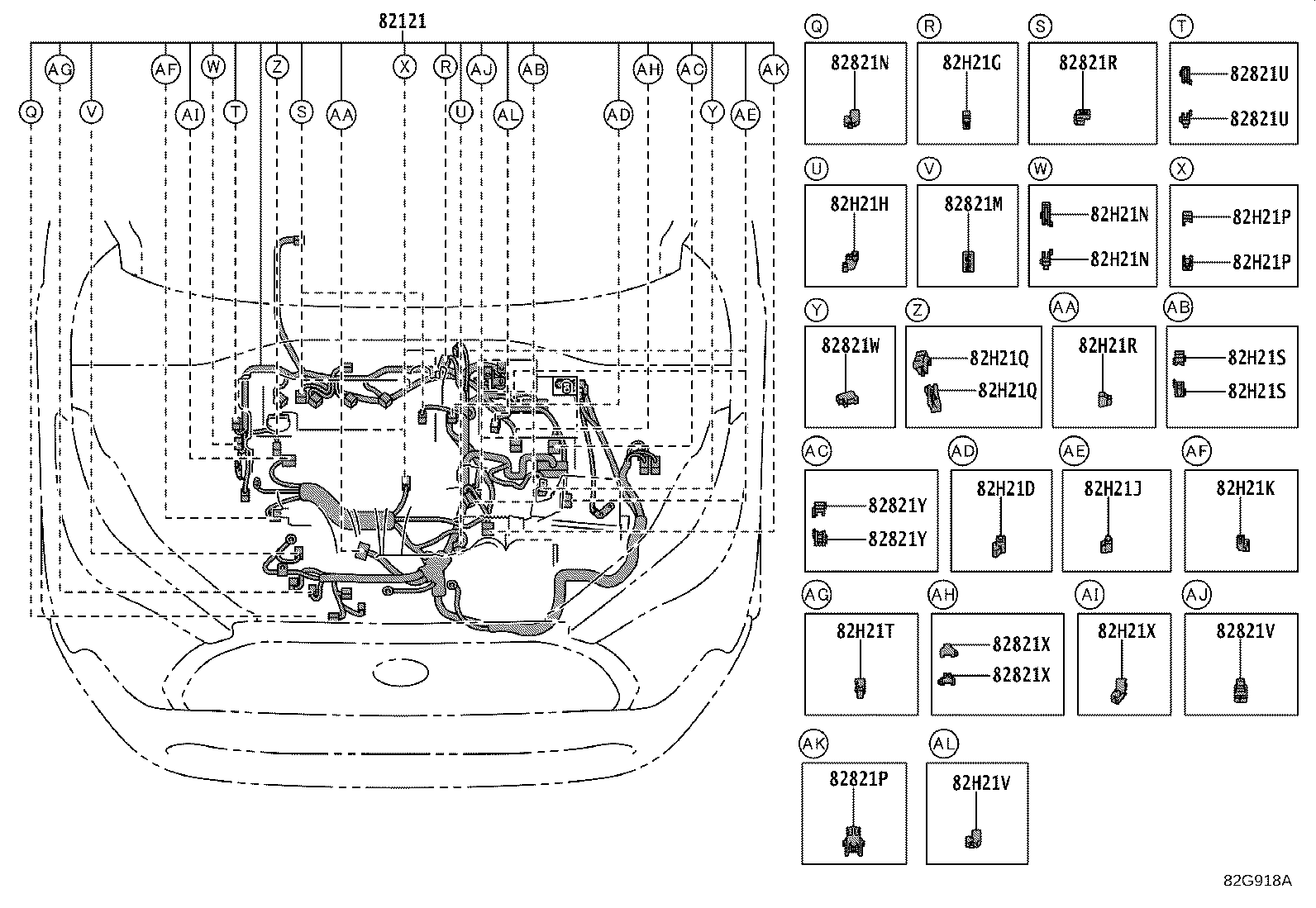

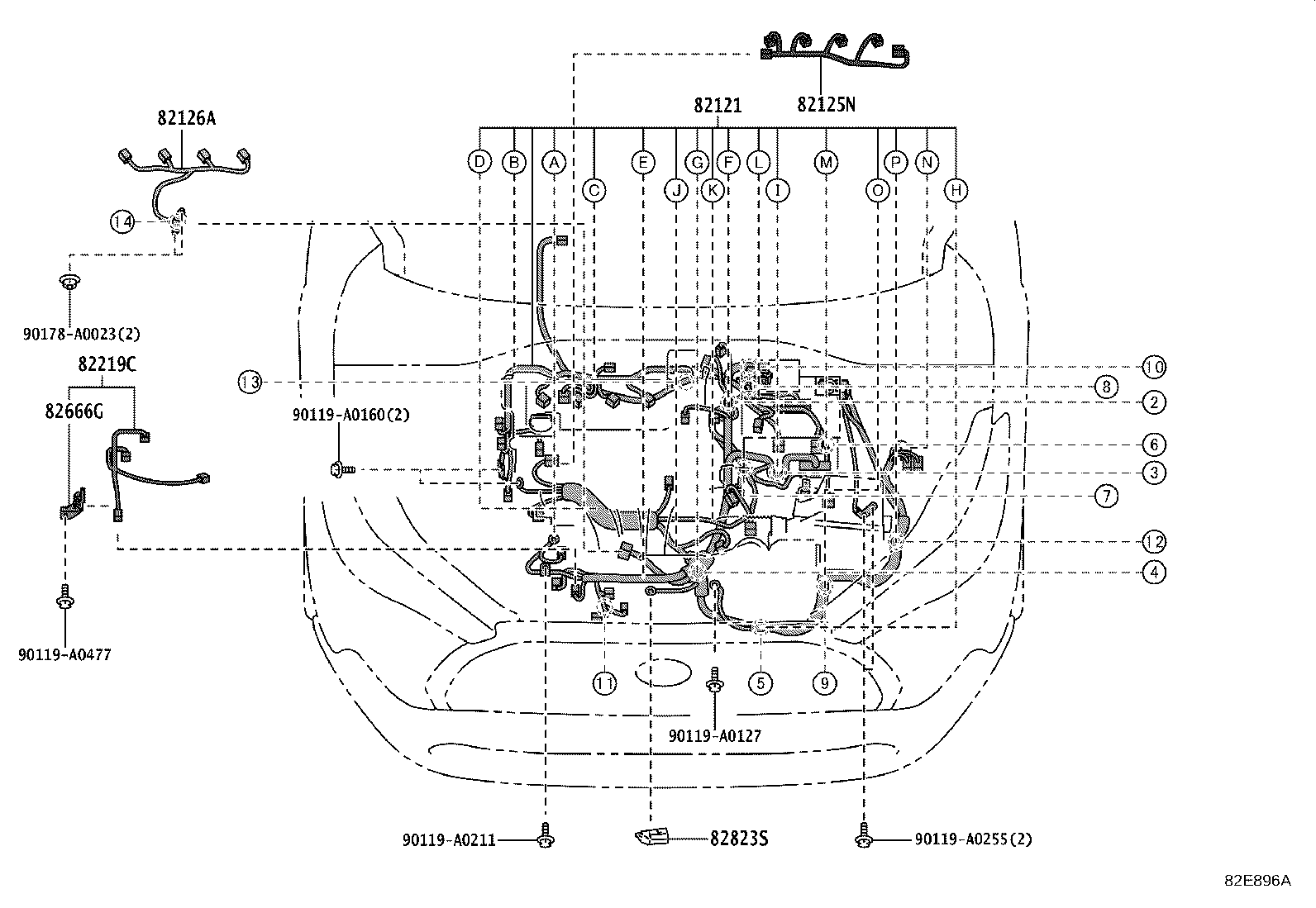

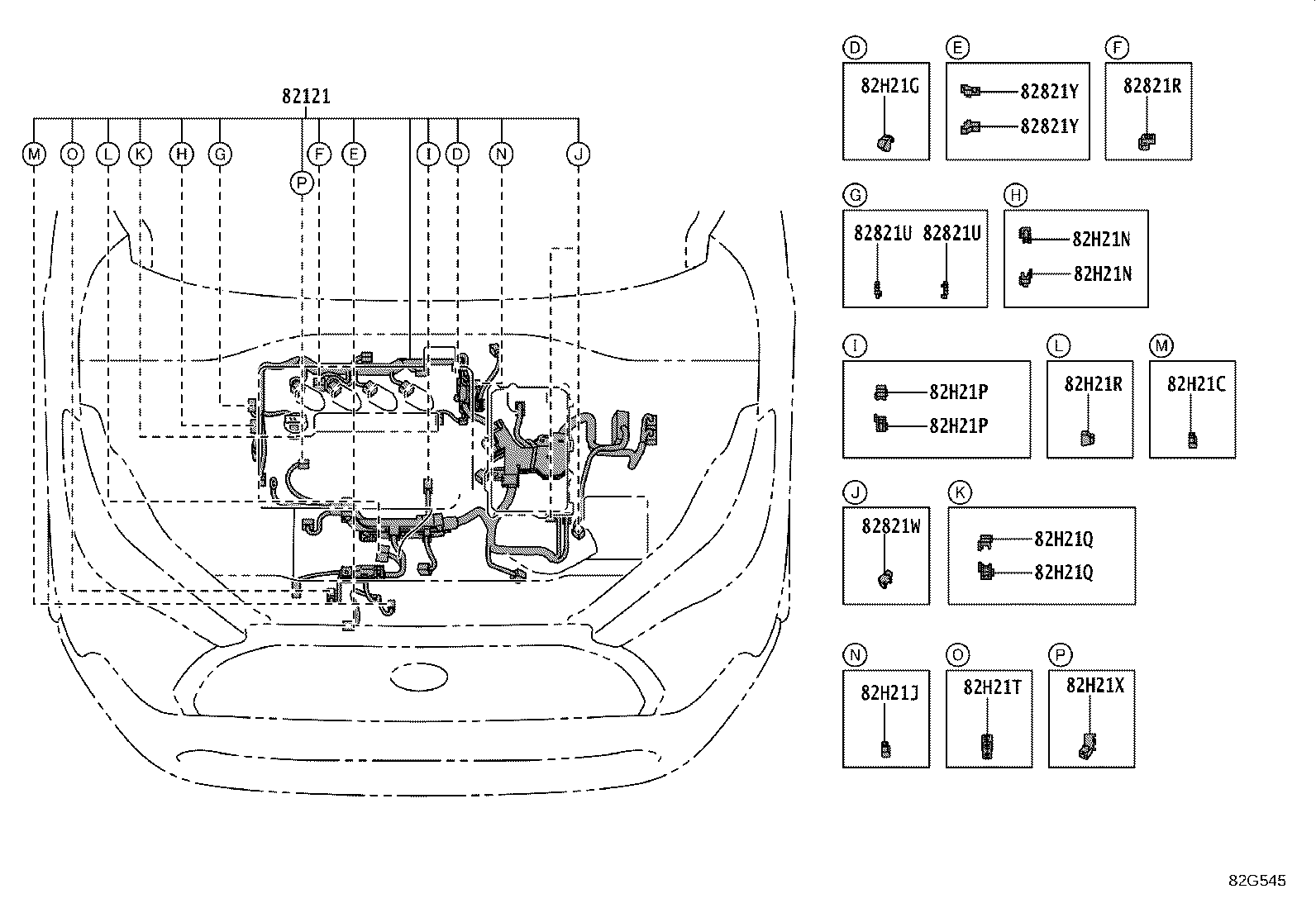

| 82121 | Wire, Engine |
| 82123 | Wire, Engine, NO.3 |
| 82125N | Wire, Engine, NO.5 |
| 82126A | Wire, Engine, NO.6 |
| 82127D | Wire, Engine, NO.7 |

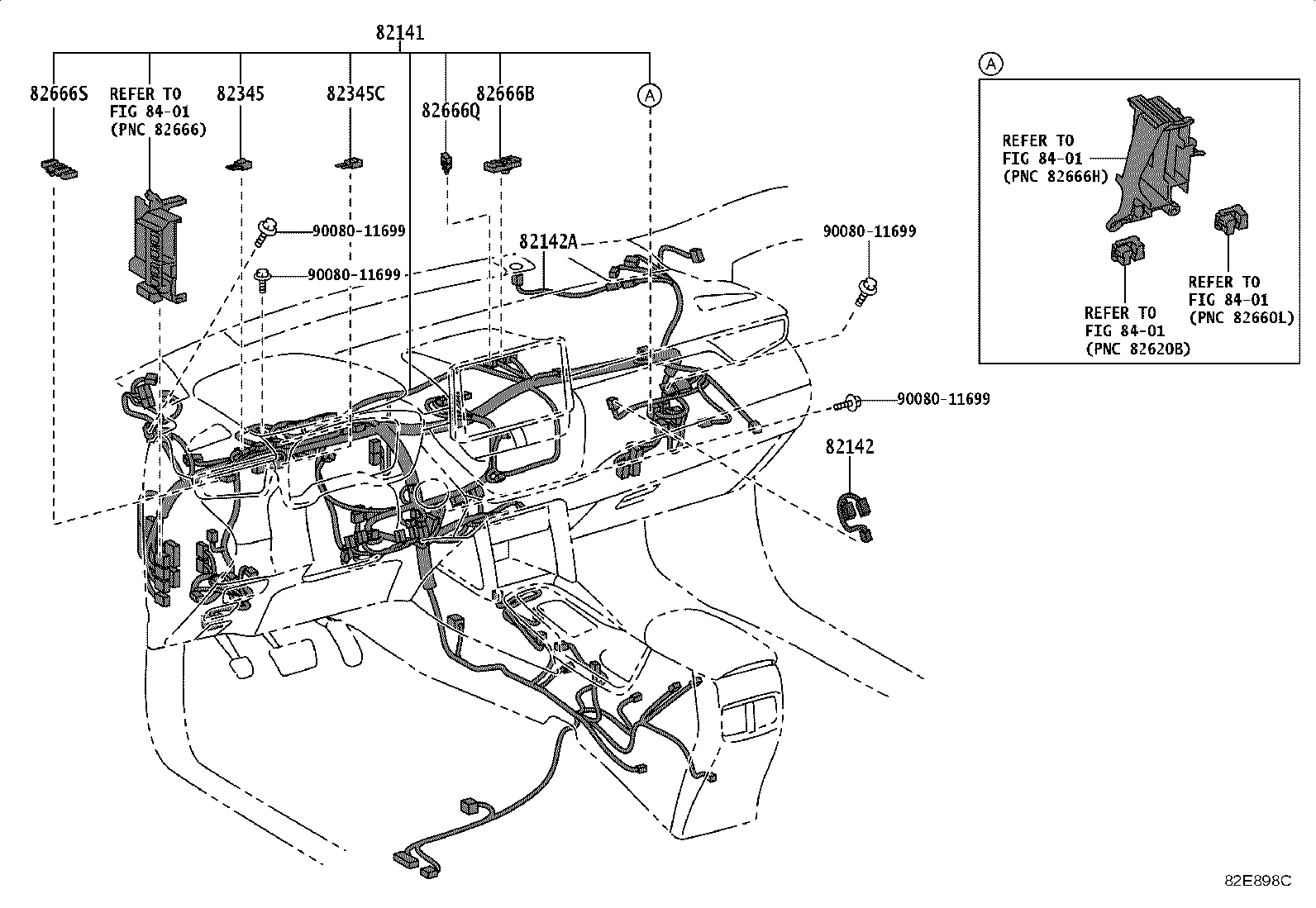

| 82141 | Wire, Instrument Panel |
| 82142 | Wire, Instrument Panel, NO.2 |
| 82142A | Wire, Instrument Panel, NO.2 |

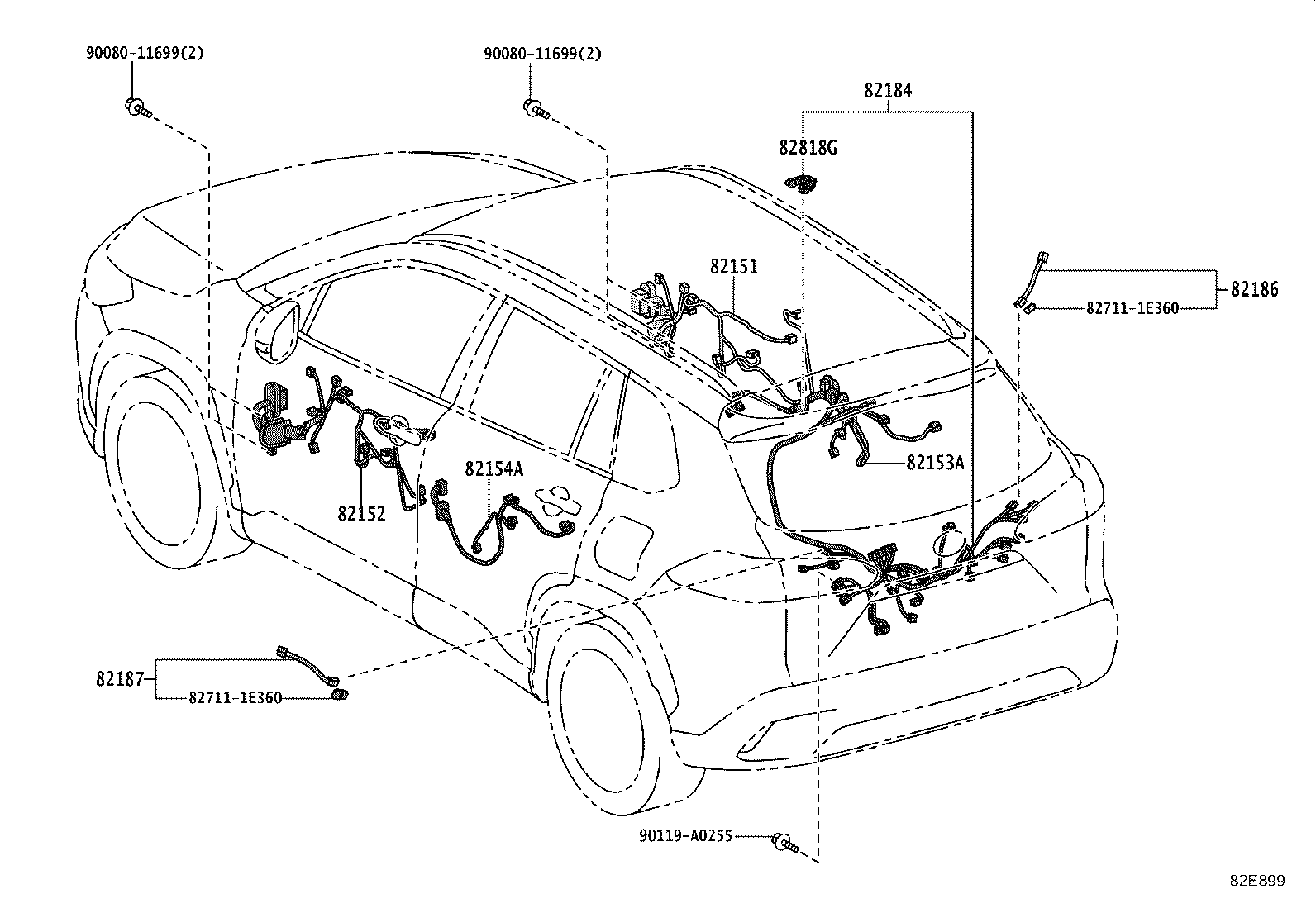

| 82151 | Wire, Front Door, RH |
| 82152 | Wire, Front Door, LH |
| 82153A | Wire, Rear Door, RH |
| 82154A | Wire, Rear Door, LH |

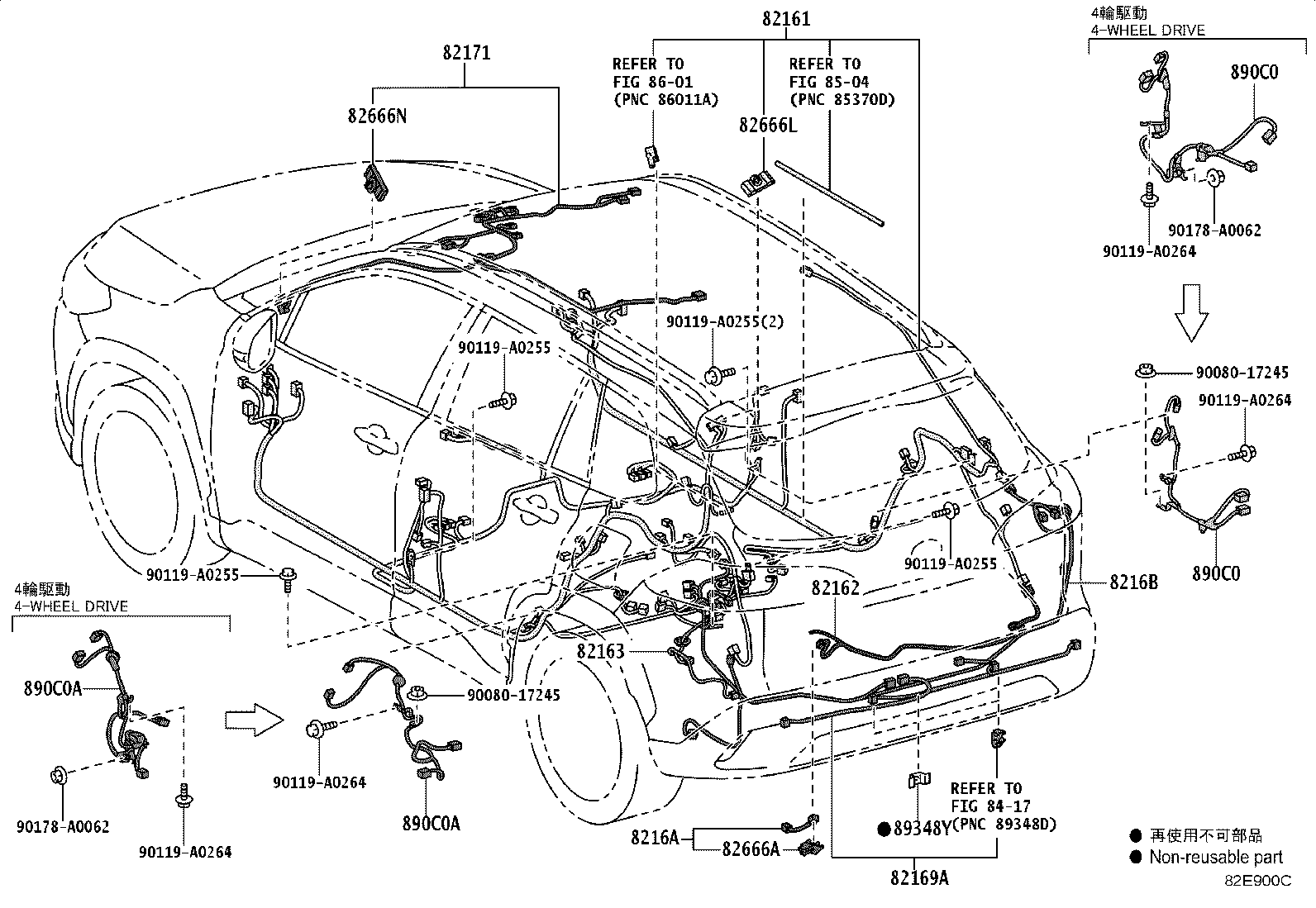

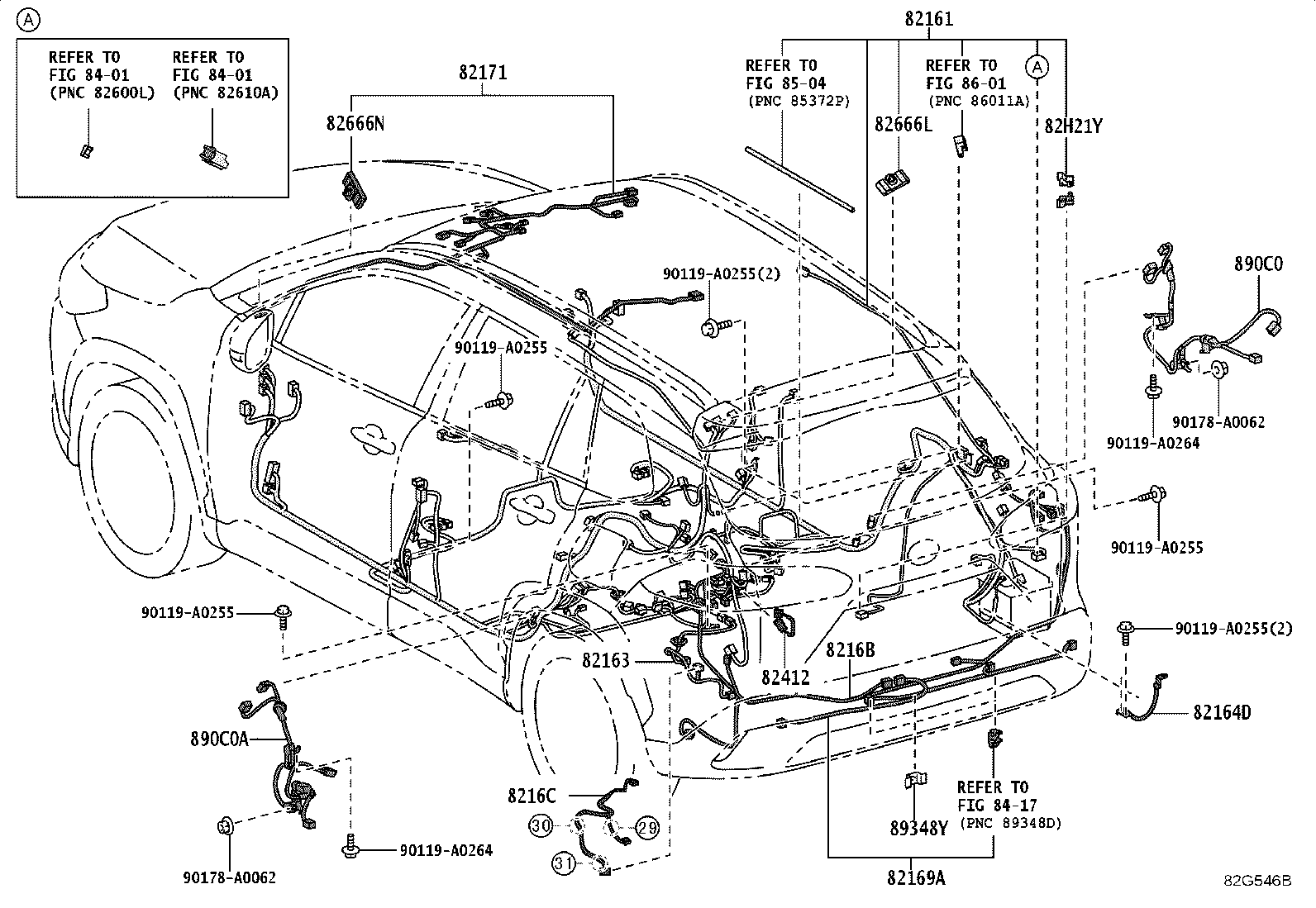

| 82161 | Wire, Floor |
| 82162 | Wire, Floor, NO.2 |
| 82163 | Wire, Floor, NO.3 |
| 82164D | Wire, Floor, NO.5 |
| 82169A | Wire, Floor, NO.6 |
| 8216A | Wire, Floor NO.7 |
| 8216B | Wire, Floor NO.8 |
| 8216C | Wire, Floor, NO.9 |
| 82171 | Wire, Roof, NO.1 |
| 82184 | Wire, Back Door, NO.1 |
| 82186 | Wire, Rear Window, NO.1 |
| 82187 | Wire, Rear Window, NO.2 |

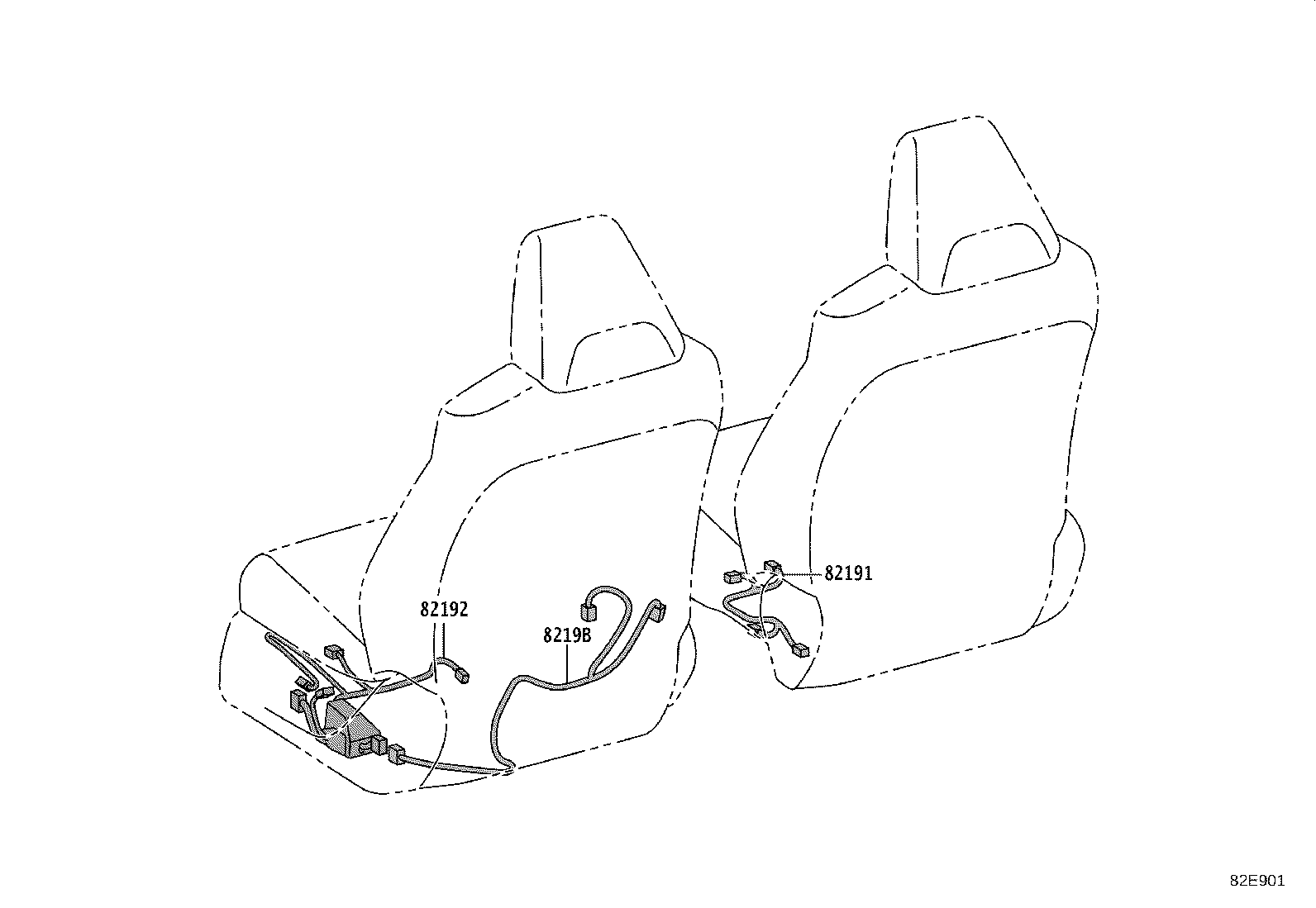

| 82191 | Wire, Front Seat, RH |
| 82192 | Wire, Front Seat, LH |
| 8219B | Wire, Front Seat, LH NO.2 |

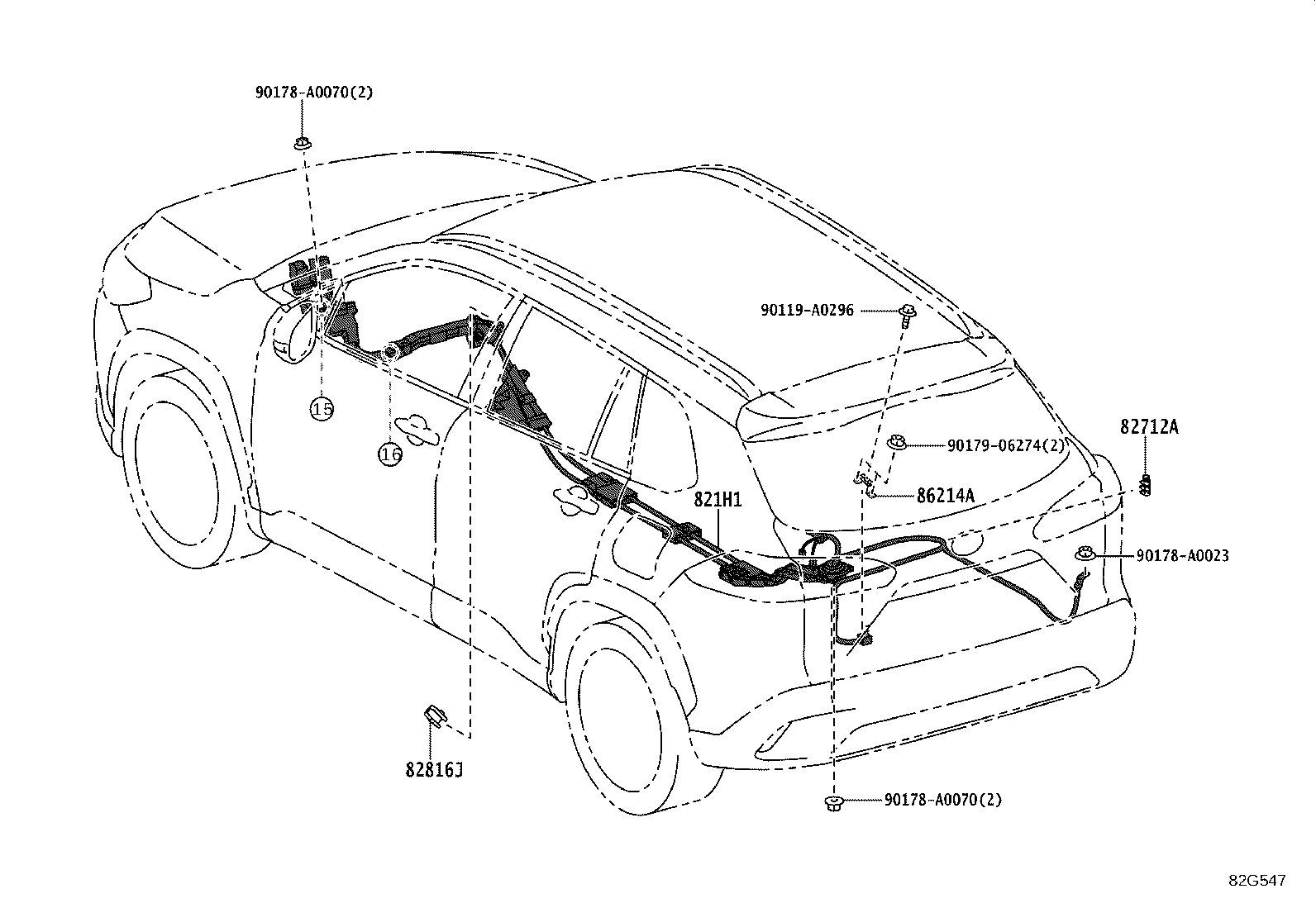

| 821H1 | Wire, Floor Under |
| 821H2 | Wire, HV Air Conditioner |
| 82219C | Wire, Sensor |
| 82286A | Wire, Earth, NO.2 |
| 82345 | Diode |
| 82345A | Diode |
| 82345C | Diode |
| 82412 | Wire, Fuel Gage |
| 82666A | Holder, Connector NO.2 |
| 82666B | Holder, Connector NO.3 |
| 82666G | Holder, Connector NO.8 |
| 82666L | Holder, Connector NO.9 |
| 82666N | Holder, Connector NO.10 |
| 82666Q | Holder, Connector NO.12 |
| 82666S | Holder, Connector NO.13 |
| 82712A | Support, Wiring Harness |

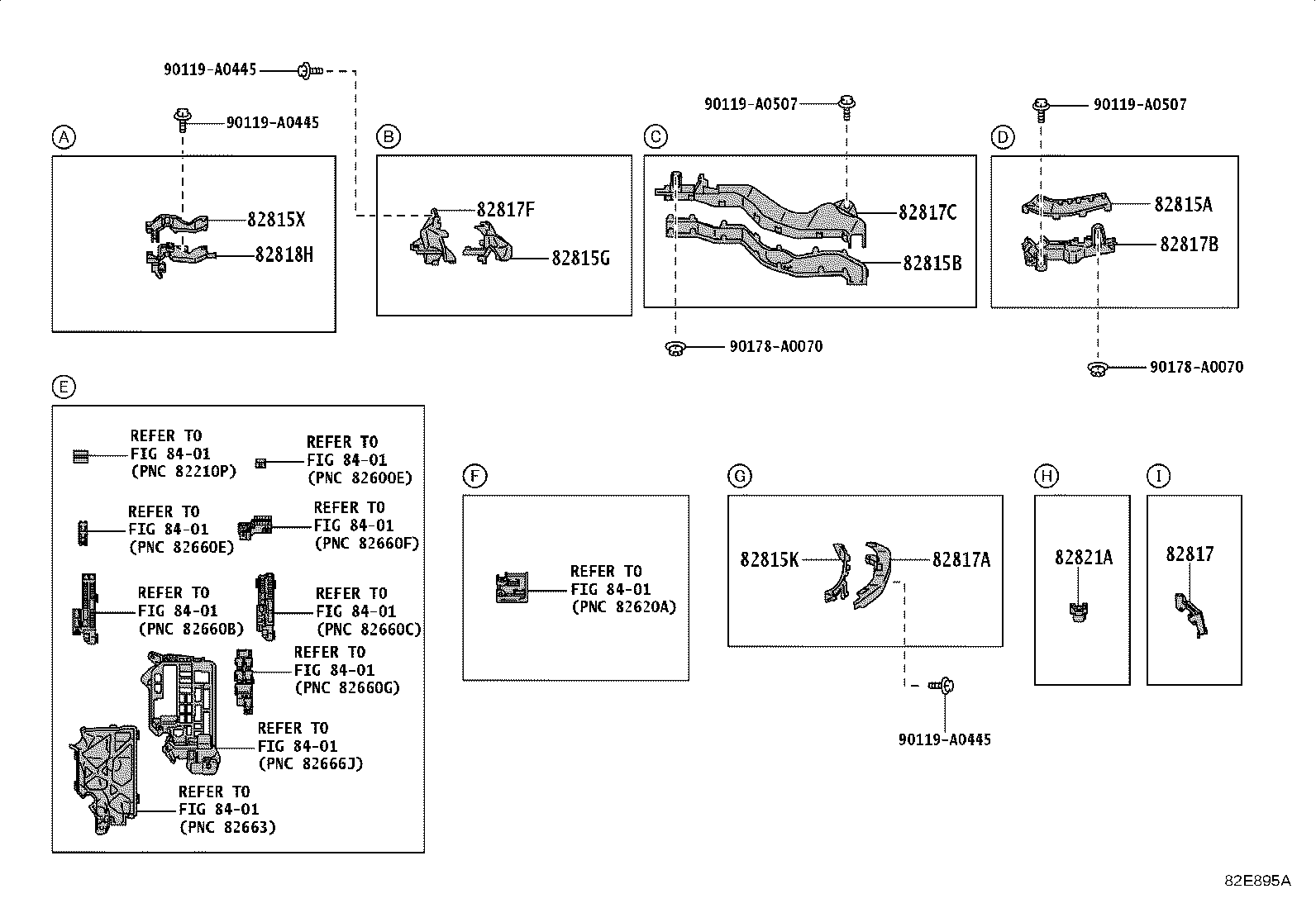

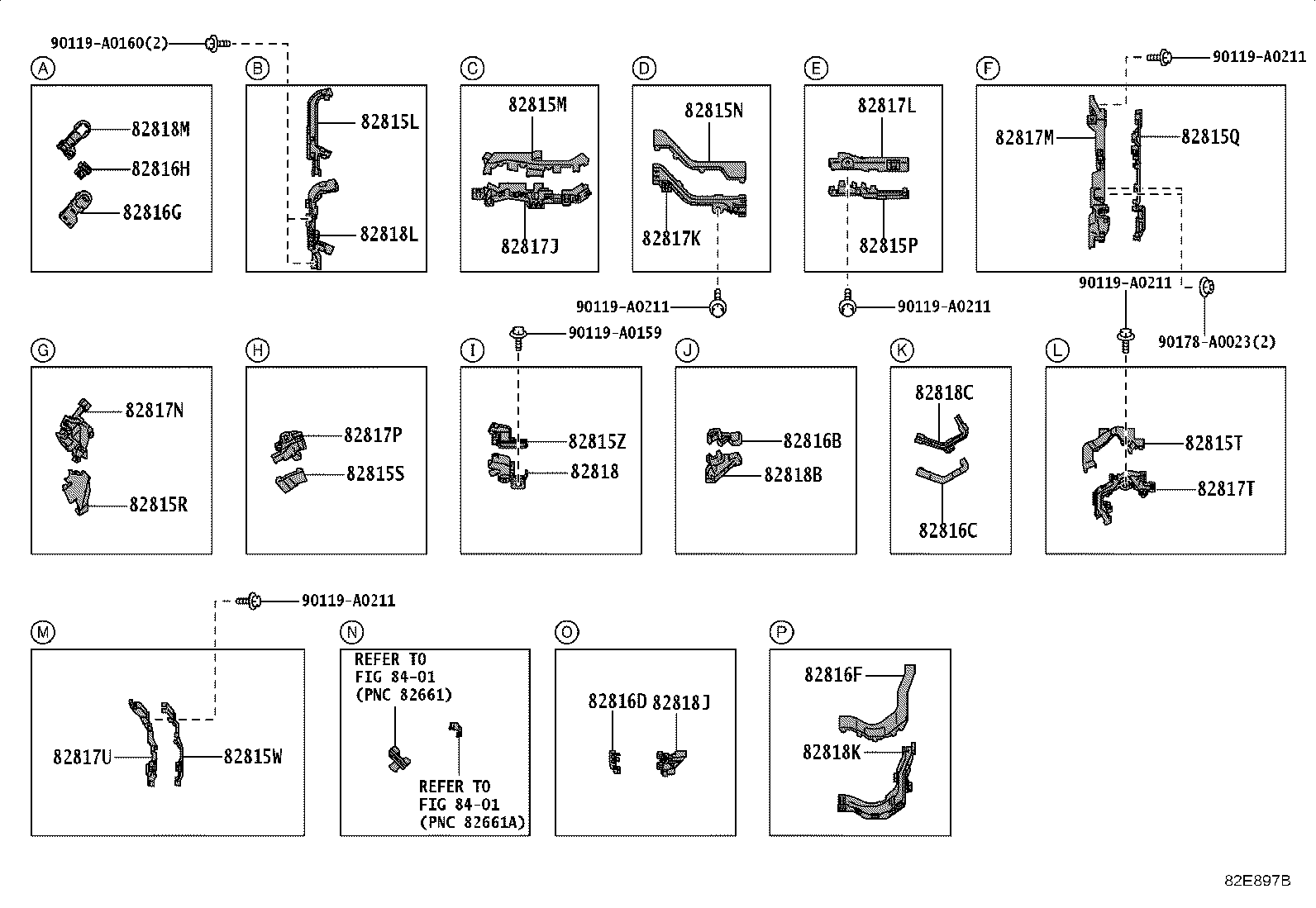

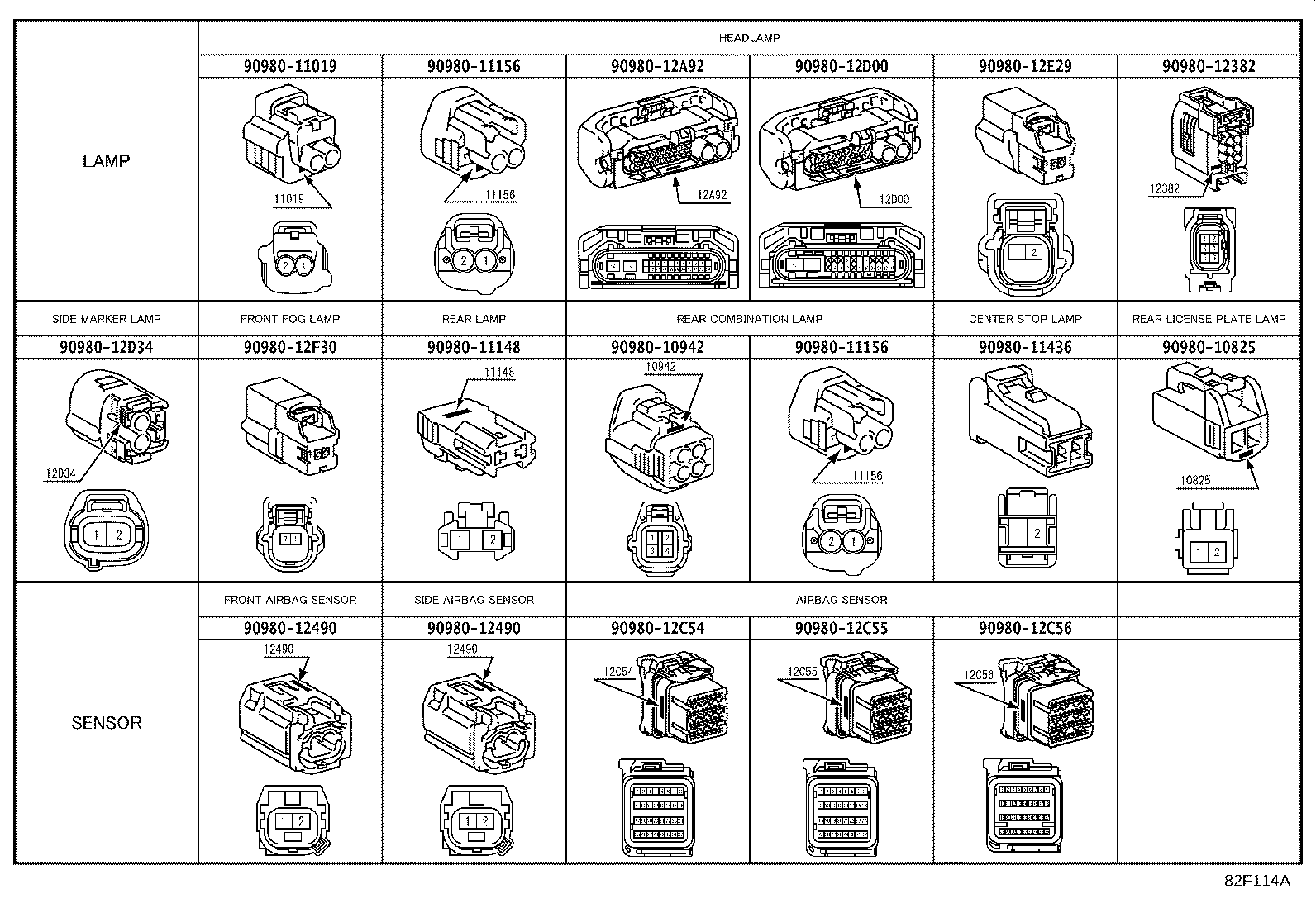

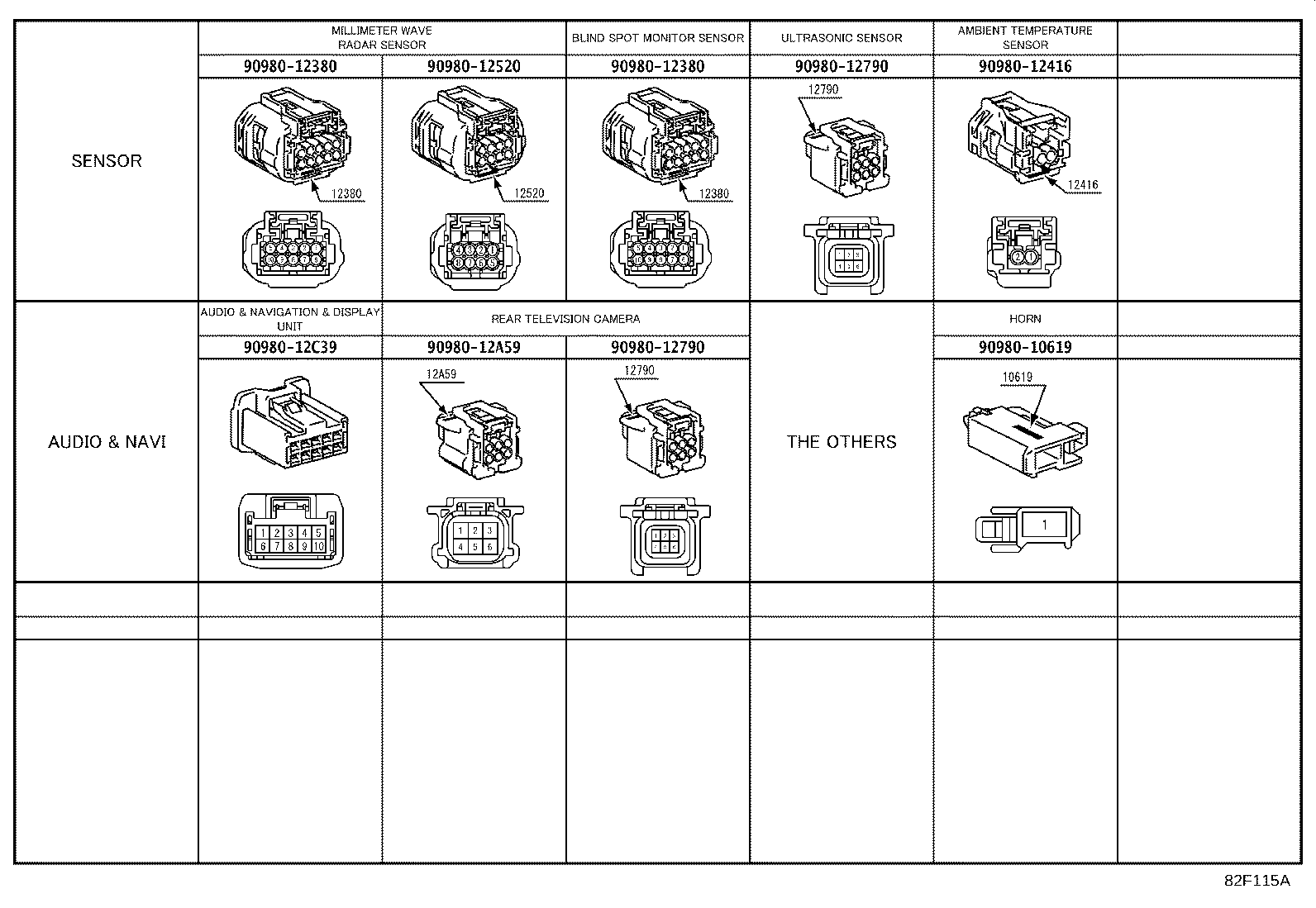

| 82815A | Cover, Wiring Harness Protector |
| 82815B | Cover, Wiring Harness Protector |
| 82815G | Cover, Wiring Harness Protector NO.5 |
| 82815K | Cover, Wiring Harness Protector, NO.8 |
| 82815L | Cover, Wiring Harness Protector, NO.9 |
| 82815M | Cover, Wiring Harness Protector, NO.10 |
| 82815N | Cover, Wiring Harness Protector, NO.11 |
| 82815P | Cover, Wiring Harness Protector, NO.12 |
| 82815Q | Cover, Wiring Harness Protector, NO.13 |
| 82815R | Cover, Wiring Harness Protector, NO.14 |
| 82815S | Cover, Wiring Harness Protector, NO.15 |
| 82815T | Cover, Wiring Harness Protector, NO.16 |
| 82815W | Cover, Wiring Harness Protector, NO.2 |
| 82815X | Cover, Wiring Harness Protector, NO.3 |
| 82815Z | Cover, Wiring Harness Protector, NO.18 |
| 82816B | Cover, Wiring Harness Protector, NO.1 |
| 82816C | Cover, Wiring Harness Protector, NO.2 |
| 82816D | Cover, Wiring Harness Protector, NO.3 |
| 82816F | Cover, Wiring Harness Protector, NO.4 |
| 82816G | Cover, Wiring Harness Protector, NO.5 |
| 82816H | Cover, Wiring Harness Protector, NO.6 |
| 82816J | Cover, Wiring Harness Protector, NO.7 |
| 82817 | Protector, Wiring Harness, NO.1 |
| 82817A | Protector, Wiring Harness, NO.2 |
| 82817B | Protector, Wiring Harness, NO.3 |
| 82817C | Protector, Wiring Harness, NO.4 |
| 82817F | Protector, Wiring Harness, NO.7 |
| 82817J | Protector, Wiring Harness, NO.9 |
| 82817K | Protector, Wiring Harness, NO.10 |
| 82817L | Protector, Wiring Harness, NO.11 |
| 82817M | Protector, Wiring Harness, NO.12 |
| 82817N | Protector, Wiring Harness, NO.13 |
| 82817P | Protector, Wiring Harness, NO.14 |
| 82817T | Protector, Wiring Harness, NO.15 |
| 82817U | Protector, Wiring Harness, NO.16 |
| 82818 | Protector, Wiring Harness, NO.2 |
| 82818B | Protector, Wiring Harness, NO.3 |
| 82818C | Protector, Wiring Harness, NO.4 |
| 82818G | Protector, Wiring Harness, NO.8 |
| 82818H | Protector, Wiring Harness, NO.9 |
| 82818J | Protector, Wiring Harness, NO.10 |
| 82818K | Protector, Wiring Harness, NO.11 |
| 82818L | Protector, Wiring Harness, NO.12 |
| 82818M | Protector, Wiring Harness, NO.13 |
| 82821A | Cover, Connector |
| 82821E | Cover, Connector |
| 82821M | Cover, Connector |
| 82821N | Cover, Connector |
| 82821P | Cover, Connector |
| 82821R | Cover, Connector |
| 82821U | Cover, Connector |
| 82821V | Cover, Connector |
| 82821W | Cover, Connector |
| 82821X | Cover, Connector |
| 82821Y | Cover, Connector |
| 82823S | Cap, Starter Terminal |
| 82824 | Connector, Wiring Harness |
| 8282A | Cap, Earth Bolt, NO.1 |
| 8282AA | Cap, Earth Bolt, NO.2 |
| 82H21C | Cover, Connector |
| 82H21D | Cover, Connector |
| 82H21G | Cover, Connector |
| 82H21H | Cover, Connector |
| 82H21J | Cover, Connector |
| 82H21K | Cover, Connector |
| 82H21N | Cover, Connector |
| 82H21P | Cover, Connector |
| 82H21Q | Cover, Connector |
| 82H21R | Cover, Connector |
| 82H21S | Cover, Connector |
| 82H21T | Cover, Connector |
| 82H21V | Cover, Connector |
| 82H21X | Cover, Connector |
| 82H21Y | Cover, Connector |
| 86214A | Bracket, Radio Earth |
| 890C0 | Wire Assy, Parking Brake, NO.1 |
| 890C0A | Wire Assy, Parking Brake, NO.2 |
| 89348Y | Clip, Ultrasonic Sensor, Rear |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
