Toyota Corolla Cross

2021-09 → present · chassis MXGA1#,MXGH15 · catalogue 552410 · United States

Supported model Data version 2024-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

29 part groups · 2 illustrations

Illustrations

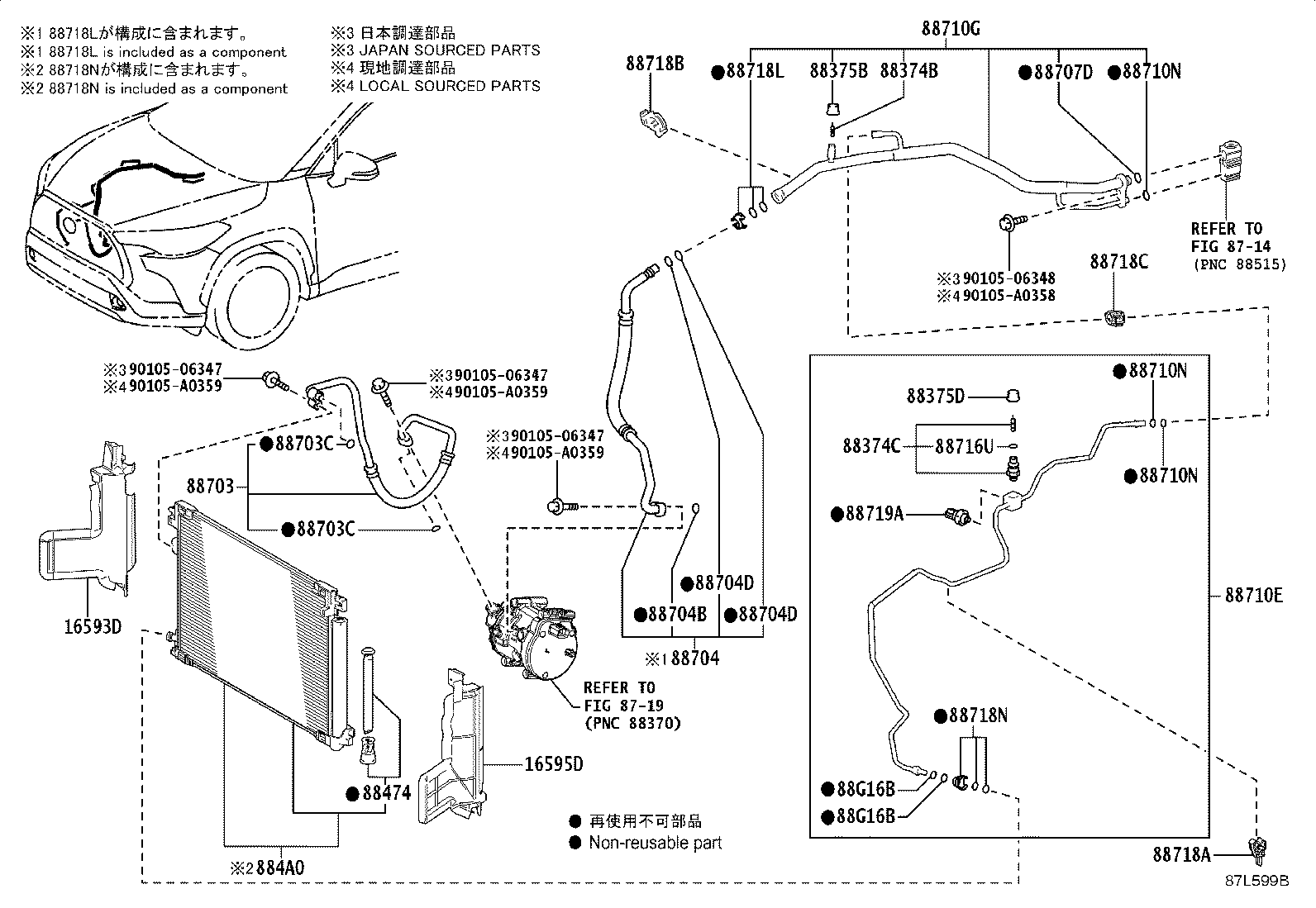

Figure 87K253A 87K253A 2021-09 → — Figure 87L599B 87L599B 2023-05 → —

Part groups

PNCDescription
16593D Guide, Radiator Air, NO.1 RH
16595D Guide, Radiator Air, NO.1 LH
88374B Valve, Service, NO.1
88374C Valve, Service, NO.2
88375B Cap, Service Valve, NO.1
88375D Cap, Service Valve, NO.2
88450A Sub Condenser Assy
88474 Dryer, Cooler
884A0 Condenser Assy, Cooler
88688E Bracket, Cooler Refrigerant Hose, NO.1
88688F Bracket, Cooler Refrigerant Hose, NO.2
88703 Hose Sub-assy, Discharge
88703C Ring, O(FOR DISCHARGE HOSE)
88704 Hose Sub-assy, Suction
88704B Ring, O(FOR SUCTION HOSE)
88704D Ring, O, NO.2 (FOR SUCTION HOSE)
88707 Pipe Sub-assy, Suction
88707D Ring, O(FOR SUCTION TUBE)
88710E Tube & Accessory Assy, Air Conditioner
88710G Tube & Accessory Assy, Air Conditioner, NO.2
88710N Ring, O, NO.1(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)
88716U Ring, O(FOR COOLER REFRIGERANT LIQUID PIPE)
88718A Clamp, NO.1(FOR COOLER REFRIGERANT PIPE)
88718B Clamp, NO.2(FOR COOLER REFRIGERANT PIPE)
88718C Clamp, NO.3(FOR COOLER REFRIGERANT PIPE)
88718L Clamp, Piping
88718N Clamp, Piping
88719A Sensor, Air Conditioner Pressure
88G16B Ring, O, NO.2(FOR COOLER REFRIGERANT LIQUID PIPE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
