Toyota Grand Highlander
2023-06 → present · chassis AASH1#,TASA1#,TASH15 · catalogue 556410 · United States
Supported model
Data version 2023-05

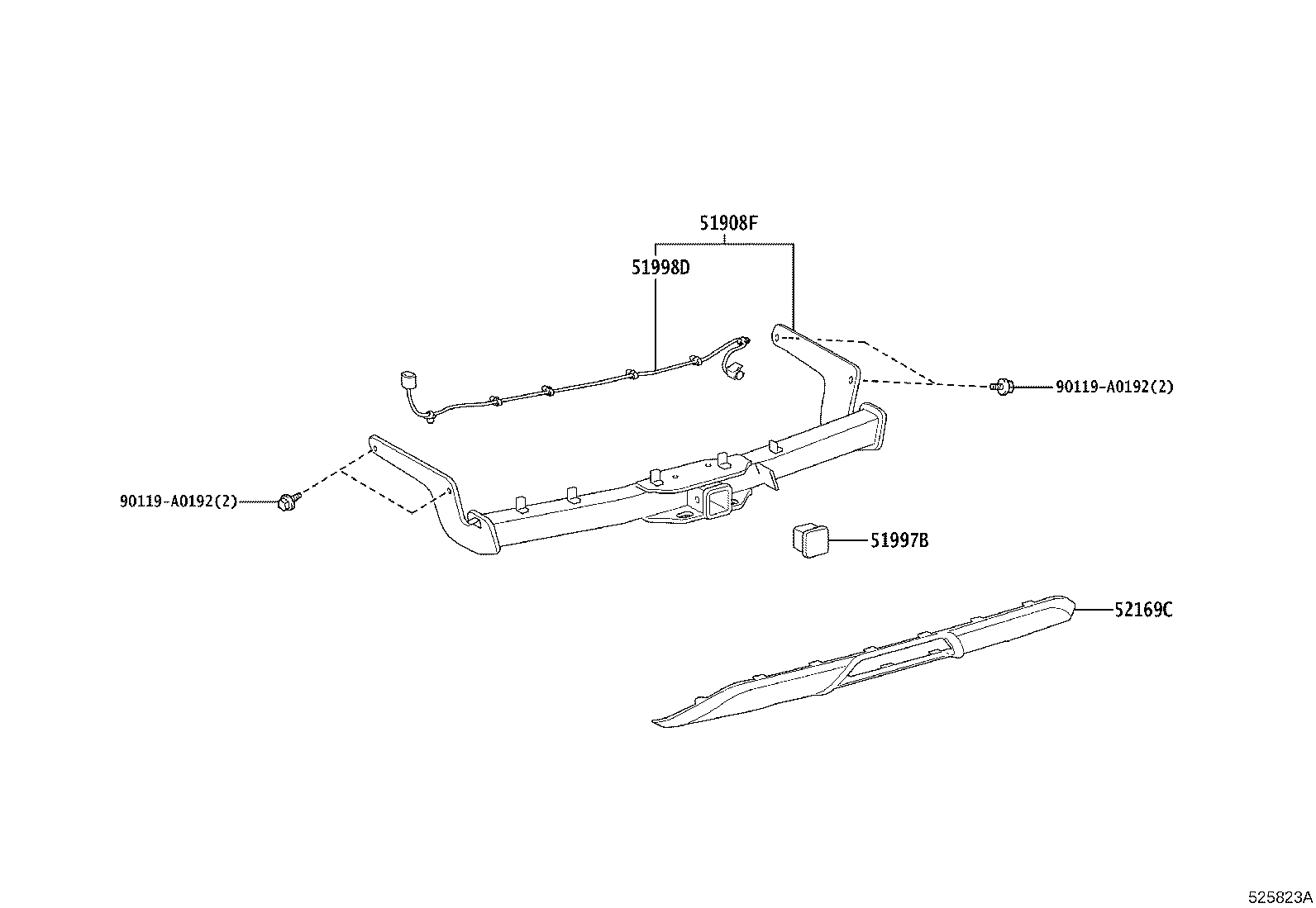

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 51908F — Bracket Sub-assy, Receiver Hitch | ||||
| 51908-YY090 note |
Bracket Sub-assy, Receiver Hitch
2023-06 → —
|
TASA1#,TASH15 | — | |
| 51908-YY090 note |
Bracket Sub-assy, Receiver Hitch
2023-06 → —
|
AASH1# | — | |
| 51908-YY100 note |
Bracket Sub-assy, Receiver Hitch
2023-06 → —
|
AASH1#,TASA1#,TASH15 | — | |
| 51997B — Cap, Receiver Hitch | ||||
| 51997-YY020 note |
Cap, Receiver Hitch
2023-06 → —
|
AASH1# | — | |
| 51997-YY020 note |
Cap, Receiver Hitch
2023-06 → —
|
TASA1#,TASH15 | — | |
| 51997-YY060 note |
Cap, Receiver Hitch
2023-06 → —
|
AASH1#,TASA1#,TASH15 | — | |
| 51998D — Harness, Trailer Wire | ||||
| 51998-YY090 note |
Harness, Trailer Wire
2023-06 → —
|
AASH1# | — | |
| 51998-YY090 note |
Harness, Trailer Wire
2023-06 → —
|
TASA1#,TASH15 | — | |
| 52169C — Cover, Rear Bumper, Lower | ||||
| 52169-YY050 note |
Cover, Rear Bumper, Lower
2023-06 → —
|
TASA1# M,N | — | |
| 52169-YY050 note |
Cover, Rear Bumper, Lower
2023-06 → —
|
AASH1#,TASA1# M,N | — | |
| 52169-YY050 note |
Cover, Rear Bumper, Lower
2023-06 → —
|
AASH1# M,N | — | |
| 52169-YY060 note |
Cover, Rear Bumper, Lower
2023-06 → —
|
AASH1# G | — | |
| 52169-YY060 note |
Cover, Rear Bumper, Lower
2023-06 → —
|
TASA1# G,Z | — | |
| 52169-YY060 note |
Cover, Rear Bumper, Lower
2023-06 → —
|
AASH1#,TASA1# G,Z | — | |
| 52169-YY070 note |
Cover, Rear Bumper, Lower
2023-06 → —
|
TASH15 | — | |
| 52169-YY070 note |
Cover, Rear Bumper, Lower
2023-06 → —
|
TASH15 | — | |
| 52169-YY220 note |
Cover, Rear Bumper, Lower
2024-12 → —
|
AASH15 G | — | |
| 52169-YY220 note |
Cover, Rear Bumper, Lower
2024-12 → —
|
AASH15 G | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
