Toyota Grand Highlander

2023-06 → present · chassis AASH1#,TASA1#,TASH15 · catalogue 556410 · United States

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

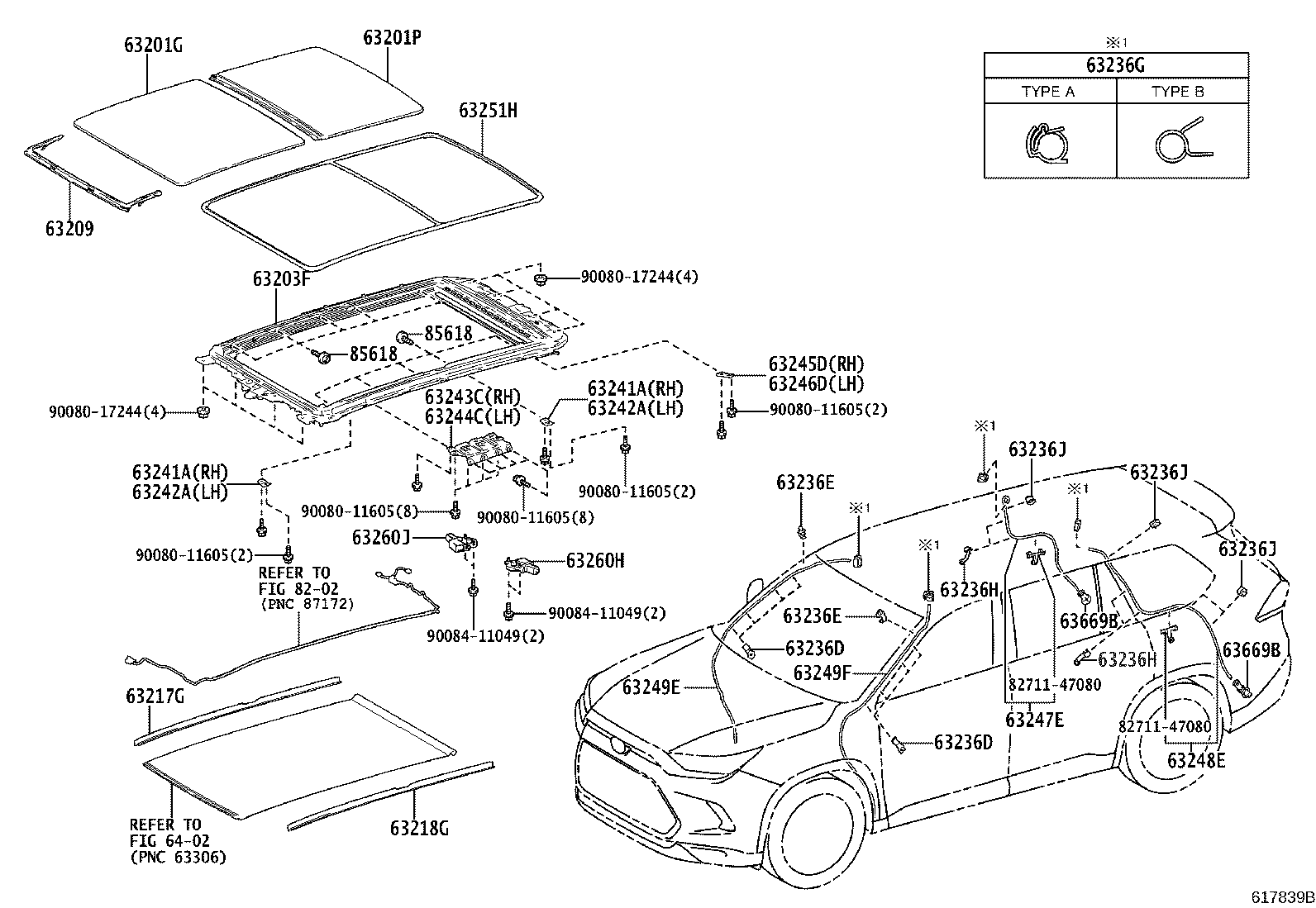

Exploded illustration 617839B 63201G — GLASS SUB-ASSY, SLIDING ROOF (2 parts) 63209 — PANEL SUB-ASSY, ROOF WIND DEFLECTOR (2 parts) 85618 — SCREW, SLIDE ROOF MOTOR THRUST (2 parts) 85618 — SCREW, SLIDE ROOF MOTOR THRUST (2 parts) 63260J — GEAR ASSY, SLIDING ROOF DRIVE (2 parts) 63260H — GEAR ASSY, SLIDING ROOF DRIVE (2 parts) 63249E — HOSE, SLIDING ROOF DRAIN (2 parts) 63249F — HOSE, SLIDING ROOF DRAIN (2 parts) 63236D — CLAMP, SLIDING ROOF DRAIN HOSE (2 parts) 63236D — CLAMP, SLIDING ROOF DRAIN HOSE (2 parts) 63247E — HOSE, SLIDING ROOF DRAIN, REAR RH (2 parts) 63248E — HOSE, SLIDING ROOF DRAIN, REAR LH (2 parts) 63236E — CLAMP, SLIDING ROOF DRAIN HOSE (2 parts) 63236E — CLAMP, SLIDING ROOF DRAIN HOSE (2 parts) 63236H — CLAMP, SLIDING ROOF DRAIN HOSE (2 parts) 63236H — CLAMP, SLIDING ROOF DRAIN HOSE (2 parts) 63236J — CLAMP, SLIDING ROOF DRAIN HOSE (2 parts) 63236J — CLAMP, SLIDING ROOF DRAIN HOSE (2 parts) 63236J — CLAMP, SLIDING ROOF DRAIN HOSE (2 parts) 63669B — GROMMET, SLIDING ROOF DRAIN (2 parts) 63669B — GROMMET, SLIDING ROOF DRAIN (2 parts) 63236G — CLAMP, SLIDING ROOF DRAIN HOSE (4 parts) 63203F — HOUSING SUB-ASSY, SLIDING ROOF (4 parts) 63217G — GARNISH, SLIDING ROOF SIDE, RH (2 parts) 63218G — GARNISH, SLIDING ROOF SIDE, LH (2 parts) 63201P — GLASS SUB-ASSY, SLIDING ROOF (2 parts) 63251H — WEATHERSTRIP, SLIDING ROOF (2 parts) 9008011605 — not listed in this catalogue 9008011605 — not listed in this catalogue 9008011605 — not listed in this catalogue 9008011605 — not listed in this catalogue 9008017244 — not listed in this catalogue 9008017244 — not listed in this catalogue 9008011605 — not listed in this catalogue 9008411049 — not listed in this catalogue 9008411049 — not listed in this catalogue 6402 — not listed in this catalogue 8202 — not listed in this catalogue 8271147080 — not listed in this catalogue 8271147080 — not listed in this catalogue 63241A — BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, RH (2 parts) 63242A — BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, LH (2 parts) 63241A — BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, RH (2 parts) 63242A — BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, LH (2 parts) 63245D — BRACKET, SLIDING ROOF HOUSING REAR MOUNTING, RH (2 parts) 63246D — BRACKET, SLIDING ROOF HOUSING REAR MOUNTING, LH (2 parts) 63243C — BRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, RH (2 parts) 63244C — BRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, LH (2 parts)
617839B · 35 callouts, 13 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
56 parts on this figure
Part number Description Fitment Price
63201G — Glass Sub-assy, Sliding Roof
63201-0E150 note Glass Sub-assy, Sliding Roof
2023-06 → —
AASH1#,TASA1#,TASH15 G,M,V —
63201-0E150 Glass Sub-assy, Sliding Roof
2023-06 → —
TASA15,TASH15 Z —
63201P — Glass Sub-assy, Sliding Roof
63201-0E160 note Glass Sub-assy, Sliding Roof
2023-06 → —
AASH1#,TASA1#,TASH15 G,M,V —
63201-0E160 Glass Sub-assy, Sliding Roof
2023-06 → —
TASA15,TASH15 Z —
63203F — Housing Sub-assy, Sliding Roof
63203-0E240 Housing Sub-assy, Sliding Roof
2023-06 → 2024-08 ended
TASA15,TASH15 Z —
63203-0E240 note Housing Sub-assy, Sliding Roof
2023-06 → 2024-08 ended
AASH1#,TASA1#,TASH15 G,M,V —
63203-0E241 Housing Sub-assy, Sliding Roof
2024-09 → —
TASA15,TASH15 Z —
63203-0E241 note Housing Sub-assy, Sliding Roof
2024-09 → —
AASH1#,TASA1#,TASH15 G,M,V —
63209 — Panel Sub-assy, Roof Wind Deflector
63209-0E130 Panel Sub-assy, Roof Wind Deflector
2023-06 → —
TASA15,TASH15 Z —
63209-0E130 note Panel Sub-assy, Roof Wind Deflector
2023-06 → —
AASH1#,TASA1#,TASH15 G,M,V —
63217G — Garnish, Sliding Roof Side, RH
63217-0E120 Garnish, Sliding Roof Side, RH
2023-06 → —
TASA15,TASH15 Z —
63217-0E120 note Garnish, Sliding Roof Side, RH
2023-06 → —
AASH1#,TASA1#,TASH15 G,M,V —
63218G — Garnish, Sliding Roof Side, LH
63218-0E110 Garnish, Sliding Roof Side, LH
2023-06 → —
TASA15,TASH15 Z —
63218-0E110 note Garnish, Sliding Roof Side, LH
2023-06 → —
AASH1#,TASA1#,TASH15 G,M,V —
63236D — Clamp, Sliding Roof Drain Hose
63236-0E020 note Clamp, Sliding Roof Drain Hose
2023-06 → —
AASH1#,TASA1#,TASH15 G,M,V —
63236-0E020 Clamp, Sliding Roof Drain Hose
2023-06 → —
TASA15,TASH15 Z —
63236E — Clamp, Sliding Roof Drain Hose
90959-01592 Clamp, Sliding Roof Drain Hose
2023-06 → —
TASA15,TASH15 Z —
90959-01592 note Clamp, Sliding Roof Drain Hose
2023-06 → —
AASH1#,TASA1#,TASH15 G,M,V —
63236G — Clamp, Sliding Roof Drain Hose
63236-33030 note Clamp, Sliding Roof Drain Hose
2023-06 → —
TASA15,TASH15 Z —
63236-33030 note Clamp, Sliding Roof Drain Hose
2023-06 → —
AASH1#,TASA1#,TASH15 G,M,V —
90466-A0008 note Clamp, Sliding Roof Drain Hose
2023-06 → —
TASA15,TASH15 Z —
90466-A0008 note Clamp, Sliding Roof Drain Hose
2023-06 → —
AASH1#,TASA1#,TASH15 G,M,V —
63236H — Clamp, Sliding Roof Drain Hose
63236-08040 Clamp, Sliding Roof Drain Hose
2023-06 → —
TASA15,TASH15 Z —
63236-08040 note Clamp, Sliding Roof Drain Hose
2023-06 → —
AASH1#,TASA1#,TASH15 G,M,V —
63236J — Clamp, Sliding Roof Drain Hose
63236-48020 Clamp, Sliding Roof Drain Hose
2023-06 → —
TASA15,TASH15 Z —
63236-48020 note Clamp, Sliding Roof Drain Hose
2023-06 → —
AASH1#,TASA1#,TASH15 G,M,V —
63241A — Bracket, Sliding Roof Housing Front Mounting, RH
63241-0E060 Bracket, Sliding Roof Housing Front Mounting, RH
2023-06 → —
TASA15,TASH15 Z —
63241-0E060 note Bracket, Sliding Roof Housing Front Mounting, RH
2023-06 → —
AASH1#,TASA1#,TASH15 G,M,V —
63242A — Bracket, Sliding Roof Housing Front Mounting, LH
63241-0E060 Bracket, Sliding Roof Housing Front Mounting, LH
2023-06 → —
TASA15,TASH15 Z —
63241-0E060 note Bracket, Sliding Roof Housing Front Mounting, LH
2023-06 → —
AASH1#,TASA1#,TASH15 G,M,V —
63243C — Bracket, Sliding Roof Housing Center Mounting, RH
63243-0E160 Bracket, Sliding Roof Housing Center Mounting, RH
2023-06 → —
TASA15,TASH15 Z —
63243-0E160 note Bracket, Sliding Roof Housing Center Mounting, RH
2023-06 → —
AASH1#,TASA1#,TASH15 G,M,V —
63244C — Bracket, Sliding Roof Housing Center Mounting, LH
63244-0E130 Bracket, Sliding Roof Housing Center Mounting, LH
2023-06 → —
TASA15,TASH15 Z —
63244-0E130 note Bracket, Sliding Roof Housing Center Mounting, LH
2023-06 → —
AASH1#,TASA1#,TASH15 G,M,V —
63245D — Bracket, Sliding Roof Housing Rear Mounting, RH
63245-0E190 Bracket, Sliding Roof Housing Rear Mounting, RH
2023-06 → —
TASA15,TASH15 Z —
63245-0E190 note Bracket, Sliding Roof Housing Rear Mounting, RH
2023-06 → —
AASH1#,TASA1#,TASH15 G,M,V —
63246D — Bracket, Sliding Roof Housing Rear Mounting, LH
63246-0E120 Bracket, Sliding Roof Housing Rear Mounting, LH
2023-06 → —
TASA15,TASH15 Z —
63246-0E120 note Bracket, Sliding Roof Housing Rear Mounting, LH
2023-06 → —
AASH1#,TASA1#,TASH15 G,M,V —
63247E — Hose, Sliding Roof Drain, Rear RH
63247-0E160 Hose, Sliding Roof Drain, Rear RH
2023-06 → —
TASA15,TASH15 Z —
63247-0E160 note Hose, Sliding Roof Drain, Rear RH
2023-06 → —
AASH1#,TASA1#,TASH15 G,M,V —
63248E — Hose, Sliding Roof Drain, Rear LH
63248-0E110 Hose, Sliding Roof Drain, Rear LH
2023-06 → —
TASA15,TASH15 Z —
63248-0E110 note Hose, Sliding Roof Drain, Rear LH
2023-06 → —
AASH1#,TASA1#,TASH15 G,M,V —
63249E — Hose, Sliding Roof Drain
63249-0E130 Hose, Sliding Roof Drain
2023-06 → —
TASA15,TASH15 Z —
63249-0E130 note Hose, Sliding Roof Drain
2023-06 → —
AASH1#,TASA1#,TASH15 G,M,V —
63249F — Hose, Sliding Roof Drain
63249-0E130 Hose, Sliding Roof Drain
2023-06 → —
TASA15,TASH15 Z —
63249-0E130 note Hose, Sliding Roof Drain
2023-06 → —
AASH1#,TASA1#,TASH15 G,M,V —
63251H — Weatherstrip, Sliding Roof
63251-0E100 Weatherstrip, Sliding Roof
2023-06 → —
TASA15,TASH15 Z —
63251-0E100 note Weatherstrip, Sliding Roof
2023-06 → —
AASH1#,TASA1#,TASH15 G,M,V —
63260H — Gear Assy, Sliding Roof Drive
63260-0E250 Gear Assy, Sliding Roof Drive
2023-06 → —
TASA15,TASH15 Z —
63260-0E250 note Gear Assy, Sliding Roof Drive
2023-06 → —
AASH1#,TASA1#,TASH15 G,M,V —
63260J — Gear Assy, Sliding Roof Drive
63260-0E260 Gear Assy, Sliding Roof Drive
2023-06 → —
TASA15,TASH15 Z —
63260-0E260 note Gear Assy, Sliding Roof Drive
2023-06 → —
AASH1#,TASA1#,TASH15 G,M,V —
63669B — Grommet, Sliding Roof Drain
63669-30040 Grommet, Sliding Roof Drain
2023-06 → —
TASA15,TASH15 Z —
63669-30040 note Grommet, Sliding Roof Drain
2023-06 → —
AASH1#,TASA1#,TASH15 G,M,V —
85618 — Screw, Slide Roof Motor Thrust
85618-21010 Screw, Slide Roof Motor Thrust
2023-06 → —
TASA15,TASH15 Z —
85618-21010 note Screw, Slide Roof Motor Thrust
2023-06 → —
AASH1#,TASA1#,TASH15 G,M,V —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
