Toyota Grand Highlander

2023-06 → present · chassis AASH1#,TASA1#,TASH15 · catalogue 556410 · United States

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

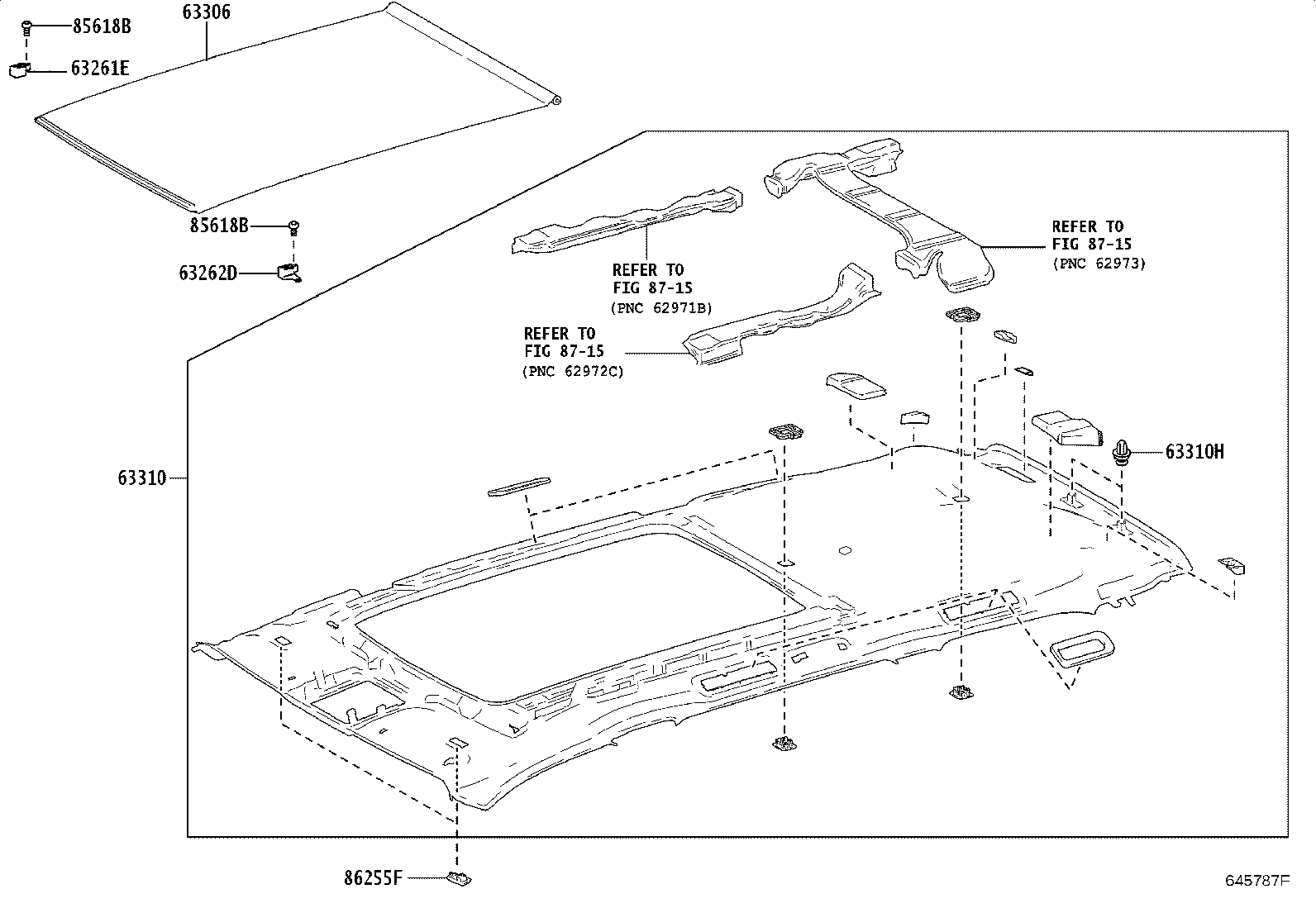

Exploded illustration 645787F 63306 — TRIM SUB-ASSY, SUNSHADE (6 parts) 86255F — CASE, MICROPHONE (6 parts) 63310 — HEADLINING ASSY, ROOF (45 parts) 63310H — CLIP(FOR ROOF HEADLINING) (1 parts) 8715 — not listed in this catalogue 8715 — not listed in this catalogue 8715 — not listed in this catalogue 85618B — SCREW, SLIDE ROOF MOTOR THRUST (2 parts) 63262D — SHOE, SLIDING ROOF, FRONT LH (2 parts) 85618B — SCREW, SLIDE ROOF MOTOR THRUST (2 parts) 63261E — SHOE, SLIDING ROOF, FRONT RH (2 parts)
645787F · 8 callouts, 3 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
64 parts on this figure
Part number Description Fitment Price
63261E — Shoe, Sliding Roof, Front RH
63261-0E010 note Shoe, Sliding Roof, Front RH
2024-09 → —
AASH1#,TASA1#,TASH15 G,M,V —
63261-0E010 Shoe, Sliding Roof, Front RH
2024-09 → —
TASA15,TASH15 Z —
63262D — Shoe, Sliding Roof, Front LH
63262-0E010 note Shoe, Sliding Roof, Front LH
2024-09 → —
AASH1#,TASA1#,TASH15 G,M,V —
63262-0E010 Shoe, Sliding Roof, Front LH
2024-09 → —
TASA15,TASH15 Z —
63306 — Trim Sub-assy, Sunshade
63306-0E230-B1 note Trim Sub-assy, Sunshade
2023-06 → —
TASA15 Z —
63306-0E230-B1 note Trim Sub-assy, Sunshade
2023-06 → —
AASH15 G —
63306-0E230-B1 note Trim Sub-assy, Sunshade
2023-06 → —
AASH15 M;AASH10,TASA1# G,M —
63306-0E230-C1 note Trim Sub-assy, Sunshade
2023-06 → —
TASH15 Z —
63306-0E230-C1 note Trim Sub-assy, Sunshade
2023-06 → —
AASH15 G —
63306-0E230-C1 note Trim Sub-assy, Sunshade
2023-06 → —
TASH15 V —
63310 — Headlining Assy, Roof
63310-0E916 Headlining Assy, Roof
2023-06 → 2023-10 ended
AASH1#,TASA1# G,M —
63310-0E916-B0 note Headlining Assy, Roof
2023-06 → 2023-10 ended
AASH15 G —
63310-0E916-B0 note Headlining Assy, Roof
2023-06 → —
AASH1#,TASA1# N —
63310-0E916-B0 note Headlining Assy, Roof
2023-10 → —
AASH15 G —
63310-0E916-B0 note Headlining Assy, Roof
2023-10 → —
AASH15 M;AASH10,TASA1# G,M —
63310-0E916-B0 note Headlining Assy, Roof
2023-06 → 2023-10 ended
AASH15 M;AASH10,TASA1# G,M —
63310-0E916-B0 note Headlining Assy, Roof
2023-06 → 2023-10 ended
AASH15 G —
63310-0E916-B0 note Headlining Assy, Roof
2023-06 → 2023-10 ended
AASH15 M;AASH10,TASA1# G,M —
63310-0E916-B0 note Headlining Assy, Roof
2023-06 → 2023-10 ended
AASH15 M;TASA15 G,M —
63310-0E916-B0 note Headlining Assy, Roof
2023-06 → 2023-10 ended
AASH15 G —
63310-0E916-C0 note Headlining Assy, Roof
2023-06 → 2023-10 ended
AASH15 G —
63310-0E916-C0 note Headlining Assy, Roof
2023-06 → 2023-10 ended
AASH15 G —
63310-0E916-C0 note Headlining Assy, Roof
2023-06 → 2023-10 ended
AASH15 G —
63310-0E916-C0 note Headlining Assy, Roof
2023-10 → —
AASH15 G —
63310-0E917-C0 note Headlining Assy, Roof
2023-10 → —
TASH15 V —
63310-0E917-C0 note Headlining Assy, Roof
2023-06 → 2023-10 ended
TASH15 V —
63310-0E917-C0 note Headlining Assy, Roof
2023-06 → 2023-10 ended
TASH15 V —
63310-0E917-C0 note Headlining Assy, Roof
2023-06 → 2023-10 ended
TASH15 V —
63310-0E918 note Headlining Assy, Roof
2023-06 → 2023-10 ended
AASH1#,TASA1# G,M —
63310-0E918 Headlining Assy, Roof
2023-06 → 2023-10 ended
TASA15 Z —
63310-0E918-B0 note Headlining Assy, Roof
2023-06 → 2023-10 ended
AASH15 G —
63310-0E918-B0 note Headlining Assy, Roof
2023-10 → —
TASA15 Z —
63310-0E918-B0 note Headlining Assy, Roof
2023-10 → —
AASH15 G —
63310-0E918-B0 note Headlining Assy, Roof
2023-06 → —
AASH15 M;AASH10,TASA1# G,M —
63310-0E918-B0 note Headlining Assy, Roof
2023-06 → —
AASH15 G —
63310-0E918-B0 note Headlining Assy, Roof
2023-06 → —
AASH15 M;AASH10,TASA1# G,M —
63310-0E918-B0 note Headlining Assy, Roof
2023-06 → —
AASH15 G —
63310-0E918-B0 note Headlining Assy, Roof
2023-10 → —
AASH15 M;AASH10,TASA1# G,M —
63310-0E918-B0 note Headlining Assy, Roof
2023-06 → 2023-10 ended
TASA15 Z —
63310-0E918-B0 note Headlining Assy, Roof
2023-06 → 2023-10 ended
TASA15 Z —
63310-0E918-B0 note Headlining Assy, Roof
2023-06 → 2023-10 ended
AASH15 M;TASA15 G,M —
63310-0E918-B0 note Headlining Assy, Roof
2023-06 → 2023-10 ended
TASA15 Z —
63310-0E918-C0 note Headlining Assy, Roof
2023-10 → —
AASH15 G —
63310-0E918-C0 note Headlining Assy, Roof
2023-06 → —
AASH15 G —
63310-0E918-C0 note Headlining Assy, Roof
2023-06 → —
AASH15 G —
63310-0E918-C0 note Headlining Assy, Roof
2023-06 → 2023-10 ended
AASH15 G —
63310-0E919-C0 note Headlining Assy, Roof
2023-10 → —
TASH15 Z —
63310-0E919-C0 note Headlining Assy, Roof
2023-10 → —
TASH15 V —
63310-0E919-C0 note Headlining Assy, Roof
2023-06 → 2023-10 ended
TASH15 Z —
63310-0E919-C0 note Headlining Assy, Roof
2023-06 → —
TASH15 V —
63310-0E919-C0 note Headlining Assy, Roof
2023-06 → —
TASH15 V —
63310-0E919-C0 note Headlining Assy, Roof
2023-06 → 2023-10 ended
TASH15 Z —
63310-0E919-C0 note Headlining Assy, Roof
2023-06 → 2023-10 ended
TASH15 Z —
63310-0E919-C0 note Headlining Assy, Roof
2023-06 → 2023-10 ended
TASH15 V —
63310-0E919-C0 note Headlining Assy, Roof
2023-06 → 2023-10 ended
TASH15 Z —
63310H — Clip(FOR ROOF HEADLINING)
90467-09245 Clip(FOR ROOF HEADLINING)
2023-06 → —
AASH1#,TASA1#,TASH15 —
85618B — Screw, Slide Roof Motor Thrust
85618-33010 Screw, Slide Roof Motor Thrust
2024-09 → —
TASA15,TASH15 Z —
85618-33010 note Screw, Slide Roof Motor Thrust
2024-09 → —
AASH1#,TASA1#,TASH15 G,M,V —
86255F — Case, Microphone
86255-F6010-B0 note Case, Microphone
2023-06 → 2024-12 ended
AASH15 G —
86255-F6010-B0 note Case, Microphone
2023-06 → —
TASA15 Z —
86255-F6010-B0 note Case, Microphone
2023-06 → —
AASH15 M,N;AASH10,TASA1# G,M,N —
86255-F6010-B0 note Case, Microphone
2024-12 → —
AASH15 G —
86255-F6010-C0 note Case, Microphone
2023-06 → —
TASH15 —
86255-F6010-C0 note Case, Microphone
2024-12 → —
AASH15 G —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
