Toyota Grand Highlander

2023-06 → present · chassis AASH1#,TASA1#,TASH15 · catalogue 556410 · United States

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

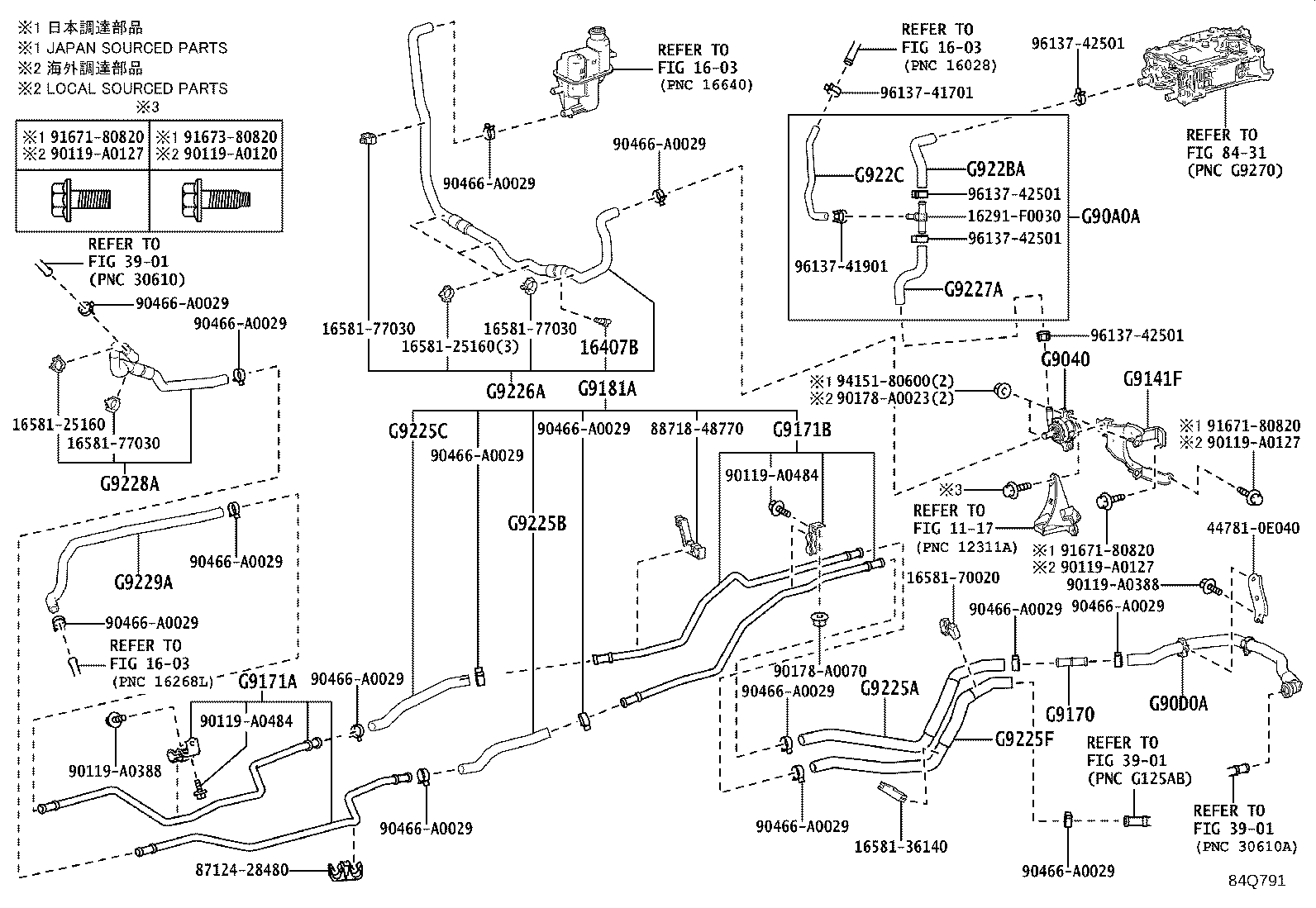

Exploded illustration 84Q791A G922C — HOSE, INVERTER COOLING OUTLET, NO.1 (1 parts) G922BA — HOSE, INVERTER COOLING INLET, NO.2 (1 parts) G9227A — HOSE, INVERTER COOLING, NO.3 (2 parts) 16407B — COCK SUB-ASSY, RADIATOR DRAIN (1 parts) G9226A — HOSE, INVERTER COOLING, NO.2 (2 parts) G9228A — HOSE, INVERTER COOLING, NO.4 (2 parts) G9229A — HOSE, INVERTER COOLING, NO.5 (2 parts) G90A0A — HOSE ASSY, INVERTER COOLING, NO.1 (1 parts) 9613742501 — not listed in this catalogue 9613742501 — not listed in this catalogue 9613742501 — not listed in this catalogue 90466A0029 — not listed in this catalogue 90466A0029 — not listed in this catalogue 90466A0029 — not listed in this catalogue 90466A0029 — not listed in this catalogue 1658136140 — not listed in this catalogue 90466A0029 — not listed in this catalogue 90466A0029 — not listed in this catalogue 90466A0029 — not listed in this catalogue 90466A0029 — not listed in this catalogue 90466A0029 — not listed in this catalogue 90466A0029 — not listed in this catalogue 90466A0029 — not listed in this catalogue 90466A0029 — not listed in this catalogue G9171A — PIPE, INVERTER COOLING, NO.1 (1 parts) 90119A0484 — not listed in this catalogue 9613741701 — not listed in this catalogue 9613741901 — not listed in this catalogue 1658177030 — not listed in this catalogue 1658177030 — not listed in this catalogue 1658177030 — not listed in this catalogue 1658125160 — not listed in this catalogue 1658125160 — not listed in this catalogue 16291F0030 — not listed in this catalogue 9613742501 — not listed in this catalogue 8431 — not listed in this catalogue 1117 — not listed in this catalogue G9040 — INVERTER WATER PUMP ASSY(W/MOTOR) (5 parts) G9141F — BRACKET, HV WATER PUMP (1 parts) 90119A0127 — not listed in this catalogue 447810E040 — not listed in this catalogue 90119A0388 — not listed in this catalogue 9167180820 — not listed in this catalogue 90119A0127 — not listed in this catalogue 9167180820 — not listed in this catalogue 90119A0120 — not listed in this catalogue 9167380820 — not listed in this catalogue 90119A0127 — not listed in this catalogue 9167180820 — not listed in this catalogue 90178A0023 — not listed in this catalogue 9415180600 — not listed in this catalogue 8712428480 — not listed in this catalogue G90D0A — HOSE ASSY, INVERTER COOLING, NO.4 (1 parts) G9170 — PIPE ASSY, INVERTER COOLING NO.1 (1 parts) G9225A — HOSE, INVERTER COOLING, NO.7 (1 parts) G9225F — HOSE, INVERTER COOLING, NO.12 (1 parts) 90466A0029 — not listed in this catalogue 1658170020 — not listed in this catalogue G9181A — PIPE, INVERTER COOLING, NO.2 (1 parts) 1603 — not listed in this catalogue 3901 — not listed in this catalogue 1603 — not listed in this catalogue 1603 — not listed in this catalogue 3901 — not listed in this catalogue 3901 — not listed in this catalogue 90119A0388 — not listed in this catalogue 90178A0070 — not listed in this catalogue 90119A0484 — not listed in this catalogue G9171B — PIPE, INVERTER COOLING, NO.3 (1 parts) 8871848770 — not listed in this catalogue G9225C — HOSE, INVERTER COOLING, NO.9 (1 parts) 90466A0029 — not listed in this catalogue G9225B — HOSE, INVERTER COOLING, NO.8 (1 parts) 90466A0029 — not listed in this catalogue
84Q791A · 19 callouts, 55 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
27 parts on this figure
Part number Description Fitment Price
16407B — Cock Sub-assy, Radiator Drain
16407-64010 Cock Sub-assy, Radiator Drain
2023-06 → —
A25AFXS,T24AFTS AASH1#,TASH15 —
G9040 — Inverter Water Pump Assy(W/MOTOR)
G9040-04020 note Inverter Water Pump Assy(W/MOTOR)
2024-04 → —
AASH1# —
G9040-0E050 note Inverter Water Pump Assy(W/MOTOR)
2023-11 → 2024-12 ended
AASH1# —
G9040-48030 Inverter Water Pump Assy(W/MOTOR)
2023-06 → —
TASH15 —
G9040-48060 Inverter Water Pump Assy(W/MOTOR)
2023-06 → 2023-11 ended
AASH1# —
G9040-48060 note Inverter Water Pump Assy(W/MOTOR)
2023-11 → 2024-12 ended
AASH1# —
G90A0A — Hose Assy, Inverter Cooling, NO.1
G90A0-0E030 Hose Assy, Inverter Cooling, NO.1
2023-06 → —
TASH15 —
G90D0A — Hose Assy, Inverter Cooling, NO.4
G90A1-0E030 Hose Assy, Inverter Cooling, NO.4
2023-06 → —
TASH15 —
G9141F — Bracket, HV Water Pump
G9141-48040 Bracket, HV Water Pump
2023-06 → —
TASH15 —
G9170 — Pipe Assy, Inverter Cooling NO.1
16268-47040 Pipe Assy, Inverter Cooling NO.1
2023-06 → —
TASH15 —
G9171A — Pipe, Inverter Cooling, NO.1
G9171-0E050 Pipe, Inverter Cooling, NO.1
2023-06 → —
TASH15 —
G9171B — Pipe, Inverter Cooling, NO.3
G9181-0E060 Pipe, Inverter Cooling, NO.3
2023-06 → —
TASH15 —
G9181A — Pipe, Inverter Cooling, NO.2
G90B0-0E060 Pipe, Inverter Cooling, NO.2
2023-06 → —
TASH15 —
G9225A — Hose, Inverter Cooling, NO.7
G9225-0E060 Hose, Inverter Cooling, NO.7
2023-06 → —
TASH15 —
G9225B — Hose, Inverter Cooling, NO.8
G9225-0E050 Hose, Inverter Cooling, NO.8
2023-06 → —
TASH15 —
G9225C — Hose, Inverter Cooling, NO.9
G9226-0E110 Hose, Inverter Cooling, NO.9
2023-06 → —
TASH15 —
G9225F — Hose, Inverter Cooling, NO.12
G9227-0E110 Hose, Inverter Cooling, NO.12
2023-06 → —
TASH15 —
G9226A — Hose, Inverter Cooling, NO.2
G9226-0E070 Hose, Inverter Cooling, NO.2
2023-06 → —
TASH15 —
G9226-0R020 Hose, Inverter Cooling, NO.2
2023-06 → —
AASH1# —
G9227A — Hose, Inverter Cooling, NO.3
G9227-0E010 Hose, Inverter Cooling, NO.3
2023-06 → —
AASH1# —
G9227-0E060 Hose, Inverter Cooling, NO.3
2023-06 → —
TASH15 —
G9228A — Hose, Inverter Cooling, NO.4
G9228-0E060 Hose, Inverter Cooling, NO.4
2023-06 → —
TASH15 —
G9228-0E080 Hose, Inverter Cooling, NO.4
2023-06 → —
AASH1# —
G9229A — Hose, Inverter Cooling, NO.5
G9229-0E011 Hose, Inverter Cooling, NO.5
2023-06 → —
AASH1# —
G9229-0E060 Hose, Inverter Cooling, NO.5
2023-06 → —
TASH15 —
G922BA — Hose, Inverter Cooling Inlet, NO.2
G922B-0E010 Hose, Inverter Cooling Inlet, NO.2
2023-06 → —
TASH15 —
G922C — Hose, Inverter Cooling Outlet, NO.1
G922C-0E020 Hose, Inverter Cooling Outlet, NO.1
2023-06 → —
TASH15 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
