Toyota Grand Highlander

2023-06 → present · chassis AASH1#,TASA1#,TASH15 · catalogue 556410 · United States

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Ventilation Hose

4 part groups · 3 illustrations

Illustrations

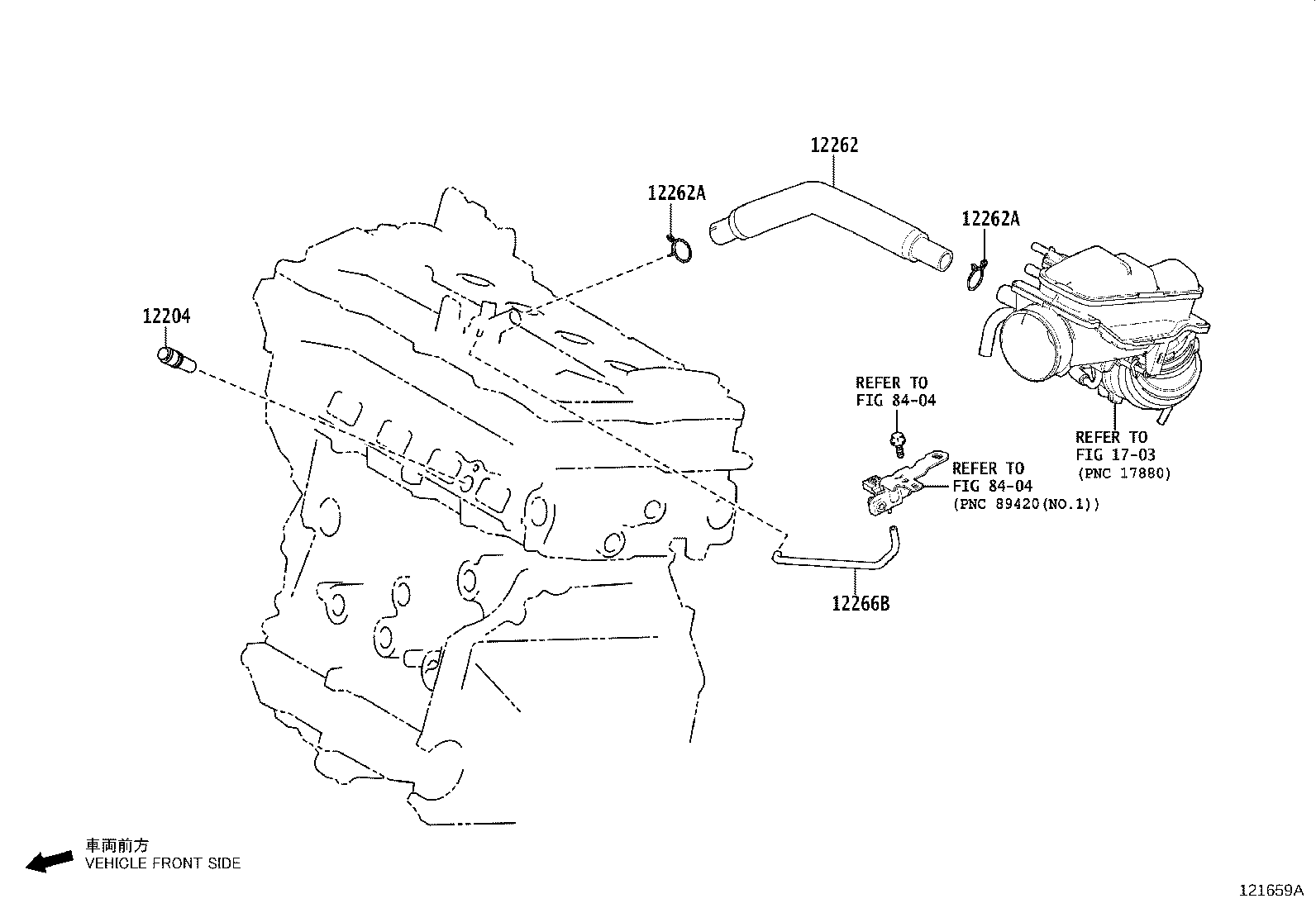

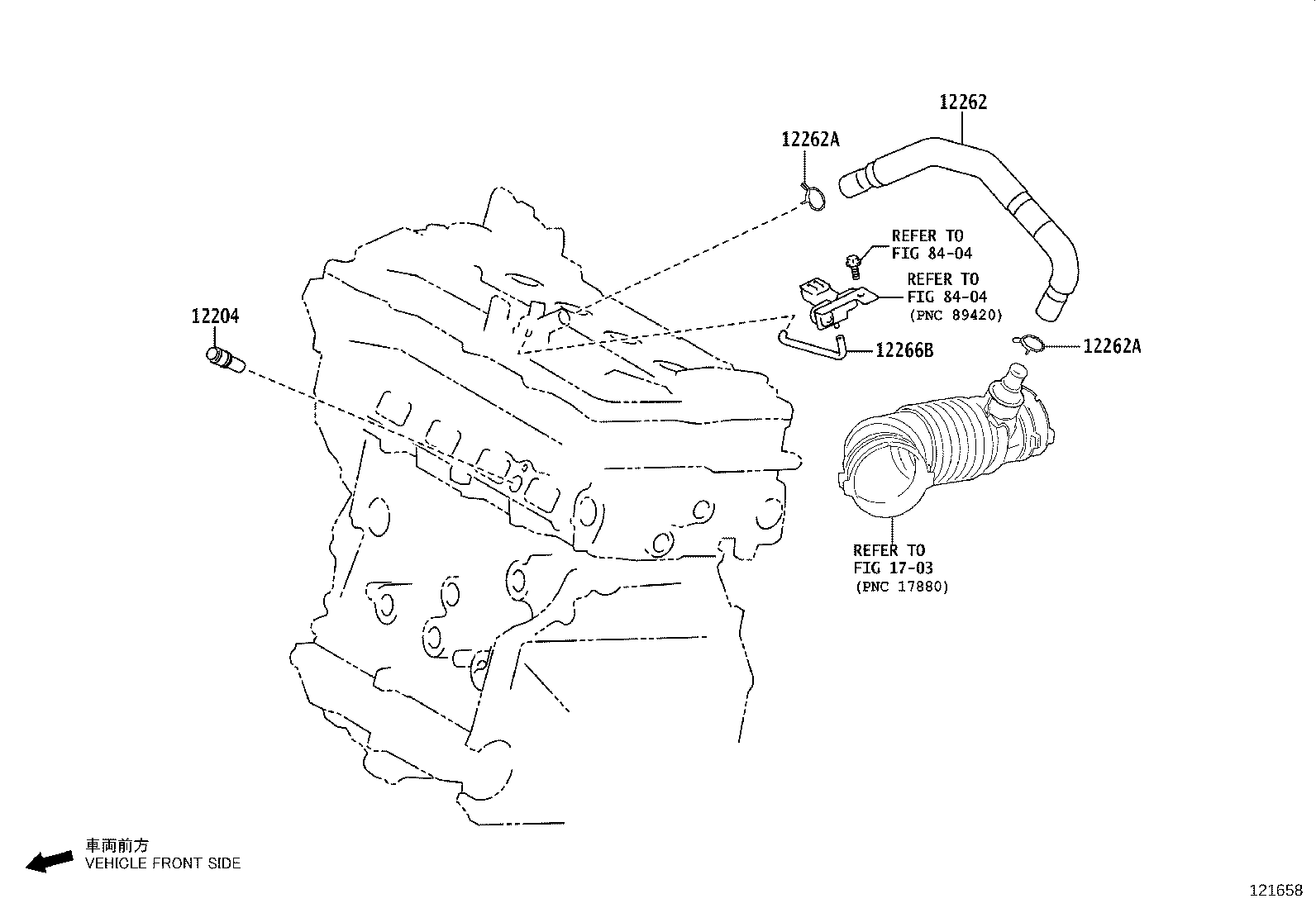

Figure 121660 121660 2023-06 → — Figure 121658 121658 2023-06 → — Figure 121659A 121659A 2023-06 → —

Part groups

PNCDescription
12204 Valve Sub-assy, Ventilation
12262 Hose, Ventilation, NO.2
12262A Clip(FOR VENTILATION HOSE NO.2)
12266B Hose, Ventilation Pressure Sensor, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
