Toyota Grand Highlander
2023-06 → present · chassis AASH1#,TASA1#,TASH15 · catalogue 556410 · United States
Supported model
Data version 2023-05

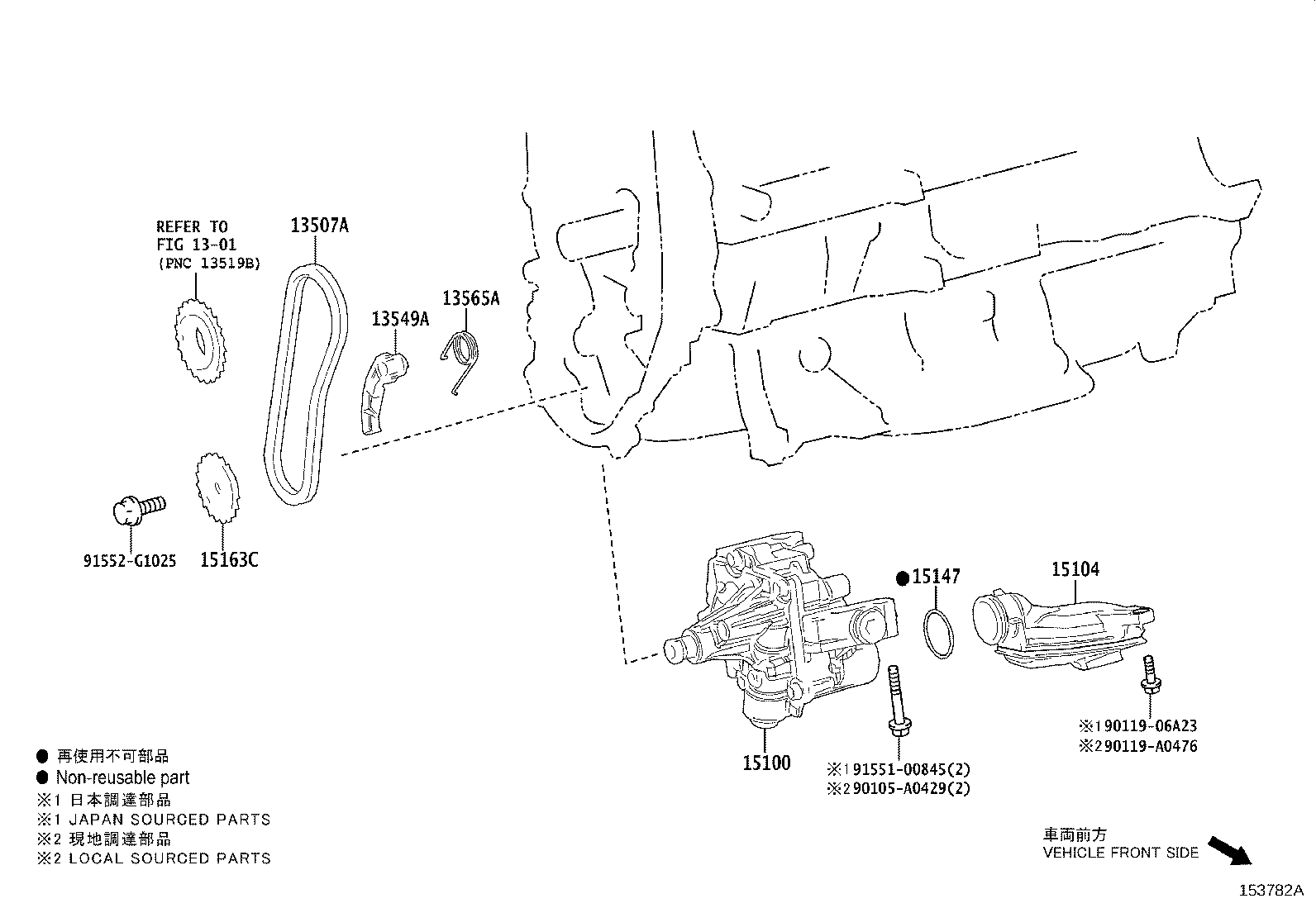

Engine Oil Pump
8 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 13507A | Chain Sub-assy, Oil Pump Drive |
| 13549A | Plate, Chain Tensioner |
| 13565A | Spring, Chain Damper |
| 15100 | Pump Assy, Oil |
| 15104 | Strainer Sub-assy, Oil |
| 15147 | Gasket, Oil Strainer |
| 15163C | Sprocket, Oil Pump Drive Shaft |
| 15167 | Bracket, Oil Pump |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
