Toyota Grand Highlander

2023-06 → present · chassis AASH1#,TASA1#,TASH15 · catalogue 556410 · United States

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Shift Lever & Retainer

10 part groups · 3 illustrations

Illustrations

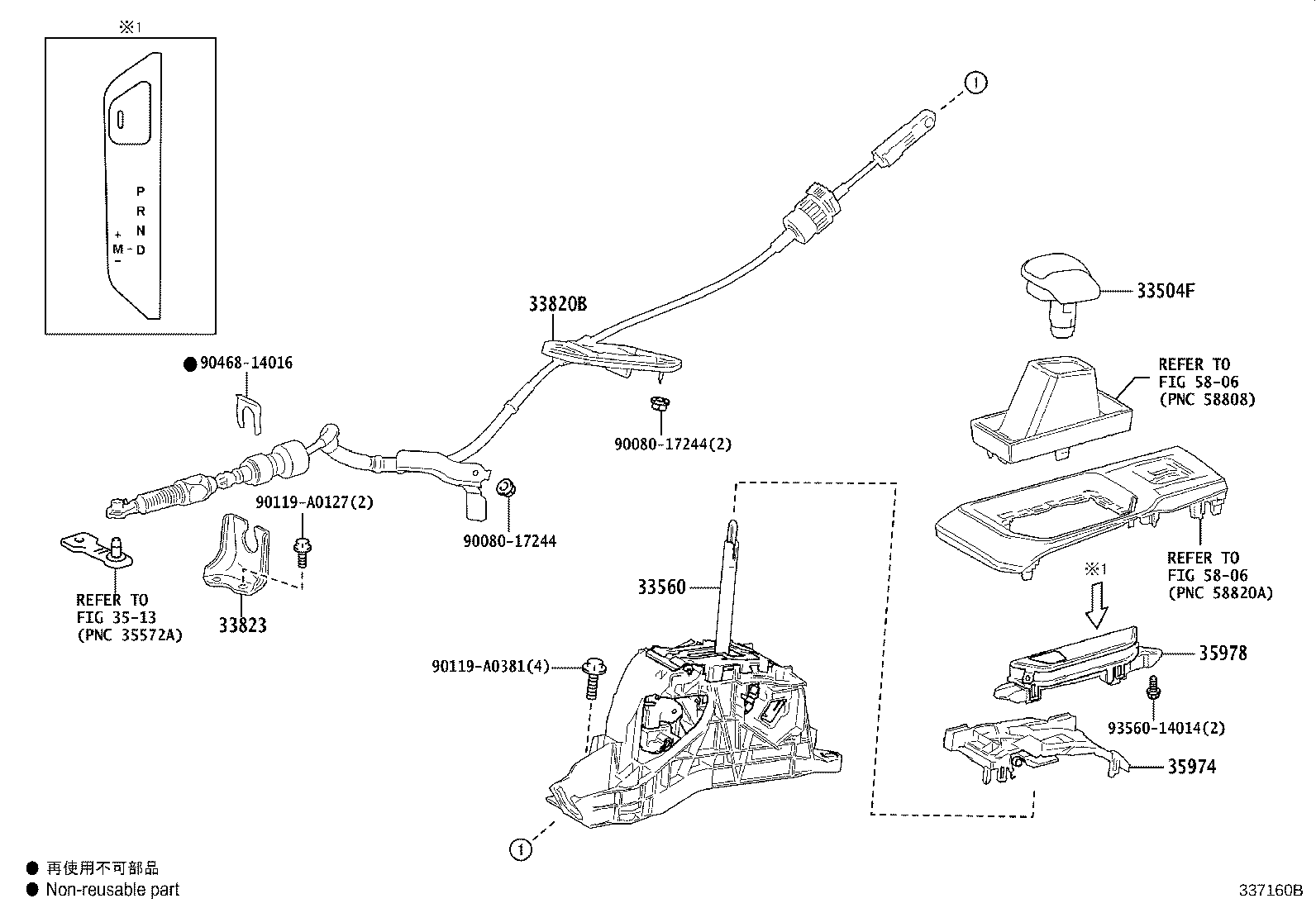

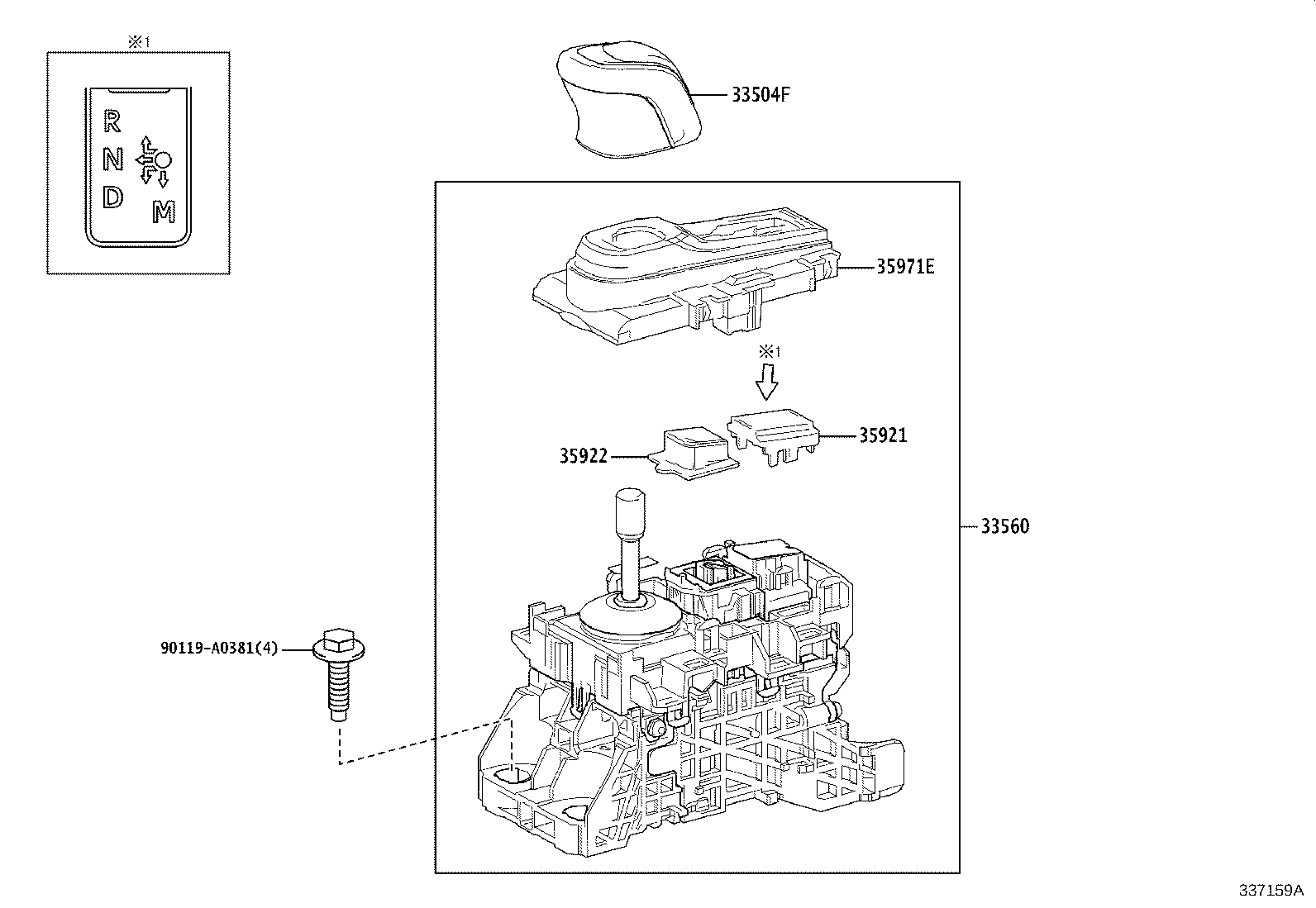

Figure 337161B 337161B 2023-06 → — Figure 337160B 337160B 2023-06 → — Figure 337159A 337159A 2023-06 → —

Part groups

PNCDescription
33504F Knob Sub-assy, Shift Lever
33560 Unit Assy, Shift Lock Control
33820B Cable Assy, Transmission Control
33821G Nut (FOR TRANSMISSION CONTROL CABLE)
33823 Bracket, Transmission Control Cable, NO.1
35921 Plate, Control Position Indicator
35922 Knob, Transmission Parking Switch
35971E Housing, Position Indicator
35974 Housing, Position Indicator, Lower
35978 Indicator, Shift Position
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
