Toyota Grand Highlander
2023-06 → present · chassis AASH1#,TASA1#,TASH15 · catalogue 556410 · United States
Supported model
Data version 2023-05
Front Fender Apron & Dash Panel
56 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|

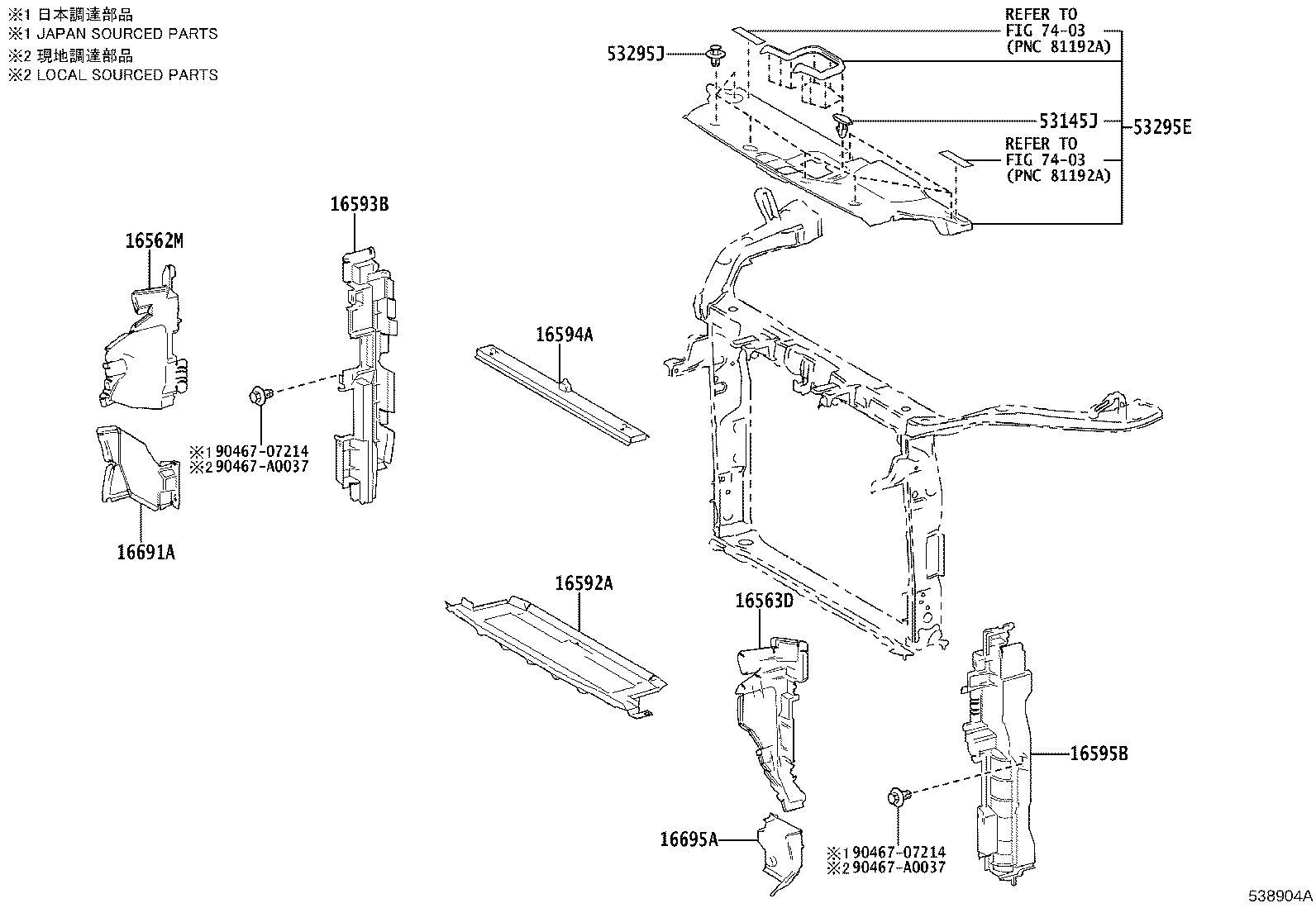

| 16562M | Seal, Radiator TO Support, NO.2 |
| 16563D | Seal, Radiator TO Support, NO.3 |
| 16592A | Guide, Radiator Air, NO.3 |
| 16593B | Guide, Radiator Air, NO.1 RH |
| 16594A | Guide, Radiator Air, NO.2 |
| 16595B | Guide, Radiator Air, NO.1 LH |
| 16691A | Plate, Radiator Side Air Guide, Front RH |
| 16695A | Plate, Radiator Side Air Guide, Front LH |
| 53019F | Shutter Sub-assy, Radiator |
| 53145J | Clip, Radiator Grille |
| 53155J | Seal, Radiator Grille, NO.1 |
| 53156G | Seal, Radiator Grille, NO.2 |
| 53157C | Seal, Radiator Grille, NO.3 |
| 53158E | Seal, Radiator Grille, NO.4 |
| 53159H | Seal, Radiator Grille, NO.5 |
| 53180D | Shutter Assy, Radiator |

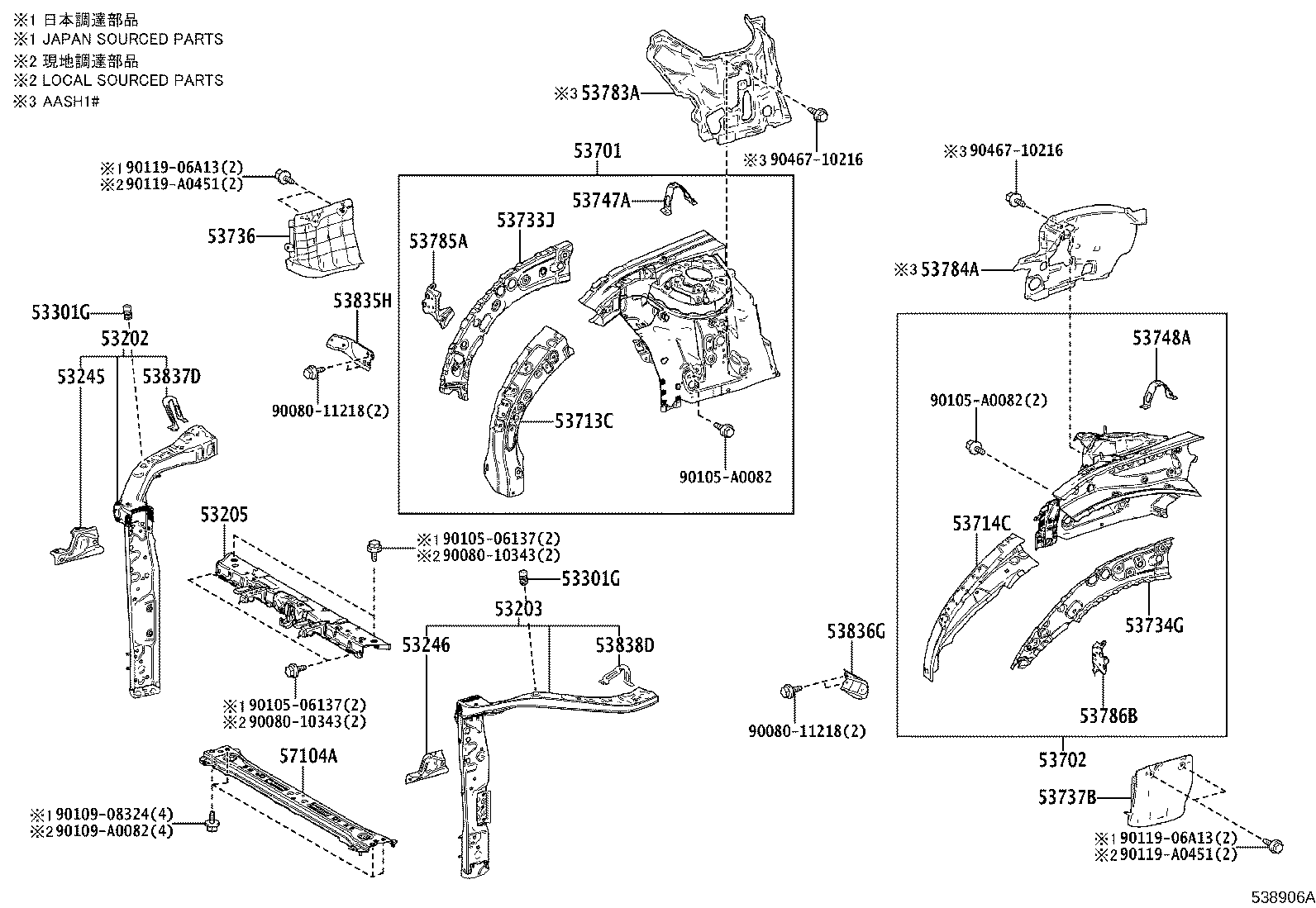

| 53202 | Support Sub-assy, Radiator, RH |
| 53203 | Support Sub-assy, Radiator, LH |
| 53205 | Support Sub-assy, Radiator, Upper |
| 53245 | Bracket, Headlamp, RH |
| 53246 | Bracket, Headlamp, LH |
| 53295E | Seal, Cool Air Intake Duct |
| 53295J | Clip, Cool Air Intake Duct Seal |
| 53301G | Cushion, Hood Bumper |
| 53701 | Apron Sub-assy, Front Fender, RH |
| 53702 | Apron Sub-assy, Front Fender, LH |
| 53713C | Extension, Front Fender Apron, Front RH |
| 53714C | Extension, Front Fender Apron, Front LH |
| 53733J | Member, Front Apron TO Cowl Side, Outer Front RH |
| 53734G | Member, Front Apron TO Cowl Side, Outer Front LH |
| 53736 | Seal, Front Fender Apron, RH |
| 53737B | Seal, Front Fender Apron, LH |
| 53747A | Extension, Apron Fender Side, RH |
| 53748A | Extension, Apron Fender Side, LH |
| 53783A | Insulator, Apron Front Fender, RH |
| 53784A | Insulator, Apron Front Fender, LH |
| 53785A | Gusset, Front Fender Apron, Upper RH |
| 53786B | Gusset, Front Fender Apron, Upper LH |
| 53835H | Brace, Front Fender TO Extension, RH |
| 53836G | Brace, Front Fender TO Extension, LH |
| 53837D | Bracket, Front Side Panel, NO.2 RH |
| 53838D | Bracket, Front Side Panel, NO.2 LH |

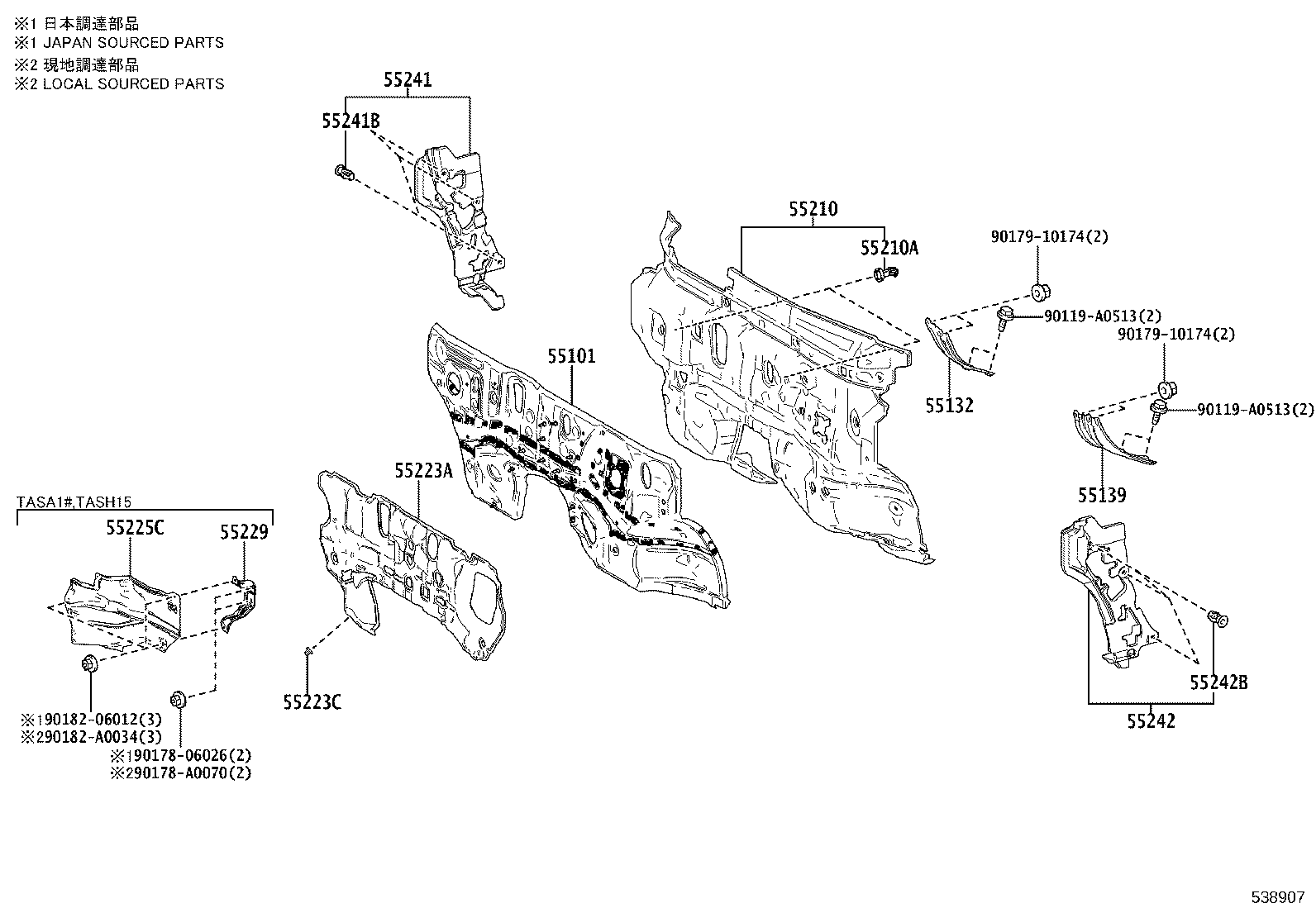

| 55101 | Panel Sub-assy, Dash |
| 55132 | Reinforcement, Dash Panel, NO.2 |
| 55139 | Reinforcement, Dash TO Frame Brace |
| 55210 | Insulator Assy, Dash Panel |
| 55210A | Clip |
| 55223A | Insulator, Dash Panel, Outer |
| 55223C | Clip |
| 55225C | Insulator, Dash Panel Heat |
| 55229 | Plate, Dash Panel Insulator, NO.4 |
| 55241 | Silencer, Front Panel Side, NO.1 RH |
| 55241B | Clip, Front Panel Side Silencer |
| 55242 | Silencer, Front Panel Side, NO.1 LH |
| 55242B | Clip, Front Panel Side Silencer |
| 57104A | Member Sub-assy, Front Cross |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
