Toyota Grand Highlander

2023-06 → present · chassis AASH1#,TASA1#,TASH15 · catalogue 556410 · United States

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Side Member

18 part groups · 2 illustrations

Illustrations

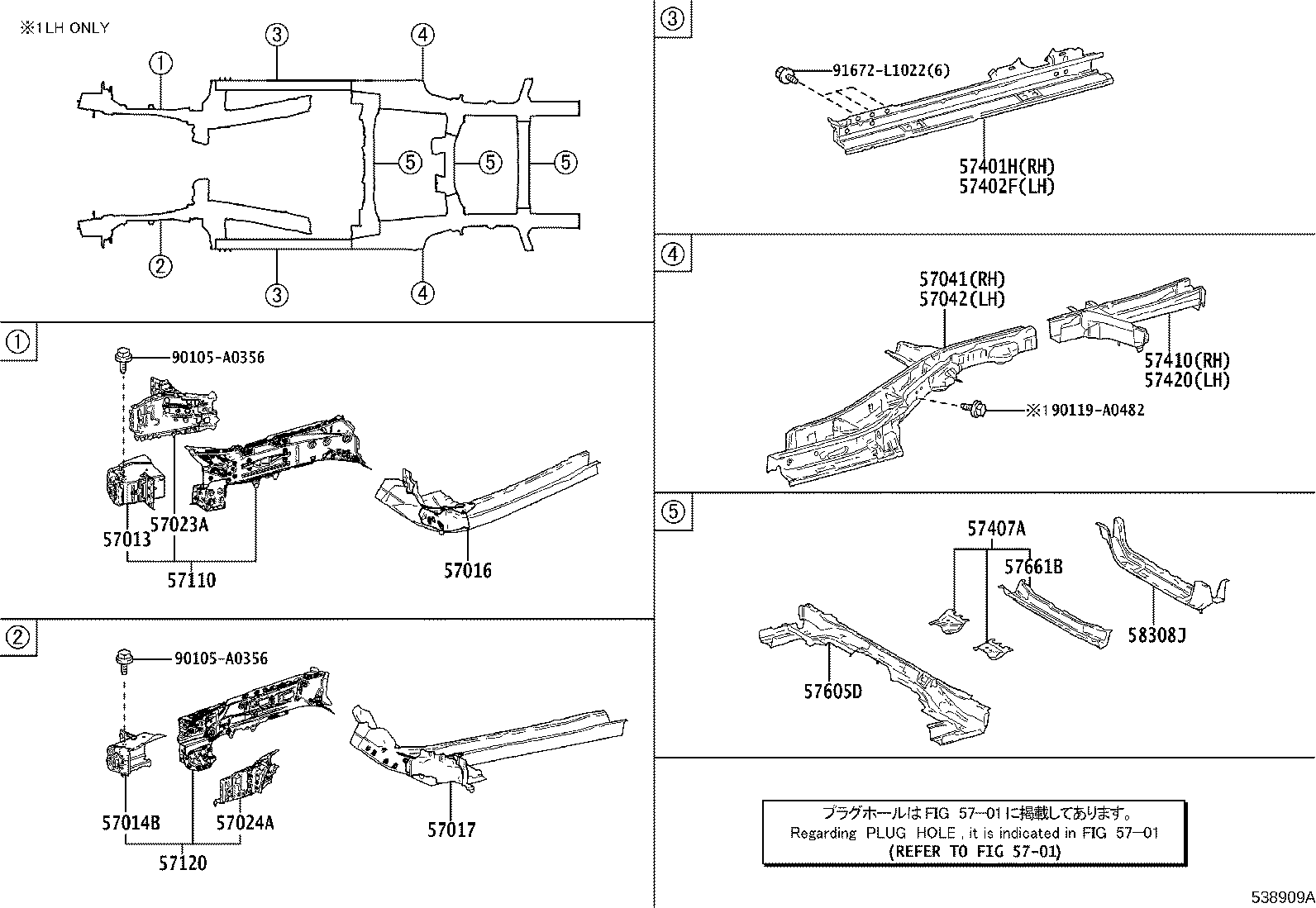

Figure 538908A 538908A 2023-06 → — Figure 538909A 538909A 2023-06 → —

Part groups

PNCDescription
57013 Bracket Sub-assy, Front Side Member, RH
57014B Bracket Sub-assy, Front Side Member, LH
57016 Reinforcement Sub-assy, Front Side Member, RH
57017 Reinforcement Sub-assy, Front Side Member, LH
57023A Member Sub-assy, Rear Side, RH
57024A Member Sub-assy, Rear Side, LH
57041 Member Sub-assy, Center Floor Side, RH
57042 Member Sub-assy, Center Floor Side, LH
57110 Member Assy, Front Side, RH
57120 Member Assy, Front Side, LH
57401H Member Sub-assy, Floor Side, Inner RH
57402F Member Sub-assy, Floor Side, Inner LH
57407A Member Sub-assy, Center Floor Cross
57410 Member Assy, Floor Side, RH
57420 Member Assy, Floor Side, LH
57605D Member Sub-assy, Rear Floor Cross, NO.1
57661B Member, Rear Floor Cross, Front
58308J Bracket Sub-assy, Rear Floor Crossmember
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
