Toyota Grand Highlander
2023-06 → present · chassis AASH1#,TASA1#,TASH15 · catalogue 556410 · United States
Supported model
Data version 2023-05

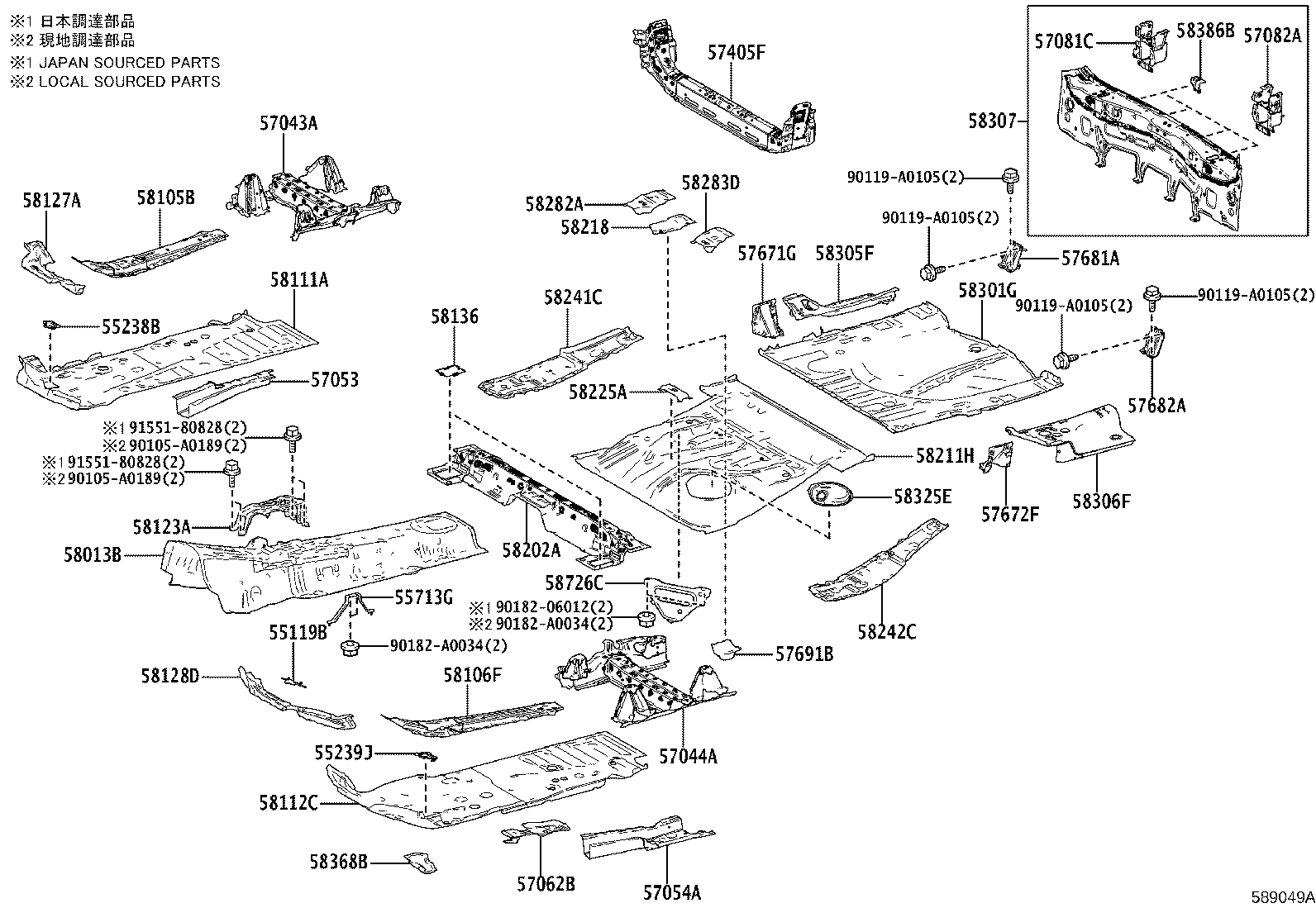

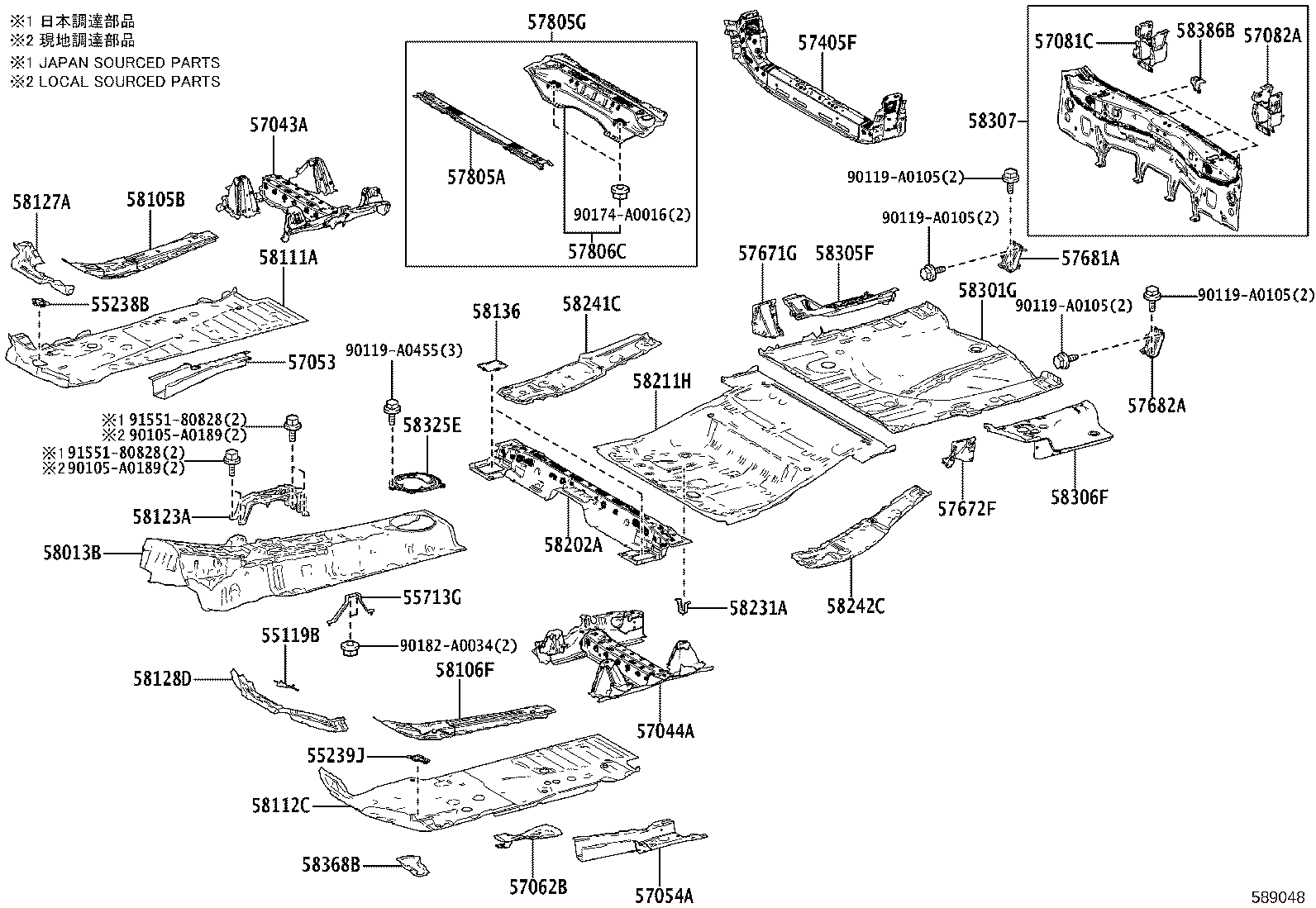

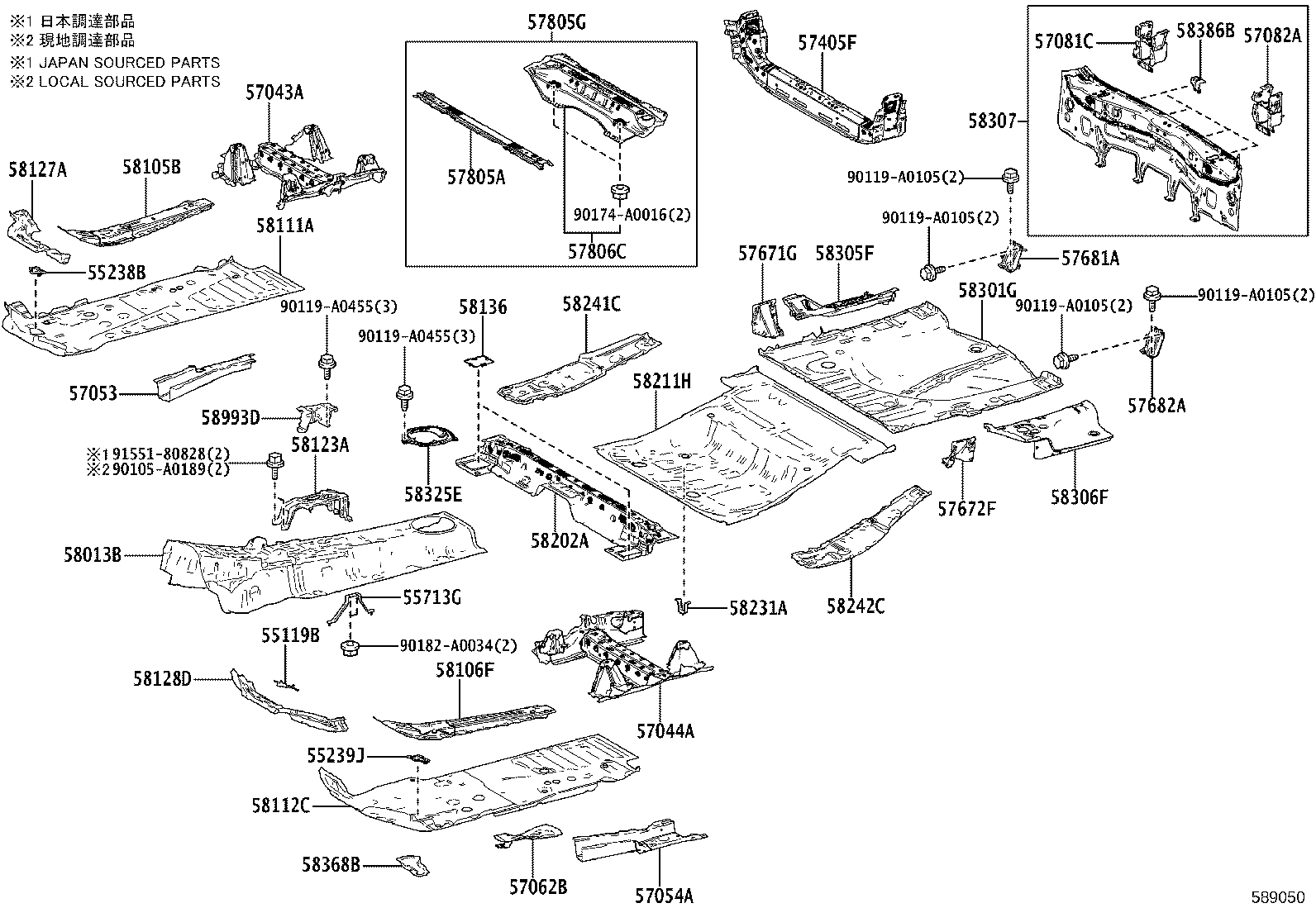

Floor Pan & Lower Back Panel
47 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 55119B | Extension, Dash Panel, LH |
| 55238B | Plate, Dash Panel Insulator, Lower RH |
| 55239J | Plate, Dash Panel Insulator, Lower LH |
| 55713G | Bracket, Front Lower Panel |
| 57043A | Reinforcement Sub-assy, Front Side Member, Rear RH |
| 57044A | Reinforcement Sub-assy, Front Side Member, Rear LH |
| 57053 | Reinforcement Sub-assy, Front Floor Crossmember, RH |
| 57054A | Reinforcement Sub-assy, Front Floor Crossmember, LH |
| 57062B | Bracket Sub-assy, Fuel Tank Support, LH |
| 57081C | Bracket Sub-assy, Rear Bumper Arm Support, RH |
| 57082A | Bracket Sub-assy, Rear Bumper Arm Support, LH |
| 57405F | Member Sub-assy, Center Floor Cross, Rear |
| 57671G | Member, Rear Floor Cross, NO.1 RH |
| 57672F | Member, Rear Floor Cross, NO.1 LH |
| 57681A | Brace, Rear Floor NO.2 Crossmember, Outer |
| 57682A | Brace, Rear Floor NO.2 Crossmember, Outer LH |
| 57691B | Bracket, Fuel Tank Mounting, Front Center |
| 57805A | Reinforce Sub-assy, NO.1 Seat Leg, Rear NO.1 |
| 57805G | Reinforce Sub-assy, NO.1 Seat Leg, Set |
| 57806C | Reinforce Sub-assy, NO.1 Seat Leg, Rear NO.2 |
| 58013B | Panel Sub-assy, Front Floor, Center |
| 58105B | Panel Sub-assy, Front Floor Rear Upper Sub |
| 58106F | Bracket Sub-assy, Front Seat Mounting, Outside LH |
| 58111A | Pan, Front Floor, RH |
| 58112C | Pan, Front Floor, LH |
| 58123A | Support, Shift & Select Lever |
| 58127A | Reinforce, Front Cross TO Front Panel Member, RH |
| 58128D | Reinforce, Front Cross TO Front Panel Member, LH |
| 58136 | Cover, Front Floor Hole |
| 58202A | Pan Sub-assy, Center Floor, Front |
| 58211H | Pan, Center Floor |
| 58218 | Plate, Seat Floor Panel |
| 58225A | Bracket, Center Mounting |
| 58231A | Bracket, Center Floor Heat Insulator, NO.1 |
| 58241C | Panel, Floor Side, RH |
| 58242C | Panel, Floor Side, LH |
| 58282A | Base, Belt Anchor TO Floor Pan, NO.3 RH |
| 58283D | Base, Belt Anchor TO Floor Pan, NO.3 LH |
| 58301G | Pan Sub-assy, Rear Floor |
| 58305F | Panel Sub-assy, Rear Floor Side, RH |
| 58306F | Panel Sub-assy, Rear Floor Side, LH |
| 58307 | Panel Sub-assy, Body Lower Back |
| 58325E | Cover, Rear Floor Service Hole |
| 58368B | Bracket, Fuel Tube, NO.2 |
| 58386B | Bracket, Rear Bumper Cover, NO.2 |
| 58726C | Stay, Engine Service Cover, NO.2 |
| 58993D | Bracket, Console Box Mounting, Lower |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
