Toyota Grand Highlander
2023-06 → present · chassis AASH1#,TASA1#,TASH15 · catalogue 556410 · United States
Supported model
Data version 2023-05

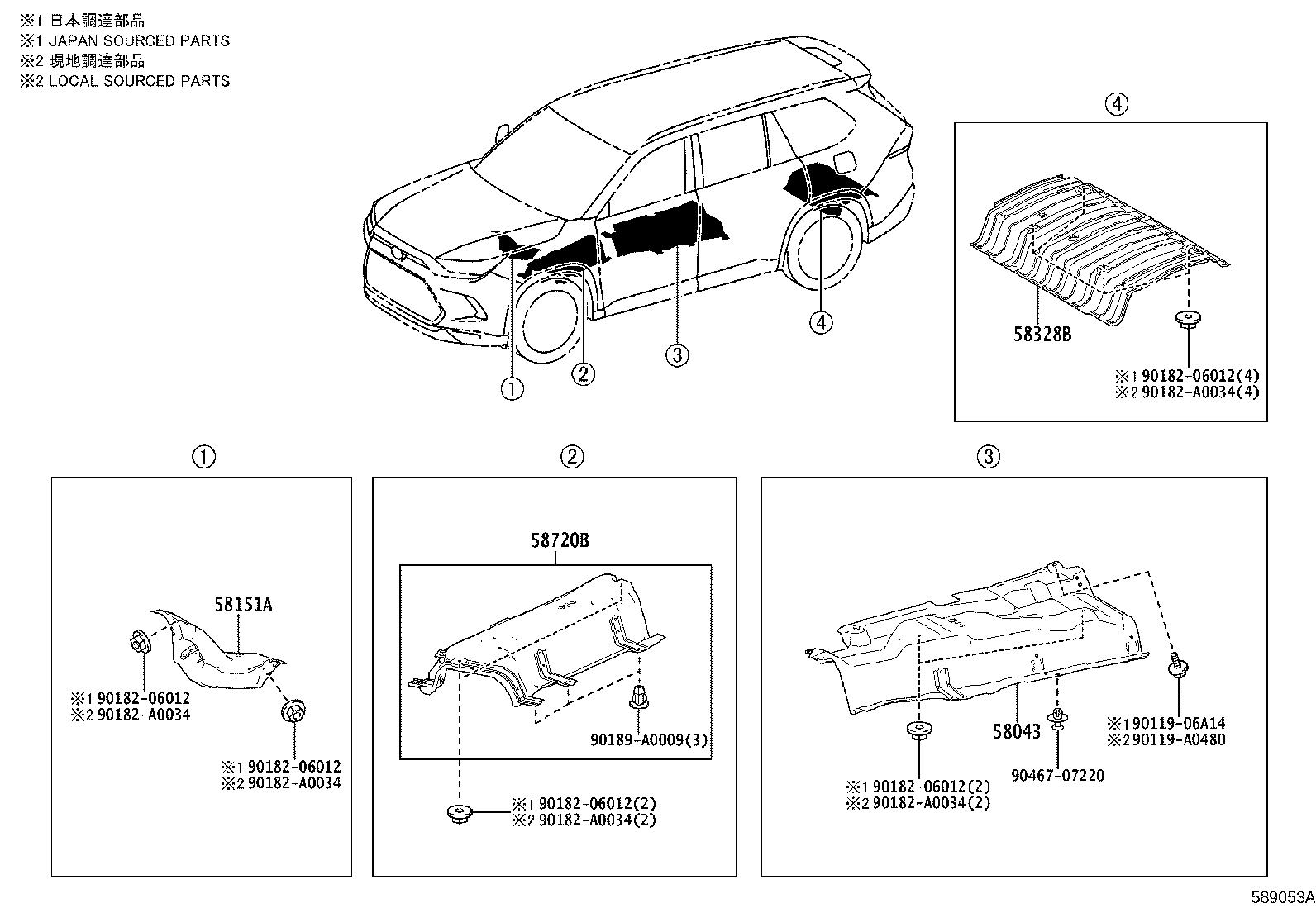

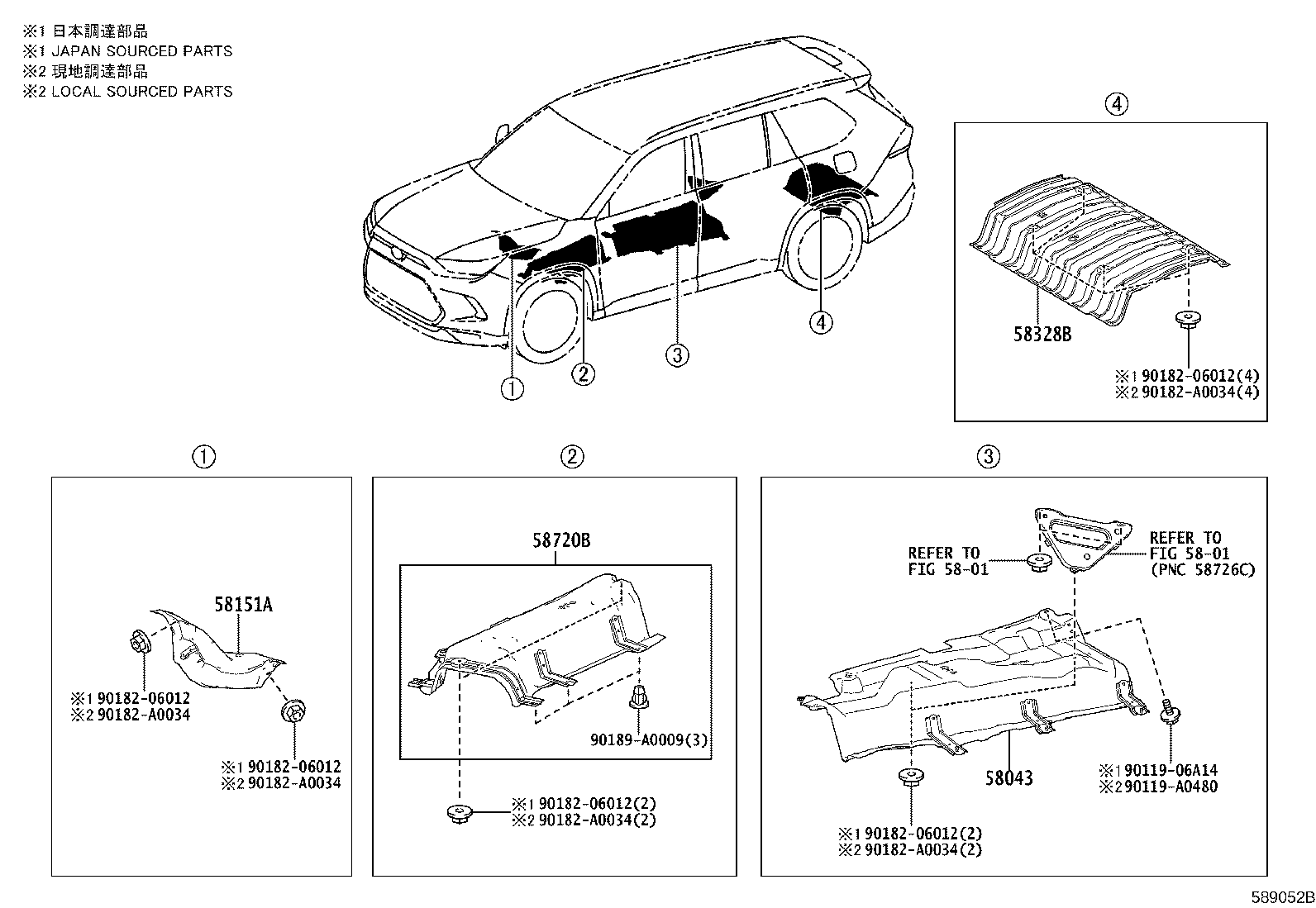

Floor Insulator
5 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 58043 | Insulator Sub-assy, Main Muffler Heat, Rear |
| 58135 | Bracket, Floor Insulator Support |
| 58151A | Insulator, Floor Heat, NO.1 |
| 58328B | Insulator, Main Muffler Heat, Lower |
| 58720B | Cover Assy, Engine Service |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
