Toyota Grand Highlander
2023-06 → present · chassis AASH1#,TASA1#,TASH15 · catalogue 556410 · United States
Supported model
Data version 2023-05

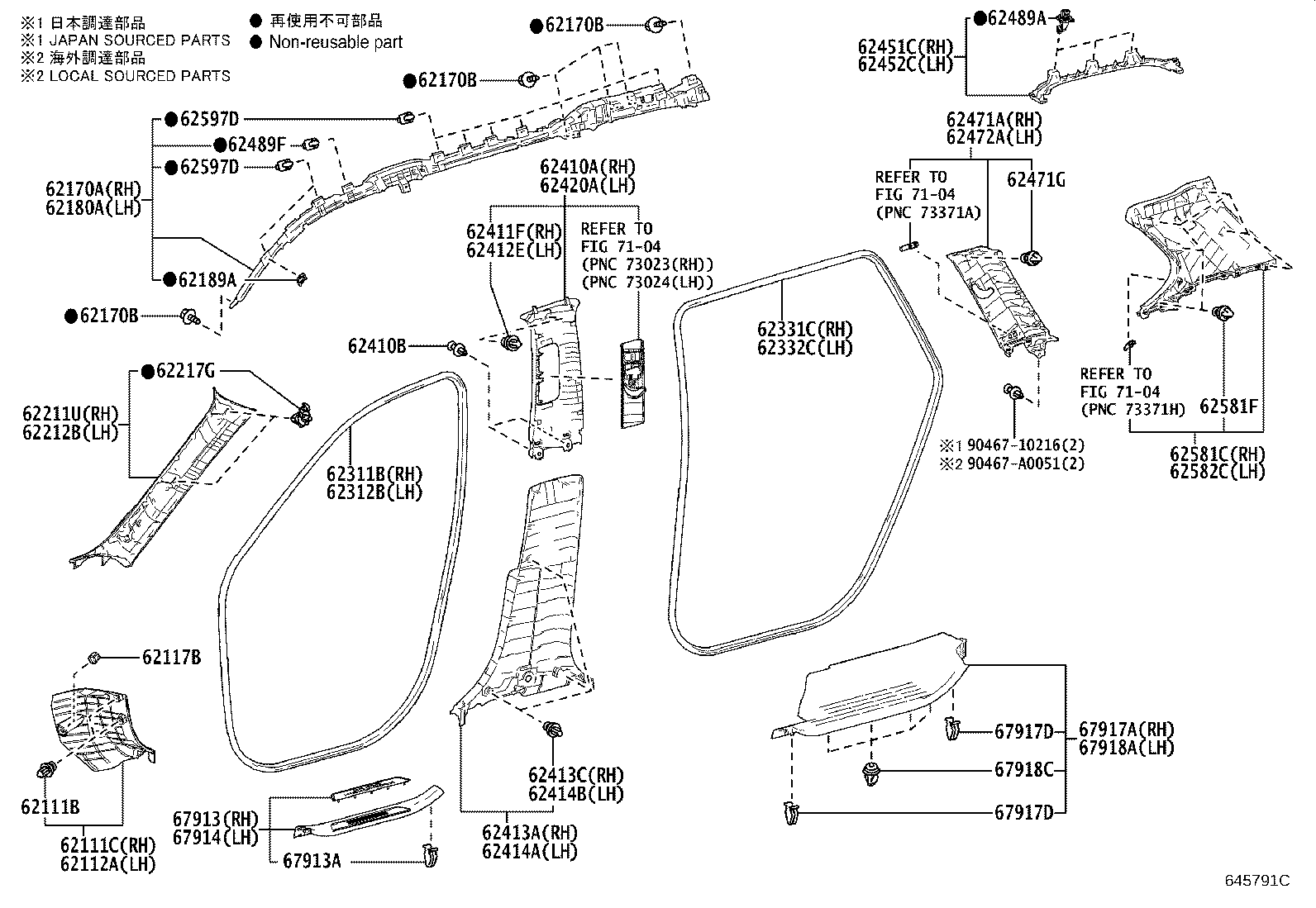

Inside Trim Board & Door Opening Trim Moulding
44 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 62111B | Clip(FOR COWL SIDE TRIM) |
| 62111C | Board, Cowl Side Trim, RH |
| 62112A | Trim Sub-assy, Cowl Side, LH |
| 62117B | Clip, NO.1(FOR COWL SIDE TRIM) |
| 62170A | Airbag Assy, Curtain Shield, RH |
| 62170B | Bolt, W/Washer |
| 62180A | Airbag Assy, Curtain Shield, LH |
| 62189A | Spacer, Curtain Shield Airbag Clip |
| 62211U | Garnish Assy, Front Pillar, RH |
| 62212B | Garnish Assy, Front Pillar, LH |
| 62217G | Clip, Front Pillar Garnish |
| 62311B | Weatherstrip, Front Door Opening Trim, RH |
| 62312B | Weatherstrip, Front Door Opening Trim, LH |
| 62331C | Weatherstrip, Rear Door Opening Trim, RH |
| 62332C | Weatherstrip, Rear Door Opening Trim, LH |
| 62410A | Garnish Assy, Center Pillar, RH |
| 62410B | Clip |
| 62411F | Clip, Center Pillar Garnish, RH |
| 62412E | Clip, Center Pillar Garnish, LH |
| 62413A | Garnish, Center Pillar, Lower RH |
| 62413C | Clip (FOR CENTER LOWER GARNISH) |
| 62414A | Garnish, Center Pillar, Lower LH |
| 62414B | Clip (FOR CENTER LOWER GARNISH) |
| 62420A | Garnish Assy, Center Piller, LH |
| 62451C | Garnish, Roof Side Rail, Rear RH |
| 62452C | Garnish, Roof Side Rail, Rear LH |
| 62471A | Garnish, Roof Side, Inner RH |
| 62471G | Clip, Roof Side Inner Garnish |
| 62472A | Garnish, Roof Side, Inner LH |
| 62489A | Clip, Roof Side Inner Garnish |
| 62489F | Clip, Roof Side Inner Garnish |
| 62581C | Garnish, Rear Window Side, RH |
| 62581F | Clip (FOR QUARTER PILLAR GARNISH) |
| 62582C | Garnish, Rear Window Side, LH |
| 62597D | Clip |
| 67913 | Plate, Front Door Scuff, RH |
| 67913A | Clip(FOR SCUFF PLATE) |
| 67914 | Plate, Front Door Scuff, LH |
| 67917A | Plate, Rear Door Scuff, RH |
| 67917D | Clip, Rear Door Scuff Plate |
| 67918A | Plate, Rear Door Scuff, LH |
| 67918C | Clip(FOR REAR SCUFF PLATE) |
| 67925B | Panel, Rear Door Scuff, RH |
| 67926A | Panel, Rear Door Scuff, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
