Toyota Grand Highlander
2023-06 → present · chassis AASH1#,TASA1#,TASH15 · catalogue 556410 · United States
Supported model
Data version 2023-05

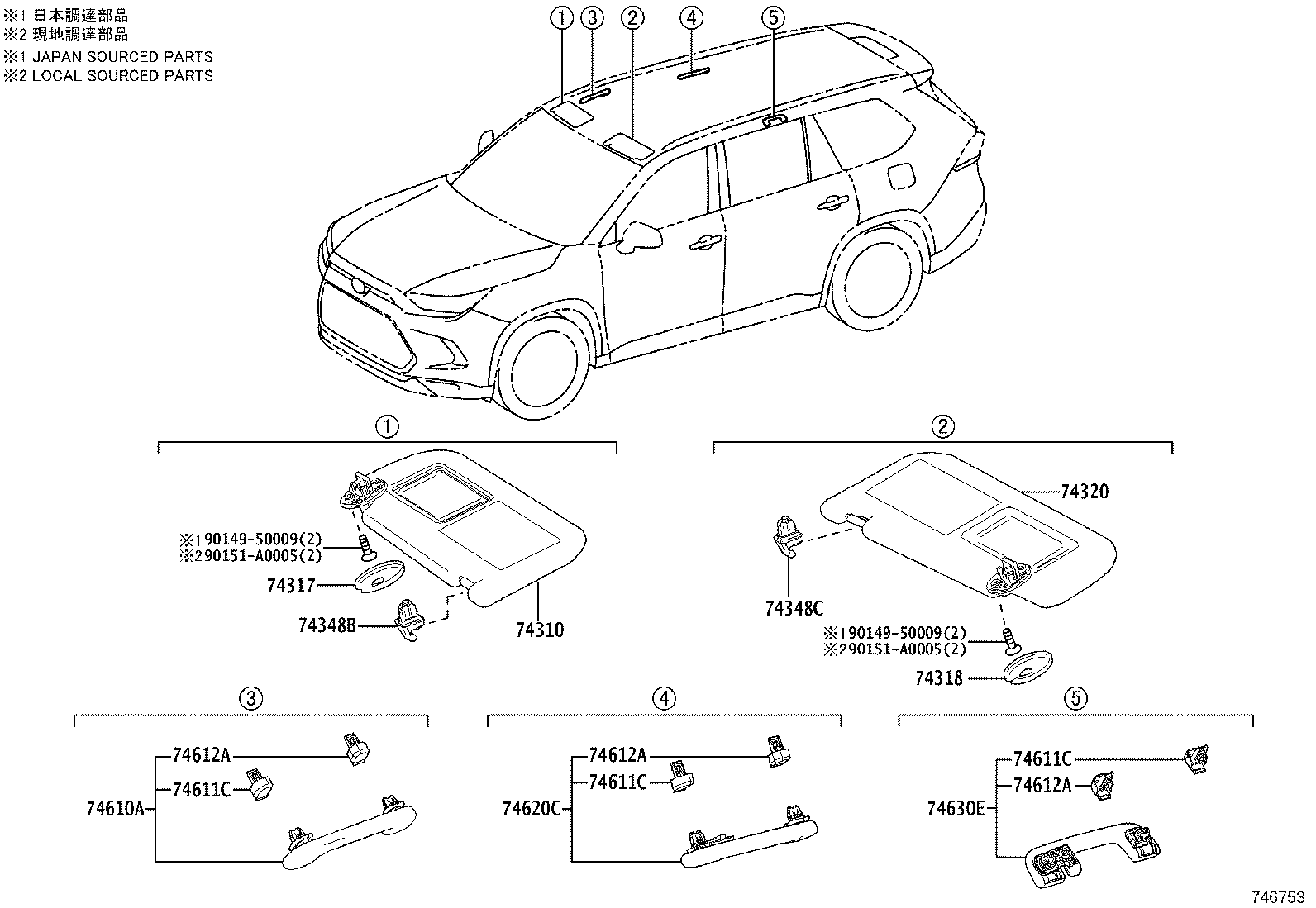

Armrest & Visor
15 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 74231 | Panel, Front Armrest Base, Upper RH |
| 74232 | Panel, Front Armrest Base, Upper LH |
| 74271A | Panel, Rear Door Armrest Base, Upper RH |
| 74272A | Panel, Rear Door Armrest Base, Upper LH |
| 74310 | Visor Assy, RH |
| 74317 | Cover, Visor Bracket, RH |
| 74318 | Cover, Visor Bracket, LH |
| 74320 | Visor Assy, LH |
| 74348B | Holder, Visor, RH |
| 74348C | Holder, Visor, LH |
| 74610A | Grip Sub-assy, Assist |
| 74611C | Cover, Assist Grip, LH |
| 74612A | Cover, Assist Grip, RH |
| 74620C | Grip Assy, Assist, Rear RH |
| 74630E | Grip Assy, Assist, Rear LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
