Toyota Grand Highlander
2023-06 → present · chassis AASH1#,TASA1#,TASH15 · catalogue 556410 · United States
Supported model
Data version 2023-05

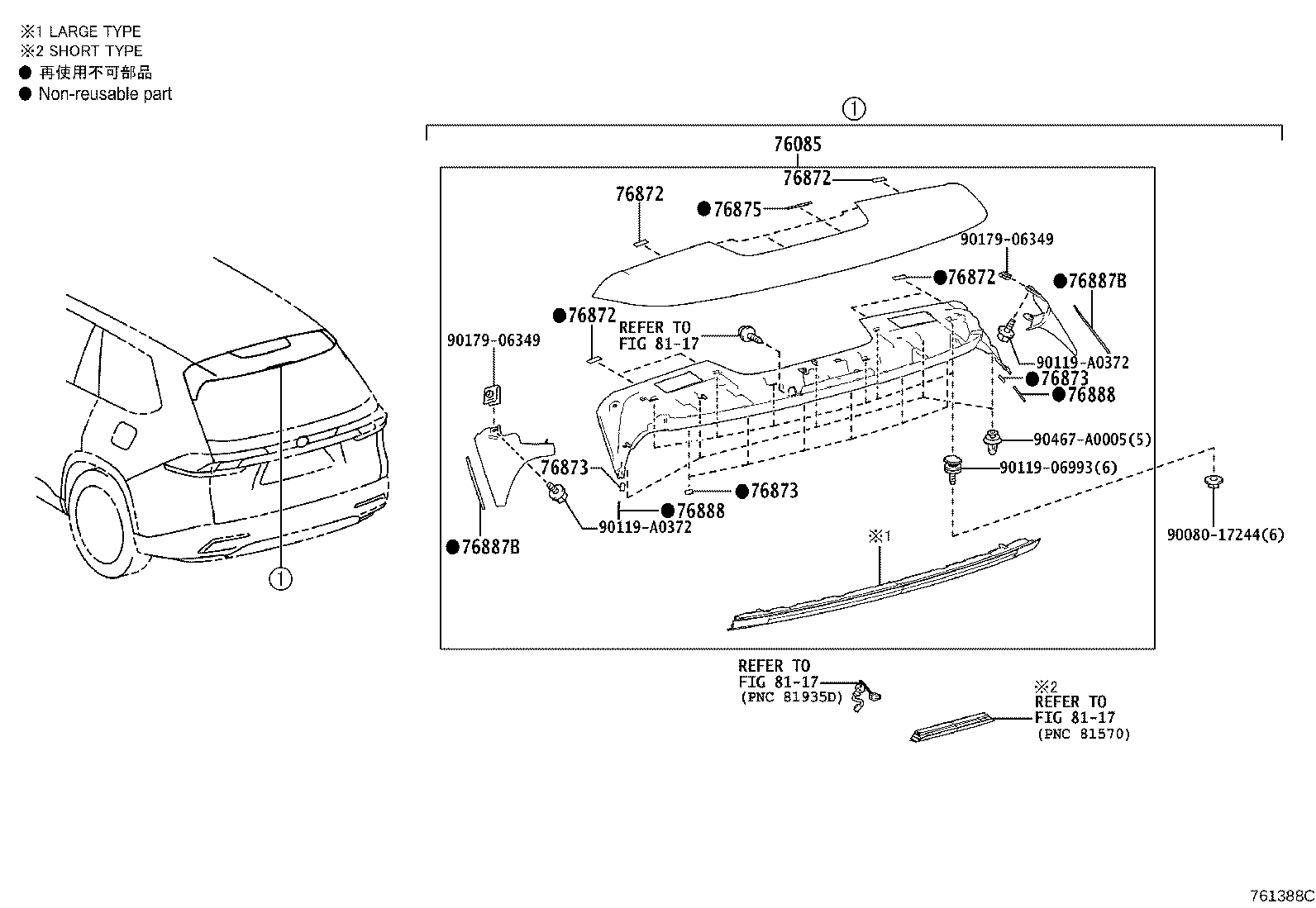

Mudguard & Spoiler
12 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 75867B | Clip, Rocker Panel Moulding |
| 76085 | Spoiler Sub-assy, Rear |
| 76621C | Mudguad, Front Fender, RH |
| 76621F | Screw, NO.1 |
| 76622C | Mudguard, Front Fender, LH |
| 76625D | Mudguard, Quarter Panel, Rear RH |
| 76626D | Mudguard, Quarter Panel, Rear LH |
| 76872 | Protector, Rear Spoiler, NO.1 |
| 76873 | Protector, Rear Spoiler, NO.2 |
| 76875 | Protector, Rear Spoiler, NO.4 |
| 76887B | Protector, Rear Spoiler Side, NO.2 |
| 76888 | Protector, Rear Spoiler Side, NO.3 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
