Toyota Grand Highlander
2023-06 → present · chassis AASH1#,TASA1#,TASH15 · catalogue 556410 · United States
Supported model
Data version 2023-05

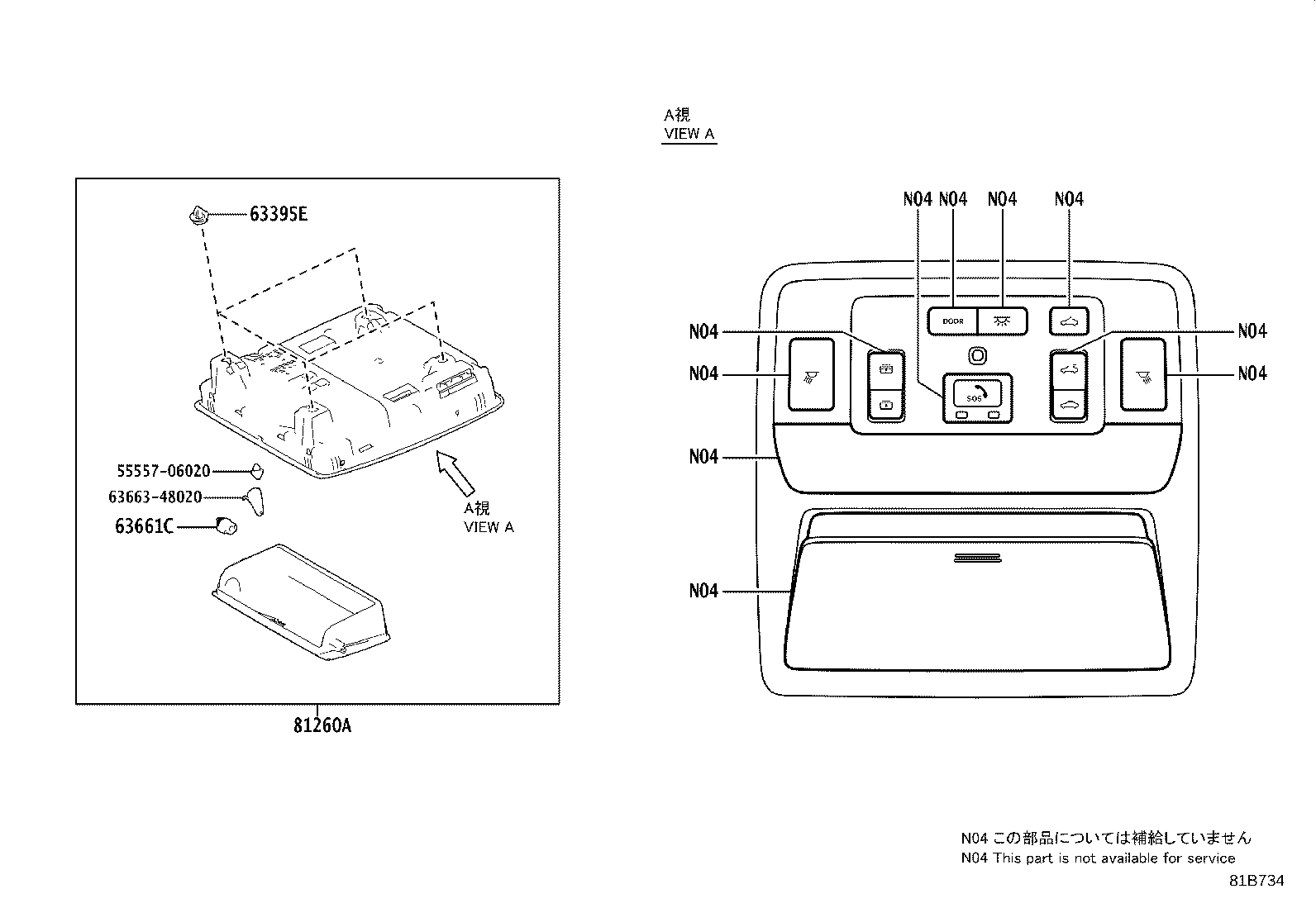

Interior Lamp
15 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 63395E | Clip(FOR MAP LAMP) |
| 63661C | Base, Roof Console |
| 81080J | Lamp Assy, Interior Illumination, NO.1 |
| 81080M | Lamp Assy, Interior Illumination, NO.1 |
| 81080V | Lamp Assy, Interior Illumination, NO.2 |
| 81080W | Lamp Assy, Interior Illumination, NO.3 |
| 81230 | Lamp Assy, Courtesy |
| 81260 | Lamp Assy, Glove Box |
| 81260A | Lamp Assy, Map |
| 81330C | Lamp Assy, Luggage Compartment |
| 81340 | Lamp Assy, Vanity |
| 81340B | Bulb (FOR VANITY LAMP) |
| 81360K | Lamp Assy, Spot, RH |
| 81362B | Lens, Interior Illumination Lamp |
| 81390C | Lamp Assy, Spot, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
