Toyota Grand Highlander

2023-06 → present · chassis AASH1#,TASA1#,TASH15 · catalogue 556410 · United States

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

147 part groups · 15 illustrations

Illustrations

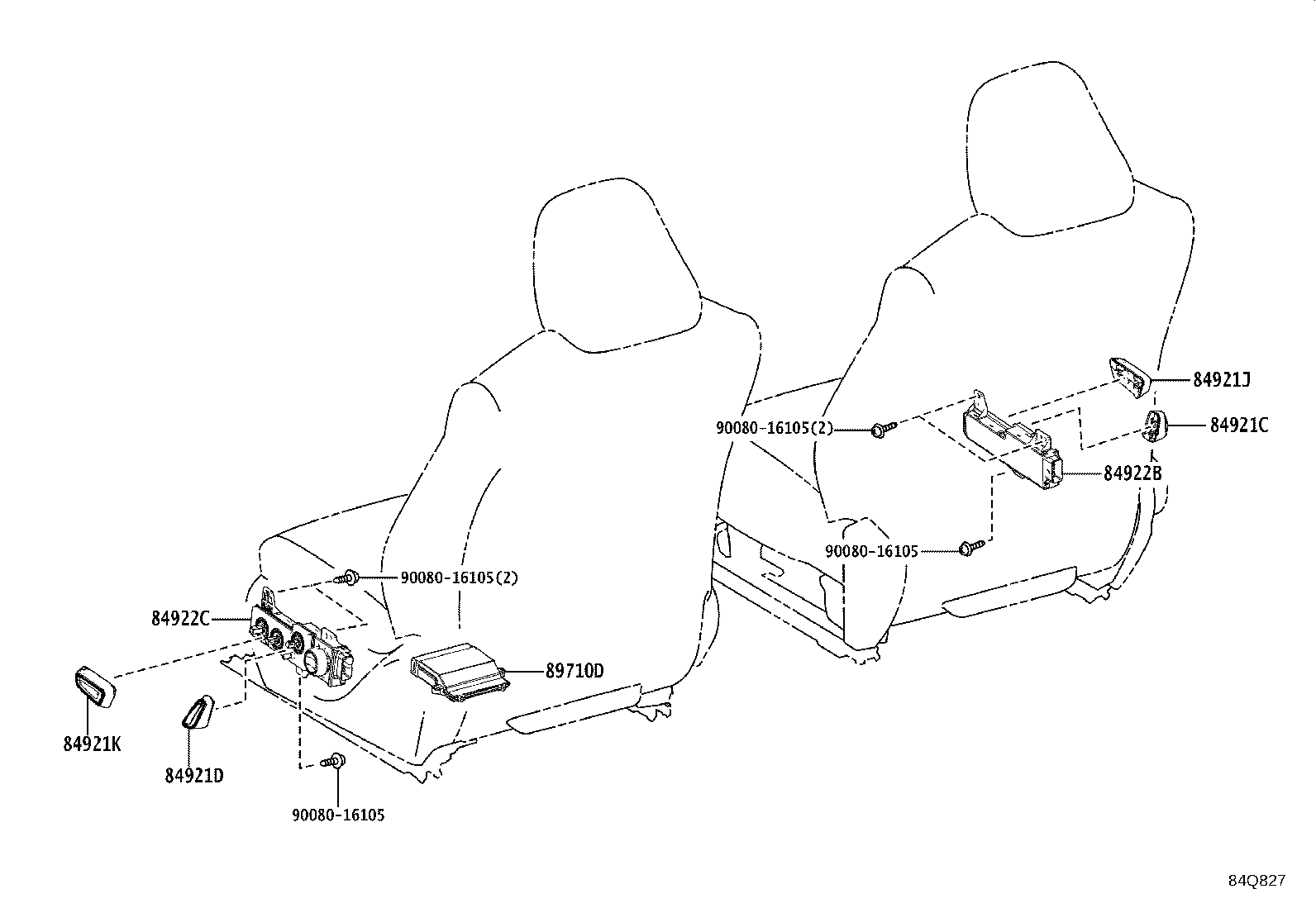

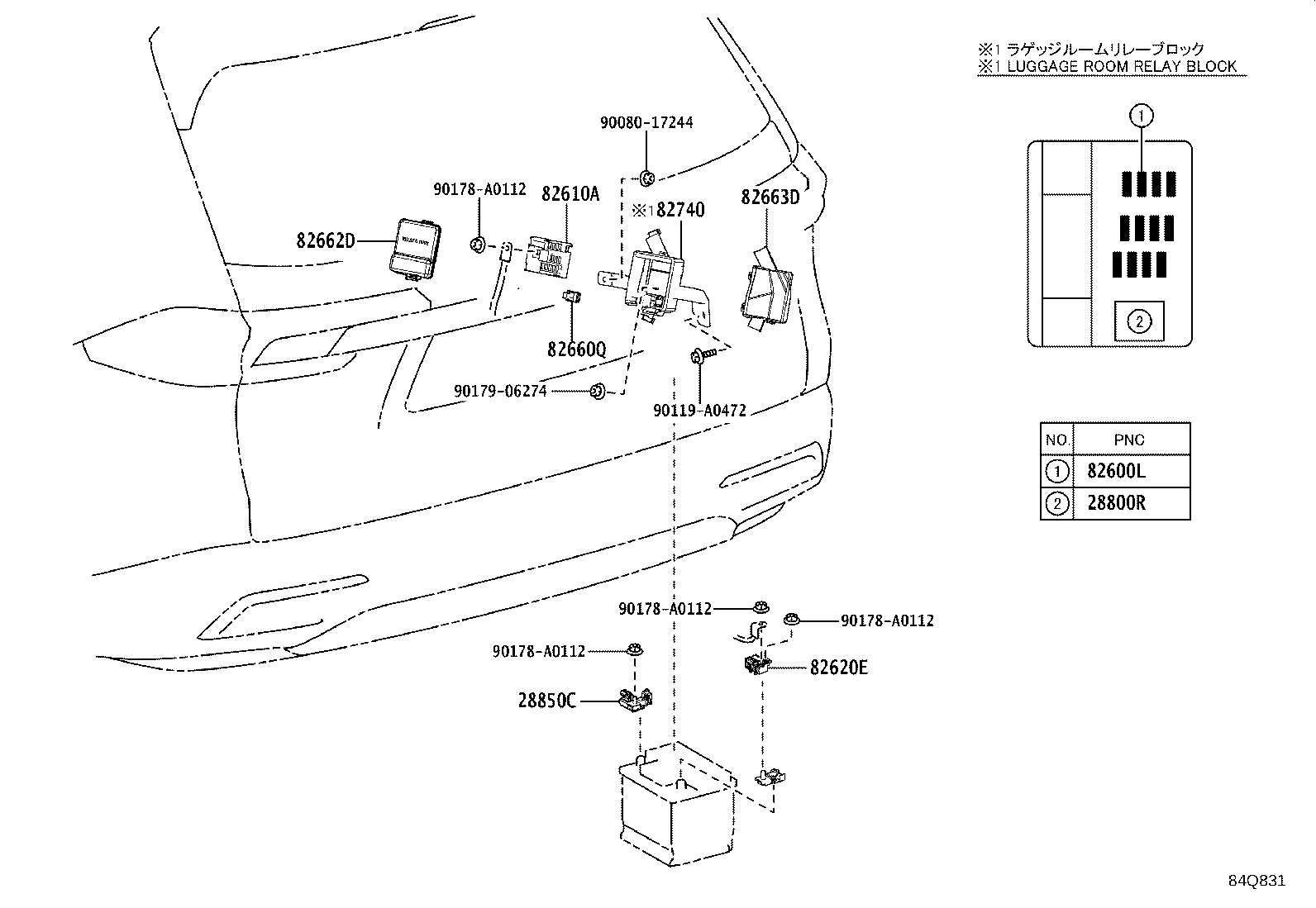

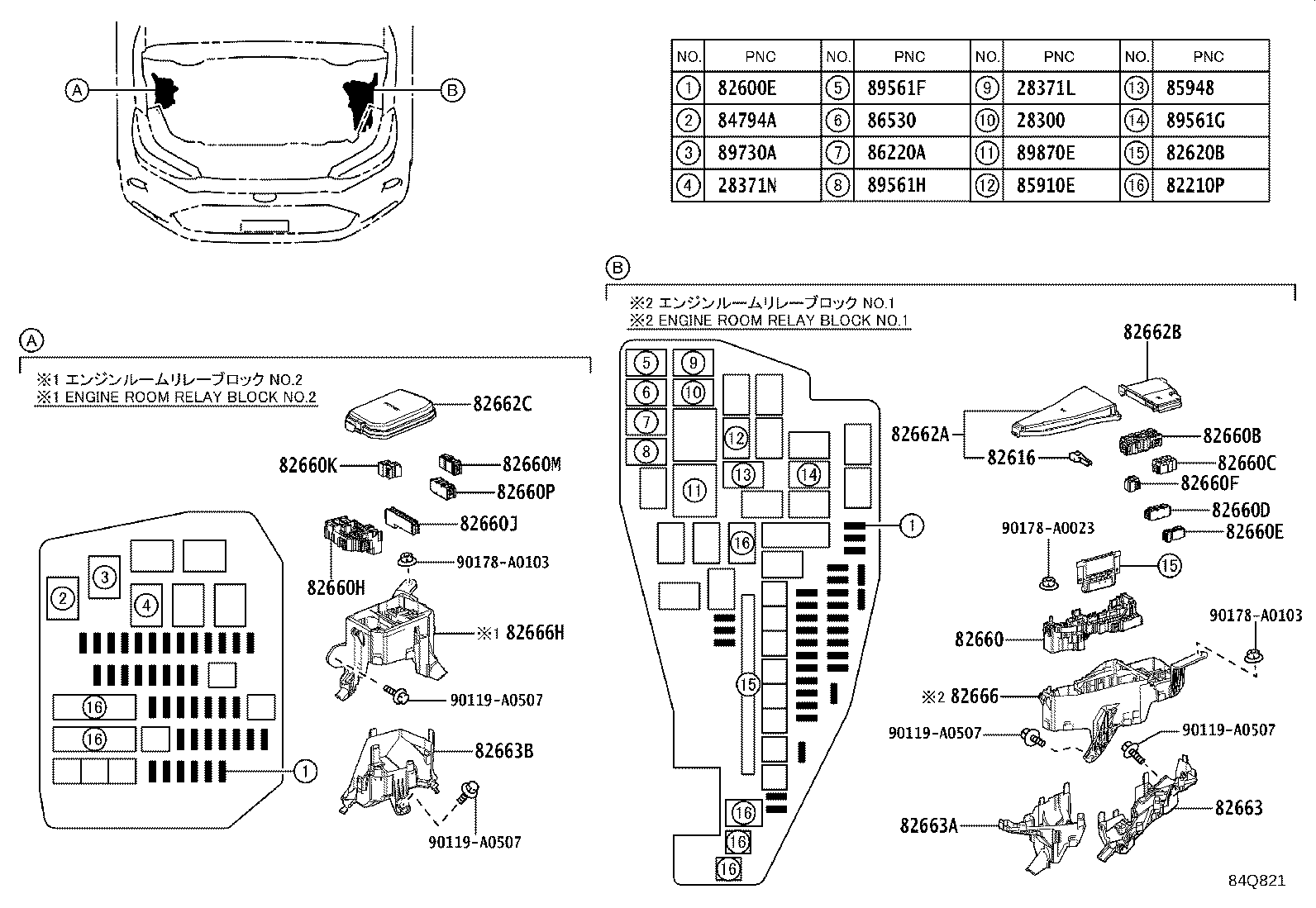

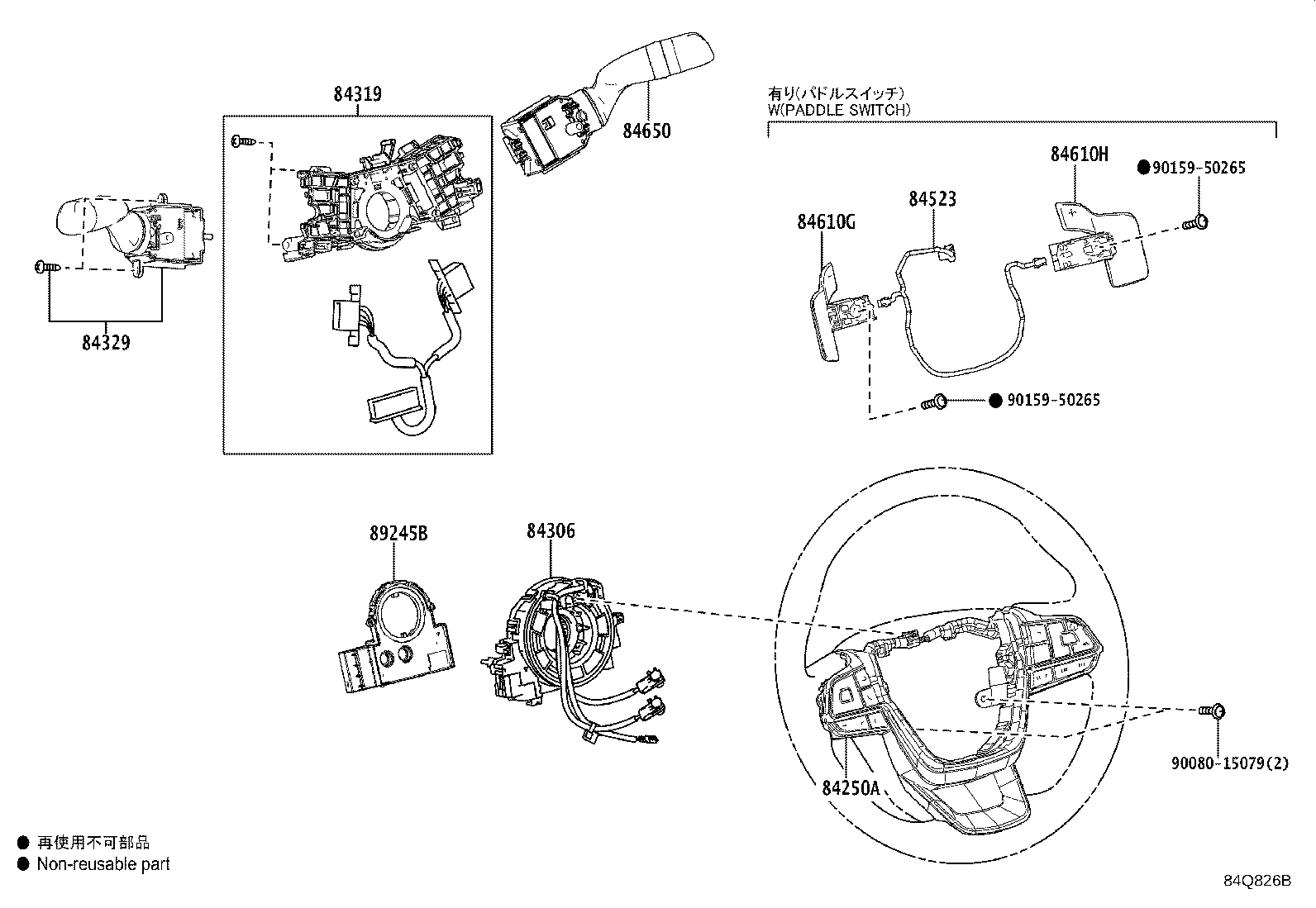

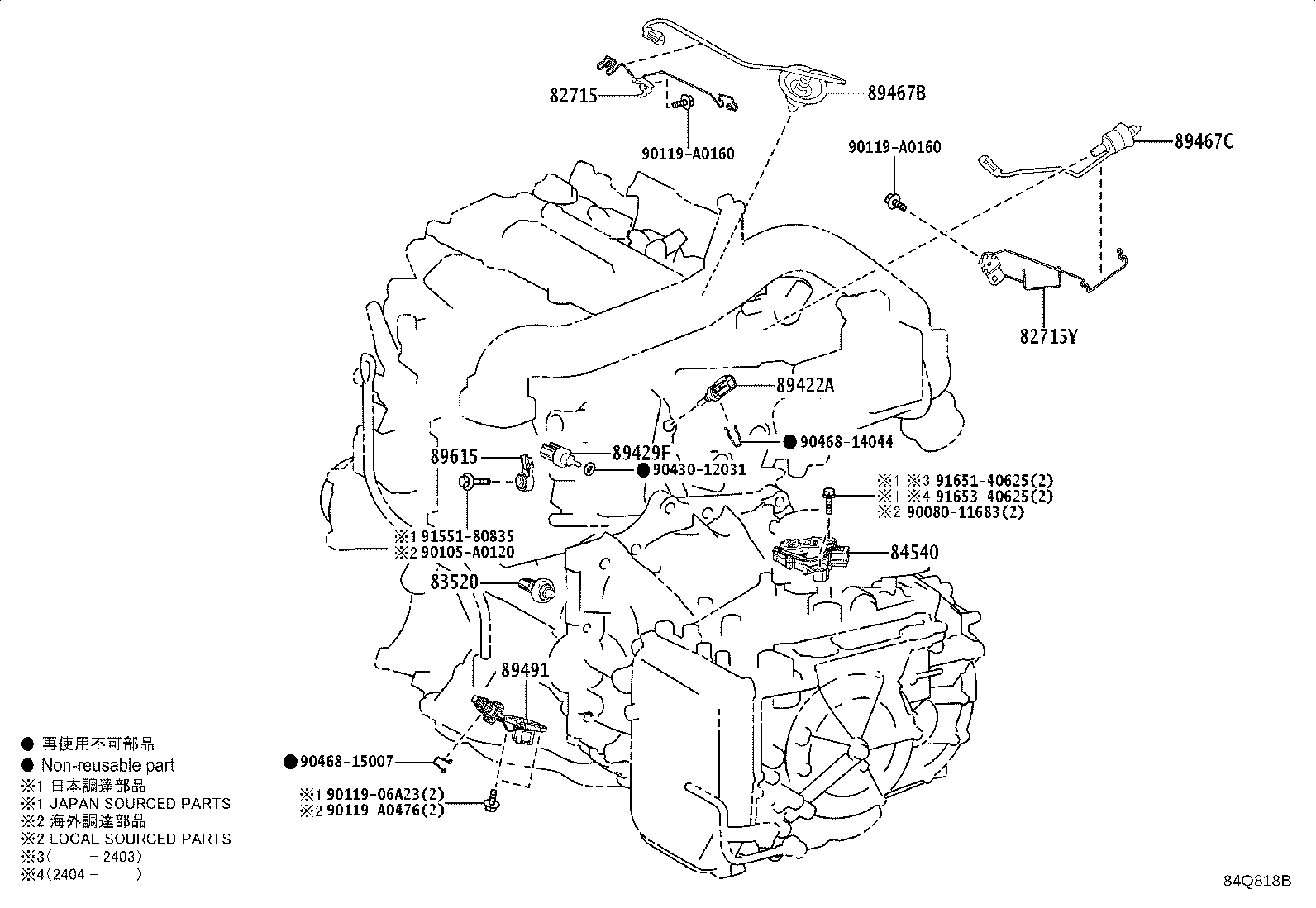

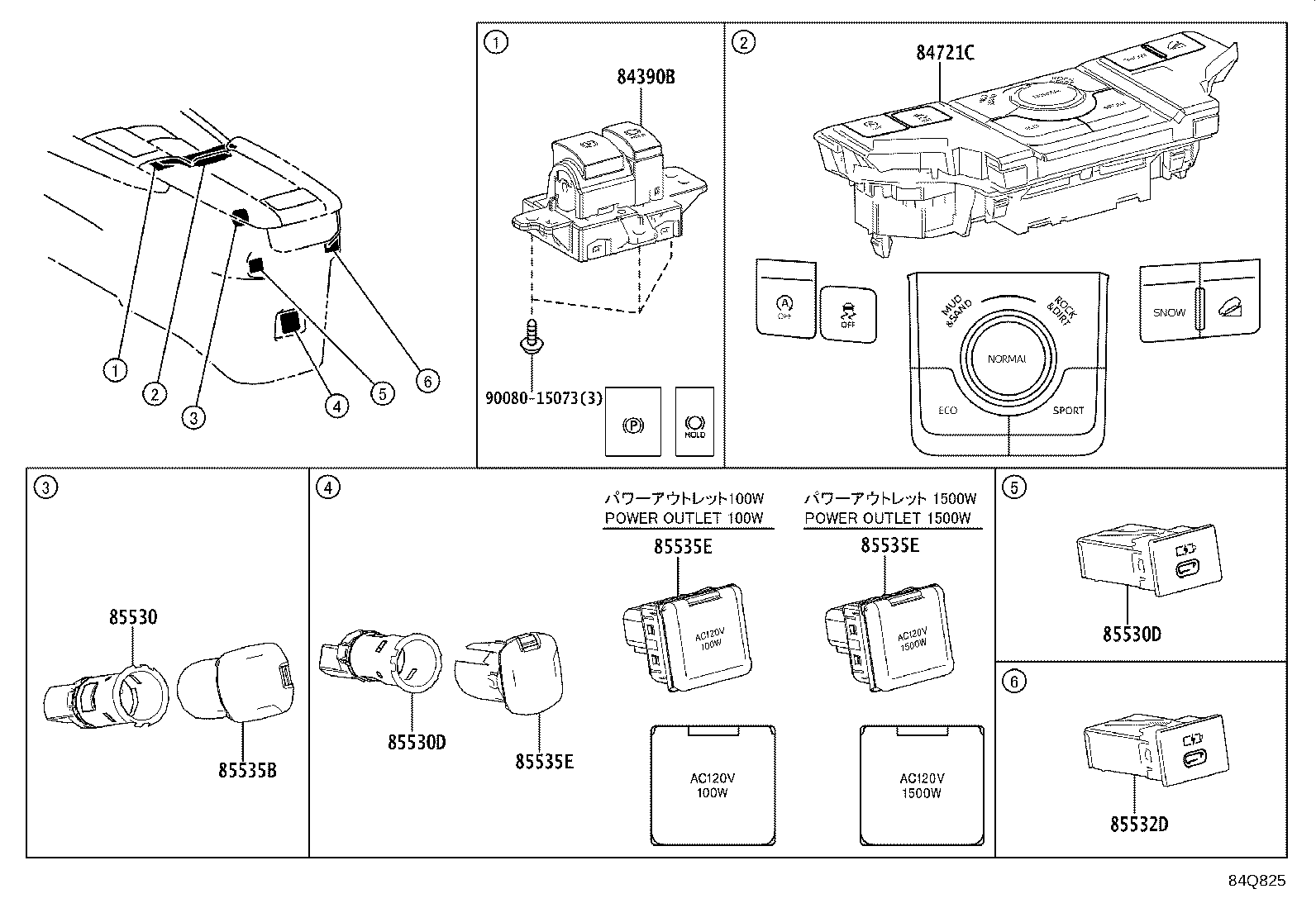

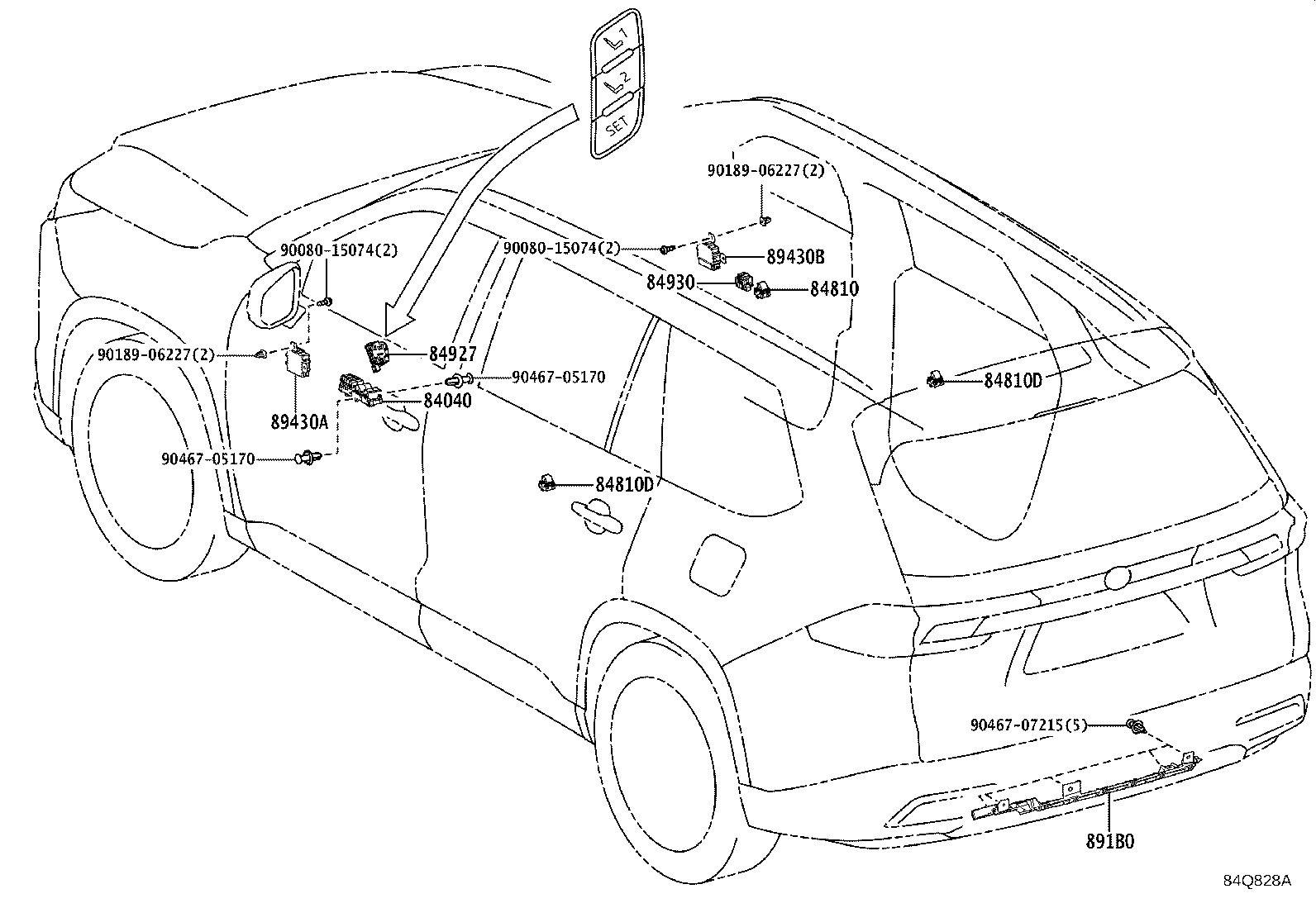

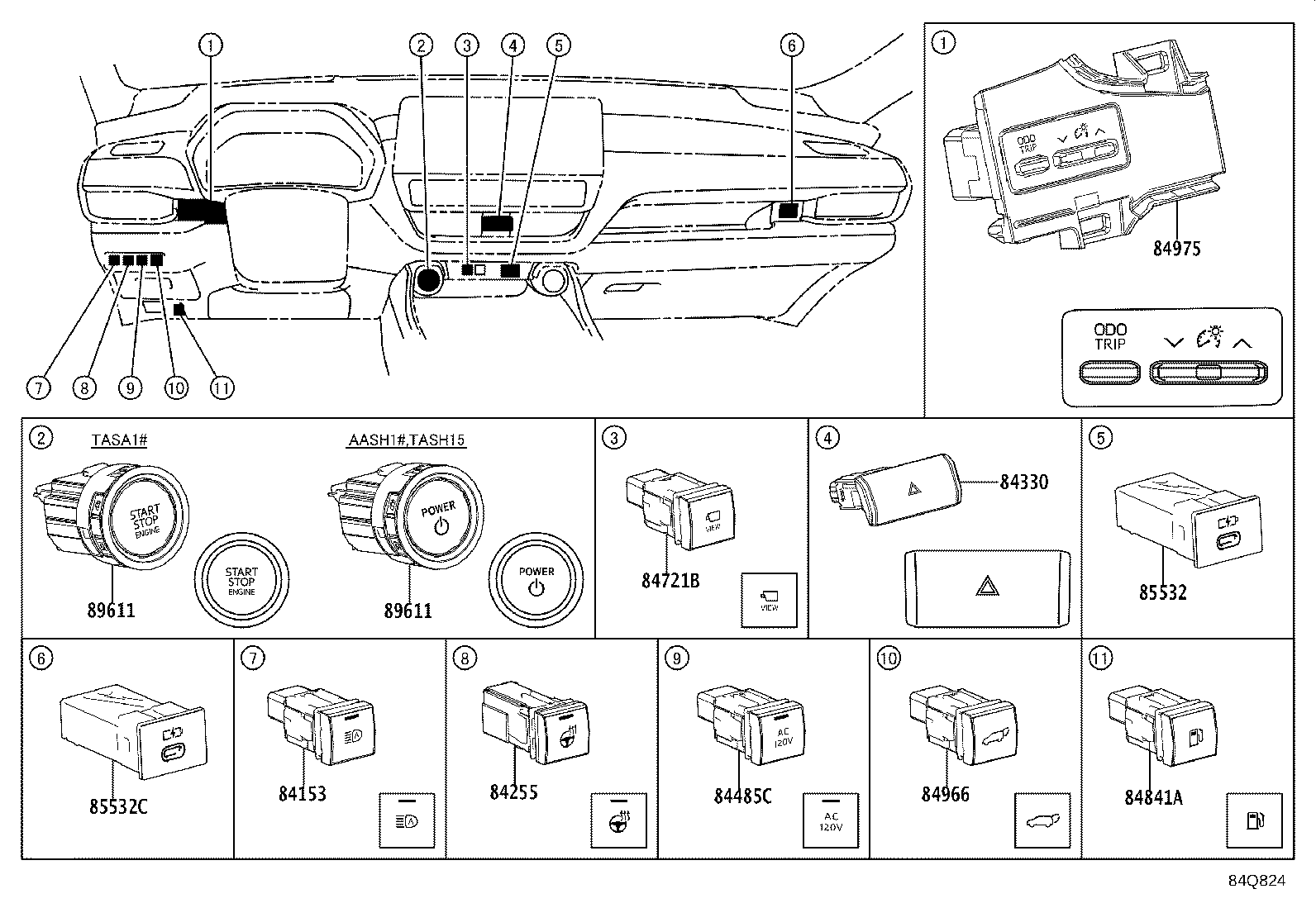

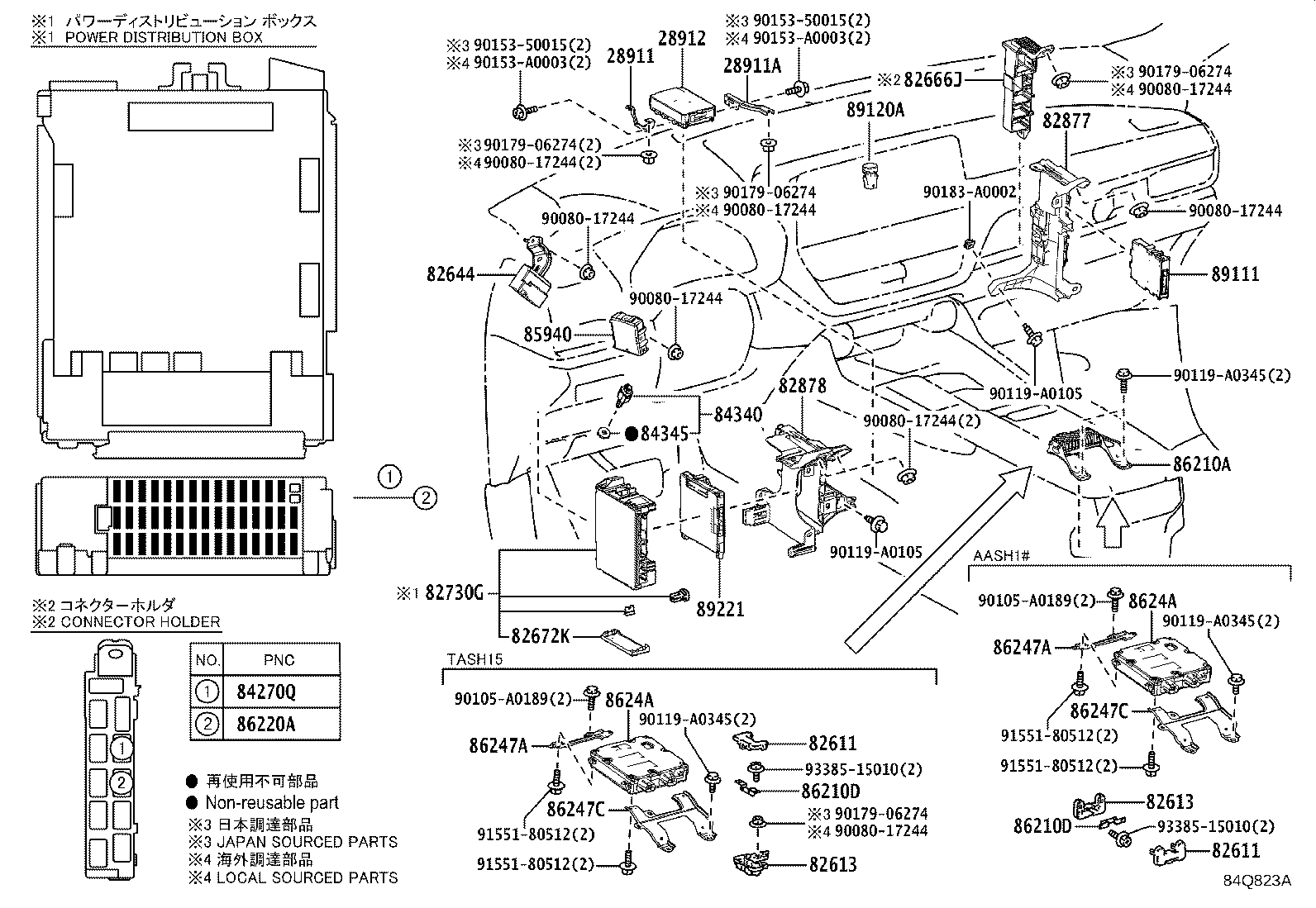

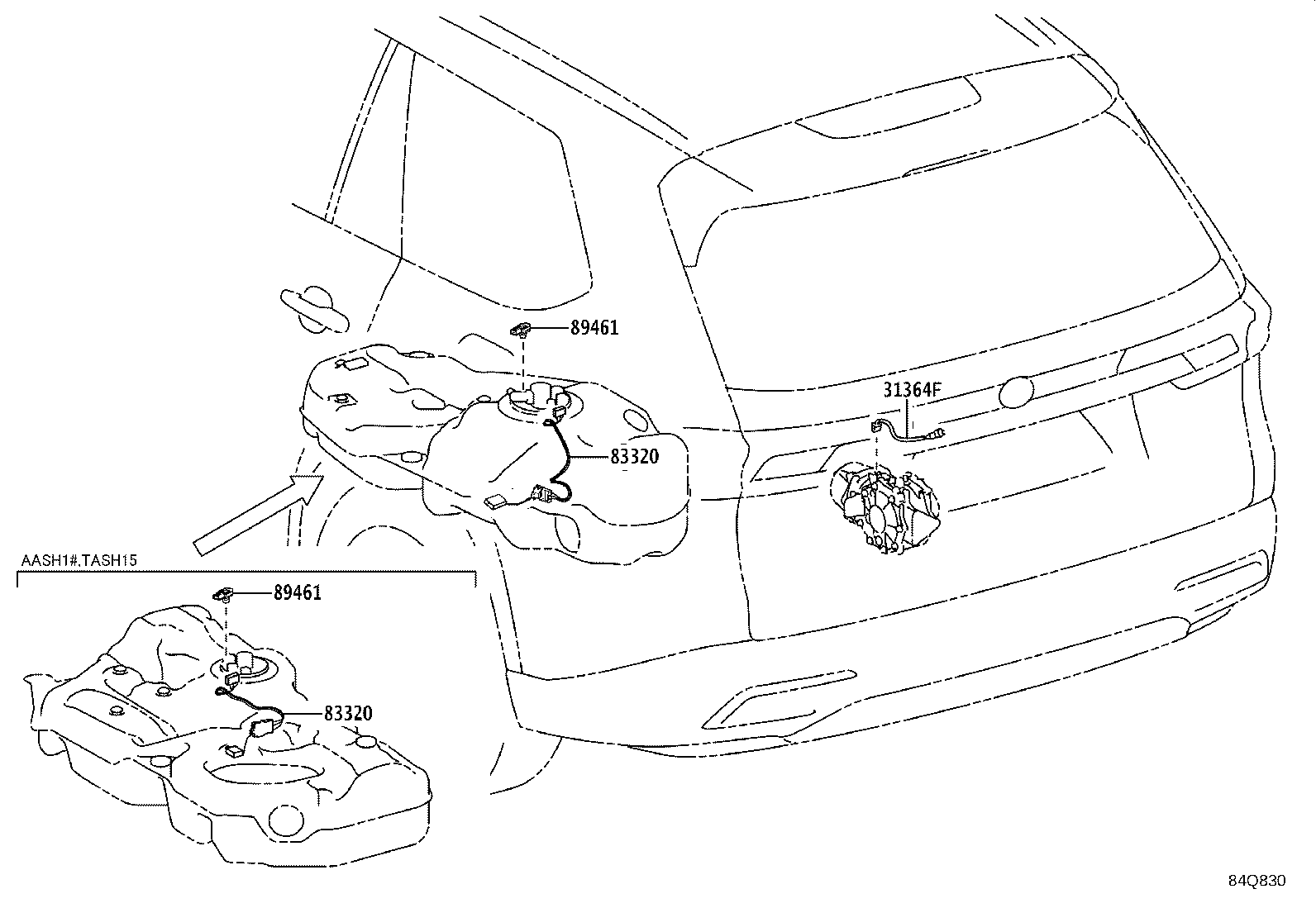

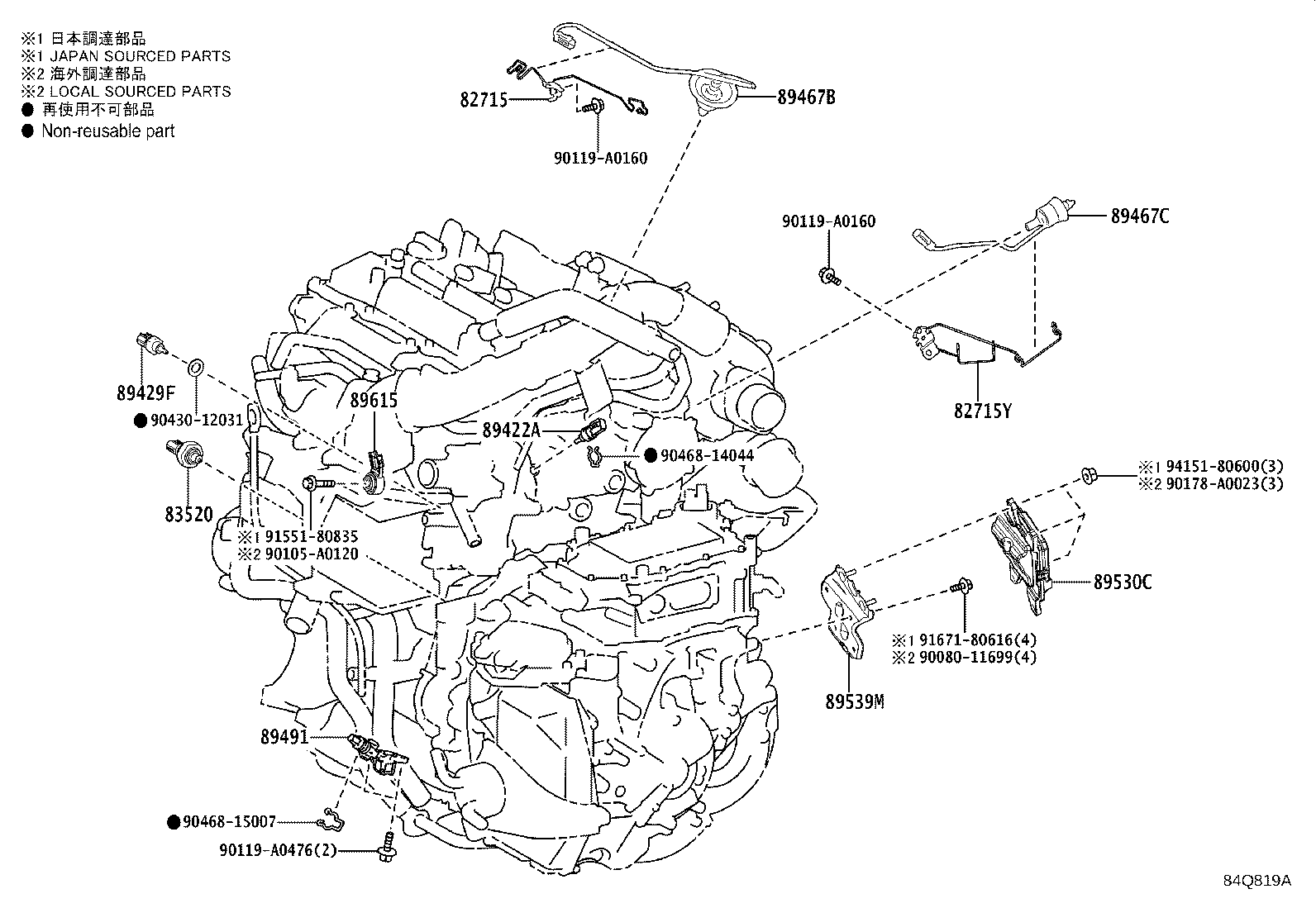

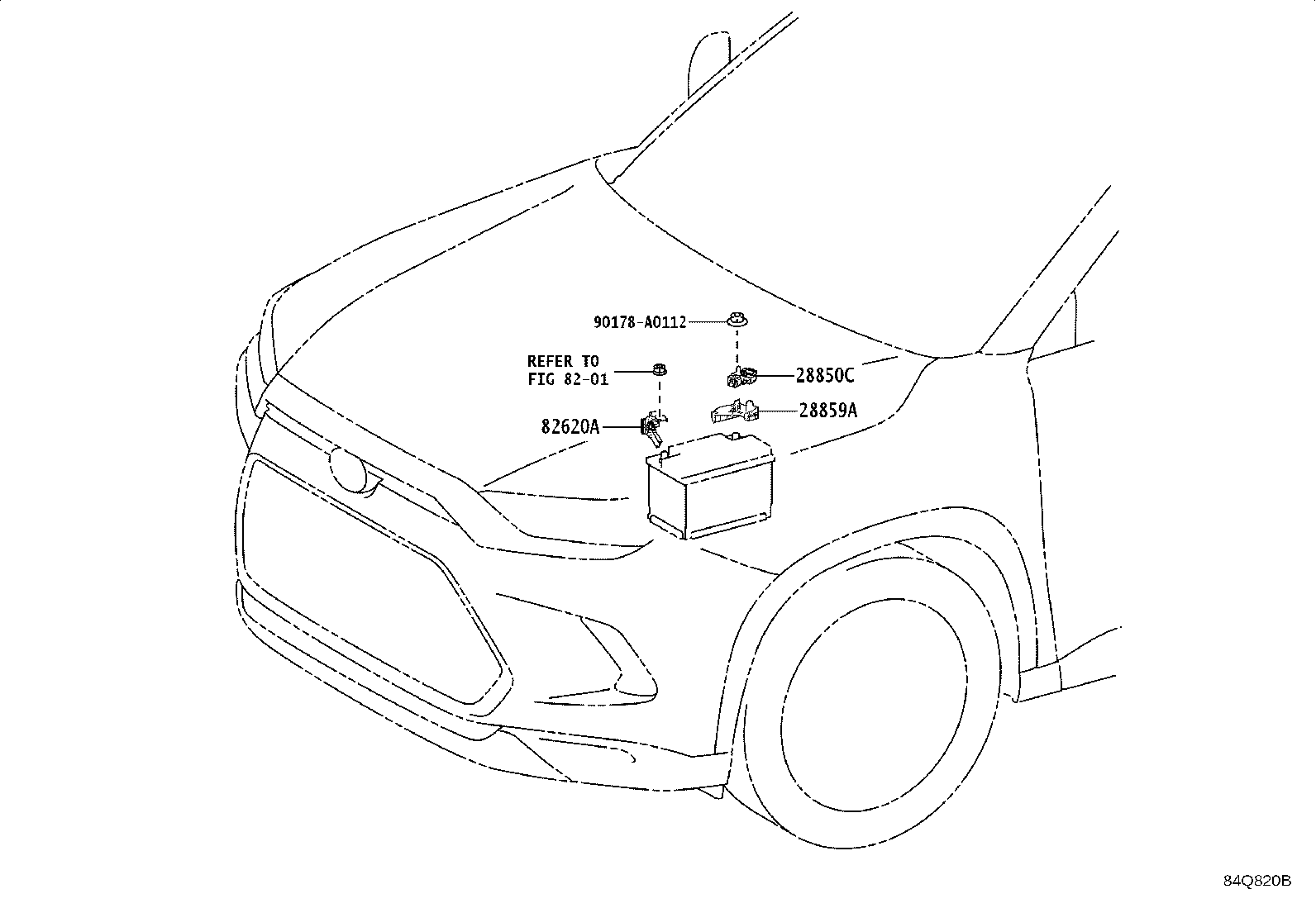

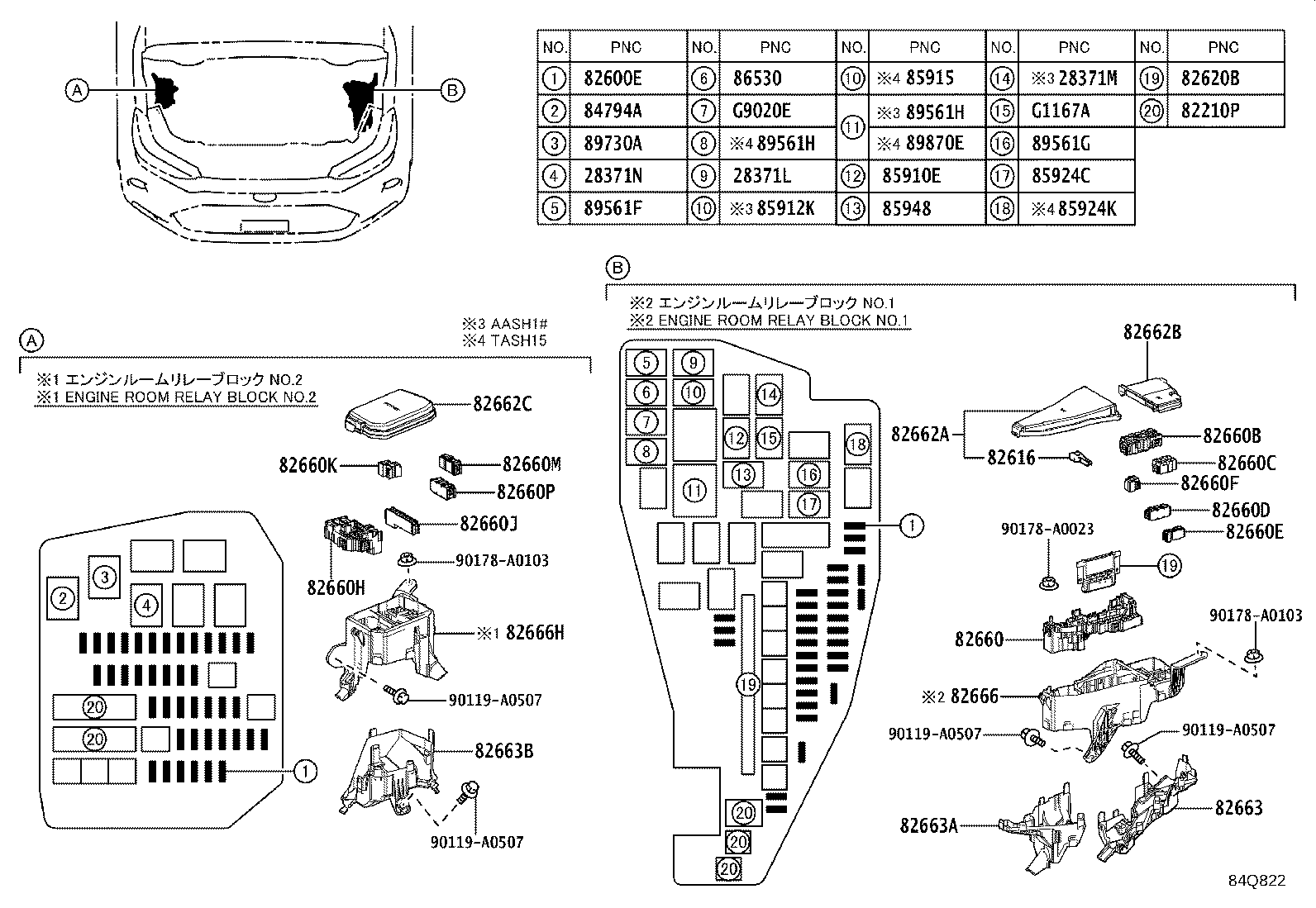

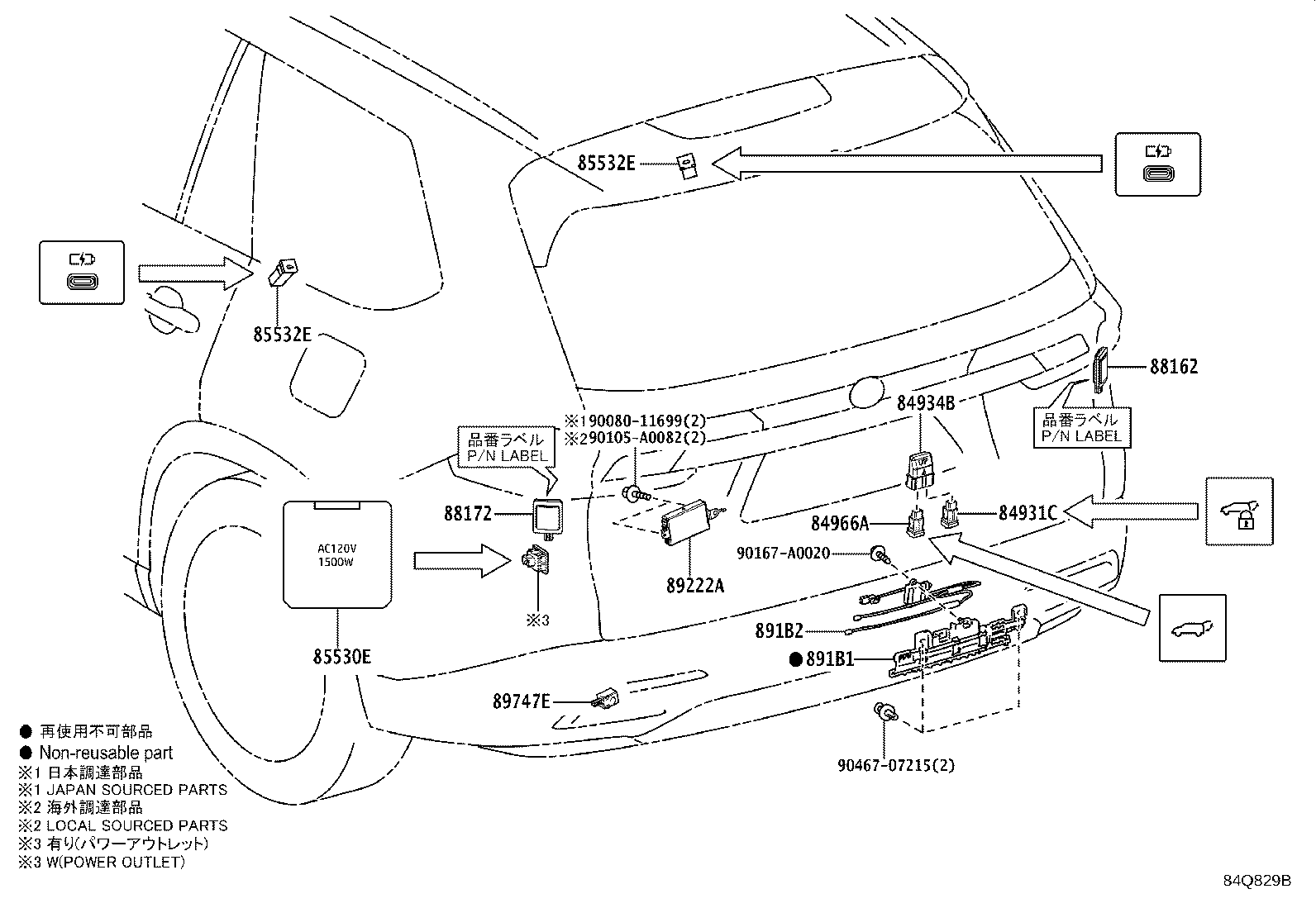

Figure 84Q817A 84Q817A 2023-06 → — Figure 84Q818B 84Q818B 2023-06 → — Figure 84Q819A 84Q819A 2023-06 → — Figure 84Q820B 84Q820B 2023-06 → — Figure 84Q821 84Q821 2023-06 → — Figure 84Q822 84Q822 2023-06 → — Figure 84Q823A 84Q823A 2023-06 → — Figure 84Q824 84Q824 2023-06 → — Figure 84Q825 84Q825 2023-06 → — Figure 84Q826B 84Q826B 2023-06 → — Figure 84Q827 84Q827 2023-06 → — Figure 84Q828A 84Q828A 2023-06 → — Figure 84Q829B 84Q829B 2023-06 → — Figure 84Q830 84Q830 2023-06 → — Figure 84Q831 84Q831 2023-06 → —

Part groups

PNCDescription
28300 Relay Assy, Starter
28371L Relay, Igp
28371M Relay, Igp, NO.2
28371N Relay, Igp, NO.3
28800R Relay, Battery Fan
28850C Sensor Assy, Battery State
28859A Holder, Battery Current Sensor
28911 Bracket, Integration Control Supply, NO.1
28911A Bracket, Integration Control Supply, NO.2
28912 Supply, Integration Control
31364F Wire, Clutch Control Solenoid
82210P Engine Room Fusible Link
82600E Engine Room Fuse
82600L Luggage Room Fuse
82610A Block Assy, Fuse
82611 Cover, Fuse Block
82613 Cover, Fuse Block
82616 Puller, Fuse
82620A Block Assy, Fusible Link
82620B Block Assy, Fusible Link
82620E Block Assy, Fusible Link
82644 Computer, Semiconductor Power Integration
82660 Block Assy, Relay, Engine Room
82660B Block Assy, Relay
82660C Block Assy, Relay
82660D Block Assy, Relay
82660E Block Assy, Relay
82660F Block Assy, Relay
82660H Block Assy, Relay
82660J Block Assy, Relay
82660K Block Assy, Relay
82660M Block Assy, Relay
82660P Block Assy, Relay
82660Q Block Assy, Relay
82662A Cover, Relay Block, Upper, NO.1
82662B Cover, Relay Block, Upper, NO.2
82662C Cover, Relay Block, Upper, NO.3
82662D Cover, Relay Block, Upper, NO.4
82663 Cover, Relay Block, Lower
82663A Cover, Relay Block, Lower, NO.2
82663B Cover, Relay Block, Lower, NO.3
82663D Cover, Relay Block, Lower, NO.5
82666 Holder, Connector
82666H Holder, Connector, NO.2
82666J Holder, Connector, NO.3
82672K Cover, Power Distribution Box
82715 Bracket,Wiring Harness Clamp
82715Y Bracket, Wiring Harness Clamp, NO.3
82730G Box Assy, Power Distribution
82740 Block Assy, Engine Room Relay
82877 Box, Computer Integration, RH
82878 Box, Computer Integration, LH
83320 Gage Assy, Fuel Sender
83520 Gage Assy,Oil Pressure Sender
84040 Master Switch Assy,Multiplex Network
84153 Switch, Auto High Beam
84250A Switch Assy, Steering Pad
84255 Switch, Steering Heater
84270Q Relay, Lamp Cut
84306 Cable Sub-assy, Spiral
84319 Housing, Steering Wheel Switch
84329 Switch, Turn Signal
84330 Switch Assy, Hazard Warning Signal
84340 Switch Assy, Stop Lamp
84345 Adjuster, Stop Lamp Switch Mounting
84390B Switch Assy, Electric Parking Brake
84485C Switch, Power Outlet
84523 Wire, Switch NO.1
84540 Switch Assy, Neutral Start
84610G Switch Assy, Transmission Shift, NO.1
84610H Switch Assy, Transmission Shift, NO.2
84650 Switch Assy, Windshield Wiper
84721B Switch, Panoramic View Monitor
84721C Switch, Pattern Select
84794A Relay, FR Wiper Deicer
84810 Switch Assy, Power Window Regulator
84810D Switch Assy, Power Window Regulator, Rear
84841A Switch, Fuel Lid Opener
84921C Knob, Power Seat Switch, RH
84921D Knob, Power Seat Switch, LH
84921J Knob, Power Seat Switch, RH
84921K Knob, Power Seat Switch, LH
84922B Switch, Front Power Seat, RH
84922C Switch, Front Power Seat, LH
84927 Switch, Seat Memory
84930 Switch Assy, Door Control
84931C Switch, Back Door Control
84934B Cover, Door Control Switch
84966 Switch, Power Back Door Control
84966A Switch, Power Back Door Control, NO.1
84975 Switch, Trip
85530 Socket Assy, Power Outlet, NO.1
85530D Socket Assy, Power Outlet, NO.2
85530E Socket Assy, Power Outlet, NO.3
85532 Socket, Usb Charger
85532C Socket, Usb Charger, NO.2
85532D Socket, Usb Charger, NO.3
85532E Socket, Usb Charger, NO.4
85535B Cover, Power Outlet Socket, NO.1
85535E Cover, Power Outlet Socket, NO.2
85910E Relay, Injector
85912K Relay, Vvt
85915 Relay, Main
85924C Relay, Igct
85924K Relay, Igct, NO.2
85940 Relay Assy, Windshield Wiper
85948 Relay, Windshield Wiper
86210A Inverter Assy, Voltage
86210D Fuse, High Voltage
86220A Relay, Inverter
86247A Bracket, Voltage Inverter
86247C Bracket, Voltage Inverter, NO.2
8624A Inverter, Voltage
86530 Relay Assy, Horn
88162 Sensor, Blind Spot Monitor, RH
88172 Sensor, Blind Spot Monitor, LH
89111 Computer, Network Gateway
89120A Sensor, Automatic Light Control
891B0 Sensor Assy, Kick Door Control
891B1 Bracket, Kick Door Control
891B2 Sensor, Kick Door Control
89221 Computer, Multiplex Network Body
89222A Computer, Multiplex Network Door
89245B Sensor, Steering
89422A Sensor, Water Temperature
89422N Sensor, Water Temperature, NO.2
89429F Sensor, Temperature
89430A Computer Assy, Outer Mirror Control, LH
89430B Computer Assy, Outer Mirror Control, RH
89451A Sensor, Shift Lever Position
89461 Sensor, Vapor Pressure
89467B Sensor, Air Fuel Ratio
89467C Sensor, Air Fuel Ratio, NO.2
89491 Sensor, Engine Oil Level
89530C Computer Assy, Transmission Control
89539M Bracket, Transmission Control Computer, NO.1
89561F Relay, Electronic Fuel Injection Main, NO.1
89561G Relay, Electronic Fuel Injection Main, NO.2
89561H Relay, Electronic Fuel Injection Main, NO.3
89611 Switch, Push Start
89615 Sensor, Knock Control
89710D Computer Assy, Position Control, LH
89730A Relay(FOR SECURITY WARNING)
89747E Buzzer, Power Back Door Warning
89870E Relay, Electronic Driver Unit
G1167A Relay (FOR OIL PUMP MOTOR)
G9020E Relay, Hybrid Water Pump
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
