Toyota Grand Highlander
2023-06 → present · chassis AASH1#,TASA1#,TASH15 · catalogue 556410 · United States
Supported model
Data version 2023-05
Speaker
9 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|

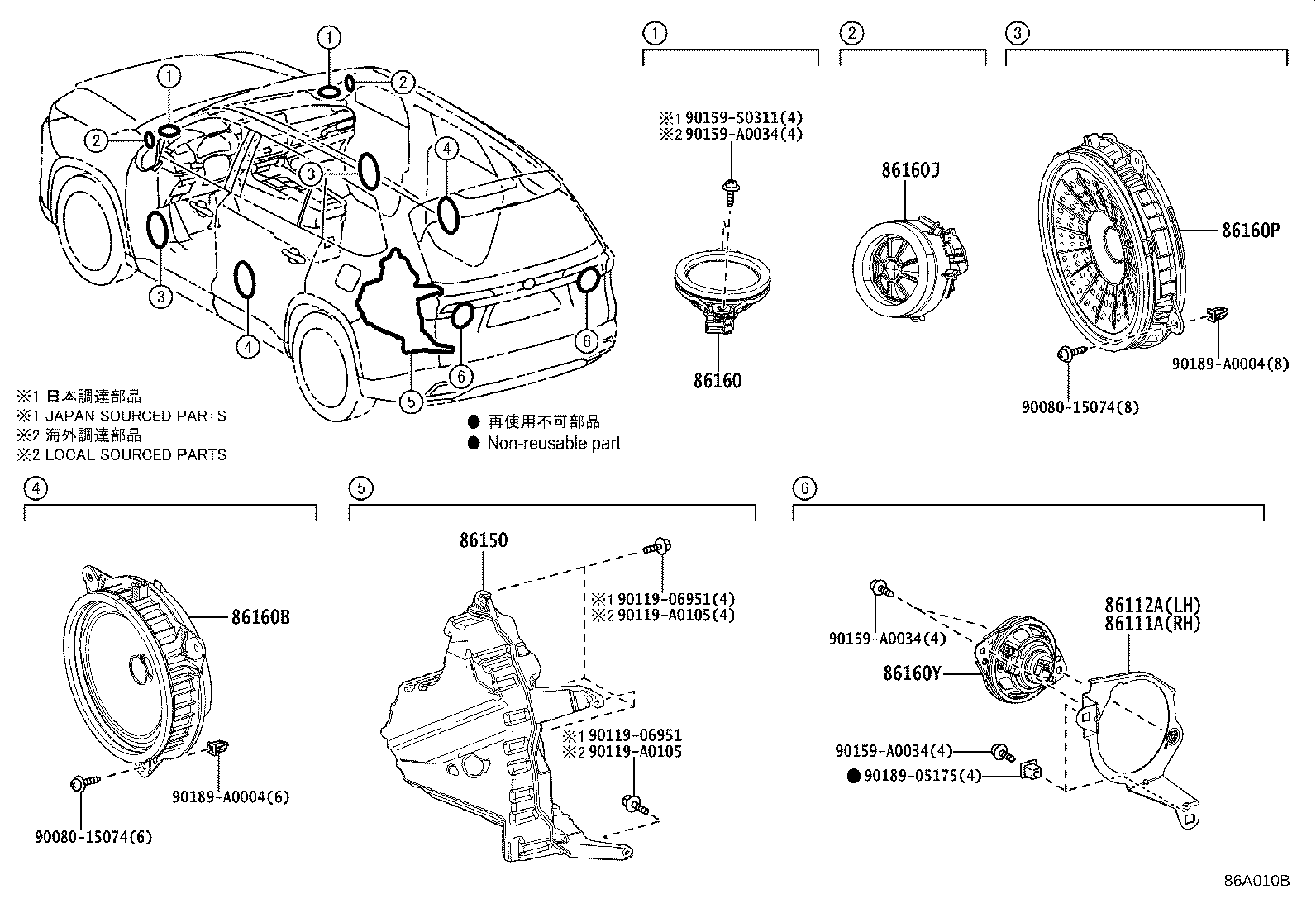

| 86111A | Bracket, Stereo Speaker, RH |
| 86112A | Bracket, Stereo Speaker, LH |
| 86150 | Speaker Assy, W/Box, NO.1 |
| 86160 | Speaker Assy, Front NO.1 |
| 86160B | Speaker Assy, Rear |
| 86160J | Speaker Assy, Front NO.3 |
| 86160P | Speaker Assy, Front NO.2 |
| 86160Y | Speaker Assy, Rear NO.2 |
| 86240A | Equalizer Assy,Stereo Component |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
