Toyota Lexus TX Series
2023-09 → present · chassis GYU15,TAUA1#,TAUH15 · catalogue 557410 · United States
Supported model
Data version 2024-08

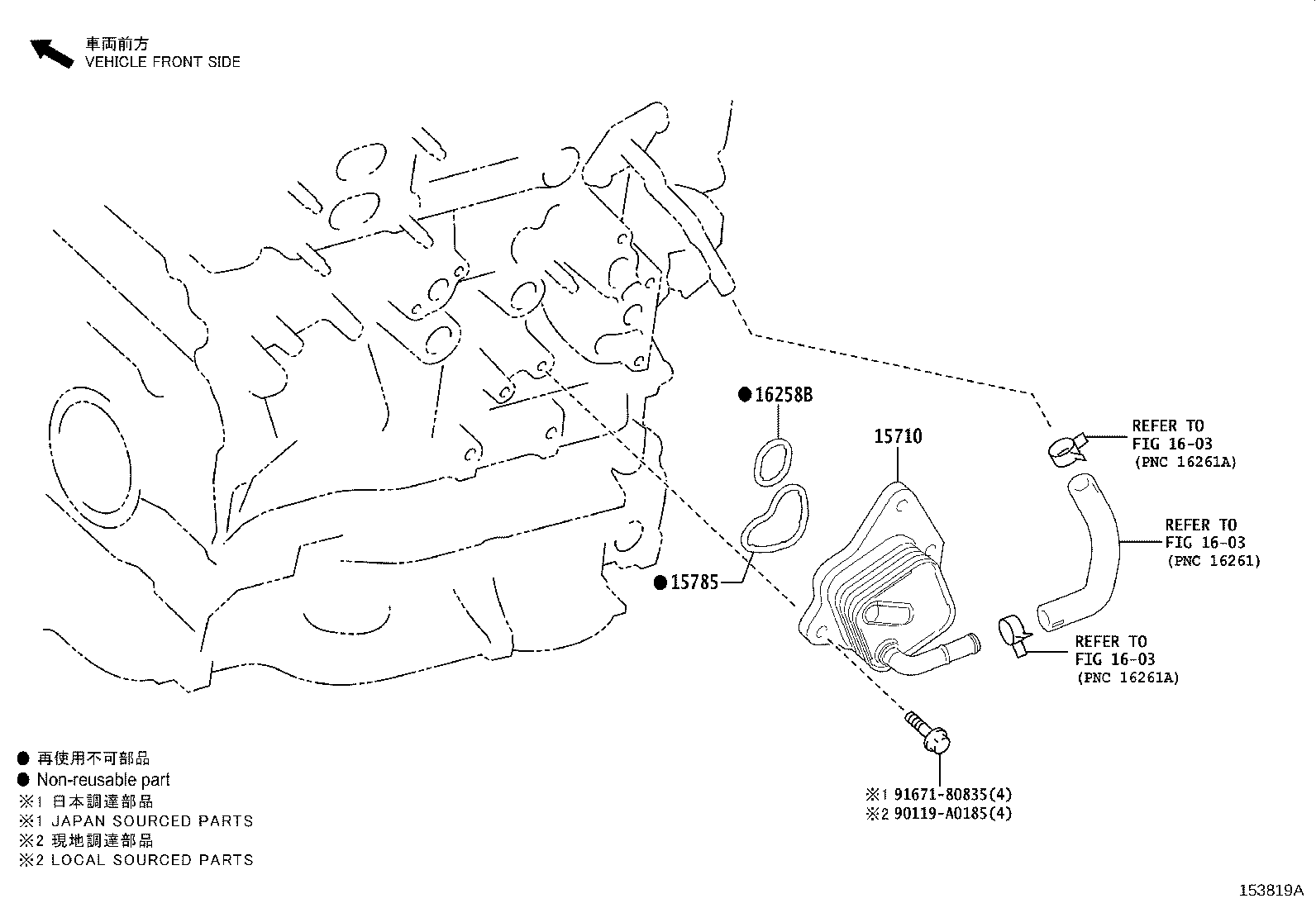

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 15710 — Cooler Assy, Oil | ||||
| 15710-25040 note |
Cooler Assy, Oil
2023-09 → —
|
T24 TAUA1# G,M,N | — | |
| 15710-25040 note |
Cooler Assy, Oil
2024-12 → —
|
T24 TAUA15 S | — | |
| 15710-31060 |
Cooler Assy, Oil
2023-12 → —
|
2GR GYU15 | — | |
| 15710-F0020 note |
Cooler Assy, Oil
2023-09 → —
|
T24 TAUH15;T24 TAUA1# G,M,N | — | |
| 15710-F0020 note |
Cooler Assy, Oil
2024-12 → —
|
T24 TAUA15 S | — | |
| 15785 — Gasket, Oil Cooler | ||||
| 15785-25020 |
Gasket, Oil Cooler
2023-09 → —
|
T24 TAUH15;T24 TAUA1# G,M,N | — | |
| 15785-25020 |
Gasket, Oil Cooler
2024-12 → —
|
T24 TAUA15 S | — | |
| 15785-31040 |
Gasket, Oil Cooler
2023-12 → —
|
2GR GYU15 | — | |
| 16258B — Gasket, Oil Cooler Pipe | ||||
| 16258-25020 |
Gasket, Oil Cooler Pipe
2023-09 → —
|
T24 TAUH15;T24 TAUA1# G,M,N | — | |
| 16258-25020 |
Gasket, Oil Cooler Pipe
2024-12 → —
|
T24 TAUA15 S | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
