Toyota Lexus TX Series
2023-09 → present · chassis GYU15,TAUA1#,TAUH15 · catalogue 557410 · United States
Supported model
Data version 2024-08

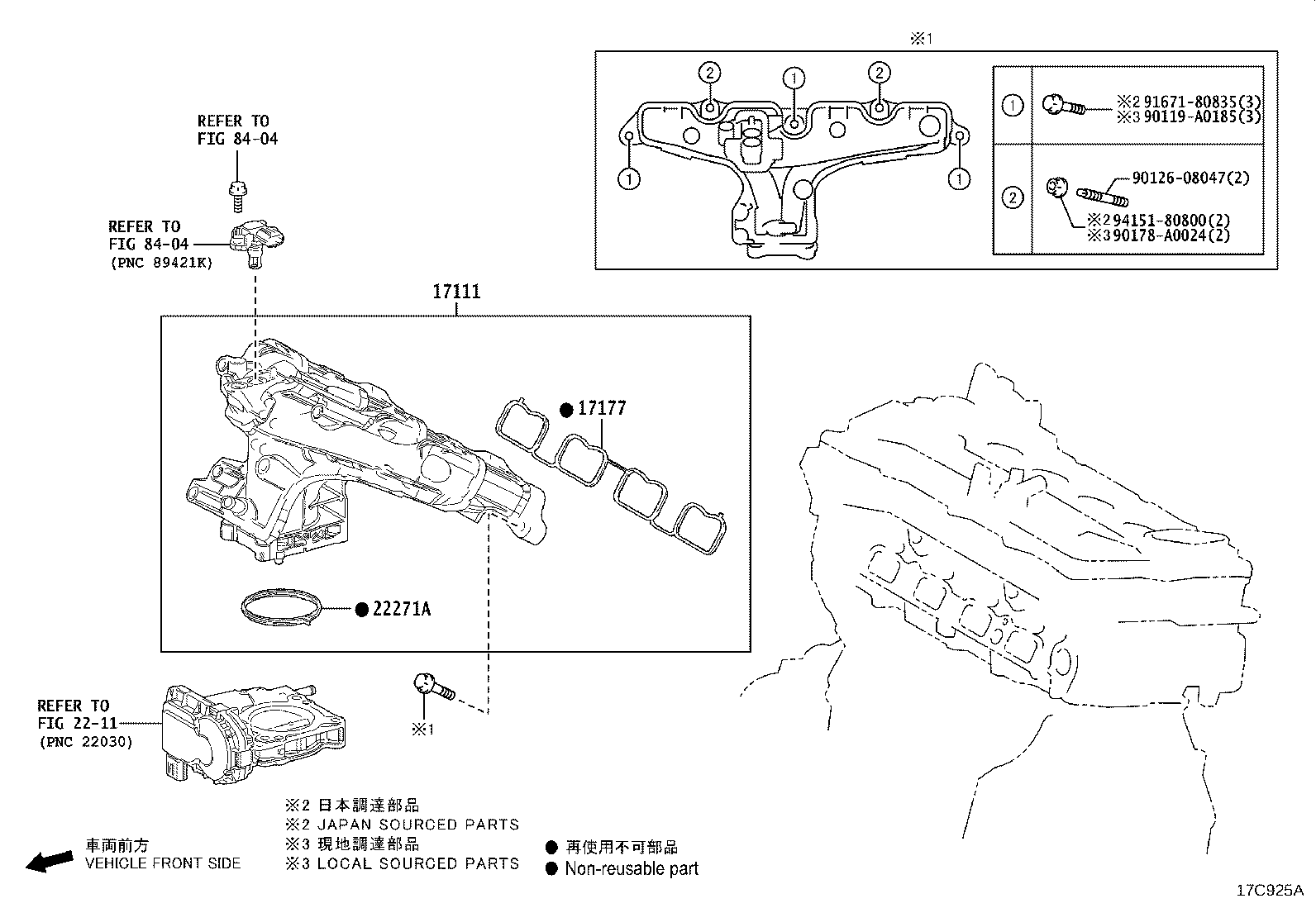

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 17111 — Manifold, Intake | ||||
| 17120-25080 note |
Manifold, Intake
2023-09 → —
|
T24 TAUA1# G,M,N | — | |
| 17120-25080 note |
Manifold, Intake
2024-12 → —
|
T24 TAUA15 S | — | |
| 17120-31070 |
Manifold, Intake
2023-12 → —
|
2GR GYU15 | — | |
| 17120-F0100 note |
Manifold, Intake
2023-09 → —
|
T24 TAUH15;T24 TAUA1# G,M,N | — | |
| 17120-F0100 note |
Manifold, Intake
2024-12 → —
|
T24 TAUA15 S | — | |
| 17177 — Gasket, Intake Manifold TO Head, NO.1 | ||||
| 17177-25040 |
Gasket, Intake Manifold TO Head, NO.1
2023-09 → —
|
T24 TAUH15;T24 TAUA1# G,M,N | — | |
| 17177-25040 |
Gasket, Intake Manifold TO Head, NO.1
2024-12 → —
|
T24 TAUA15 S | — | |
| 17177-31070 |
Gasket, Intake Manifold TO Head, NO.1
2023-12 → —
|
2GR GYU15 | — | |
| 22271A — Gasket, Throttle Body | ||||
| 22271-25030 |
Gasket, Throttle Body
2023-09 → —
|
T24 TAUH15;T24 TAUA1# G,M,N | — | |
| 22271-25030 |
Gasket, Throttle Body
2024-12 → —
|
T24 TAUA15 S | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
