Toyota Lexus TX Series
2023-09 → present · chassis GYU15,TAUA1#,TAUH15 · catalogue 557410 · United States
Supported model
Data version 2024-08

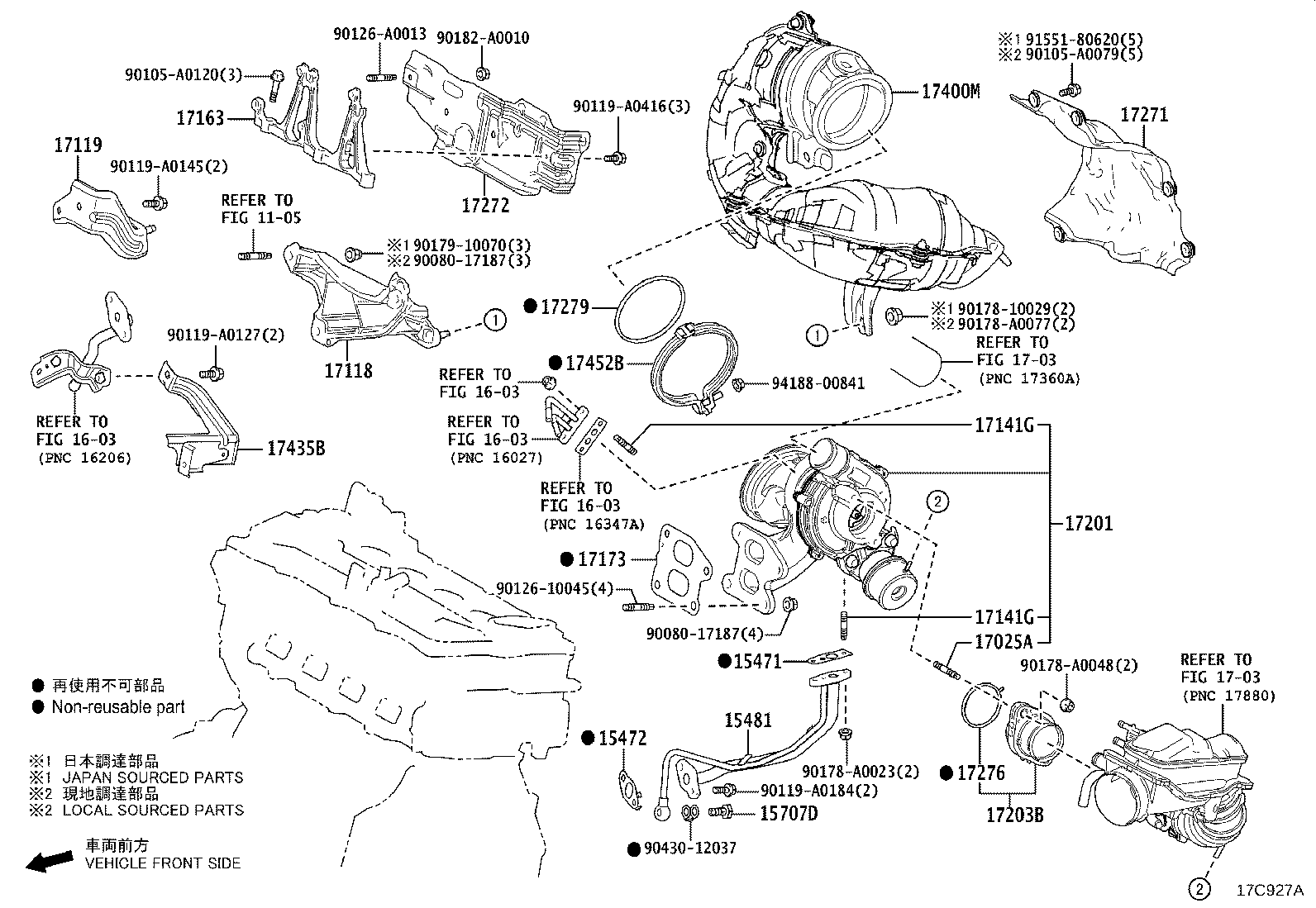

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 15471 — Gasket, Turbo Oil Inlet | ||||
| 15471-36010 |
Gasket, Turbo Oil Inlet
2024-12 → —
|
T24 TAUA15 S | — | |
| 15471-36010 |
Gasket, Turbo Oil Inlet
2023-09 → —
|
T24 TAUH15;T24 TAUA1# G,M,N | — | |
| 15472 — Gasket, Turbo Oil Outlet, NO.1 | ||||
| 15472-25010 note |
Gasket, Turbo Oil Outlet, NO.1
2024-12 → —
|
T24 TAUA15 S | — | |
| 15472-25010 note |
Gasket, Turbo Oil Outlet, NO.1
2023-09 → —
|
T24 TAUA1# G,M,N | — | |
| 15472-F0010 note |
Gasket, Turbo Oil Outlet, NO.1
2023-09 → —
|
T24 TAUH15;T24 TAUA1# G,M,N | — | |
| 15472-F0010 note |
Gasket, Turbo Oil Outlet, NO.1
2024-12 → —
|
T24 TAUA15 S | — | |
| 15481 — Pipe, Turbo Oil, NO.1 | ||||
| 15481-25010 |
Pipe, Turbo Oil, NO.1
2023-09 → —
|
T24 TAUH15;T24 TAUA1# G,M,N | — | |
| 15481-25010 |
Pipe, Turbo Oil, NO.1
2024-12 → —
|
T24 TAUA15 S | — | |
| 15707D — Bolt, Union(FOR OIL PIPE) | ||||
| 90401-12097 |
Bolt, Union(FOR OIL PIPE)
2023-09 → —
|
T24 TAUH15;T24 TAUA1# G,M,N | — | |
| 90401-12097 |
Bolt, Union(FOR OIL PIPE)
2024-12 → —
|
T24 TAUA15 S | — | |
| 17025A — Bolt, Stud(FOR TURBINE HOUSING) | ||||
| 90126-08048 |
Bolt, Stud(FOR TURBINE HOUSING)
2023-09 → —
|
T24 TAUH15;T24 TAUA1# G,M,N | — | |
| 90126-08048 |
Bolt, Stud(FOR TURBINE HOUSING)
2024-12 → —
|
T24 TAUA15 S | — | |
| 17118 — Stay, Manifold | ||||
| 17118-31220 |
Stay, Manifold
2023-12 → —
|
2GR GYU15 | — | |
| 17118-F0090 |
Stay, Manifold
2023-09 → —
|
T24 TAUH15;T24 TAUA1# G,M,N | — | |
| 17118-F0090 |
Stay, Manifold
2024-12 → —
|
T24 TAUA15 S | — | |
| 17119 — Stay, Manifold, NO.2 | ||||
| 17119-0P180 note |
Stay, Manifold, NO.2
2023-12 → —
|
2GR GYU15 | — | |
| 17119-25030 note |
Stay, Manifold, NO.2
2023-09 → —
|
T24 TAUA1# G,M,N | — | |
| 17119-25030 note |
Stay, Manifold, NO.2
2024-12 → —
|
T24 TAUA15 S | — | |
| 17119-31150 note |
Stay, Manifold, NO.2
2023-12 → —
|
2GR GYU15 | — | |
| 17119-F0090 note |
Stay, Manifold, NO.2
2023-09 → —
|
T24 TAUH15;T24 TAUA1# G,M,N | — | |
| 17119-F0090 note |
Stay, Manifold, NO.2
2024-12 → —
|
T24 TAUA15 S | — | |
| 17141G — Bolt, Stud(FOR TURBOCHARGER) | ||||
| 90116-06048 |
Bolt, Stud(FOR TURBOCHARGER)
2023-09 → —
|
T24 TAUH15;T24 TAUA1# G,M,N | — | |
| 90116-06048 |
Bolt, Stud(FOR TURBOCHARGER)
2024-12 → —
|
T24 TAUA15 S | — | |
| 17163 — Bracket, Heat Insulator, NO.1 | ||||
| 17163-25050 note |
Bracket, Heat Insulator, NO.1
2023-09 → —
|
T24 TAUA1# G,M,N | — | |
| 17163-25050 note |
Bracket, Heat Insulator, NO.1
2024-12 → —
|
T24 TAUA15 S | — | |
| 17163-F0010 note |
Bracket, Heat Insulator, NO.1
2023-09 → —
|
T24 TAUH15;T24 TAUA1# G,M,N | — | |
| 17163-F0010 note |
Bracket, Heat Insulator, NO.1
2024-12 → —
|
T24 TAUA15 S | — | |
| 17173 — Gasket, Exhaust Manifold TO Head | ||||
| 17173-0P040 note |
Gasket, Exhaust Manifold TO Head
2023-12 → —
|
2GR GYU15 | — | |
| 17173-25030 |
Gasket, Exhaust Manifold TO Head
2024-12 → —
|
T24 TAUA15 S | — | |
| 17173-25030 |
Gasket, Exhaust Manifold TO Head
2023-09 → —
|
T24 TAUH15;T24 TAUA1# G,M,N | — | |
| 17173-31070 note |
Gasket, Exhaust Manifold TO Head
2023-12 → —
|
2GR GYU15 | — | |
| 17201 — Turbocharger Sub-assy | ||||
| 17201-25010 |
Turbocharger Sub-assy
2023-09 → —
|
T24 TAUH15;T24 TAUA1# G,M,N | — | |
| 17201-25010 |
Turbocharger Sub-assy
2024-12 → —
|
T24 TAUA15 S | — | |
| 17203B — Elbow Sub-assy, Compressor Inlet | ||||
| 17203-25010 |
Elbow Sub-assy, Compressor Inlet
2023-09 → —
|
T24 TAUH15 | — | |
| 17203-25021 note |
Elbow Sub-assy, Compressor Inlet
2023-09 → —
|
T24 TAUA1# G,M,N | — | |
| 17203-25021 note |
Elbow Sub-assy, Compressor Inlet
2024-12 → —
|
T24 TAUA15 S | — | |
| 17203-F0010 note |
Elbow Sub-assy, Compressor Inlet
2023-09 → —
|
T24 TAUA1# G,M,N | — | |
| 17203-F0010 note |
Elbow Sub-assy, Compressor Inlet
2024-12 → —
|
T24 TAUA15 S | — | |
| 17271 — Insulator, Turbo, NO.1 | ||||
| 17271-F0020 |
Insulator, Turbo, NO.1
2023-09 → —
|
T24 TAUH15;T24 TAUA1# G,M,N | — | |
| 17271-F0020 |
Insulator, Turbo, NO.1
2024-12 → —
|
T24 TAUA15 S | — | |
| 17272 — Insulator, Turbo, NO.2 | ||||
| 17272-25020 |
Insulator, Turbo, NO.2
2023-09 → —
|
T24 TAUH15;T24 TAUA1# G,M,N | — | |
| 17272-25020 |
Insulator, Turbo, NO.2
2024-12 → —
|
T24 TAUA15 S | — | |
| 17276 — Gasket, Compressor Inlet | ||||
| 17276-25020 |
Gasket, Compressor Inlet
2023-09 → —
|
T24 TAUH15;T24 TAUA1# G,M,N | — | |
| 17276-25020 |
Gasket, Compressor Inlet
2024-12 → —
|
T24 TAUA15 S | — | |
| 17279 — Gasket, Turbine Outlet Elbow | ||||
| 17279-0W010 |
Gasket, Turbine Outlet Elbow
2023-09 → —
|
T24 TAUH15;T24 TAUA1# G,M,N | — | |
| 17279-0W010 |
Gasket, Turbine Outlet Elbow
2024-12 → —
|
T24 TAUA15 S | — | |
| 17400M — Converter Assy, W/Catalyst, RH | ||||
| 17400-F0020 |
Converter Assy, W/Catalyst, RH
2023-09 → 2024-09
ended
|
T24 TAUH15 | — | |
| 17400-F0050 |
Converter Assy, W/Catalyst, RH
2023-09 → —
|
T24 TAUA1# G,M,N | — | |
| 17400-F0050 |
Converter Assy, W/Catalyst, RH
2024-09 → —
|
T24 TAUH15 | — | |
| 17400-F0050 |
Converter Assy, W/Catalyst, RH
2024-12 → —
|
T24 TAUA15 S | — | |
| 17435B — Insulator, Exhaust Pipe Heat | ||||
| 17435-25010 note |
Insulator, Exhaust Pipe Heat
2023-09 → —
|
T24 TAUA1# G,M,N | — | |
| 17435-25010 note |
Insulator, Exhaust Pipe Heat
2024-12 → —
|
T24 TAUA15 S | — | |
| 17435-F0010 note |
Insulator, Exhaust Pipe Heat
2023-09 → —
|
T24 TAUH15;T24 TAUA1# G,M,N | — | |
| 17435-F0010 note |
Insulator, Exhaust Pipe Heat
2024-12 → —
|
T24 TAUA15 S | — | |
| 17452B — Clamp, Exhaust Pipe | ||||
| 17452-25020 |
Clamp, Exhaust Pipe
2023-09 → —
|
T24 TAUH15;T24 TAUA1# G,M,N | — | |
| 17452-25020 |
Clamp, Exhaust Pipe
2024-12 → —
|
T24 TAUA15 S | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
