Toyota Lexus TX Series
2023-09 → present · chassis GYU15,TAUA1#,TAUH15 · catalogue 557410 · United States
Supported model
Data version 2024-08

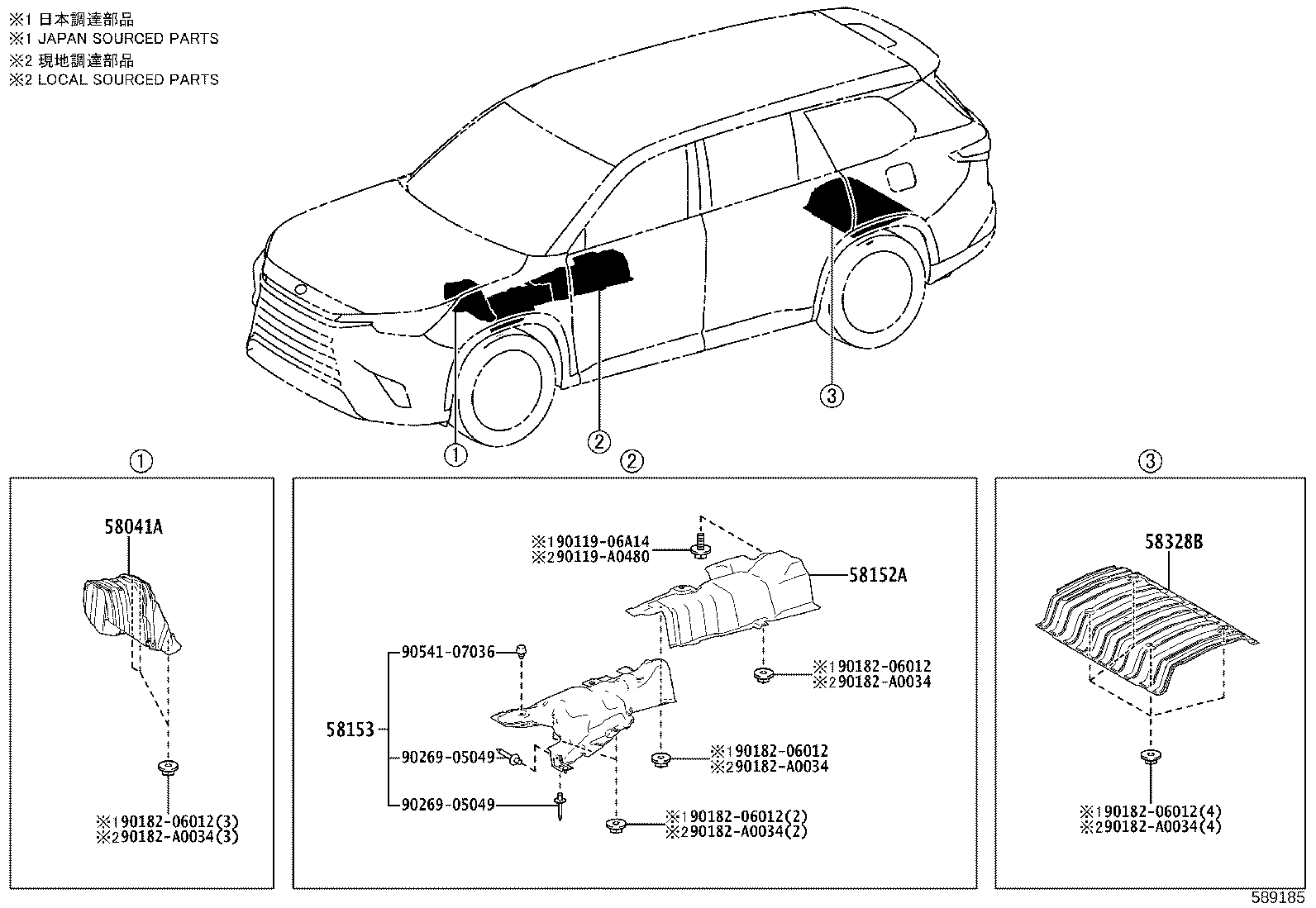

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 58041A — Insulator Sub-assy, Front Floor Heat, NO.1 | ||||
| 58041-40030 |
Insulator Sub-assy, Front Floor Heat, NO.1
2023-12 → —
|
GYU15 | — | |
| 58152A — Insulator, Front Floor Heat, NO.1 Lower | ||||
| 58152-48060 |
Insulator, Front Floor Heat, NO.1 Lower
2023-12 → —
|
GYU15 | — | |
| 58153 — Insulator, Front Floor Heat, NO.2 | ||||
| 58153-40010 |
Insulator, Front Floor Heat, NO.2
2023-12 → —
|
GYU15 | — | |
| 58328B — Insulator, Main Muffler Heat, Lower | ||||
| 58328-0E060 |
Insulator, Main Muffler Heat, Lower
2023-09 → —
|
TAUH15;GYU15,TAUA1# G,M,N | — | |
| 58328-0E060 |
Insulator, Main Muffler Heat, Lower
2024-12 → —
|
TAUA15 S | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
