Toyota Lexus TX Series
2023-09 → present · chassis GYU15,TAUA1#,TAUH15 · catalogue 557410 · United States
Supported model
Data version 2024-08

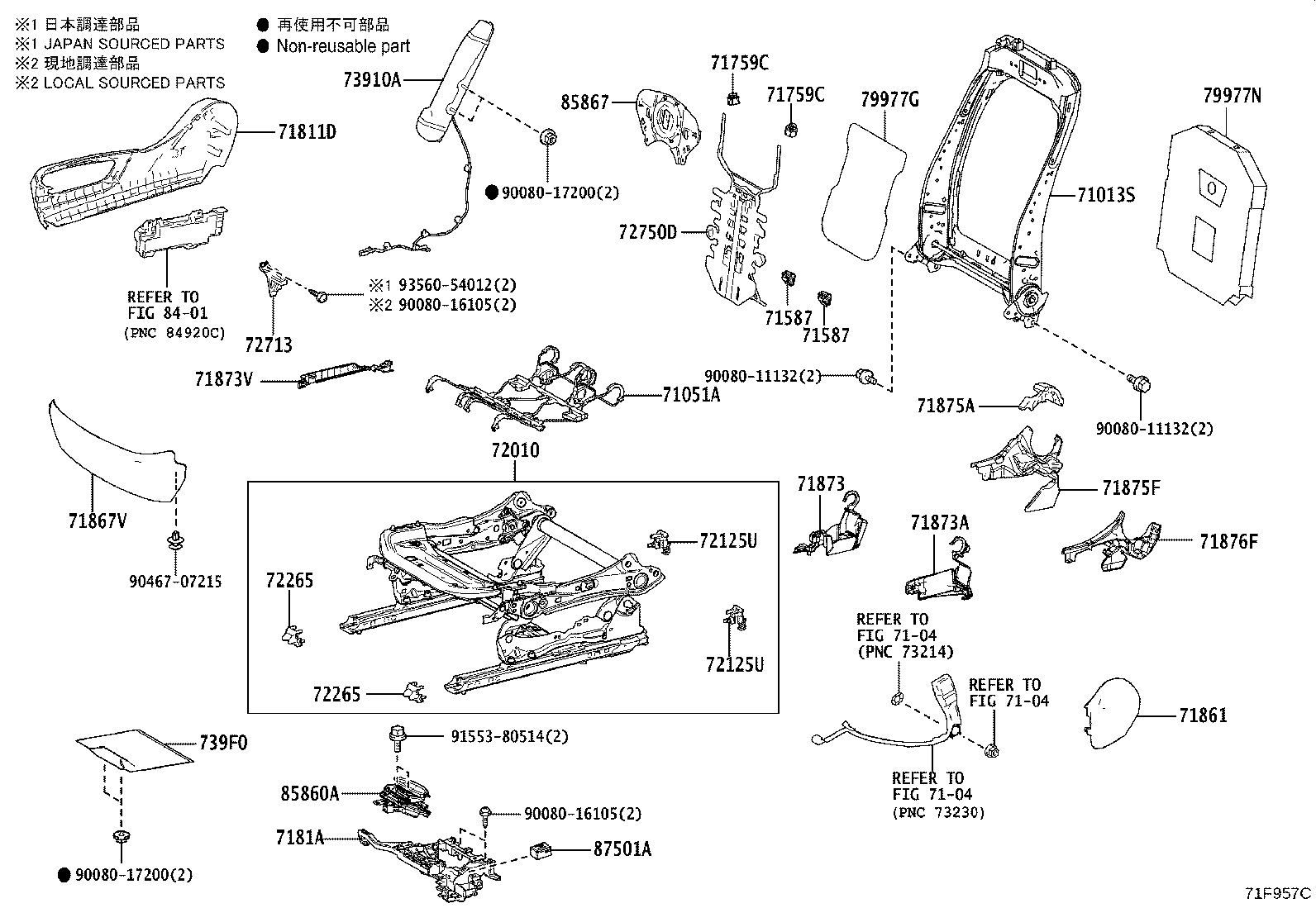

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 71013S — Frame Sub-assy, Front Seatback, RH | ||||
| 71013-0E070 |
Frame Sub-assy, Front Seatback, RH
2023-09 → —
|
TAUH15;TAUA1# M,N | — | |
| 71013-0E070 |
Frame Sub-assy, Front Seatback, RH
2024-12 → —
|
TAUA15 S | — | |
| 71013-0E220 |
Frame Sub-assy, Front Seatback, RH
2023-09 → —
|
GYU15,TAUA1# G | — | |
| 71051A — Spring Sub-assy, Front Seat Cushion, RH | ||||
| 71051-02360 |
Spring Sub-assy, Front Seat Cushion, RH
2023-09 → —
|
TAUH15;GYU15,TAUA1# G,M,N | — | |
| 71051-02360 |
Spring Sub-assy, Front Seat Cushion, RH
2024-12 → —
|
TAUA15 S | — | |
| 71587 — Protector, Front Seatback Edge | ||||
| 71587-0R010 |
Protector, Front Seatback Edge
2023-09 → —
|
TAUH15;GYU15,TAUA1# G,M,N | — | |
| 71587-0R010 |
Protector, Front Seatback Edge
2024-12 → —
|
TAUA15 S | — | |
| 71759C — Hook, Front Seatback, NO.1 | ||||
| 71759-0R020 |
Hook, Front Seatback, NO.1
2023-09 → —
|
TAUH15;GYU15,TAUA1# G,M,N | — | |
| 71759-0R020 |
Hook, Front Seatback, NO.1
2024-12 → —
|
TAUA15 S | — | |
| 71811D — Shield, Front Seat Cushion, RH | ||||
| 71811-F6010-C0 note |
Shield, Front Seat Cushion, RH
2023-09 → —
|
TAUH15;TAUA1# N | — | |
| 71811-F6010-C0 note |
Shield, Front Seat Cushion, RH
2023-09 → —
|
GYU15,TAUA1# G,M | — | |
| 71811-F6010-C0 note |
Shield, Front Seat Cushion, RH
2024-12 → —
|
TAUA15 S | — | |
| 7181A — Holder, Front Seat Cushion Wire Harness, RH | ||||
| 7181A-0E010 |
Holder, Front Seat Cushion Wire Harness, RH
2023-09 → —
|
TAUH15;GYU15,TAUA1# G,M,N | — | |
| 7181A-0E010 |
Holder, Front Seat Cushion Wire Harness, RH
2024-12 → —
|
TAUA15 S | — | |
| 71861 — Shield, Front Seat Cushion, Inner RH | ||||
| 71861-0E120-C0 note |
Shield, Front Seat Cushion, Inner RH
2023-09 → —
|
TAUH15;TAUA1# N | — | |
| 71861-0E120-C0 note |
Shield, Front Seat Cushion, Inner RH
2023-09 → —
|
GYU15,TAUA1# G,M | — | |
| 71861-0E120-C0 note |
Shield, Front Seat Cushion, Inner RH
2024-12 → —
|
TAUA15 S | — | |
| 71867V — Shield, Front Seat Cushion, Front RH | ||||
| 71867-0E170-C0 note |
Shield, Front Seat Cushion, Front RH
2023-09 → —
|
GYU15,TAUA1# G | — | |
| 71867-F6010-C0 note |
Shield, Front Seat Cushion, Front RH
2023-09 → —
|
TAUH15;TAUA1# N | — | |
| 71867-F6010-C0 note |
Shield, Front Seat Cushion, Front RH
2023-09 → —
|
TAUA1# M | — | |
| 71867-F6010-C0 note |
Shield, Front Seat Cushion, Front RH
2024-12 → —
|
TAUA15 S | — | |
| 71873 — Shield, Front Seat Cushion, Lower RH | ||||
| 71873-0E170-C0 note |
Shield, Front Seat Cushion, Lower RH
2023-09 → —
|
TAUH15;GYU15,TAUA1# G,M,N | — | |
| 71873-0E170-C0 note |
Shield, Front Seat Cushion, Lower RH
2024-12 → —
|
TAUA15 S | — | |
| 71873A — Shield, Front Seat Cushion, Lower | ||||
| 71873-F6020-C0 note |
Shield, Front Seat Cushion, Lower
2023-09 → —
|
TAUH15;GYU15,TAUA1# G,M,N | — | |
| 71873-F6020-C0 note |
Shield, Front Seat Cushion, Lower
2024-12 → —
|
TAUA15 S | — | |
| 71873V — Shield, Front Seat Cushion, Lower RH | ||||
| 71873-F6010 |
Shield, Front Seat Cushion, Lower RH
2023-09 → —
|
TAUH15;GYU15,TAUA1# G,M,N | — | |
| 71873-F6010 |
Shield, Front Seat Cushion, Lower RH
2024-12 → —
|
TAUA15 S | — | |
| 71875A — Cover, Reclining Adjuster Inside, RH | ||||
| 71875-08240-C0 note |
Cover, Reclining Adjuster Inside, RH
2023-09 → —
|
TAUH15;GYU15,TAUA1# G,M,N | — | |
| 71875-08240-C0 note |
Cover, Reclining Adjuster Inside, RH
2024-12 → —
|
TAUA15 S | — | |
| 71875F — Cover, Reclining Adjuster Inside, RH (FOR RH SEAT) | ||||
| 71875-0E090-C0 note |
Cover, Reclining Adjuster Inside, RH (FOR RH SEAT)
2023-09 → —
|
TAUH15;TAUA1# N | — | |
| 71875-0E090-C0 note |
Cover, Reclining Adjuster Inside, RH (FOR RH SEAT)
2023-09 → —
|
GYU15,TAUA1# G,M | — | |
| 71875-0E090-C0 note |
Cover, Reclining Adjuster Inside, RH (FOR RH SEAT)
2024-12 → —
|
TAUA15 S | — | |
| 71876F — Cover, Reclining Adjuster Inside, LH (FOR RH SEAT) | ||||
| 71875-0E100-C0 note |
Cover, Reclining Adjuster Inside, LH (FOR RH SEAT)
2023-09 → —
|
TAUH15;TAUA1# N | — | |
| 71875-0E100-C0 note |
Cover, Reclining Adjuster Inside, LH (FOR RH SEAT)
2024-12 → —
|
TAUA15 S | — | |
| 71875-0E100-C0 note |
Cover, Reclining Adjuster Inside, LH (FOR RH SEAT)
2023-09 → —
|
GYU15,TAUA1# G,M | — | |
| 72010 — Adjuster Assy, Front Seat, RH | ||||
| 72010-0E360 |
Adjuster Assy, Front Seat, RH
2023-09 → —
|
GYU15,TAUA1# G | — | |
| 72010-F6010 |
Adjuster Assy, Front Seat, RH
2023-09 → —
|
TAUH15;TAUA1# M,N | — | |
| 72010-F6010 |
Adjuster Assy, Front Seat, RH
2024-12 → —
|
TAUA15 S | — | |
| 72125U — Cover, Seat Track, Upper Rear RH | ||||
| 72125-0R020 |
Cover, Seat Track, Upper Rear RH
2023-09 → —
|
TAUH15;GYU15,TAUA1# G,M,N | — | |
| 72125-0R020 |
Cover, Seat Track, Upper Rear RH
2024-12 → —
|
TAUA15 S | — | |
| 72265 — Cover, Seat Track Upper Rail, RH | ||||
| 72265-0R020 |
Cover, Seat Track Upper Rail, RH
2023-09 → —
|
TAUH15;GYU15,TAUA1# G,M,N | — | |
| 72265-0R020 |
Cover, Seat Track Upper Rail, RH
2024-12 → —
|
TAUA15 S | — | |
| 72713 — Bracket, Seat Adjuster Shield Clamp, RH | ||||
| 72713-F6010 |
Bracket, Seat Adjuster Shield Clamp, RH
2023-09 → —
|
TAUH15;GYU15,TAUA1# G,M,N | — | |
| 72713-F6010 |
Bracket, Seat Adjuster Shield Clamp, RH
2024-12 → —
|
TAUA15 S | — | |
| 72750D — Adjuster Assy, Lumbar Support, RH | ||||
| 72750-08020 |
Adjuster Assy, Lumbar Support, RH
2023-09 → —
|
GYU15,TAUA1# G | — | |
| 72760-0R040 |
Adjuster Assy, Lumbar Support, RH
2023-09 → —
|
TAUA1# N | — | |
| 72760-0R050 |
Adjuster Assy, Lumbar Support, RH
2023-09 → —
|
TAUH15;TAUA1# M | — | |
| 72760-0R050 |
Adjuster Assy, Lumbar Support, RH
2024-12 → —
|
TAUA15 S | — | |
| 73910A — Airbag Assy, Front Seat, RH | ||||
| 73910-0R080 |
Airbag Assy, Front Seat, RH
2024-12 → —
|
TAUA15 S | — | |
| 73910-0R080 |
Airbag Assy, Front Seat, RH
2023-09 → —
|
TAUH15;GYU15,TAUA1# G,M,N | — | |
| 739F0 — Airbag Assy, Front Seat Cushion, RH | ||||
| 739F0-02030 |
Airbag Assy, Front Seat Cushion, RH
2023-09 → —
|
TAUA1# N | — | |
| 739F0-0E020 |
Airbag Assy, Front Seat Cushion, RH
2023-09 → —
|
GYU15,TAUA1# G | — | |
| 739F0-F6030 |
Airbag Assy, Front Seat Cushion, RH
2023-09 → —
|
TAUH15;TAUA1# M | — | |
| 739F0-F6030 |
Airbag Assy, Front Seat Cushion, RH
2024-12 → —
|
TAUA15 S | — | |
| 79977G — Felt, Front Seatback, RH | ||||
| 79977-0R070 |
Felt, Front Seatback, RH
2023-09 → —
|
TAUH15;TAUA1# M,N | — | |
| 79977-0R070 |
Felt, Front Seatback, RH
2024-12 → —
|
TAUA15 S | — | |
| 79977N — Felt, Seatback | ||||
| 79977-78020 |
Felt, Seatback
2023-09 → —
|
TAUH15;GYU15,TAUA1# G,M,N | — | |
| 79977-78020 |
Felt, Seatback
2024-12 → —
|
TAUA15 S | — | |
| 85860A — Blower Assy, Seat Cushion Climate Control, RH | ||||
| 85801-0E010 |
Blower Assy, Seat Cushion Climate Control, RH
2023-09 → —
|
TAUH15;TAUA1# M | — | |
| 85801-0E010 |
Blower Assy, Seat Cushion Climate Control, RH
2024-12 → —
|
TAUA15 S | — | |
| 85801-0E080 |
Blower Assy, Seat Cushion Climate Control, RH
2023-09 → —
|
GYU15,TAUA1# G | — | |
| 85867 — Blower, Seatback Climate Control, RH | ||||
| 85867-0E110 |
Blower, Seatback Climate Control, RH
2023-09 → —
|
TAUH15;GYU15,TAUA1# G,M,N | — | |
| 85867-0E110 |
Blower, Seatback Climate Control, RH
2024-12 → —
|
TAUA15 S | — | |
| 87501A — Control Sub-assy, Seat Heater, RH | ||||
| 87501-0R030 |
Control Sub-assy, Seat Heater, RH
2023-09 → —
|
TAUH15;GYU15,TAUA1# G,M,N | — | |
| 87501-0R030 |
Control Sub-assy, Seat Heater, RH
2024-12 → —
|
TAUA15 S | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
