Toyota Lexus TX Series
2023-09 → present · chassis GYU15,TAUA1#,TAUH15 · catalogue 557410 · United States
Supported model
Data version 2024-08

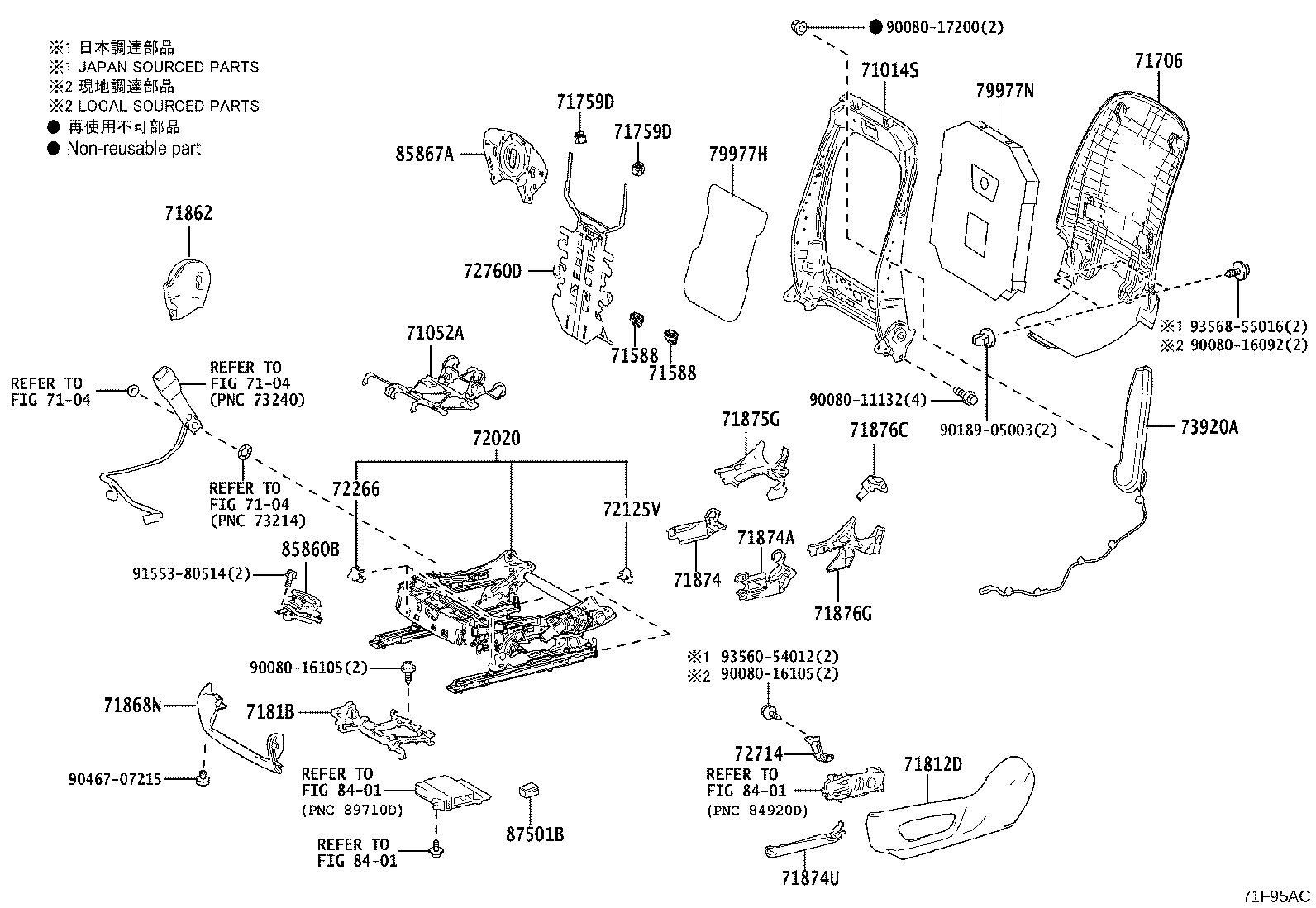

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 71014S — Frame Sub-assy, Front Seatback, LH | ||||
| 71014-0E090 |
Frame Sub-assy, Front Seatback, LH
2023-09 → —
|
TAUA1# N | — | |
| 71014-0E100 |
Frame Sub-assy, Front Seatback, LH
2023-09 → —
|
TAUH15;TAUA1# M | — | |
| 71014-0E100 |
Frame Sub-assy, Front Seatback, LH
2024-12 → —
|
TAUA15 S | — | |
| 71014-0E250 |
Frame Sub-assy, Front Seatback, LH
2023-09 → —
|
GYU15,TAUA1# G | — | |
| 71052A — Spring Sub-assy, Front Seat Cushion, LH | ||||
| 71051-02360 |
Spring Sub-assy, Front Seat Cushion, LH
2023-09 → —
|
TAUH15;GYU15,TAUA1# G,M,N | — | |
| 71051-02360 |
Spring Sub-assy, Front Seat Cushion, LH
2024-12 → —
|
TAUA15 S | — | |
| 71588 — Protector, Front Seatback Edge, NO.2 | ||||
| 71587-0R010 |
Protector, Front Seatback Edge, NO.2
2023-09 → —
|
TAUH15;GYU15,TAUA1# G,M,N | — | |
| 71587-0R010 |
Protector, Front Seatback Edge, NO.2
2024-12 → —
|
TAUA15 S | — | |
| 71706 — Board Sub-assy, Front Seatback, LH | ||||
| 71706-0E040-B0 note |
Board Sub-assy, Front Seatback, LH
2023-09 → —
|
GYU15,TAUA1# G | — | |
| 71706-0E040-C0 note |
Board Sub-assy, Front Seatback, LH
2023-09 → —
|
GYU15,TAUA1# G | — | |
| 71759D — Hook, Front Seatback, NO.2 | ||||
| 71759-0R020 |
Hook, Front Seatback, NO.2
2023-09 → —
|
TAUH15;GYU15,TAUA1# G,M,N | — | |
| 71759-0R020 |
Hook, Front Seatback, NO.2
2024-12 → —
|
TAUA15 S | — | |
| 71812D — Shield, Front Seat Cushion, LH | ||||
| 71812-F6010-C0 note |
Shield, Front Seat Cushion, LH
2023-09 → —
|
TAUH15;TAUA1# N | — | |
| 71812-F6010-C0 note |
Shield, Front Seat Cushion, LH
2023-09 → —
|
GYU15,TAUA1# G,M | — | |
| 71812-F6010-C0 note |
Shield, Front Seat Cushion, LH
2024-12 → —
|
TAUA15 S | — | |
| 7181B — Holder, Front Seat Cushion Wire Harness, LH | ||||
| 7181B-0R010 |
Holder, Front Seat Cushion Wire Harness, LH
2023-09 → 2024-08
ended
|
GYU15,TAUA1#,TAUH15 | — | |
| 7181B-0R011 |
Holder, Front Seat Cushion Wire Harness, LH
2024-09 → —
|
TAUH15;GYU15,TAUA1# G,M,N | — | |
| 7181B-0R011 |
Holder, Front Seat Cushion Wire Harness, LH
2024-12 → —
|
TAUA15 S | — | |
| 71862 — Shield, Front Seat Cushion, Inner LH | ||||
| 71862-0R100-C0 note |
Shield, Front Seat Cushion, Inner LH
2023-09 → —
|
TAUH15;TAUA1# N | — | |
| 71862-0R100-C0 note |
Shield, Front Seat Cushion, Inner LH
2024-12 → —
|
TAUA15 S | — | |
| 71862-0R100-C0 note |
Shield, Front Seat Cushion, Inner LH
2023-09 → —
|
GYU15,TAUA1# G,M | — | |
| 71868N — Shield, Front Seat Cushion, Front LH | ||||
| 71868-0E160-C0 note |
Shield, Front Seat Cushion, Front LH
2023-09 → —
|
GYU15,TAUA1# G | — | |
| 71868-F6010-C0 note |
Shield, Front Seat Cushion, Front LH
2023-09 → —
|
TAUH15;TAUA1# N | — | |
| 71868-F6010-C0 note |
Shield, Front Seat Cushion, Front LH
2023-09 → —
|
TAUA1# M | — | |
| 71868-F6010-C0 note |
Shield, Front Seat Cushion, Front LH
2024-12 → —
|
TAUA15 S | — | |
| 71874 — Shield, Front Seat Cushion, Lower LH | ||||
| 71874-0E230 |
Shield, Front Seat Cushion, Lower LH
2023-09 → —
|
TAUH15;GYU15,TAUA1# G,M | — | |
| 71874-0E230 |
Shield, Front Seat Cushion, Lower LH
2024-12 → —
|
TAUA15 S | — | |
| 71874-0R020 |
Shield, Front Seat Cushion, Lower LH
2023-09 → —
|
TAUA1# N | — | |
| 71874A — Shield, Front Seat Cushion, Lower LH | ||||
| 71874-0R030 |
Shield, Front Seat Cushion, Lower LH
2023-09 → —
|
TAUH15;GYU15,TAUA1# G,M,N | — | |
| 71874-0R030 |
Shield, Front Seat Cushion, Lower LH
2024-12 → —
|
TAUA15 S | — | |
| 71874U — Shield, Front Seat Cushion, Lower LH | ||||
| 71874-F6010 |
Shield, Front Seat Cushion, Lower LH
2023-09 → —
|
TAUH15;GYU15,TAUA1# G,M,N | — | |
| 71874-F6010 |
Shield, Front Seat Cushion, Lower LH
2024-12 → —
|
TAUA15 S | — | |
| 71875G — Cover, Reclining Adjuster Inside, RH (FOR LH SEAT) | ||||
| 71876-0E250-C0 note |
Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
2023-09 → —
|
TAUH15 | — | |
| 71876-0E250-C0 note |
Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
2023-09 → —
|
GYU15,TAUA1# G,M | — | |
| 71876-0E250-C0 note |
Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
2024-12 → —
|
TAUA15 S | — | |
| 71876-0R040-C0 note |
Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
2023-09 → —
|
TAUA1# N | — | |
| 71876C — Cover, Reclining Adjuster Inside, LH | ||||
| 71876-08230-C0 note |
Cover, Reclining Adjuster Inside, LH
2024-12 → —
|
TAUA15 S | — | |
| 71876-08230-C0 note |
Cover, Reclining Adjuster Inside, LH
2023-09 → —
|
TAUH15;GYU15,TAUA1# G,M,N | — | |
| 71876G — Cover, Reclining Adjuster Inside, LH (FOR LH SEAT) | ||||
| 71876-0R030-C0 note |
Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
2023-09 → —
|
TAUH15;TAUA1# N | — | |
| 71876-0R030-C0 note |
Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
2023-09 → —
|
GYU15,TAUA1# G,M | — | |
| 71876-0R030-C0 note |
Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
2024-12 → —
|
TAUA15 S | — | |
| 72020 — Adjuster Assy, Front Seat, LH | ||||
| 72020-0E420 |
Adjuster Assy, Front Seat, LH
2023-09 → —
|
GYU15,TAUA1# G | — | |
| 72020-F6010 |
Adjuster Assy, Front Seat, LH
2023-09 → —
|
TAUA1# N | — | |
| 72020-F6020 |
Adjuster Assy, Front Seat, LH
2023-09 → —
|
TAUH15;TAUA1# M | — | |
| 72020-F6020 |
Adjuster Assy, Front Seat, LH
2024-12 → —
|
TAUA15 S | — | |
| 72125V — Cover, Seat Track, Upper Rear LH | ||||
| 72125-0R020 |
Cover, Seat Track, Upper Rear LH
2023-09 → —
|
TAUH15;GYU15,TAUA1# G,M,N | — | |
| 72125-0R020 |
Cover, Seat Track, Upper Rear LH
2024-12 → —
|
TAUA15 S | — | |
| 72266 — Cover, Seat Track Upper Rail, LH | ||||
| 72265-0R020 |
Cover, Seat Track Upper Rail, LH
2023-09 → —
|
TAUH15;GYU15,TAUA1# G,M,N | — | |
| 72265-0R020 |
Cover, Seat Track Upper Rail, LH
2024-12 → —
|
TAUA15 S | — | |
| 72714 — Bracket, Seat Adjuster Shield Clamp, LH | ||||
| 72714-F6010 |
Bracket, Seat Adjuster Shield Clamp, LH
2023-09 → —
|
TAUH15;GYU15,TAUA1# G,M,N | — | |
| 72714-F6010 |
Bracket, Seat Adjuster Shield Clamp, LH
2024-12 → —
|
TAUA15 S | — | |
| 72760D — Adjuster Assy, Lumbar Support, LH | ||||
| 72750-08020 |
Adjuster Assy, Lumbar Support, LH
2023-09 → —
|
GYU15,TAUA1# G | — | |
| 72760-0R040 |
Adjuster Assy, Lumbar Support, LH
2023-09 → —
|
TAUA1# N | — | |
| 72760-0R050 |
Adjuster Assy, Lumbar Support, LH
2023-09 → —
|
TAUH15;TAUA1# M | — | |
| 72760-0R050 |
Adjuster Assy, Lumbar Support, LH
2024-12 → —
|
TAUA15 S | — | |
| 73920A — Airbag Assy, Front Seat, LH | ||||
| 73920-0R080 |
Airbag Assy, Front Seat, LH
2023-09 → —
|
TAUH15;GYU15,TAUA1# G,M,N | — | |
| 73920-0R080 |
Airbag Assy, Front Seat, LH
2024-12 → —
|
TAUA15 S | — | |
| 79977H — Felt, Front Seatback, LH | ||||
| 79977-0R070 |
Felt, Front Seatback, LH
2023-09 → —
|
TAUH15;TAUA1# M,N | — | |
| 79977-0R070 |
Felt, Front Seatback, LH
2024-12 → —
|
TAUA15 S | — | |
| 79977N — Felt, Seatback | ||||
| 79977-78020 |
Felt, Seatback
2023-09 → —
|
TAUH15;GYU15,TAUA1# G,M,N | — | |
| 79977-78020 |
Felt, Seatback
2024-12 → —
|
TAUA15 S | — | |
| 85860B — Blower Assy, Seat Cushion Climate Control, LH | ||||
| 85801-0E080 |
Blower Assy, Seat Cushion Climate Control, LH
2023-09 → —
|
GYU15,TAUA1# G | — | |
| 85802-0E050 |
Blower Assy, Seat Cushion Climate Control, LH
2023-09 → —
|
TAUH15;TAUA1# M | — | |
| 85802-0E050 |
Blower Assy, Seat Cushion Climate Control, LH
2024-12 → —
|
TAUA15 S | — | |
| 85867A — Blower, Seatback Climate Control, LH | ||||
| 85867-0E110 |
Blower, Seatback Climate Control, LH
2023-09 → —
|
TAUH15;GYU15,TAUA1# G,M,N | — | |
| 85867-0E110 |
Blower, Seatback Climate Control, LH
2024-12 → —
|
TAUA15 S | — | |
| 87501B — Control Sub-assy, Seat Heater, LH | ||||
| 87501-0R030 |
Control Sub-assy, Seat Heater, LH
2023-09 → —
|
TAUH15;GYU15,TAUA1# G,M,N | — | |
| 87501-0R030 |
Control Sub-assy, Seat Heater, LH
2024-12 → —
|
TAUA15 S | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
