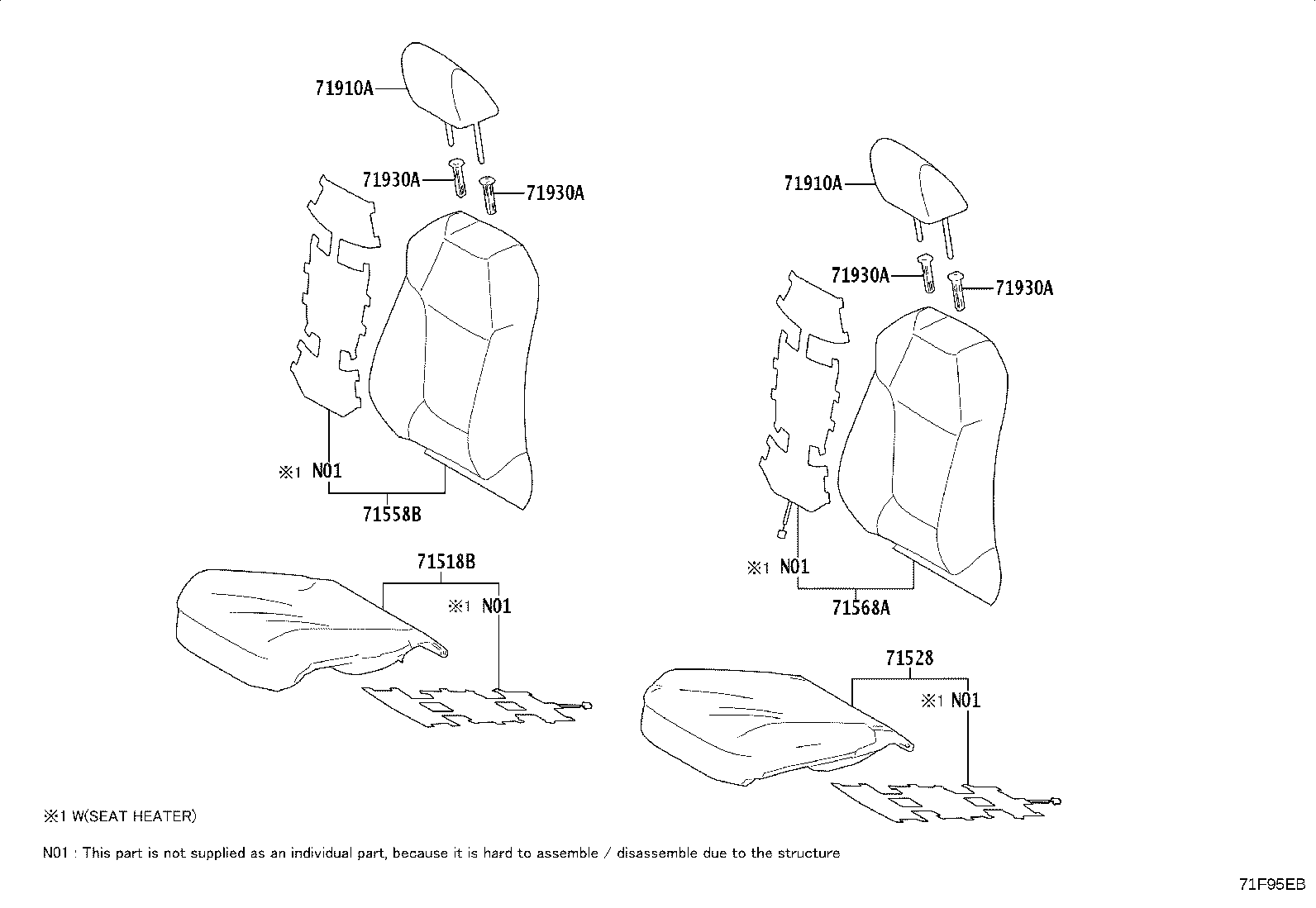

Toyota Lexus TX Series
2023-09 → present · chassis GYU15,TAUA1#,TAUH15 · catalogue 557410 · United States
Supported model
Data version 2024-08
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 71518B — Pad, Front Seat Cushion W/Cover, RH | ||||
| 71101-0E180-A3 note |
Pad, Front Seat Cushion W/Cover, RH
2024-12 → —
|
TAUA15 S | — | |
| 71101-0E180-A3 note |
Pad, Front Seat Cushion W/Cover, RH
2023-09 → —
|
TAUH15 | — | |
| 71101-0E180-C3 note |
Pad, Front Seat Cushion W/Cover, RH
2023-09 → —
|
TAUH15 | — | |
| 71101-0E180-C3 note |
Pad, Front Seat Cushion W/Cover, RH
2024-12 → —
|
TAUA15 S | — | |
| 71101-0E190-A3 note |
Pad, Front Seat Cushion W/Cover, RH
2023-09 → —
|
TAUH15 | — | |
| 71101-0E190-A3 note |
Pad, Front Seat Cushion W/Cover, RH
2023-09 → —
|
TAUH15 | — | |
| 71101-0E190-C3 note |
Pad, Front Seat Cushion W/Cover, RH
2023-09 → —
|
TAUH15 | — | |
| 71101-0E190-C3 note |
Pad, Front Seat Cushion W/Cover, RH
2023-09 → —
|
TAUH15 | — | |
| 71528 — Pad, Front Seat Cushion W/Cover, LH | ||||
| 71102-0E170-A3 note |
Pad, Front Seat Cushion W/Cover, LH
2023-09 → —
|
TAUH15 | — | |
| 71102-0E170-A3 note |
Pad, Front Seat Cushion W/Cover, LH
2024-12 → —
|
TAUA15 S | — | |
| 71102-0E170-C3 note |
Pad, Front Seat Cushion W/Cover, LH
2023-09 → —
|
TAUH15 | — | |
| 71102-0E170-C3 note |
Pad, Front Seat Cushion W/Cover, LH
2024-12 → —
|
TAUA15 S | — | |
| 71102-0E180-A3 note |
Pad, Front Seat Cushion W/Cover, LH
2023-09 → —
|
TAUH15 | — | |
| 71102-0E180-A3 note |
Pad, Front Seat Cushion W/Cover, LH
2023-09 → —
|
TAUH15 | — | |
| 71102-0E180-C3 note |
Pad, Front Seat Cushion W/Cover, LH
2023-09 → —
|
TAUH15 | — | |
| 71102-0E180-C3 note |
Pad, Front Seat Cushion W/Cover, LH
2023-09 → —
|
TAUH15 | — | |
| 71558B — Pad, Front Seatback W/Cover, RH | ||||
| 71401-0E080-A3 note |
Pad, Front Seatback W/Cover, RH
2023-09 → —
|
TAUH15 | — | |
| 71401-0E080-A3 note |
Pad, Front Seatback W/Cover, RH
2024-12 → —
|
TAUA15 S | — | |
| 71401-0E080-C3 note |
Pad, Front Seatback W/Cover, RH
2023-09 → —
|
TAUH15 | — | |
| 71401-0E080-C3 note |
Pad, Front Seatback W/Cover, RH
2024-12 → —
|
TAUA15 S | — | |
| 71401-0E090-A3 note |
Pad, Front Seatback W/Cover, RH
2023-09 → —
|
TAUH15 | — | |
| 71401-0E090-A3 note |
Pad, Front Seatback W/Cover, RH
2023-09 → —
|
TAUH15 | — | |
| 71401-0E090-C3 note |
Pad, Front Seatback W/Cover, RH
2023-09 → —
|
TAUH15 | — | |
| 71401-0E090-C3 note |
Pad, Front Seatback W/Cover, RH
2023-09 → —
|
TAUH15 | — | |
| 71568A — Pad, Front Seatback W/Cover, LH | ||||
| 71402-0E080-A3 note |
Pad, Front Seatback W/Cover, LH
2023-09 → —
|
TAUH15 | — | |
| 71402-0E080-A3 note |
Pad, Front Seatback W/Cover, LH
2024-12 → —
|
TAUA15 S | — | |
| 71402-0E080-C3 note |
Pad, Front Seatback W/Cover, LH
2023-09 → —
|
TAUH15 | — | |
| 71402-0E080-C3 note |
Pad, Front Seatback W/Cover, LH
2024-12 → —
|
TAUA15 S | — | |
| 71402-0E090-A3 note |
Pad, Front Seatback W/Cover, LH
2023-09 → —
|
TAUH15 | — | |
| 71402-0E090-A3 note |
Pad, Front Seatback W/Cover, LH
2023-09 → —
|
TAUH15 | — | |
| 71402-0E090-C3 note |
Pad, Front Seatback W/Cover, LH
2023-09 → —
|
TAUH15 | — | |
| 71402-0E090-C3 note |
Pad, Front Seatback W/Cover, LH
2023-09 → —
|
TAUH15 | — | |
| 71910A — Headrest Assy, Front Seat | ||||
| 71910-0E450-B0 note |
Headrest Assy, Front Seat
2023-09 → 2024-05
ended
|
TAUA1# M,N | — | |
| 71910-0E450-C0 note |
Headrest Assy, Front Seat
2023-09 → 2024-05
ended
|
TAUA1# M,N | — | |
| 71910-0E450-E0 note |
Headrest Assy, Front Seat
2023-09 → 2024-05
ended
|
TAUA1# M | — | |
| 71910-0E451-B0 note |
Headrest Assy, Front Seat
2024-05 → 2024-09
ended
|
TAUA1# M,N | — | |
| 71910-0E451-B1 note |
Headrest Assy, Front Seat
2024-09 → —
|
TAUA1# M,N | — | |
| 71910-0E451-C0 note |
Headrest Assy, Front Seat
2024-05 → 2024-09
ended
|
TAUA1# M,N | — | |
| 71910-0E451-C1 note |
Headrest Assy, Front Seat
2024-09 → —
|
TAUA1# M,N | — | |
| 71910-0E451-E0 note |
Headrest Assy, Front Seat
2024-05 → 2024-09
ended
|
TAUA1# M | — | |
| 71910-0E451-E1 note |
Headrest Assy, Front Seat
2024-09 → —
|
TAUA1# M | — | |
| 71910-0E760-B0 note |
Headrest Assy, Front Seat
2023-09 → 2024-05
ended
|
GYU15,TAUA1# G | — | |
| 71910-0E760-C0 note |
Headrest Assy, Front Seat
2023-09 → 2024-05
ended
|
GYU15,TAUA1# G | — | |
| 71910-0E760-E0 note |
Headrest Assy, Front Seat
2023-09 → 2024-05
ended
|
GYU15,TAUA1# G | — | |
| 71910-0E761-B0 note |
Headrest Assy, Front Seat
2024-05 → 2024-09
ended
|
GYU15,TAUA1# G | — | |
| 71910-0E761-B1 note |
Headrest Assy, Front Seat
2024-09 → —
|
GYU15,TAUA1# G | — | |
| 71910-0E761-C0 note |
Headrest Assy, Front Seat
2024-05 → 2024-09
ended
|
GYU15,TAUA1# G | — | |
| 71910-0E761-C1 note |
Headrest Assy, Front Seat
2024-09 → —
|
GYU15,TAUA1# G | — | |
| 71910-0E761-E0 note |
Headrest Assy, Front Seat
2024-05 → 2024-09
ended
|
GYU15,TAUA1# G | — | |
| 71910-0E761-E1 note |
Headrest Assy, Front Seat
2024-09 → —
|
GYU15,TAUA1# G | — | |
| 71910-0E780-B2 note |
Headrest Assy, Front Seat
2023-09 → 2024-09
ended
|
TAUH15 | — | |
| 71910-0E780-B2 note |
Headrest Assy, Front Seat
2023-09 → 2024-09
ended
|
TAUH15 | — | |
| 71910-0E780-C1 note |
Headrest Assy, Front Seat
2023-09 → 2024-09
ended
|
TAUH15 | — | |
| 71910-0E780-C1 note |
Headrest Assy, Front Seat
2023-09 → 2024-09
ended
|
TAUH15 | — | |
| 71910-0E780-C2 note |
Headrest Assy, Front Seat
2024-09 → —
|
TAUH15 | — | |
| 71910-0E780-C2 note |
Headrest Assy, Front Seat
2024-09 → —
|
TAUH15 | — | |
| 71910-0E780-C3 note |
Headrest Assy, Front Seat
2024-09 → —
|
TAUH15 | — | |
| 71910-0E780-C3 note |
Headrest Assy, Front Seat
2024-09 → —
|
TAUH15 | — | |
| 71910-F6030-20 note |
Headrest Assy, Front Seat
2024-09 → —
|
TAUH15 | — | |
| 71910-F6030-20 note |
Headrest Assy, Front Seat
2024-12 → —
|
TAUA15 S | — | |
| 71910-F6030-21 note |
Headrest Assy, Front Seat
2024-12 → —
|
TAUA15 S | — | |
| 71910-F6030-21 note |
Headrest Assy, Front Seat
2024-09 → —
|
TAUH15 | — | |
| 71910-F6030-B0 note |
Headrest Assy, Front Seat
2023-09 → 2024-09
ended
|
TAUH15 | — | |
| 71910-F6030-C9 note |
Headrest Assy, Front Seat
2023-09 → 2024-09
ended
|
TAUH15 | — | |
| 71930A — Support Assy, Front Seat Headrest | ||||
| 71930-0R070-C0 note |
Support Assy, Front Seat Headrest
2023-09 → —
|
TAUH15;TAUA1# N | — | |
| 71930-0R070-C0 note |
Support Assy, Front Seat Headrest
2023-09 → —
|
GYU15,TAUA1# G,M | — | |
| 71930-0R070-C0 note |
Support Assy, Front Seat Headrest
2024-12 → —
|
TAUA15 S | — | |
| 71931-0R050-C0 note |
Support Assy, Front Seat Headrest
2023-09 → —
|
TAUH15;TAUA1# N | — | |
| 71931-0R050-C0 note |
Support Assy, Front Seat Headrest
2023-09 → —
|
GYU15,TAUA1# G,M | — | |
| 71931-0R050-C0 note |
Support Assy, Front Seat Headrest
2024-12 → —
|
TAUA15 S | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
