Toyota Lexus TX Series
2023-09 → present · chassis GYU15,TAUA1#,TAUH15 · catalogue 557410 · United States
Supported model
Data version 2024-08

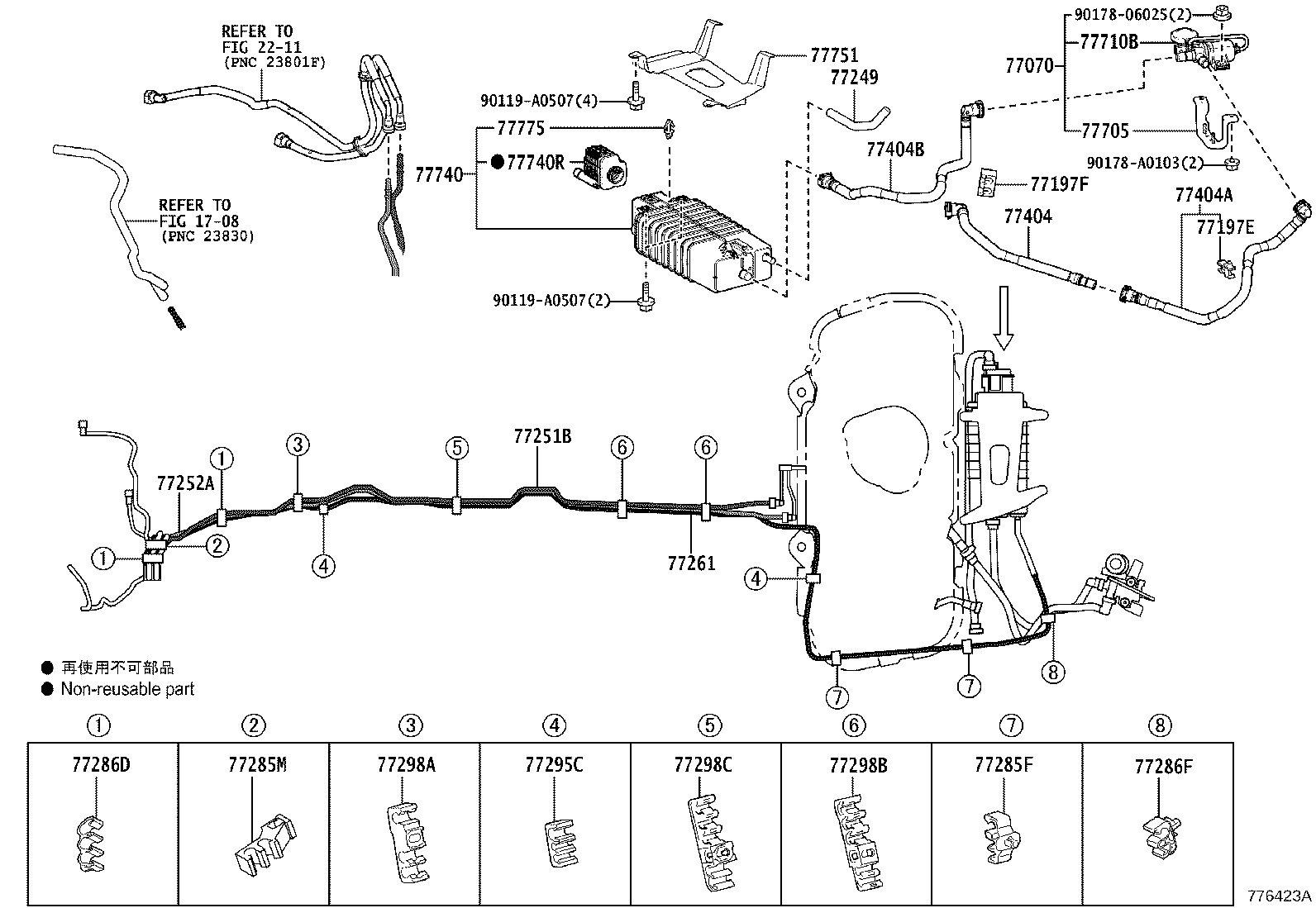

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 77070 — Valve Assy, Fuel Tank Solenoid W/Hose | ||||
| 77070-40010 |
Valve Assy, Fuel Tank Solenoid W/Hose
2023-12 → —
|
GYU15 | — | |
| 77197E — Clamp, Evaporation Vent Tube, NO.2 | ||||
| 77197-76050 |
Clamp, Evaporation Vent Tube, NO.2
2023-12 → —
|
GYU15 | — | |
| 77197F — Clamp, Evaporation Vent Tube, NO.2 | ||||
| 77197-40010 |
Clamp, Evaporation Vent Tube, NO.2
2023-12 → —
|
GYU15 | — | |
| 77249 — Hose, Fuel Emission | ||||
| 77249-0R060 |
Hose, Fuel Emission
2023-09 → —
|
TAUH15 | — | |
| 77249-40020 |
Hose, Fuel Emission
2023-12 → —
|
GYU15 | — | |
| 77249-42120 |
Hose, Fuel Emission
2023-09 → —
|
TAUA1# G,M,N | — | |
| 77249-42120 |
Hose, Fuel Emission
2024-12 → —
|
TAUA15 S | — | |
| 77251B — Tube, Fuel Main | ||||
| 77251-0E250 |
Tube, Fuel Main
2023-09 → —
|
TAUH15 | — | |
| 77251-0E300 |
Tube, Fuel Main
2023-09 → —
|
TAUA1# G,M,N | — | |
| 77251-0E300 |
Tube, Fuel Main
2024-12 → —
|
TAUA15 S | — | |
| 77251-0E320 |
Tube, Fuel Main
2023-12 → —
|
GYU15 | — | |
| 77252A — Tube, Fuel Main, NO.2 | ||||
| 77252-0E080 |
Tube, Fuel Main, NO.2
2023-12 → —
|
GYU15 | — | |
| 77261 — Tube Sub-assy, Fuel Emission | ||||
| 77261-0E250 |
Tube Sub-assy, Fuel Emission
2023-09 → —
|
TAUH15 | — | |
| 77261-0E280 |
Tube Sub-assy, Fuel Emission
2023-09 → —
|
TAUA1# G,M,N | — | |
| 77261-0E280 |
Tube Sub-assy, Fuel Emission
2024-12 → —
|
TAUA15 S | — | |
| 77261-0E330 |
Tube Sub-assy, Fuel Emission
2023-12 → —
|
GYU15 | — | |
| 77285F — Clamp, Fuel Tube, NO.1 | ||||
| 77285-0R080 |
Clamp, Fuel Tube, NO.1
2023-09 → —
|
TAUA1# G,M,N | — | |
| 77285-0R080 |
Clamp, Fuel Tube, NO.1
2024-12 → —
|
TAUA15 S | — | |
| 77285-33180 |
Clamp, Fuel Tube, NO.1
2023-12 → —
|
GYU15 | — | |
| 77285M — Clamp, Fuel Tube, NO.1 | ||||
| 77285-0E160 |
Clamp, Fuel Tube, NO.1
2024-12 → —
|
TAUA15 S | — | |
| 77285-0E160 |
Clamp, Fuel Tube, NO.1
2023-09 → —
|
TAUH15;TAUA1# G,M,N | — | |
| 77285-42160 |
Clamp, Fuel Tube, NO.1
2023-12 → —
|
GYU15 | — | |
| 77286D — Clamp, Fuel Tube, NO.2 | ||||
| 77286-20170 |
Clamp, Fuel Tube, NO.2
2023-12 → —
|
GYU15 | — | |
| 77286F — Clamp, Fuel Tube, NO.2 | ||||
| 77286-33120 |
Clamp, Fuel Tube, NO.2
2023-12 → —
|
GYU15 | — | |
| 77295C — Grommet, Fuel Tube | ||||
| 77295-42030 |
Grommet, Fuel Tube
2023-12 → —
|
GYU15 | — | |
| 77298A — Clamp, Fuel Tube, NO.4 | ||||
| 77298-33120 |
Clamp, Fuel Tube, NO.4
2023-12 → —
|
GYU15 | — | |
| 77298B — Clamp, Fuel Tube, NO.4 | ||||
| 77298-40040 |
Clamp, Fuel Tube, NO.4
2023-12 → —
|
GYU15 | — | |
| 77298C — Clamp, Fuel Tube, NO.4 | ||||
| 77298-68010 |
Clamp, Fuel Tube, NO.4
2023-12 → —
|
GYU15 | — | |
| 77404 — Hose Sub-assy, Fuel Tank Vent | ||||
| 77404-42150 |
Hose Sub-assy, Fuel Tank Vent
2023-12 → —
|
GYU15 | — | |
| 77404A — Hose Sub-assy, Fuel Tank Vent | ||||
| 77404-0E100 |
Hose Sub-assy, Fuel Tank Vent
2023-09 → —
|
TAUH15 | — | |
| 77404-40030 |
Hose Sub-assy, Fuel Tank Vent
2023-12 → —
|
GYU15 | — | |
| 77404B — Hose Sub-assy, Fuel Tank Vent, NO.2 | ||||
| 77404-40040 |
Hose Sub-assy, Fuel Tank Vent, NO.2
2023-12 → —
|
GYU15 | — | |
| 77705 — Bracket Sub-assy, Charcoal Canister | ||||
| 77705-40020 |
Bracket Sub-assy, Charcoal Canister
2023-12 → —
|
GYU15 | — | |
| 77710B — Valve Assy, Fuel Tank Solenoid Main | ||||
| 77710-48020 |
Valve Assy, Fuel Tank Solenoid Main
2023-12 → —
|
GYU15 | — | |
| 77740 — Canister Assy, Charcoal | ||||
| 77740-06240 |
Canister Assy, Charcoal
2023-09 → —
|
GYU15,TAUH15 | — | |
| 77740-0E100 |
Canister Assy, Charcoal
2023-09 → —
|
TAUA1# G,M,N | — | |
| 77740-0E100 |
Canister Assy, Charcoal
2024-12 → —
|
TAUA15 S | — | |
| 77740R — Pump Sub-assy, Leak Detection | ||||
| 90910-AF006 |
Pump Sub-assy, Leak Detection
2023-09 → —
|
TAUH15;GYU15,TAUA1# G,M,N | — | |
| 90910-AF006 |
Pump Sub-assy, Leak Detection
2024-12 → —
|
TAUA15 S | — | |
| 77751 — Bracket, Charcoal Canister Base | ||||
| 77751-40030 |
Bracket, Charcoal Canister Base
2023-12 → —
|
GYU15 | — | |
| 77775 — Guide, Charcoal Canister Outlet | ||||
| 77775-33010 |
Guide, Charcoal Canister Outlet
2023-09 → —
|
TAUH15;GYU15,TAUA1# G,M,N | — | |
| 77775-33010 |
Guide, Charcoal Canister Outlet
2024-12 → —
|
TAUA15 S | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
