Toyota Lexus TX Series
2023-09 → present · chassis GYU15,TAUA1#,TAUH15 · catalogue 557410 · United States
Supported model
Data version 2024-08

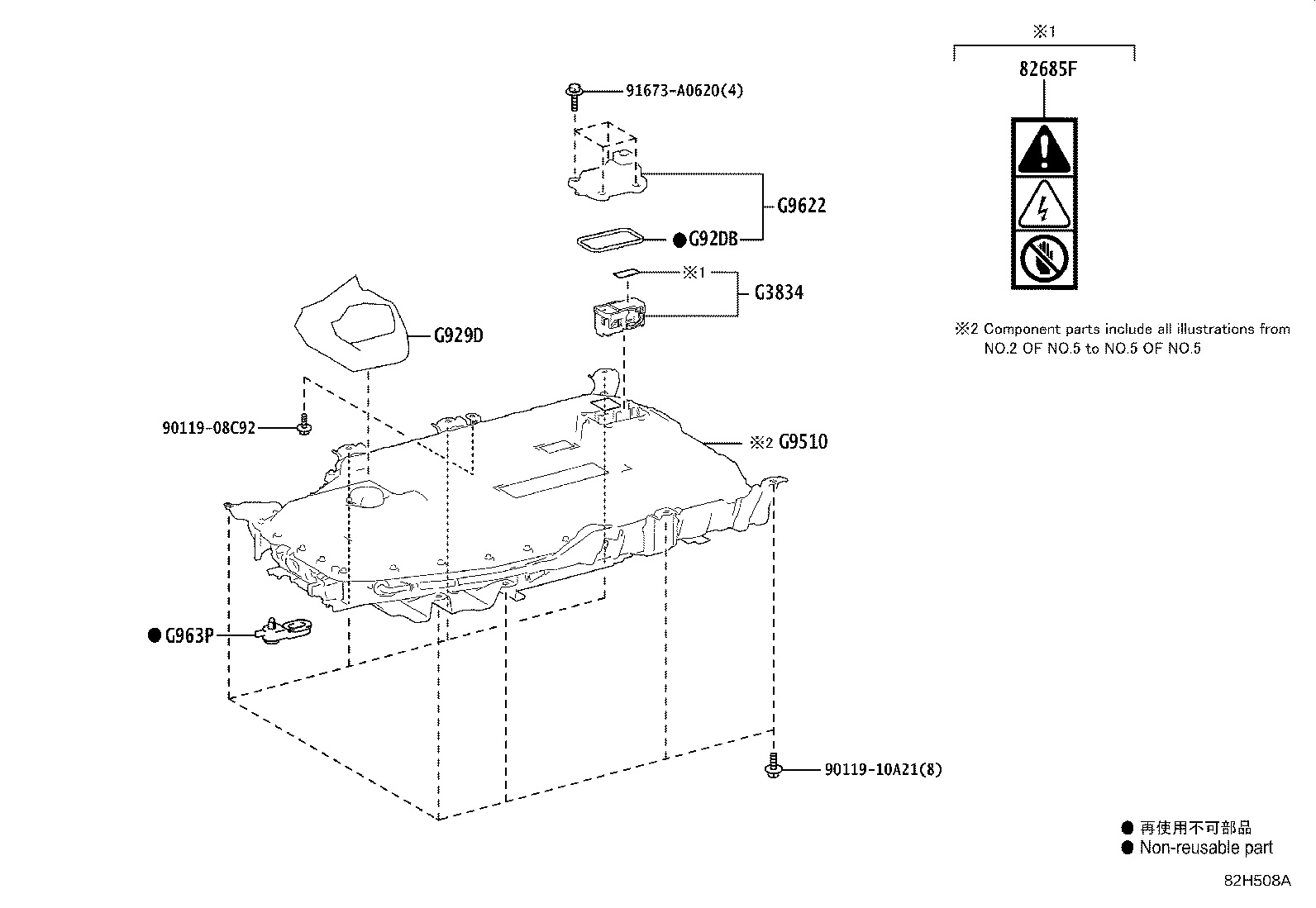

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82685F — Main Battery Caution Plate, NO.1 | ||||
| 82685-76021 |
Main Battery Caution Plate, NO.1
2023-12 → —
|
GYU15 | — | |
| G3834 — Grip, Service Plug | ||||
| G3834-47050 |
Grip, Service Plug
2023-09 → —
|
TAUH15 | — | |
| G3855-42010 |
Grip, Service Plug
2023-12 → —
|
GYU15 | — | |
| G929D — Insulator, Hybrido Battery, NO.3 | ||||
| G929D-48020 |
Insulator, Hybrido Battery, NO.3
2023-12 → —
|
GYU15 | — | |
| G92DB — Seal, Hybrid Battery, NO.1 | ||||
| G92DB-42010 |
Seal, Hybrid Battery, NO.1
2023-12 → —
|
GYU15 | — | |
| G9510 — Battery Assy, HV Supply | ||||
| G9510-40010 |
Battery Assy, HV Supply
2023-12 → 2024-12
ended
|
GYU15 | — | |
| G9510-40011 |
Battery Assy, HV Supply
2025-01 → —
|
GYU15 | — | |
| G9510-48142 |
Battery Assy, HV Supply
2023-09 → 2024-01
ended
|
TAUH15 | — | |
| G9510-48143 |
Battery Assy, HV Supply
2024-02 → 2024-11
ended
|
TAUH15 | — | |
| G9510-48144 |
Battery Assy, HV Supply
2024-12 → —
|
TAUH15 | — | |
| G9622 — Cover, Traction Battery, NO.2 | ||||
| G9622-42010 |
Cover, Traction Battery, NO.2
2023-12 → —
|
GYU15 | — | |
| G963P — Bracket, Traction Battery, NO.23 | ||||
| G963P-42010 |
Bracket, Traction Battery, NO.23
2023-12 → —
|
GYU15 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
