Toyota Lexus TX Series
2023-09 → present · chassis GYU15,TAUA1#,TAUH15 · catalogue 557410 · United States
Supported model
Data version 2024-08

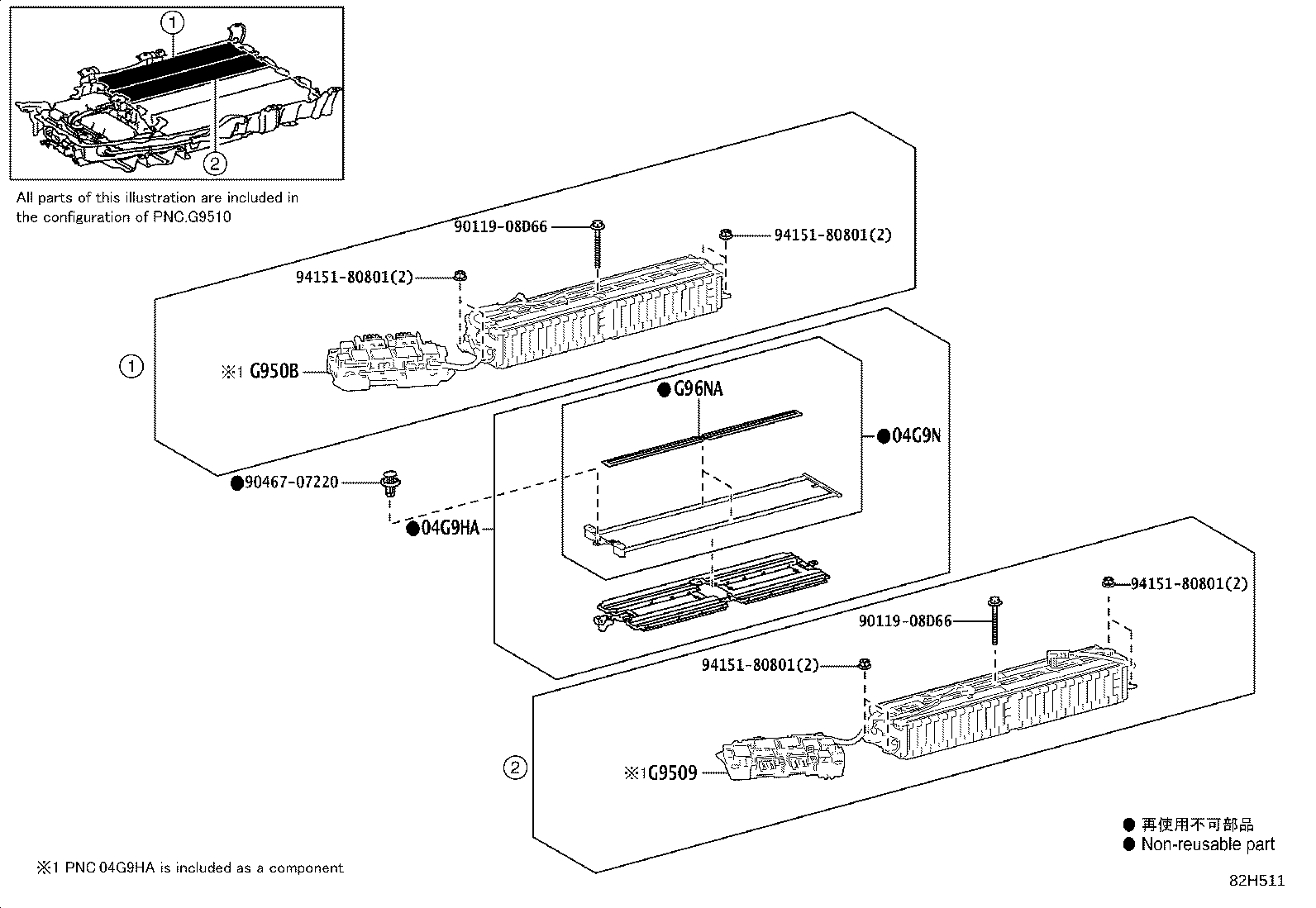

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 04G9HA — Heater Kit, Traction Battery, NO.2 | ||||
| 04G9H-42021 |
Heater Kit, Traction Battery, NO.2
2023-12 → —
|
GYU15 | — | |
| 04G9N — Conductor Kit, Traction Battery Cooler | ||||
| 04G9N-42011 |
Conductor Kit, Traction Battery Cooler
2023-12 → —
|
GYU15 | — | |
| G9509 — Stack Sub-assy, HV Supply, NO.2 | ||||
| G9509-49016 |
Stack Sub-assy, HV Supply, NO.2
2023-12 → —
|
GYU15 | — | |
| G950B — Stack Sub-assy, HV Supply, NO.4 | ||||
| G950B-49016 |
Stack Sub-assy, HV Supply, NO.4
2023-12 → —
|
GYU15 | — | |
| G96NA — Sheet, Traction Battery Cooler, NO.1 | ||||
| G96NA-42010 |
Sheet, Traction Battery Cooler, NO.1
2023-12 → —
|
GYU15 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
