Toyota Lexus TX Series
2023-09 → present · chassis GYU15,TAUA1#,TAUH15 · catalogue 557410 · United States
Supported model
Data version 2024-08

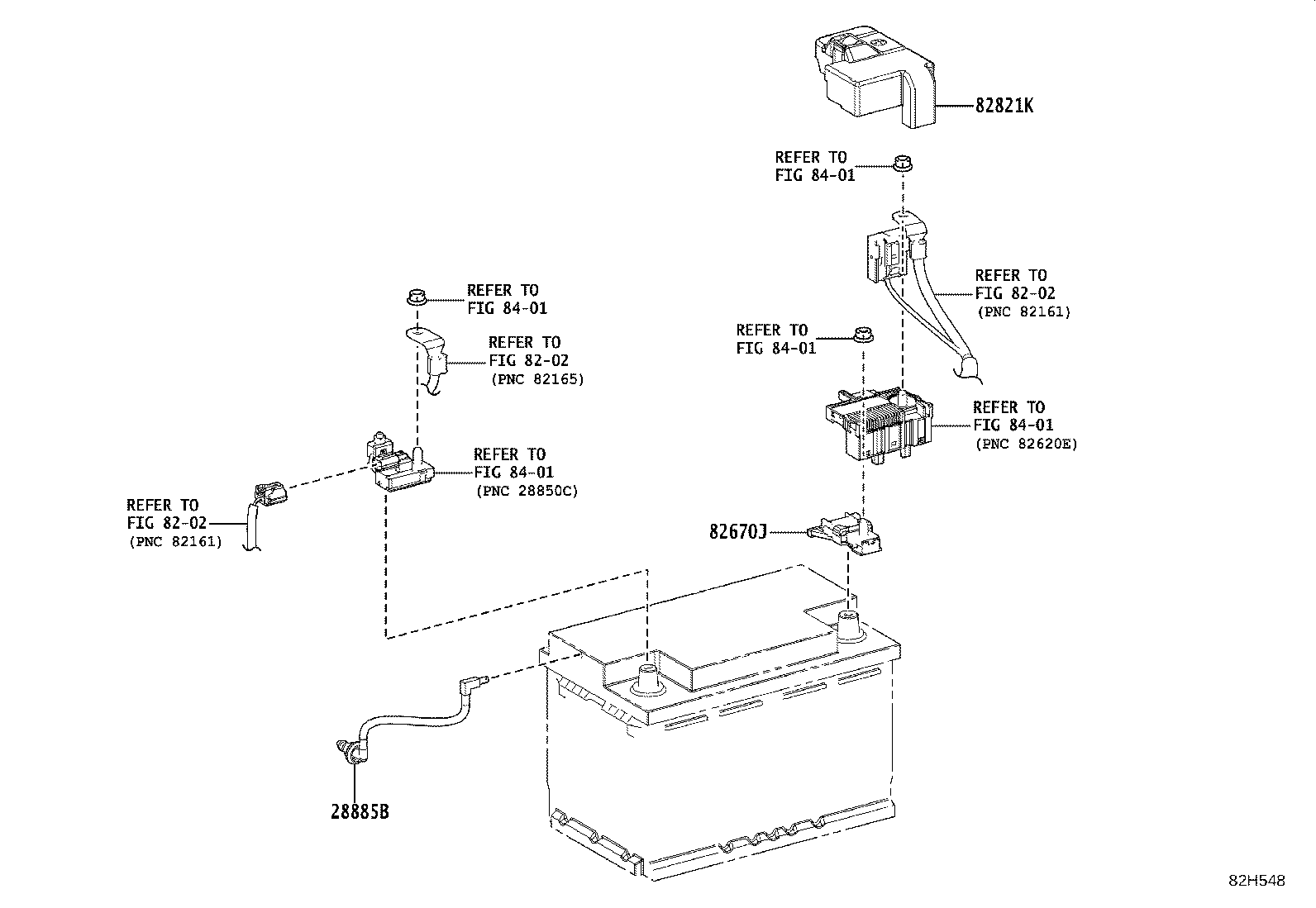

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 28885B — Hose, Battery | ||||
| 28885-F0140 |
Hose, Battery
2023-09 → —
|
T24,2GR GYU15,TAUH15 | — | |
| 82670J — Block Assy, Junction | ||||
| 82670-48160 |
Block Assy, Junction
2023-09 → —
|
GYU15,TAUH15 | — | |
| 82821K — Cover, Connector | ||||
| 82821-48490 |
Cover, Connector
2023-09 → —
|
GYU15,TAUH15 | — | |
| 82821-78120 |
Cover, Connector
2023-09 → —
|
TAUA1# G,M,N | — | |
| 82821-78120 |
Cover, Connector
2024-12 → —
|
TAUA15 S | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
